36100-42010 Mitsubishi 4D55 L300 Starter Motor Wholesale

36100-42010 Starter Motor Wholesale Support for 4D55 Legacy Vehicles

Legacy commercial vehicles stay in service through regional repair networks, but the same 4D55 label can cover several body styles and production years. A useful enquiry therefore combines 36100-42010 with the vehicle, year and removed-starter appearance before stock is reserved.

Long supersession lists can connect related numbers without proving that every housing version fits the buyer’s vehicle. Confirm ten teeth, the two-hole face, locating shoulder, cable side and clearance around the solenoid before accepting a substitute for an older L300 or Hyundai.

36100-42010 Starter Motor Dimensions for Export B2B Buyers

This offer is defined as 12V, 2.0kW, 10T, module 2.54 and clockwise rotation. Keeping that complete set beside 36100-42010 helps parts counters avoid an adjacent 4D55 starter with thirteen teeth or another drive position.

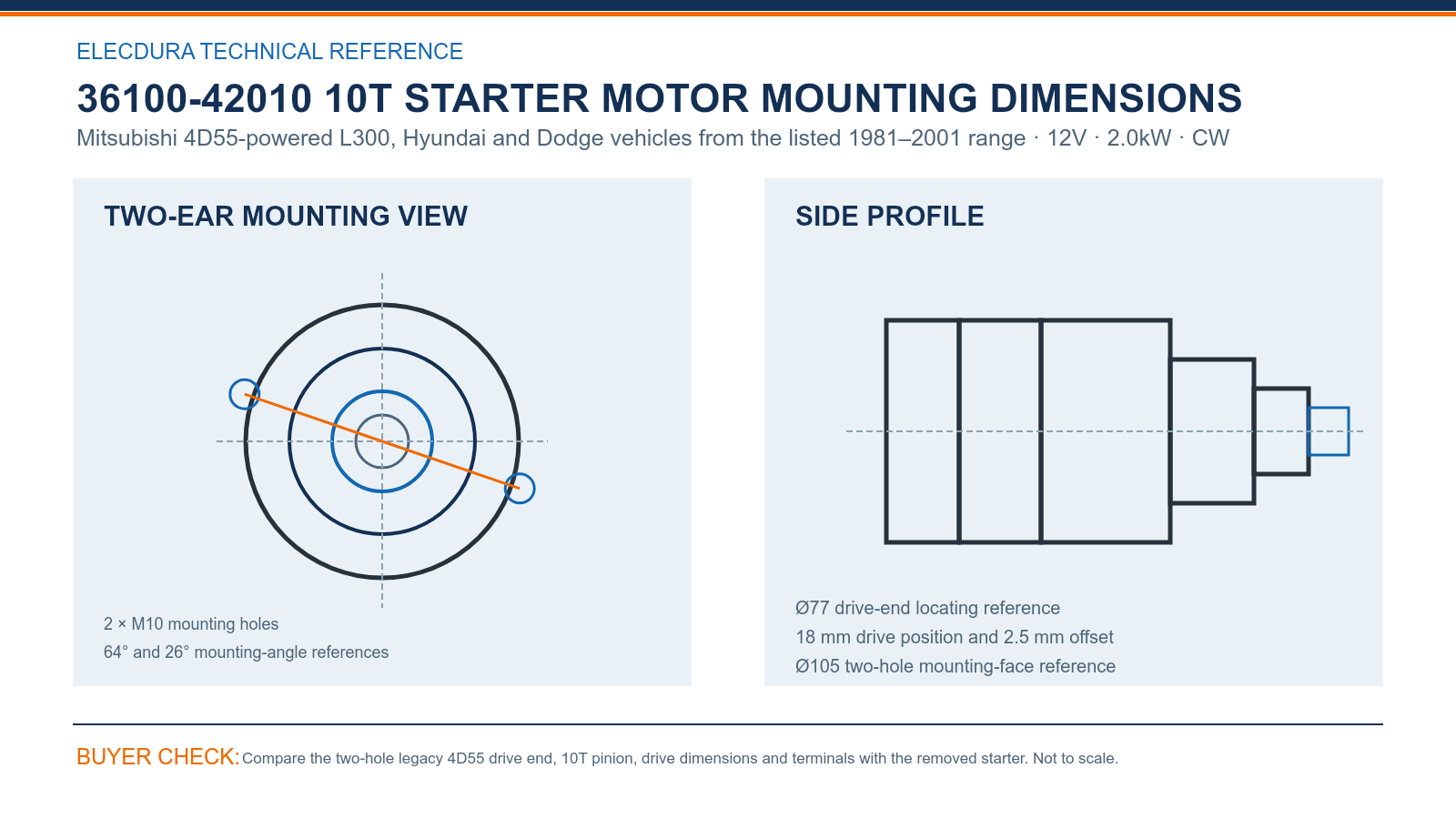

36100-42010 Mitsubishi 4D55 Starter Motor Drawing for Export Wholesalers — compare the drawing with the removed starter before placing a volume order.

Compare two M10 holes, the Ø105 face, Ø77 locating reference, 18 mm drive position and 2.5 mm offset. The 64° and 26° orientation references help identify the represented legacy drive end when labels are faded or missing.

36100-42010 Starter Motor Supersession Checks for Distributors

Hyundai 36100-42010 and 36100-42011 link to numerous Mitsubishi M002T and MD numbers shown in the table. Buyers can use the group for sourcing, while vehicle model, production year and old-unit photographs determine whether this specific 10T version belongs in the order.

Export wholesalers should segment demand by market and vehicle rather than placing all legacy 4D55 requests in one bin. A confirmed L300, Hyundai or Dodge application can retain its own reference history while sharing stock only after the mounting and terminal comparison agrees.

36100-42010 Starter Motor Legacy Stock and Production Capability

Slow-moving legacy stock benefits from dry packaging, protected terminals and a readable label on both product and carton. Receiving should count ten teeth and compare the face and offset before units are distributed to markets where returns are costly.

Elecdura’s video presents starter-motor assembly and electrical testing for wholesale supply. It supports supplier evaluation while legacy-parts buyers continue to specify their required carton labels, moisture protection, shipment mix and replacement-market destinations.

36100-42010 Starter Motor FAQs for Legacy 4D55 Wholesalers

Why are vehicle model and year important for 36100-42010?

The listed application range covers Mitsubishi, Hyundai and Dodge vehicles from 1981–2001. Model and year narrow the enquiry to the buyer’s actual vehicle and help interpret long supersession lists. Add the 4D55 engine and removed-starter photographs so the legacy reference remains connected to the represented ten-tooth product.

How does the 10T version differ from a nearby 4D55 or 4D56 starter?

Ten teeth, 2.0kW output and the 18 mm drive position define this 36100-42010 product, while adjacent families may show thirteen teeth, different power or another projection. Purchasing should keep the complete technical specification and vehicle details together rather than assuming every similar M002T reference belongs in the same bin.

Which dimensions help identify the represented legacy flange?

Check two M10 holes on the Ø105 face and measure the Ø77 locating shoulder. From the side, compare the 18 mm drive position and 2.5 mm offset; the 64° and 26° references establish orientation. These values are especially useful when the old label is faded but the casting remains measurable.

How should a buyer use the long Mitsubishi MD reference list?

Use the exact MD or M002T number found on the old unit as a search key, then add vehicle, year, 4D55 engine and physical images. Do not combine every listed supersession into a single customer claim. The reference family supports sourcing, while the ten-tooth flange comparison determines whether this specific product is suitable.

What evidence helps when a legacy starter label is unreadable?

Photograph the old unit from the front, both sides, pinion end and terminal end, and include measurements of the locating shoulder and mounting holes. Add the vehicle identification and engine plate. Those details allow a structured comparison with 36100-42010 without guessing an OE number or relying on memory from a previous repair.

How should slow-moving 36100-42010 stock be packed for export?

Use a carton that supports the motor body, protects both mounting ears and prevents the pinion from contacting the box. Cap exposed terminals and include moisture protection for sea freight or long warehouse storage. Clear 10T and 4D55 labeling helps distant distributors identify stock without reopening every carton.

What workshop checks can reduce returns on older 4D55 vehicles?

Load-test the battery, clean grounds, measure voltage drop and confirm the start signal reaches the solenoid under demand. Inspect the ring gear and cable terminals for age-related damage. These checks often reveal electrical resistance or vehicle-side wear that installing a new 36100-42010 starter would not resolve by itself.

What should an importer email for 36100-42010 pricing?

Provide make, model, production year, 4D55 engine details, all readable starter numbers and clear drive-end and terminal photographs. State quantities by market, labeling needs, packing preference and requested arrival date. Elecdura can then review the ten-tooth legacy version and prepare wholesale terms suited to the shipment.

Request 36100-42010 Starter Motor Wholesale Terms for 4D55

Email the vehicle make, model, year, 4D55 engine information, complete old-unit numbers, front and terminal photographs, quantities by destination and packing request to info@elecdurauto.com. Elecdura will review the 36100-42010 10T version and prepare wholesale terms.
