36100-47650 Hyundai D4BH Starter Motor Distributor

36100-47650 Starter Motor Distributor Support for D4BH Vehicles

D4BH vehicles remain active in markets where workshops repair older vans and utility vehicles rather than replace them. A useful quotation therefore names the vehicle, production period and expected annual demand, allowing stock depth and delivery timing to reflect the buyer’s actual repair market.

Do not merge this 10T 2.0kW starter with the previously listed 36100-57650 D4BH product, which has a different power and tooth definition. Confirm the old label, two-ear face, drive position and terminal side before placing the two numbers in a common warehouse group.

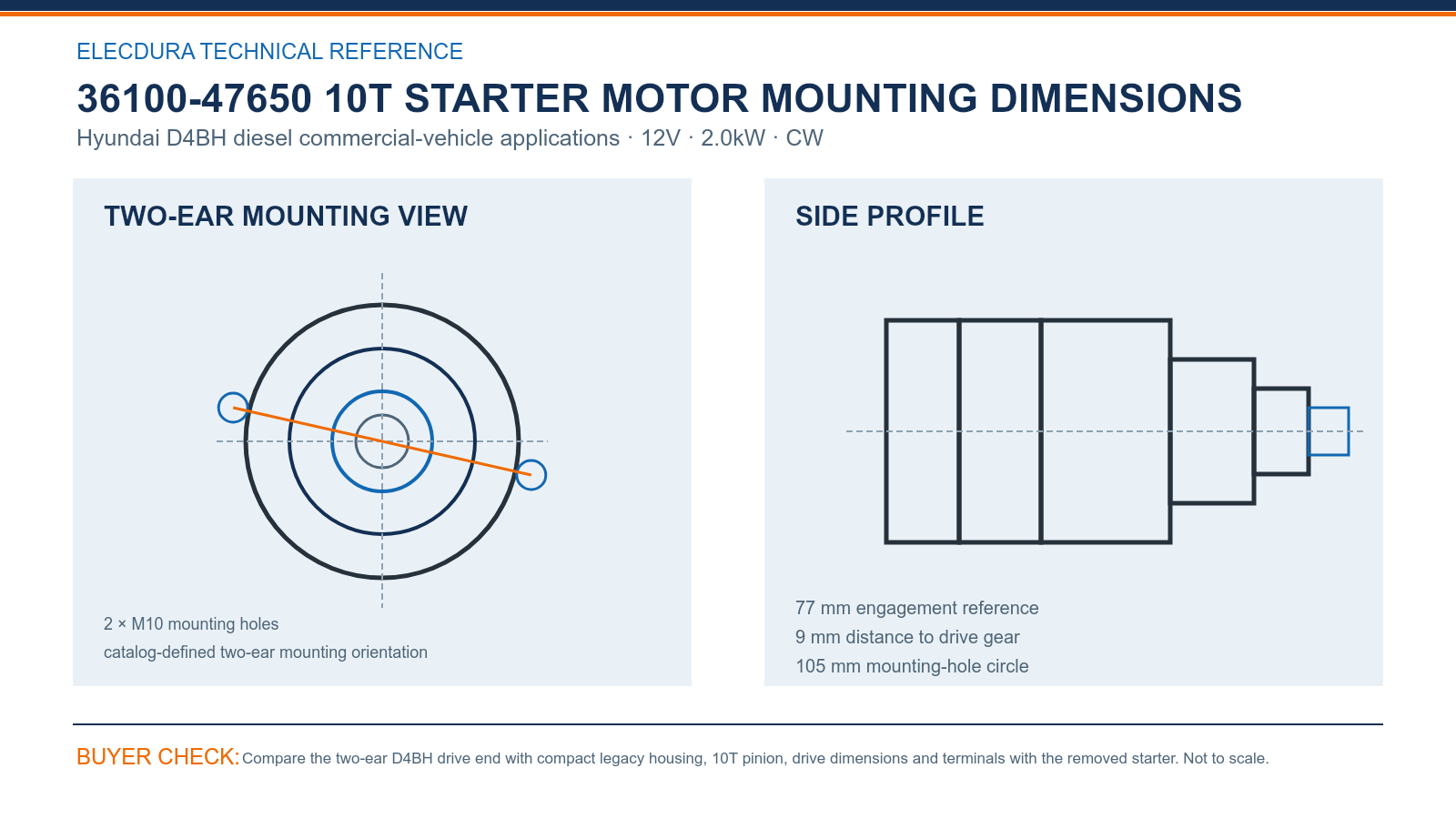

36100-47650 Starter Motor Drawing for B2B Mounting Comparison

This product is defined by 12V, 2.0kW, 10T, module 2.54 and clockwise rotation. These values give purchasing a concise separator from the 2.2kW 13T D4BH alternative and should remain visible from enquiry through receiving.

36100-47650 Hyundai D4BH Starter Motor Drawing for Distributors — compare the drawing with the removed starter before placing a volume order.

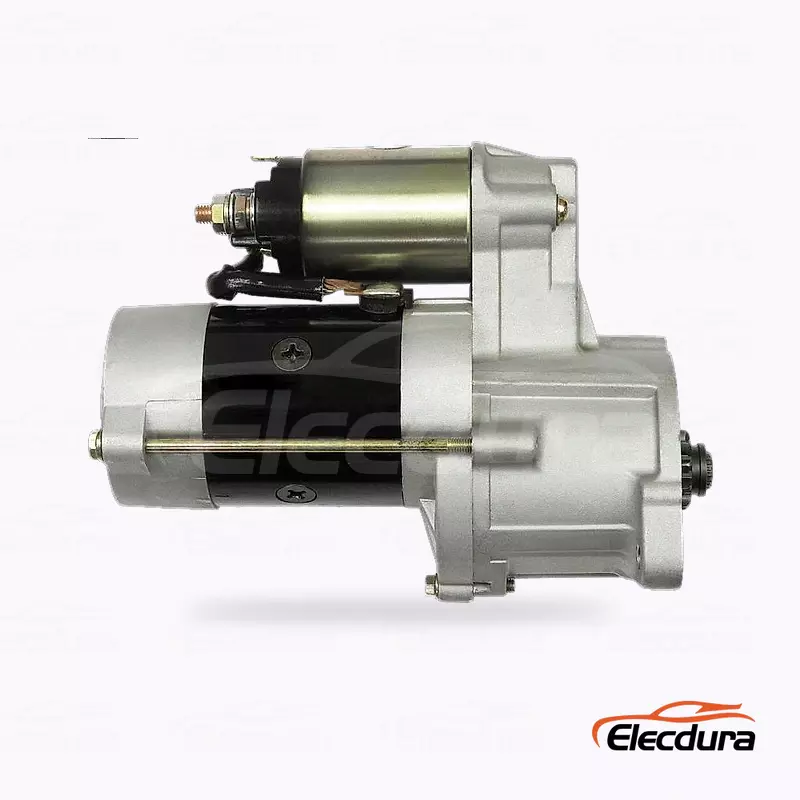

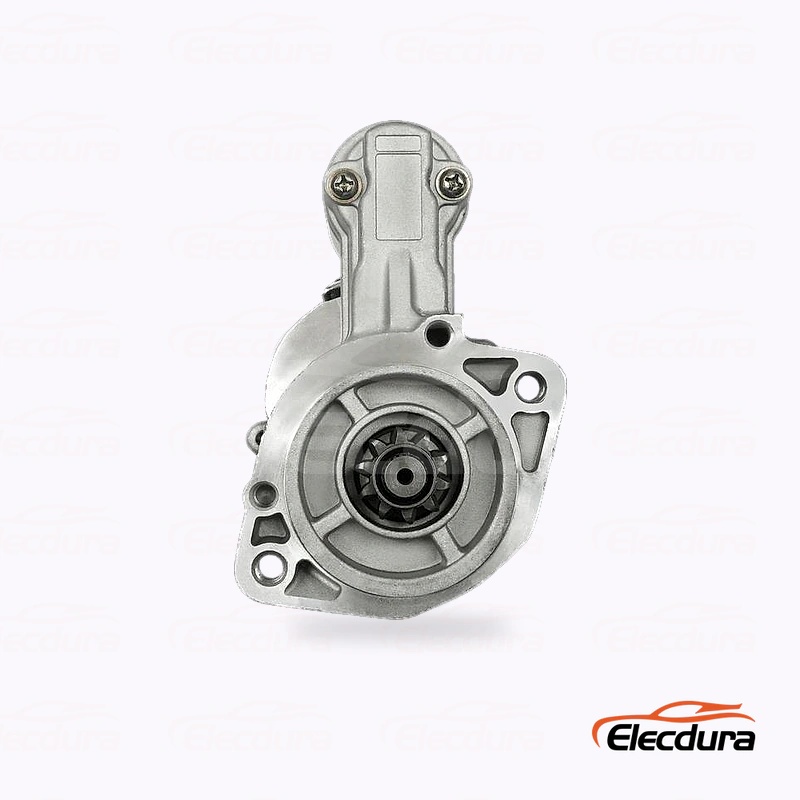

The represented drive end uses two M10 holes, a 77 mm engagement reference, 9 mm drive-gear distance and 105 mm hole-location circle. Compare the compact side profile as well, because the shorter drive position is an important part of this legacy configuration.

36100-47650 Starter Motor Cross-References for Parts Distributors

36100-47650 links to HQ808670, TM000A18601 and several Mitsubishi M2T and MD numbers. The cross-reference group helps search older purchasing systems, but the D4BH vehicle and the physical 10T two-ear starter remain the decisive order details.

Legacy specialists can reduce slow-moving inventory by grouping only vehicles that have passed the same physical comparison. Retain vehicle year, old-unit number and photographs by customer, so a successful Galloper or H-1 installation does not become an unsupported promise for every D4BH application.

36100-47650 Starter Motor Legacy Supply and Testing Capability

Protect the two mounting ears and pinion from carton impact, and cap exposed terminals for long storage. Receiving teams should verify the 2.0kW label, ten teeth and compact drive position before assigning units to legacy Hyundai stock.

Elecdura’s production video introduces starter assembly and electrical testing for wholesale programs. It gives legacy-parts distributors a view of manufacturing capability while they specify labeling, moisture protection, mixed-container packing and delivery requirements.

36100-47650 Starter Motor FAQs for D4BH Parts Distributors

How is 36100-47650 separated from the 36100-57650 D4BH starter?

The 36100-47650 product is defined as 12V, 2.0kW and 10T with a 9 mm drive-gear distance. The supplier’s 36100-57650 product carries a different 2.2kW and 13T definition. Keep both numbers, tooth counts and front views separate in purchasing and warehouse systems even though the engine description is shared.

What evidence is useful when an older Hyundai starter label is difficult to read?

Photograph the label under angled light, record the Hyundai model, year, chassis and D4BH engine information, and capture straight views of the drive end and terminals. Partial M2T, MD or Mando markings may also help. Do not reconstruct a missing number from memory; let the visible geometry and vehicle details support the sourcing discussion.

Why does the 9 mm drive-gear distance matter on 36100-47650?

The short 9 mm distance is part of the compact drive-end definition and helps distinguish this starter from another two-ear D4BH unit. Compare it with the 77 mm engagement reference, both M10 holes and the 105 mm circle. Matching only the motor body or ten-tooth count leaves an important installation dimension unchecked.

Can HQ808670 or M2T63171 be quoted instead of 36100-47650?

Both numbers can be included because they appear in the supplier-listed reference group. Record the number actually visible on the removed unit and attach the D4BH vehicle and mounting photographs. The interchange assists database searching, but it should not replace the 12V 2.0kW 10T specification and compact two-ear comparison.

How should a distributor plan stock for older D4BH vehicle demand?

Review sales by vehicle model, destination market and repair season instead of ordering one large undifferentiated quantity. Keep a modest confirmed reserve and replenish from actual withdrawals. Recording which customers use the 36100-47650 10T version reduces slow stock and prevents it from being confused with the separate 13T D4BH product.

What packaging is appropriate when 36100-47650 may remain in storage?

Support the motor body so neither mounting ear carries the carton load, cap the terminals and protect the pinion from impact. Add moisture resistance for ocean freight or humid warehouses. Labels should show 36100-47650, 2.0kW and 10T clearly, allowing staff to identify the legacy unit without repeatedly opening the package.

What should a workshop test before replacing a D4BH starter?

Check battery capacity under load, clean the main cable and ground connections, and measure voltage drop while the start circuit is engaged. Confirm the solenoid command, inspect the ring gear and verify that the engine turns freely. These steps help distinguish a genuine starter fault from low voltage, wiring resistance or a mechanical restriction.

Which details help Elecdura quote 36100-47650 for export distribution?

Provide the Hyundai model and year, D4BH engine plate, complete old-unit references, square front, side and terminal photographs, quantity and annual demand. Add destination country, carton requirements and delivery target. Elecdura can review the compact 10T version and prepare distributor pricing without combining it with another D4BH starter.

Request 36100-47650 Starter Motor Distributor Terms for D4BH

Send the Hyundai model, year, D4BH engine details, all readable starter references, square drive-end and terminal images, required quantity and destination to info@elecdurauto.com. Elecdura will review the 36100-47650 10T version and prepare distributor terms.
