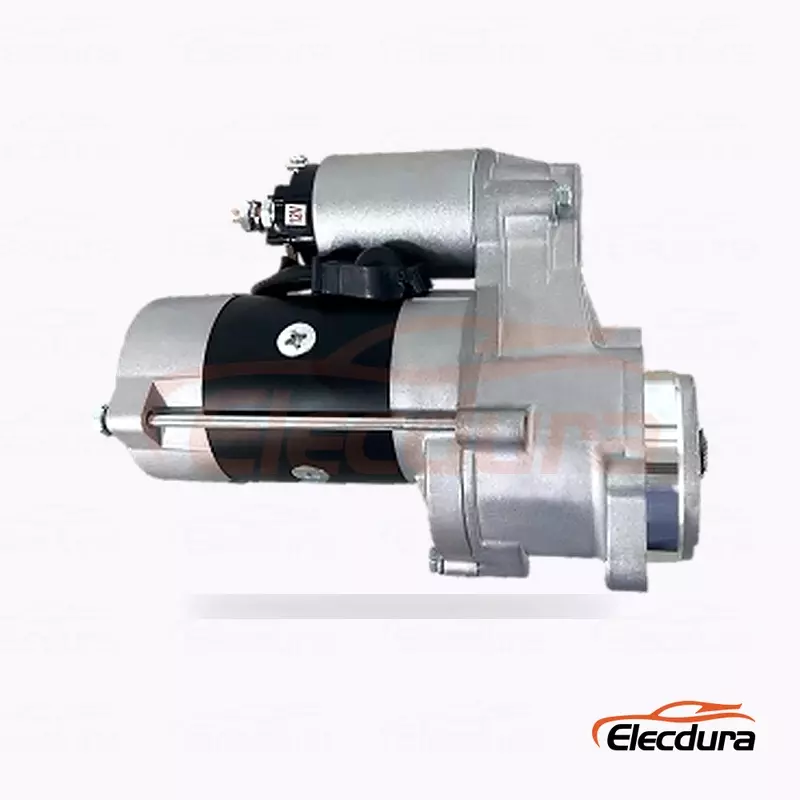

36100-4A000 Hyundai D4CB Starter Motor Wholesale

36100-4A000 Starter Motor Wholesale Value for D4CB Parts Buyers

D4CB demand can come from H-1, Starex, Porter and Kia Sorento channels, so the vehicle model and year add real value to an enquiry. Distributors can consolidate a confirmed physical product while keeping sales histories separate by vehicle and destination market.

The familiar 36100-4A000 number should be checked against the removed starter rather than treated as a complete fitment answer. Compare ten teeth, both M10 ears, the locating area and cable-side clearance, especially when older and newer D4CB vehicles are stocked together.

36100-4A000 Starter Motor Dimensions for B2B Fitment Checks

The offered combination is 12V, 2.2kW, 10T, module 2.54 and clockwise rotation. Keeping these values together on the quote and carton label separates this starter from nearby D4CB products that may share a vehicle description but use another drive end.

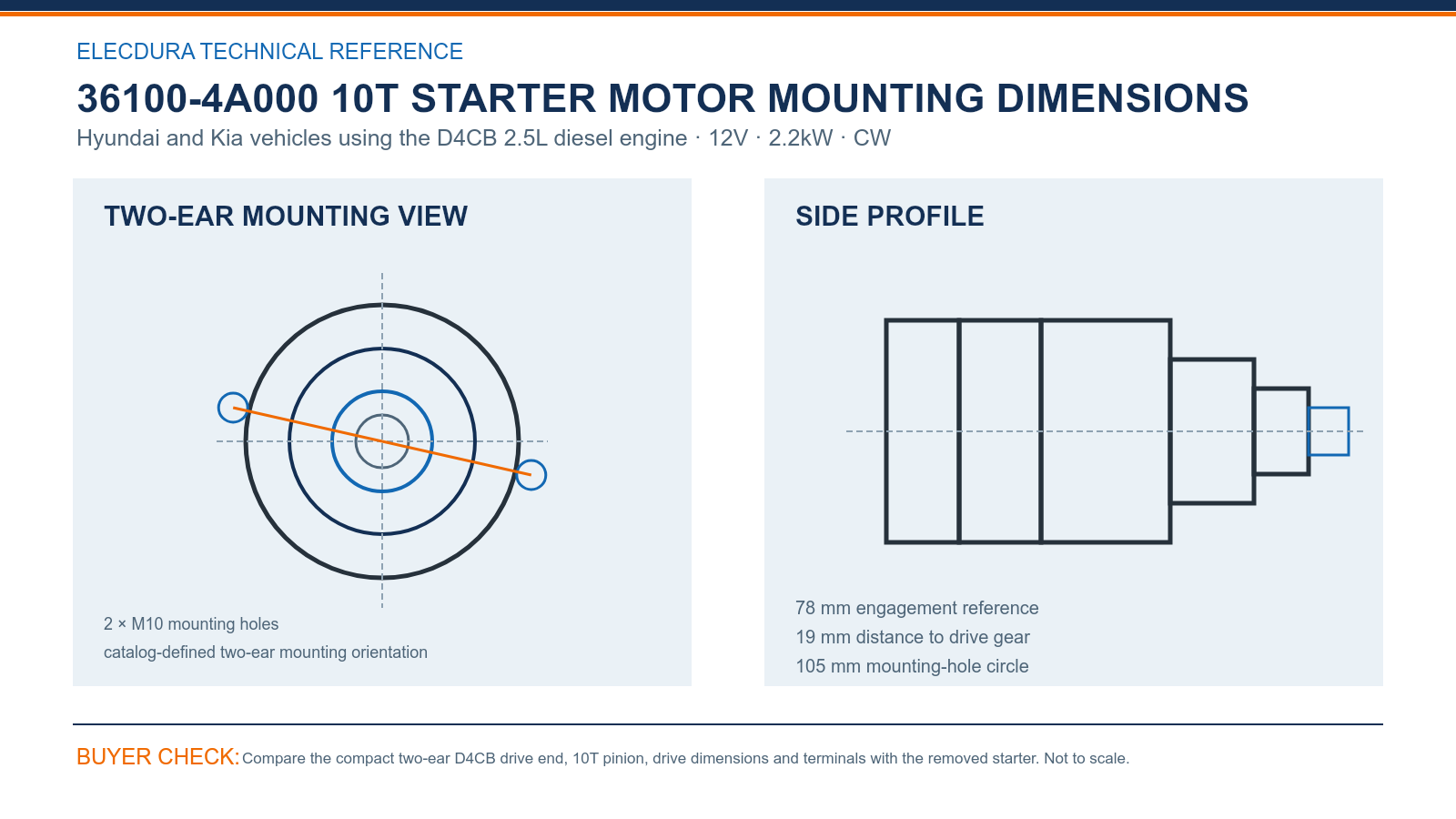

36100-4A000 Hyundai D4CB Starter Motor Drawing for Wholesale Buyers — compare the drawing with the removed starter before placing a volume order.

Use the drawing to compare the 78 mm engagement reference, 19 mm drive-gear distance, two M10 holes and 105 mm hole-location circle. Straight front and side photographs of the old unit allow these four points to be checked before a wholesale shipment is dispatched.

36100-4A000 Starter Motor OE Guidance for Hyundai Distributors

36100-4A000 and 36100-4A010 are the main Hyundai and Kia numbers, with TM000A23601, 1250128 and 32712N supporting aftermarket searches. Keep the complete number found on the old starter beside the D4CB engine and vehicle information.

A distributor serving vans, pickups and SUVs should forecast each channel separately because order frequency and delivery urgency differ. Share stock only after the two-ear face and 10T drive match; then label the bin with the primary OE and D4CB identity for clear repeat ordering.

36100-4A000 Starter Motor Wholesale Supply and Quality Capability

For the first lot, inspect ten teeth, both mounting ears, terminal protection, rating labels and carton support. Sample units from different pallet positions and retain clear receiving photographs so future D4CB replenishment can be compared with the same accepted product appearance.

The video below shows Elecdura starter-motor assembly and electrical testing for B2B supply. Hyundai and Kia parts buyers can review production capability while defining their own requirements for samples, carton marking, export packing and scheduled deliveries.

36100-4A000 Starter Motor FAQs for D4CB Wholesale Buyers

Which D4CB vehicle details should accompany a 36100-4A000 enquiry?

Provide the Hyundai or Kia model, production year, VIN or chassis information where available, and a clear D4CB engine-plate photograph. Add the complete number and several straight views of the removed starter. These details help separate an H-1, Starex, Porter or Sorento request without assuming that every D4CB installation uses the same drive end.

How should 36100-4A010 be used when the old starter shows 36100-4A000?

36100-4A010 can support the sourcing discussion because it belongs to the listed Hyundai and Kia reference group. Keep the exact 36100-4A000 marking, vehicle information and old-unit photographs in the enquiry as well. The cross-reference opens a search route, while the ten-tooth pinion and two-ear mounting comparison establish the physical product requested.

Why are 10T and module 2.54 both important for this D4CB starter?

Ten teeth states the pinion count, while module 2.54 describes the gear size used for engagement. A starter can look similar yet use a different gear relationship. Keep both values with 12V, 2.2kW and clockwise rotation on quotations and warehouse labels so purchasing does not rely on the vehicle name or housing appearance alone.

What should a buyer compare on the 36100-4A000 mounting drawing?

Check the two M10 mounting holes, the 105 mm hole-location circle, the 78 mm engagement reference and the 19 mm distance to the drive gear. Use a square front photograph and a straight side view of the removed unit. Agreement across these points gives a practical remote screen before sample freight or volume production is authorized.

Can every 2.5L D4CB vehicle be supplied from one 36100-4A000 stock line?

Only vehicles whose old starter matches the listed reference, 10T drive and two-ear geometry should share the line. Record the models that have been confirmed and keep unfamiliar variants outside the common bin until photographs and dimensions agree. This approach preserves stocking efficiency without turning a successful fitment into a universal D4CB claim.

What should be inspected when the first D4CB wholesale shipment arrives?

Sample cartons from different pallet positions and count ten teeth, inspect both mounting ears, confirm the rating label and check terminal protection. Review body support and moisture resistance before redistribution. Photograph accepted units from the same front and side angles used during matching so later 36100-4A000 deliveries can be compared with a stable receiving reference.

Which vehicle-side tests help avoid returning a good 36100-4A000 starter?

Load-test the 12V battery, measure voltage drop on the positive and ground paths, and verify the start signal at the solenoid while cranking is requested. Inspect cable terminals, the ring gear and engine freedom. These checks can expose a weak electrical supply or mechanical problem that replacing the D4CB starter alone would not correct.

What makes a 36100-4A000 wholesale request ready for quotation?

Send the D4CB engine plate, vehicle model and year, every readable OE number, clear mounting, pinion and terminal images, quantity and annual estimate. Include destination, packing preference and required delivery date. Elecdura can then compare the stated ten-tooth version and respond with relevant pricing, lead time and sample options in one commercial reply.

Request 36100-4A000 Starter Motor Wholesale Pricing from Elecdura

Email the D4CB engine and vehicle model, year, complete old-starter numbers, front and terminal photographs, quantity and destination to info@elecdurauto.com. Elecdura will compare the 36100-4A000 configuration and reply with practical wholesale pricing and lead-time information.
