3695772 Cummins ISG12 Starter Motor Wholesale

3695772 Starter Motor Distributor Application Guide for Cummins ISG12 and ISG 11.8L engine

For a fleet parts team, 3695772 identifies one Cummins ISG12 and ISG 11.8L engine requirement. The 24V 8.0kW 11T module-4.233 ISG12 specified configuration provides a clear fitment boundary for sample, stock and replacement reviews.

A useful enquiry pairs 3695772 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

3695772 Starter Motor Mounting Dimensions for Distributor Approval

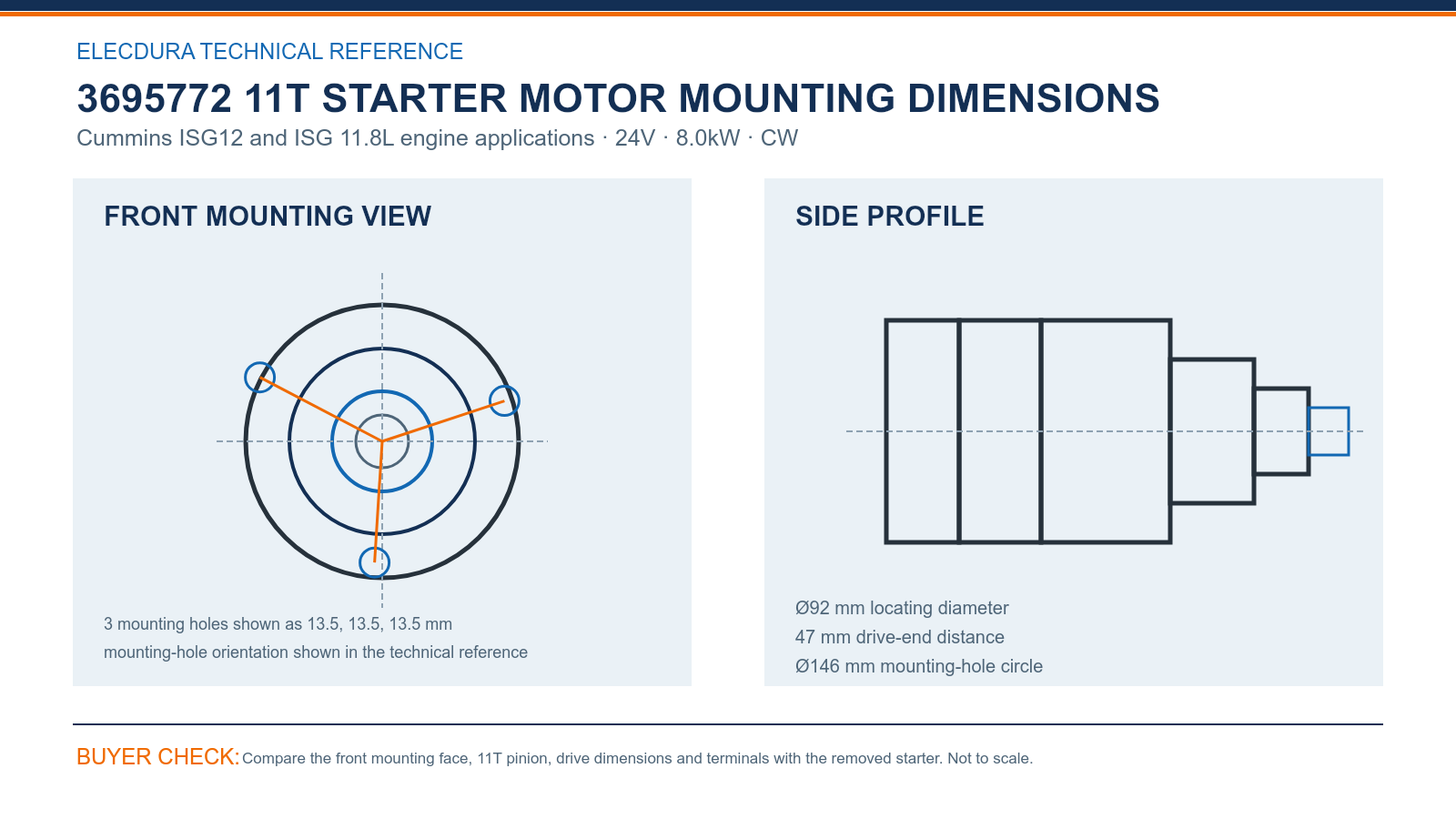

The 3695772 dimensional review starts at the mounting face: verify 3 mounting holes shown as 13.5, 13.5, 13.5 mm, Ø146 mm mounting-hole circle and Ø92 mm locating diameter. Then compare the 47 mm drive-end distance. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For 3695772, count the 11T pinion and confirm module 4.233, CW rotation, 24V and 8.0kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

3695772 Starter Motor Cross-Reference Review for Fleet Buyers

• Use the full number: Start with 3695772, 3695899, 3698436, 3698453, 5560068, S1175201, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

3695772 Starter Motor Wholesale Supply and Export Planning

Distributors can combine an initial 3695772 sample plan with a later replenishment forecast. MOQ is 20 pieces, normal lead time is 7–15 days after confirmation and warranty is 18 months under agreed terms; packing and shipping are quoted for the actual route and arrival requirement.

Hold ISG12 stock according to truck population, route exposure and branch recovery time. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

B2B buyers can use the video to review Elecdura’s starter-motor assembly and test process. The approved 3695772 configuration remains defined by 24V, 8.0kW, 11T, CW, mounting geometry and terminals, which should be retained in the purchase record.

3695772 Starter Motor Questions from Commercial Buyers

What traceability details should accompany a warranty enquiry for 3695772 in a Cummins ISG12 branch review?

Keep the carton or product traceability code and note when and where 3695772 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete records allow technical support to respond without repeated requests for basic information.

Which old-unit checks matter most when sourcing 3695772 during branch sourcing?

Confirm 3695772 with the complete OE number, Cummins ISG12 and ISG 11.8L engine record and clear front, side and terminal photographs. Check 11T, 3 mounting holes shown as 13.5, 13.5, 13.5 mm and 47 mm drive-end distance so visually related starters stay on separate order lines.

How should buyers use the 3695772 cross-reference group in a Cummins ISG12 branch sourcing program?

A number match narrows the search but does not finish it. For 3695772, compare the stated application, electrical output, 11T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

What workshop readings are useful when diagnosing a starting complaint involving 3695772 during a Cummins ISG12 branch electrical check?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing 3695772. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Why is a straight mounting-face photo useful for confirming 3695772 during a Cummins ISG12 branch inspection?

Align the removed starter and 3695772 at the mounting face. Compare Ø92 mm locating diameter, Ø146 mm mounting-hole circle, 3 mounting holes shown as 13.5, 13.5, 13.5 mm and 47 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

Can urgent service demand and routine 3695772 replenishment share one enquiry in a Cummins ISG12 branch program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent 3695772 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

How can a buyer quarantine a mismatched 3695772 unit quickly during a Cummins ISG12 branch receiving check?

For 3695772, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 13.5, 13.5, 13.5 mm, Ø92 mm locating diameter and the specified 11T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What should be included in a wholesale enquiry for 3695772 in a Cummins ISG12 branch sourcing program?

Send the complete OE number, exact Cummins ISG12 and ISG 11.8L engine details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 24V 8.0kW 11T CW starter with packing, lead time, warranty and freight options.

3695772 Request a Starter Motor Fleet Supply Quote

Prepare the 3695772 enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
