4935789 Cummins 6BT5.9 Starter Motor Wholesale

4935789 Cummins 6BT5.9 Starter Wholesale for Engine Suppliers

A 6BT5.9 starter request may come from a generator assembler, construction-equipment dealer or vehicle workshop. Pairing 4935789 with the actual engine plate and installation photographs gives Elecdura enough context to prepare one clear quotation instead of treating every Cummins B-series application alike.

The wide 4935789 reference family includes Mitsubishi, Nikko and WAI routes, yet the supplied item must remain the 24V 5.5kW 10T module-3.175 version. The Ø80 locating feature, Ø127 three-hole face and terminal layout provide useful physical separation from nearby alternatives.

4935789 5.5kW 10T Starter Specifications and Drawing

For purchasing and receiving, list 24V, 5.5kW, 10T, module 3.175 and clockwise rotation as a single specification. This prevents a generic 6BT label from hiding a lower-output starter or a different pinion that cannot be accepted for the recorded installation.

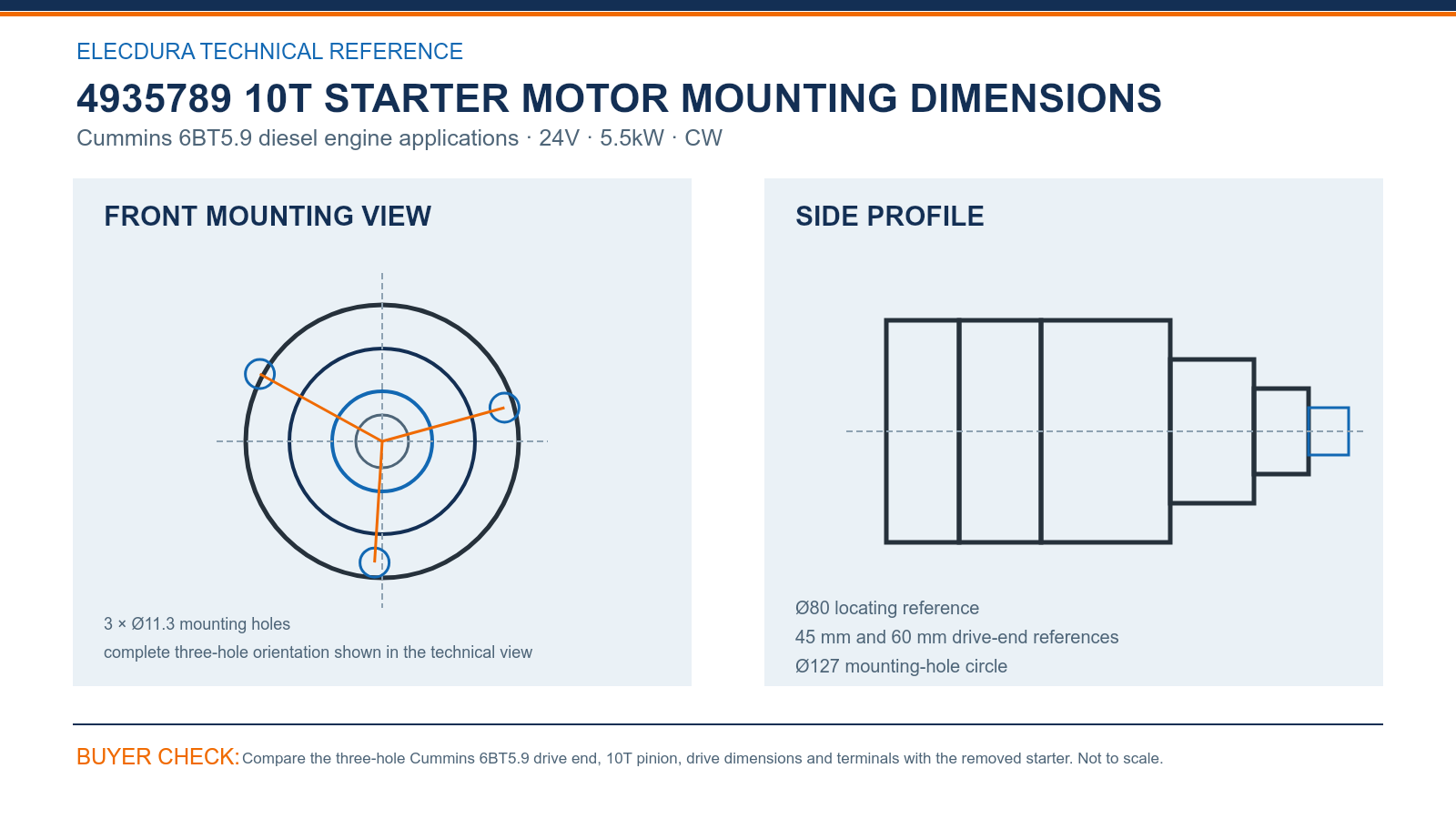

4935789 Cummins 6BT5.9 Starter Drawing for Engine Buyers — compare the drawing with the removed starter before placing a volume order.

The technical view highlights three Ø11.3 mounting holes, an Ø127 mounting circle, Ø80 locating reference and 45 mm and 60 mm drive-end dimensions. These points are particularly valuable when the engine sits inside a genset enclosure with limited terminal and housing clearance.

4935789 Cummins Mitsubishi Nikko Reference Matching

3283329, M003T90071, M003T90072, M3T90071, M3T90072, 02231034 and several 023000-series numbers support searches around 4935789. Keep the primary Cummins number and 6BT5.9 record prominent so the longer cross-reference list remains a lookup aid rather than a fitment claim.

Distributors serving vehicles, machines and generator sets should record the end use against each customer account. Once the flange and terminal position are accepted, those fitment details can speed later supply without implying that every 6BT5.9 installation shares identical space or wiring.

4935789 Starter Stock Supply for Equipment and Genset Fleets

Elecdura can support trial orders, replenishment quantities and project-based genset demand. Packing should immobilise the starter, protect the solenoid and terminals, and preserve the mounting face; first-lot receiving can sample the pinion, rating mark and reference before warehouse entry.

The manufacturing video below introduces Elecdura starter assembly and electrical testing for B2B programs. Cummins buyers can use it when discussing sample inspection, batch documentation and production planning while 4935789 remains tied to the defined 6BT5.9 configuration.

4935789 Starter FAQs for Cummins 6BT5.9 Buyers

Why should the end use accompany a 4935789 enquiry?

A Cummins 6BT5.9 may power a vehicle, machine or generator set, and each installation can have different space, wiring and service priorities. Identifying the end use helps Elecdura interpret the old-unit photographs, plan appropriate packing and discuss stock quantity without assuming that every B-series installation is identical.

How should Mitsubishi and Nikko numbers support 4935789 matching?

M003T90071, M3T90072 and the listed Nikko 023000-series numbers are useful lookup routes around 4935789. They should be recorded with the full Cummins number and 6BT5.9 application. Physical confirmation still uses the 10T drive, three-hole mounting face, locating feature and terminal orientation. Keep the end-use record beside those references.

Which dimensions help identify the 4935789 drive end?

Use three Ø11.3 mounting holes on the Ø127 circle, the Ø80 locating reference and the 45 mm and 60 mm drive-end values. A straight photograph should show all ears and the pinion. These points give remote buyers a measurable comparison before dispatching a replacement. Add a terminal-side image for clearance review.

What complete rating belongs on the purchase order?

Write 4935789, 24V, 5.5kW, 10T, module 3.175 and CW on the order line. The engine or equipment record should sit beside it. This combined description is detailed enough for sales, purchasing and receiving to recognise the correct Cummins 6BT5.9 starter without relying on one reference.

What photographs are useful for a generator-set installation?

Besides front, side and terminal views of the starter, show the genset enclosure, cable route and nearby frame members before removal. Limited access can make housing length and terminal orientation important. Include the engine plate and genset model so the supplier can understand the physical and commercial context.

How can an importer inspect the first 4935789 lot efficiently?

Sample cartons across the shipment and verify the marking, ten-tooth pinion, three-hole face, Ø80 locating feature, terminals and packing support. Photograph the samples against the purchase record. If the units are split between equipment and genset customers, maintain traceable allocations by carton or batch. Record the sample count and carton positions.

Which cable checks matter on a slow-cranking 6BT5.9 engine?

Measure positive and ground voltage drop while cranking, confirm battery condition under load and inspect cable size, connections and isolators. A 5.5kW starter needs a low-resistance supply path. Recording these results before replacement reduces mistaken returns and helps identify site wiring problems that may damage a new unit.

What should a 4935789 wholesale email contain?

Include the Cummins engine plate, equipment or genset model, old-unit references, clear flange and terminal photographs, quantity, consumption forecast, packing needs, destination and required date. Elecdura can then review one complete requirement and return pricing, lead time and shipment options appropriate to the buyer’s service channel.

Request 4935789 Cummins Starter Motor Wholesale Pricing

Email the Cummins 6BT5.9 engine plate, equipment or genset model, old-starter references, flange and terminal photographs, quantity, forecast, packing request and destination to info@elecdurauto.com. Elecdura will review 4935789 and return wholesale pricing, lead time and suitable supply terms.
