5256984 Cummins 6CT8.3 Starter Motor Wholesale

5256984 Starter Motor Wholesale Fitment for Cummins 6CT8.3 engine

Cummins engine-parts distributors, bus and equipment fleets and starter wholesalers use 5256984 to keep Cummins 6CT8.3 engine demand tied to one 24V, 8.0kW, 12T CW configuration. The practical distinction is the 24V 8.0kW 12T module-3.5 catalog configuration, which should be checked before a similar heavy-duty housing is accepted.

Before comparing 5256984 prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

5256984 Starter Motor Technical Data for Fleet Parts Buyers

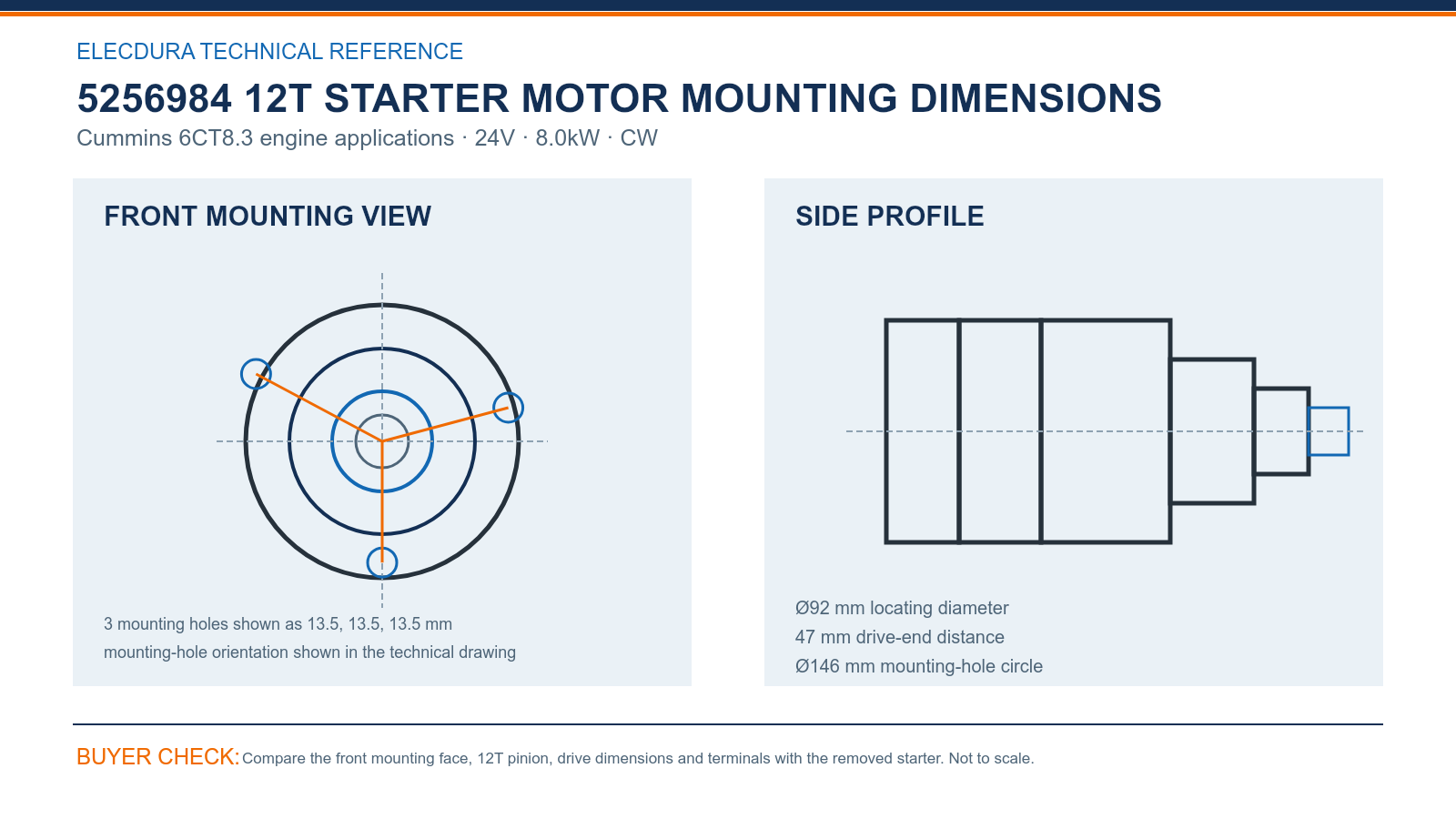

5256984 Cummins 6CT8.3 engine 24V 8.0kW 12T starter mounting dimensions.

The 5256984 dimensional review starts at the mounting face: verify 3 mounting holes shown as 13.5, 13.5, 13.5 mm, Ø146 mm mounting-hole circle and Ø92 mm locating diameter. Then compare the 47 mm drive-end distance. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For 5256984, electrical and mechanical identity must agree: 24V, 8.0kW, 12T, module 3.175 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

5256984 Starter Motor Cross-Reference Review for Fleet Buyers

1. Search group: 5256984, 5346195, C3415537, C5256984, M105R3038SE, STP3506MH can help distributor teams locate the relevant starter family.

2. Order boundary: Confirm the complete reference with 24V, 8.0kW, 12T, CW, the drawing and terminal photographs before accepting one physical unit.

5256984 Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for 5256984 can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted 5256984 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for 5256984 continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

5256984 Starter Motor Questions from Commercial Buyers

How should branches balance routine and urgent 5256984 stock for Cummins 6CT8.3 fleet demand?

Retain the accepted reference and terminal views for multi-branch Cummins demand. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

How should a mixed-reference enquiry for 5256984 be prepared in a Cummins 6CT8.3 fleet sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the 5256984 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Can 5256984 be selected from the application name alone during fleet sourcing?

Confirm 5256984 with the complete OE number, Cummins 6CT8.3 engine record and clear front, side and terminal photographs. Check 12T, 3 mounting holes shown as 13.5, 13.5, 13.5 mm and 47 mm drive-end distance so visually related starters stay on separate order lines.

Why should voltage-drop results accompany an enquiry for 5256984 during a Cummins 6CT8.3 fleet electrical check?

Measure cranking voltage and voltage loss across the positive and negative paths, not only open-circuit battery voltage. Review the solenoid command, cable terminals, engine ground and ring gear. The results provide a useful baseline for 5256984 installation and for any later service discussion with the supplier.

Which dimensions in the 5256984 drawing should receiving teams sample during a Cummins 6CT8.3 fleet inspection?

For 5256984, check 3 mounting holes shown as 13.5, 13.5, 13.5 mm, Ø92 mm locating diameter, Ø146 mm mounting-hole circle and 47 mm drive-end distance. Count the 12T pinion and photograph the terminal side. Record these checks against the approved sample without dismantling the unit.

What receiving records are useful for a shipment of 5256984 during a Cummins 6CT8.3 fleet receiving check?

Receiving should verify the 5256984 label, quantity and packaging before opening sampled cartons. Compare the 12T drive, Ø92 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How should a buyer request samples and bulk pricing for 5256984 in a Cummins 6CT8.3 fleet sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For 5256984, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should a workshop document a service issue involving 5256984 in a Cummins 6CT8.3 fleet review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate 5256984 without assuming that every no-crank complaint originates inside the starter.

5256984 Start a Starter Motor Wholesale Enquiry

Send the complete 5256984 reference, Cummins 6CT8.3 engine details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 24V, 8.0kW, 12T CW starter, MOQ, packing, lead time, warranty and freight.
