5302289 Weichai Deutz Starter Motor Wholesale Supply

5302289 Starter Motor Fleet Replacement Supply for Liugong and Weichai-Deutz TBD226B

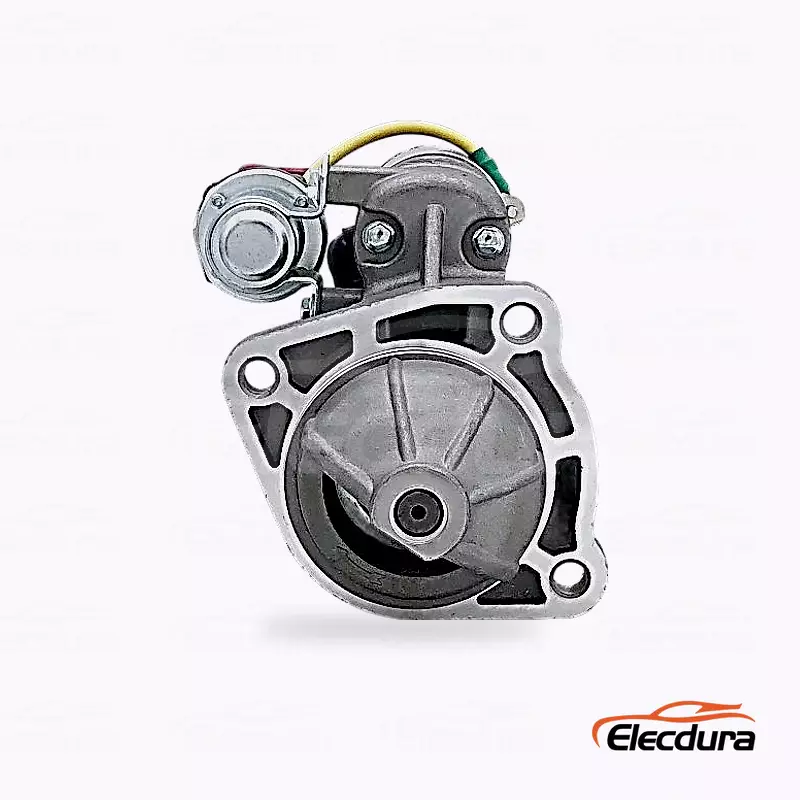

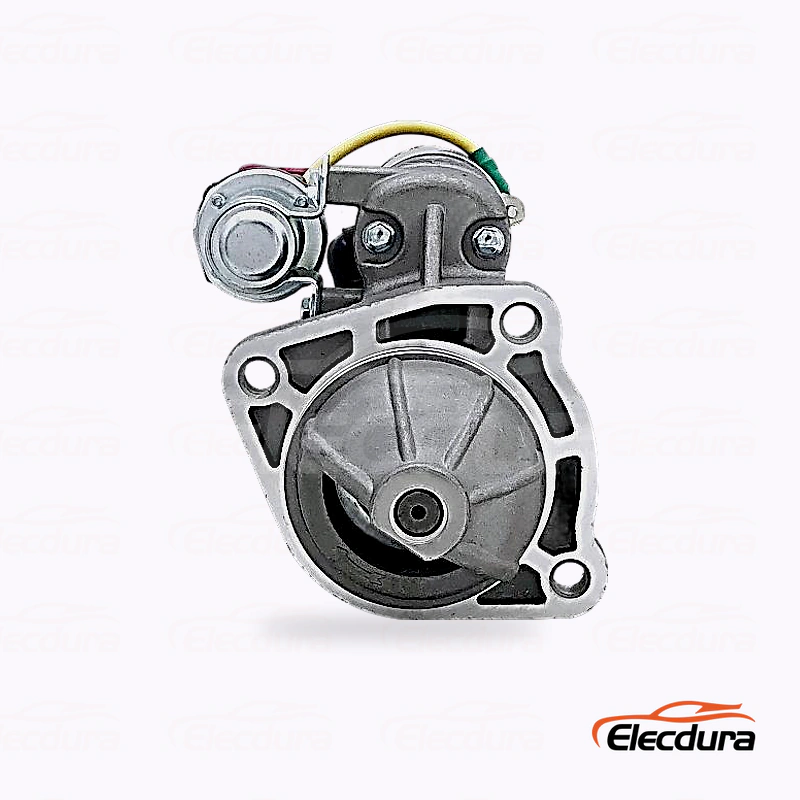

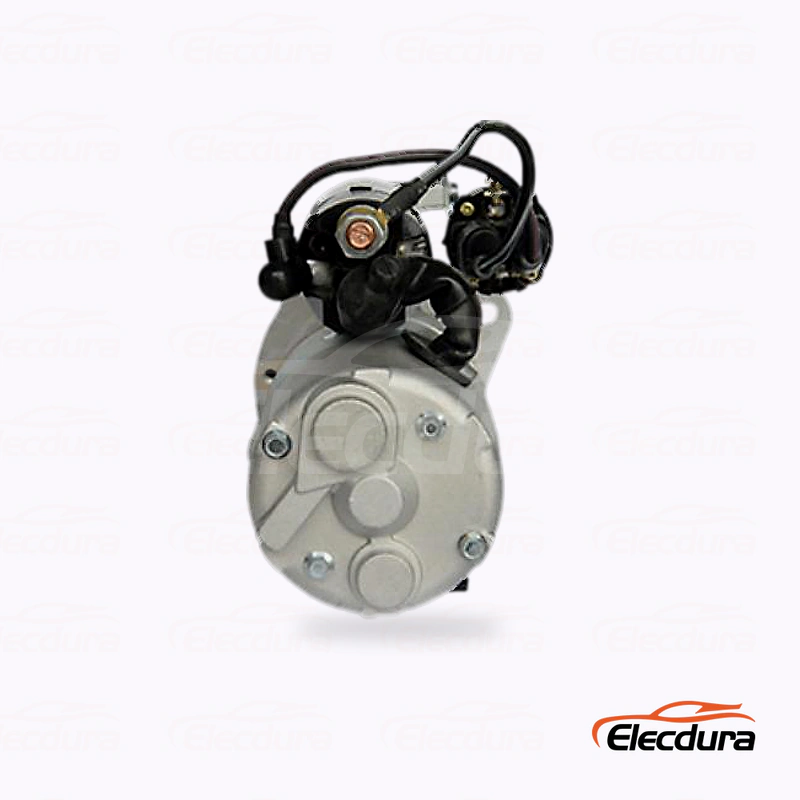

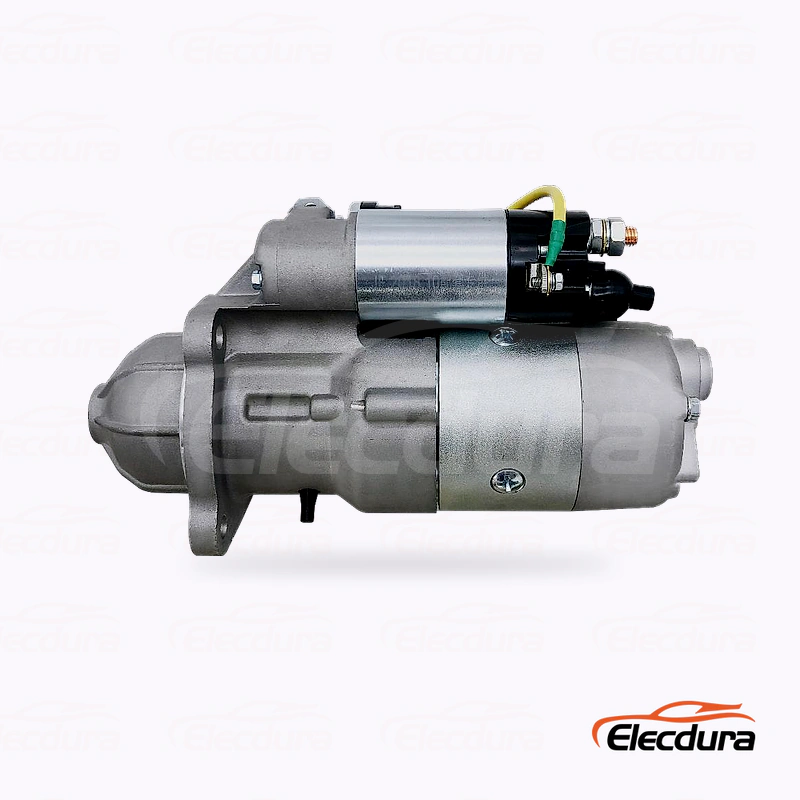

5302289 supports Liugong and Weichai-Deutz TBD226B sourcing where buyers need a defined electrical and drive-end match. Its 12V, 4.0kW, 10T CW specification must remain linked to the third distinct product view within the 12V 4.0kW 10T shared cross-reference group; a visually related unit may belong on a different RFQ line.

Before comparing 5302289 prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

5302289 Starter Motor Technical Data for Fleet Parts Buyers

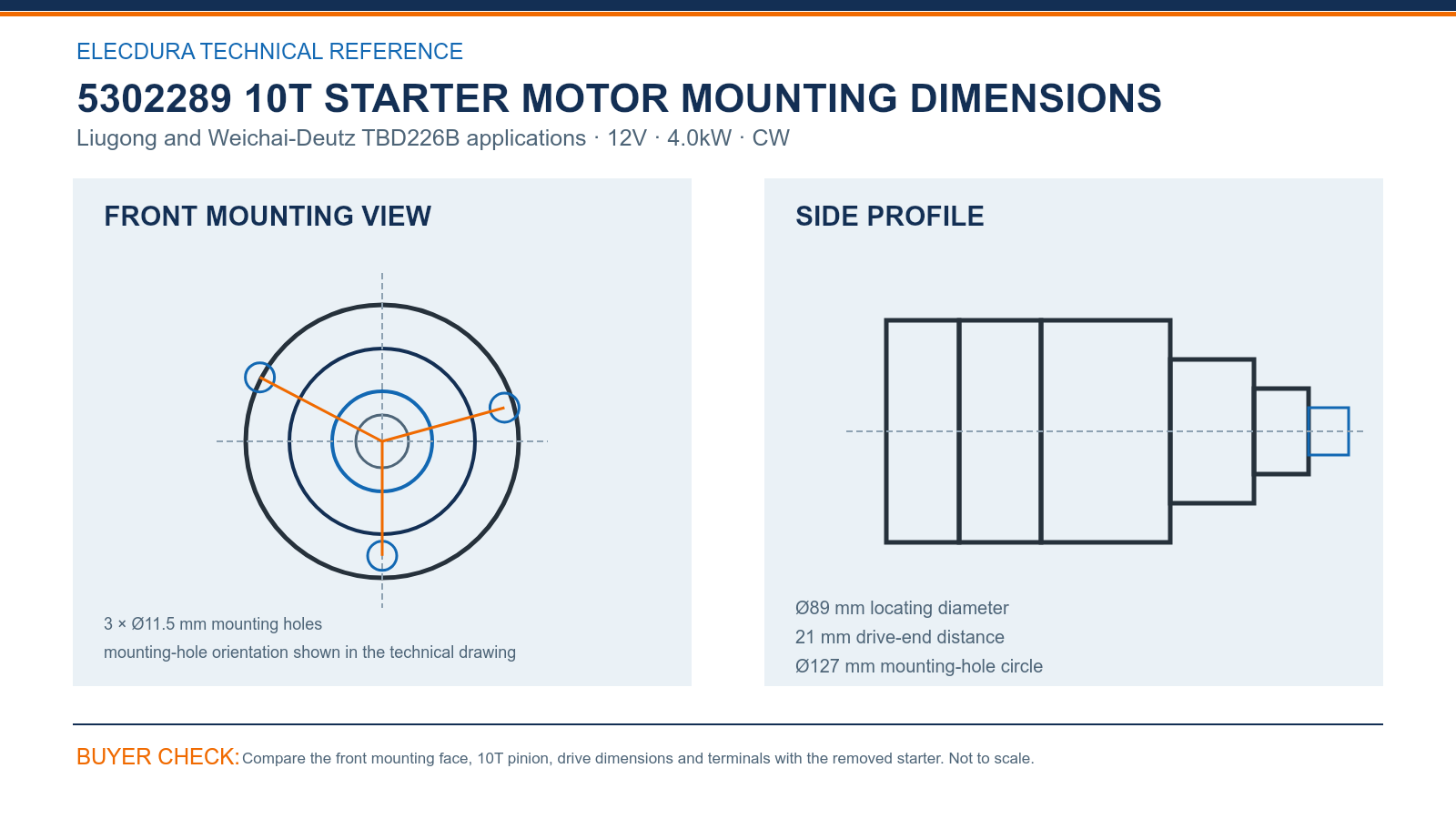

The 5302289 dimensional review starts at the mounting face: verify 3 × Ø11.5 mm mounting holes, Ø127 mm mounting-hole circle and Ø89 mm locating diameter. Then compare the 21 mm drive-end distance. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For 5302289, electrical and mechanical identity must agree: 12V, 4.0kW, 10T, module 3 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

5302289 Starter Motor Cross-Reference Review for Fleet Buyers

The 5302289 cross-reference group includes 5302289, 5449610, 12187645, 13031614, 13035760, STM3314LP, STM3314MH. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 12V, 4.0kW, 10T, CW, mounting geometry and terminals.

If a mixed 5302289 enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

5302289 Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for 5302289 can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

Stock planning should reflect the supported Liugong and Weichai-Deutz TBD226B population, recent consumption and transfer time between service locations. Keeping 5302289, the 10T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For 5302289, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

5302289 Starter Motor Questions from Commercial Buyers

How can branches reduce emergency transfers of 5302289 stock in a Weichai Deutz workshop program for the separate 5302289 product view?

Preserve the product-specific photo association through quotation, packing and replenishment. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What pre-installation circuit review supports replacement with 5302289 in a Weichai Deutz workshop workshop for the separate 5302289 product view?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for 5302289 helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

Can 5302289 be selected from the application name alone during workshop sourcing for the separate 5302289 product view?

Confirm 5302289 against the complete OE number, the stated Liugong and Weichai-Deutz TBD226B use and clear front, side and terminal photographs. The decisive points are 10T, 3 × Ø11.5 mm mounting holes and 21 mm drive-end distance. Those controls keep visually related starters from being combined in one order.

Which checks should follow an OE-number match for 5302289 in a Weichai Deutz workshop sourcing program for the separate 5302289 product view?

A number match narrows the search but does not finish it. For 5302289, compare the stated application, electrical output, 10T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

Which dimensions in the 5302289 drawing should receiving teams sample during a Weichai Deutz workshop inspection for the separate 5302289 product view?

For 5302289, sample the 3 × Ø11.5 mm mounting holes, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 21 mm drive-end distance. Count the 10T pinion and photograph the terminal side in the same inspection. These points can be checked without dismantling the unit and give receiving teams a practical comparison with the approved sample.

What receiving records are useful for a shipment of 5302289 during a Weichai Deutz workshop receiving check for the separate 5302289 product view?

Receiving should verify the 5302289 label, quantity and packaging before opening sampled cartons. Compare the 10T drive, Ø89 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How should a buyer request samples and bulk pricing for 5302289 in a Weichai Deutz workshop sourcing program for the separate 5302289 product view?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For 5302289, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should a workshop document a service issue involving 5302289 in a Weichai Deutz workshop review for the separate 5302289 product view?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate 5302289 without assuming that every no-crank complaint originates inside the starter.

5302289 Ask for Starter Motor Export Pricing

Prepare the 5302289 enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
