5344543 Cummins 6BT Starter Motor Wholesale

5344543 Cummins 6BT Starter Motor Wholesale for Engine Buyers

A useful 5344543 enquiry identifies the Cummins 6BT engine build and includes the C5344543 or other old-unit marking. This helps a supplier distinguish the 6.0kW version before discussing fleet, equipment or generator-set quantities.

Cummins installations can place similar-looking 24V starters around the same engine family. The 10T module-3.175 drive, three Ø11 holes, 89 mm engagement and terminal side should all agree before ordering.

5344543 6.0kW Starter Motor B2B Specifications and Drawing

Publish this product as 24V, 6.0kW, 10T, module 3.175 and CW. Keeping the high-output rating attached to the pinion data reduces errors when buyers compare several Cummins starter lines.

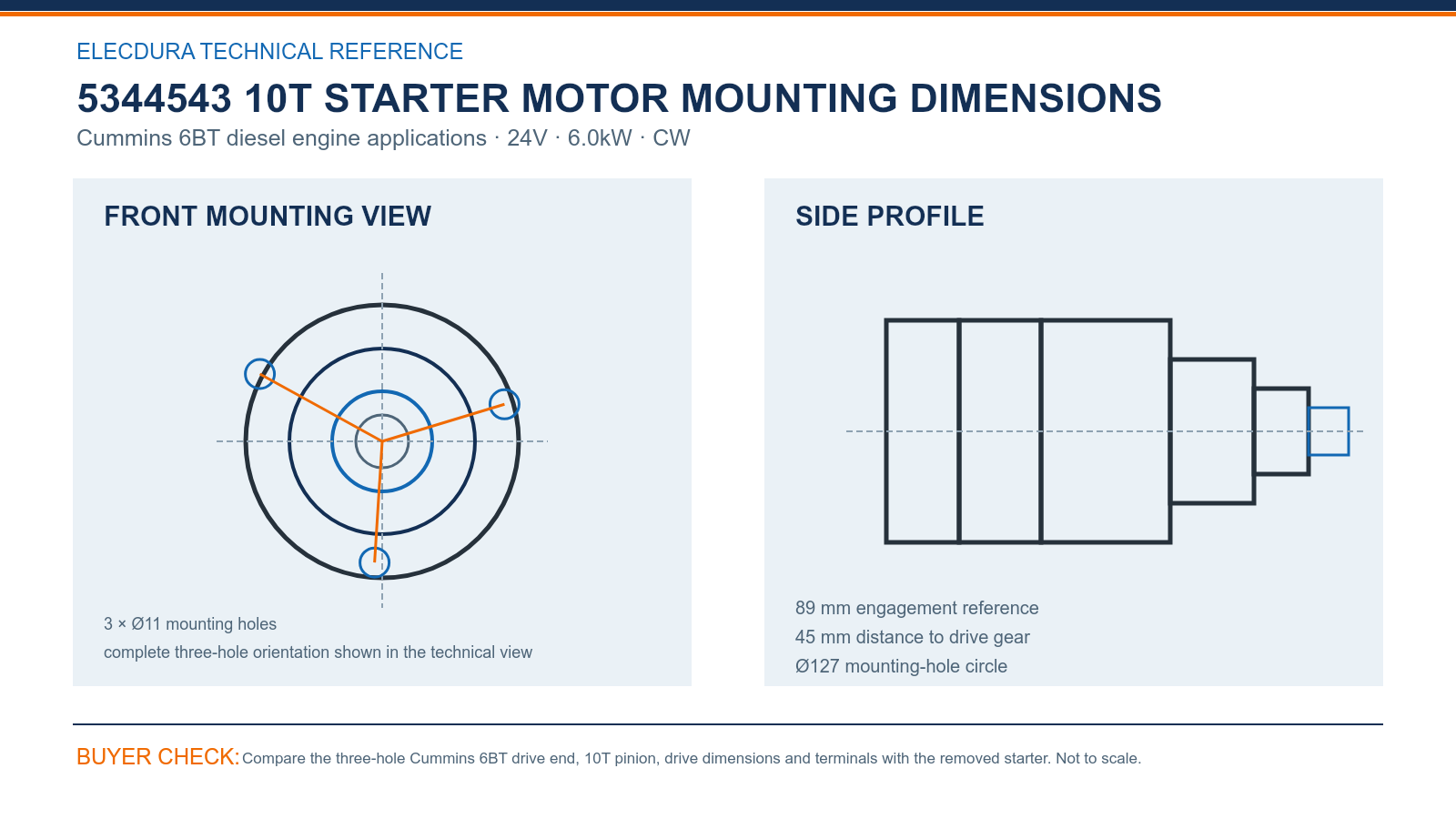

5344543 Cummins 6BT Starter Drawing for Engine Parts Distributors — compare the drawing with the removed starter before placing a volume order.

The recreated drawing shows the 45 mm drive position and Ø127 mounting circle. Compare these values with a straight flange photograph and count the pinion after cleaning the removed starter.

5344543 Cummins Starter Motor Reference Matching for Distributors

C5344543 and STM4543MH are the main alternate routes around 5344543. The concise group supports reference searches, while the engine build and physical comparison establish the commercial match.

Distributors serving trucks, equipment and generator sets should list demand by host application even when the same confirmed unit is used. Application-specific carton marks can preserve that allocation through warehouse picking.

5344543 Starter Motor Bulk Supply, Packing and Test Video

Elecdura can review first-order quantities, annual demand, neutral packing and private-label requirements for the confirmed 5344543 configuration. Incoming inspection should cover the label, pinion, mounting face, terminals and transport protection.

The video below introduces Elecdura starter production and electrical testing. Cummins buyers can use it to assess supply capability while retaining their own engine-build, inspection and packing requirements.

5344543 Starter Motor Wholesale FAQ for Cummins 6BT Buyers

Which Cummins 6BT details should accompany a 5344543 enquiry?

Provide the 6BT engine plate, equipment or generator-set model, complete 5344543 or C5344543 marking and clear old-starter photographs. These details connect the short reference to the actual installation. Include the pinion and square mounting face so the 10T module-3.175 drive can be reviewed before pricing.

Can C5344543 be used as the main search route for 5344543?

Yes. C5344543 is a useful reference route around the primary 5344543 number. Keep both numbers in the enquiry when they appear in the source records, then confirm the Cummins 6BT application, 24V 6.0kW output and physical three-hole drive end before volume ordering. Attach the Cummins 6BT diesel engine applications comparison to the 5344543 quotation so receiving can review the same version.

Why is the 6.0kW rating important for this Cummins starter?

The 6.0kW value identifies the specified high-output electrical version and should not be replaced by a nearby rating. Pair it with 24V, 10T, module 3.175 and CW rotation. This complete definition helps buyers compare offers and prevents specification drift between quotation, labeling and receiving. Keep the matched images and the Cummins 6BT build, 10T module-3.175 pinion, 89 mm engagement and Ø127 face beside the 5344543 stock record.

Which dimensions should be checked on the 5344543 mounting face?

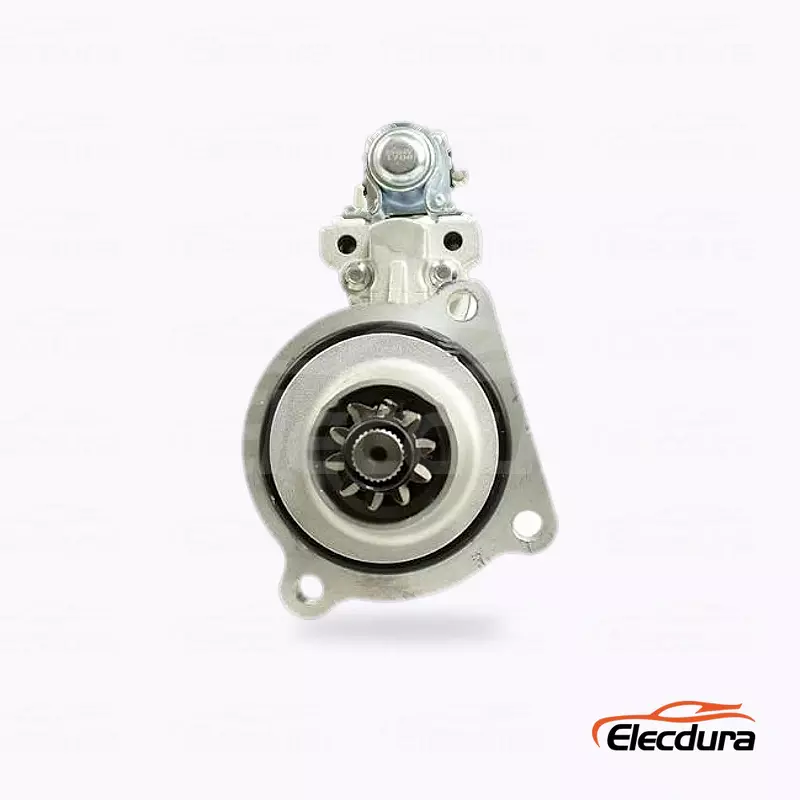

For the 5344543 housing, inspect three Ø11 holes on an Ø127 circle, the 89 mm engagement reference and the 45 mm drive position. A straight front photograph and one terminal-side view make the check easier. Count the ten-tooth pinion rather than judging its diameter from a side image.

How should mixed Cummins applications be separated on an order?

List truck, equipment and generator-set demand by host application, engine build and quantity even if one confirmed 5344543 starter is used. That structure preserves customer allocation and allows different carton marks. It also keeps any installation with another flange or terminal layout on a separate product line.

What should the first 5344543 receiving inspection cover?

Sample the 5344543 label, 24V 6.0kW rating, ten-tooth pinion, three-hole flange, terminals and packing condition. Compare units from different cartons with the accepted 6BT photographs. Record the shipment lot and quarantine any different rating or drive end before the products enter saleable inventory. Carry the Cummins 6BT build, 10T module-3.175 pinion, 89 mm engagement and Ø127 face through packing and branch transfers for 5344543.

Which electrical checks belong with a 5344543 warranty request?

Record battery voltage during cranking, cable voltage drop, ground condition, solenoid signal and ring-gear inspection. Add the 6BT engine record, installation date, shipment lot and photographs before disassembly. This evidence helps distinguish a starter concern from an undersized battery bank, poor cable connection or mechanical engagement problem.

What information enables a 5344543 wholesale proposal?

Send the 6BT engine and host equipment, complete old-unit numbers, drive-end and terminal photographs, quantity by application, annual forecast, packing needs, target delivery and destination. State whether private labeling or barcode data is required. Elecdura can then quote the confirmed 24V 6.0kW 10T configuration. Include the Cummins 6BT build, 10T module-3.175 pinion, 89 mm engagement and Ø127 face in forecasts and repeat purchases for 5344543.

Request 5344543 Cummins 6BT Starter Motor Wholesale Pricing

Send the Cummins 6BT engine plate, 5344543 or C5344543 marking, front and terminal photographs, quantity by application, forecast, packing request and destination to info@elecdurauto.com. Elecdura will review the 6.0kW starter and return wholesale pricing.
