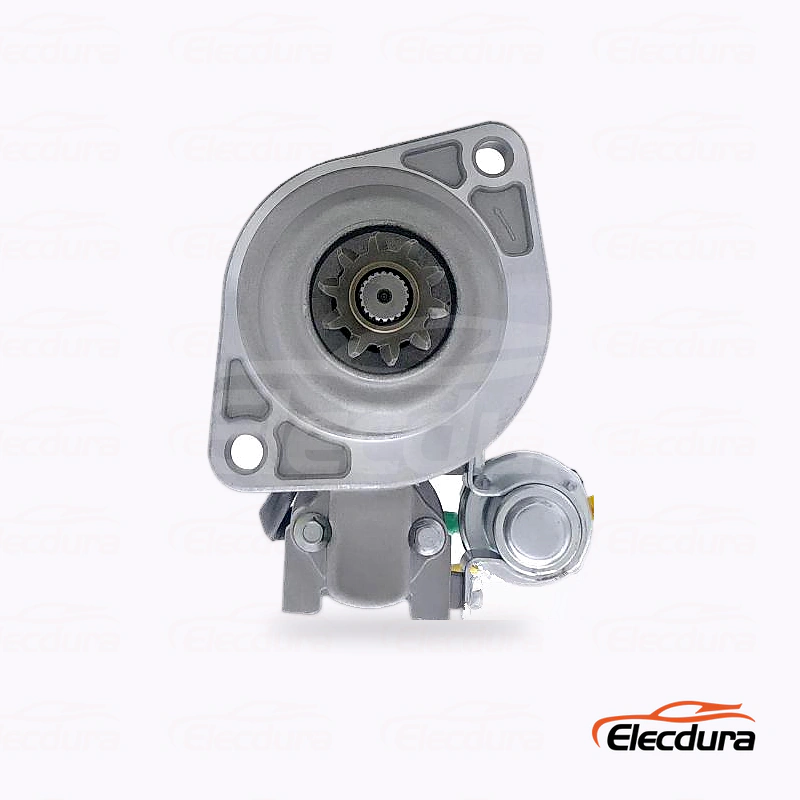

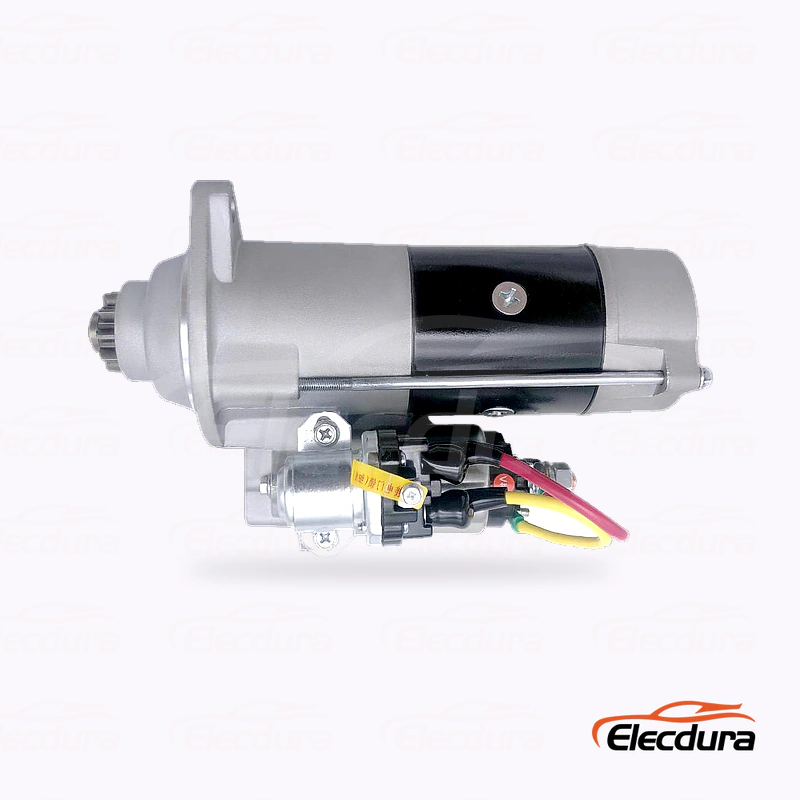

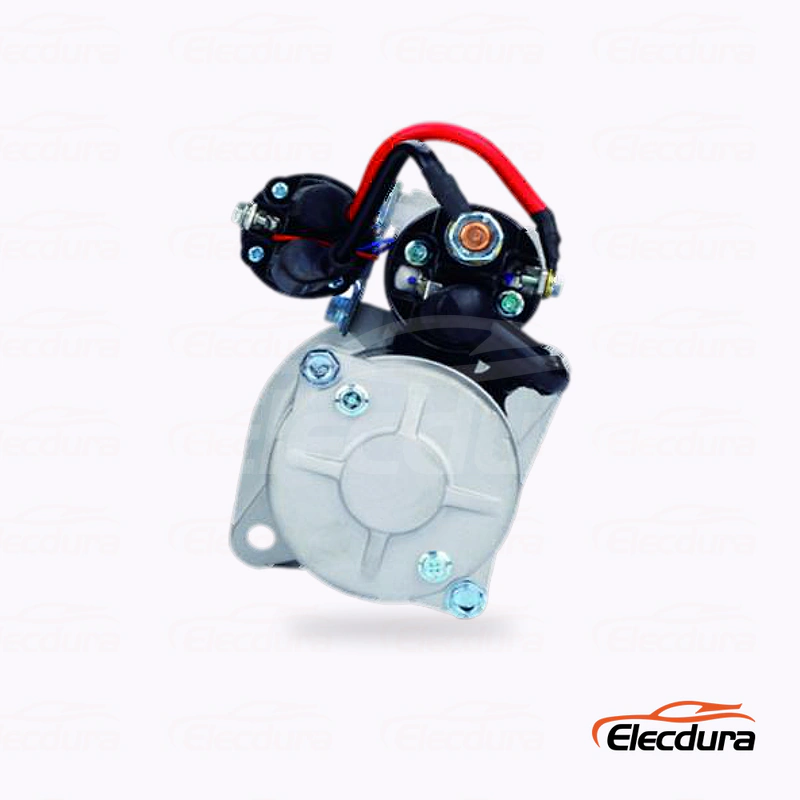

5345288 Cummins Foton 3.8 Starter Motor Wholesale

5345288 Starter Motor B2B Fitment Guide for Cummins 4.5L and Foton Cummins 3.8L engine

Cummins distributors, Foton equipment buyers and commercial starter importers can source 5345288 for Cummins 4.5L and Foton Cummins 3.8L engine. Preserve the 10T pinion and 24V 5.0kW 10T module-3 catalog configuration; do not substitute by engine family or housing appearance alone.

For the first 5345288 order, include the removed-unit label, application details and straight photographs of the drive end and terminals. Quantity, destination, delivery target and any private-label requirement complete the commercial brief and reduce the risk of pricing a related but physically different starter.

5345288 Starter Motor Specification Table for B2B Sourcing

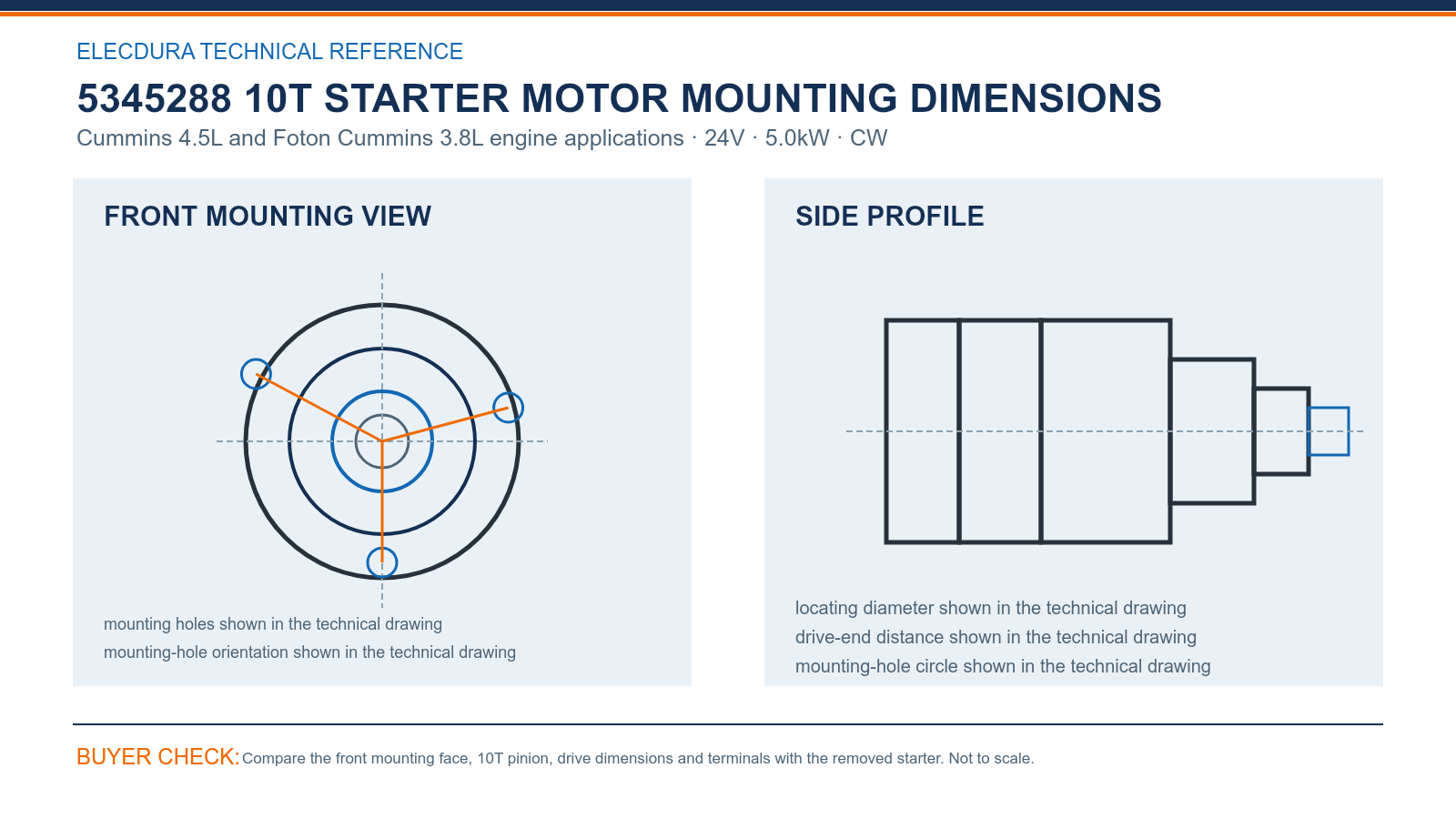

5345288 Cummins 4.5L and Foton Cummins 3.8L engine 24V 5.0kW 10T starter mounting dimensions.

Use the 5345288 technical drawing to check locating-pilot profile from the drawing, drive-end projection from the drawing and mounting-face pattern from the drawing. Add the mounting-hole layout from the drawing to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the 5345288 comparison with 24V, 5.0kW, the 10T drive, module 3.175 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

5345288 Starter Motor Cross-Reference Review for Fleet Buyers

1. Search group: 5345288, STQ2818ML can help distributor teams locate the relevant starter family.

2. Order boundary: Confirm the complete reference with 24V, 5.0kW, 10T, CW, the drawing and terminal photographs before accepting one physical unit.

5345288 Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for 5345288 can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted 5345288 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of 5345288 remains tied to the stated Cummins 4.5L and Foton Cummins 3.8L engine application, 10T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

5345288 Starter Motor Questions from Commercial Buyers

Why is a straight mounting-face photo useful for confirming 5345288 during a Cummins Foton 3.8 dealer inspection?

Align the removed starter and 5345288 at the mounting face. Compare locating-pilot profile from the drawing, mounting-face pattern from the drawing, mounting-hole layout from the drawing and drive-end projection from the drawing. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

Can urgent service demand and routine 5345288 replenishment share one enquiry in a Cummins Foton 3.8 dealer program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent 5345288 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Why does 5345288 require a physical comparison for Cummins applications during dealer sourcing?

For 5345288, ask the workshop for the removed starter label and the exact equipment record. Match 24V, 5.0kW, 10T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Do all references listed with 5345288 identify an interchangeable unit in a Cummins Foton 3.8 dealer sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use 5345288, STQ2818ML to locate possible matches, then confirm 24V, 5.0kW, 10T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

How can a service team rule out cable or battery faults before fitting 5345288 during a Cummins Foton 3.8 dealer electrical check?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for 5345288 helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

What carton-to-product checks are appropriate for 5345288 during a Cummins Foton 3.8 dealer receiving check?

Use a first-lot sample to confirm 5345288, 24V, 5.0kW, 10T and CW. Inspect the mounting face, terminals and protective packing, then retain the lot reference and images. This gives warehouse and sales teams a shared record before units are distributed to branches or workshops.

Which details allow Elecdura to quote 5345288 without delay in a Cummins Foton 3.8 dealer sourcing program?

List 5345288 together with the supported equipment record, 24V, 5.0kW, 10T and CW. Send old-unit photos, order volume, destination and requested timing, plus any private-label or staged-delivery requirement. This keeps the technical selection and the commercial offer aligned from the first response.

How can a distributor prepare a complete claim file for 5345288 in a Cummins Foton 3.8 dealer review?

For 5345288, provide the delivery lot, installation date, operating hours and a clear fault description. Include photographs of the label, pinion, mounting face and terminals, together with battery and voltage-drop results under cranking load. These records help separate product condition from application, installation, electrical-system or transport-related causes.

5345288 Request Starter Motor Wholesale Pricing

To discuss 5345288 supply, send the complete application and old-unit identification, mounting-face and terminal photos, requested quantity, destination and timing to info@elecdurauto.com. The reply will address the specified starter, sample or bulk availability, export packing, commercial terms and delivery route.
