8200357 Volvo VM210 Starter Motor Distributor

8200357 Volvo VM210 Starter Motor Wholesale for Fleet Buyers

A VM210 enquiry becomes more useful when it includes the chassis, engine record, removed starter label and current service need. This information lets a supplier distinguish planned fleet stock from a truck-down replacement and preserve the original match for later branch orders.

8200357 and related Volvo numbers may lead to several aftermarket listings, but the final choice must retain the 24V 4.0kW 12T CW specification. Compare the three-hole face, Ø98 engagement reference, drive position and cable side before accepting a replacement.

8200357 Starter Motor Drawing for B2B Mounting Comparison

This product is defined by 24V, 4.0kW, 12T and clockwise rotation for the supported Volvo VM210 application. Carry those values together on the quotation and receiving record, then use the drawing and removed unit to confirm the complete drive interface.

8200357 Volvo VM210 Starter Drawing for Truck Distributors — compare the drawing with the removed starter before placing a volume order.

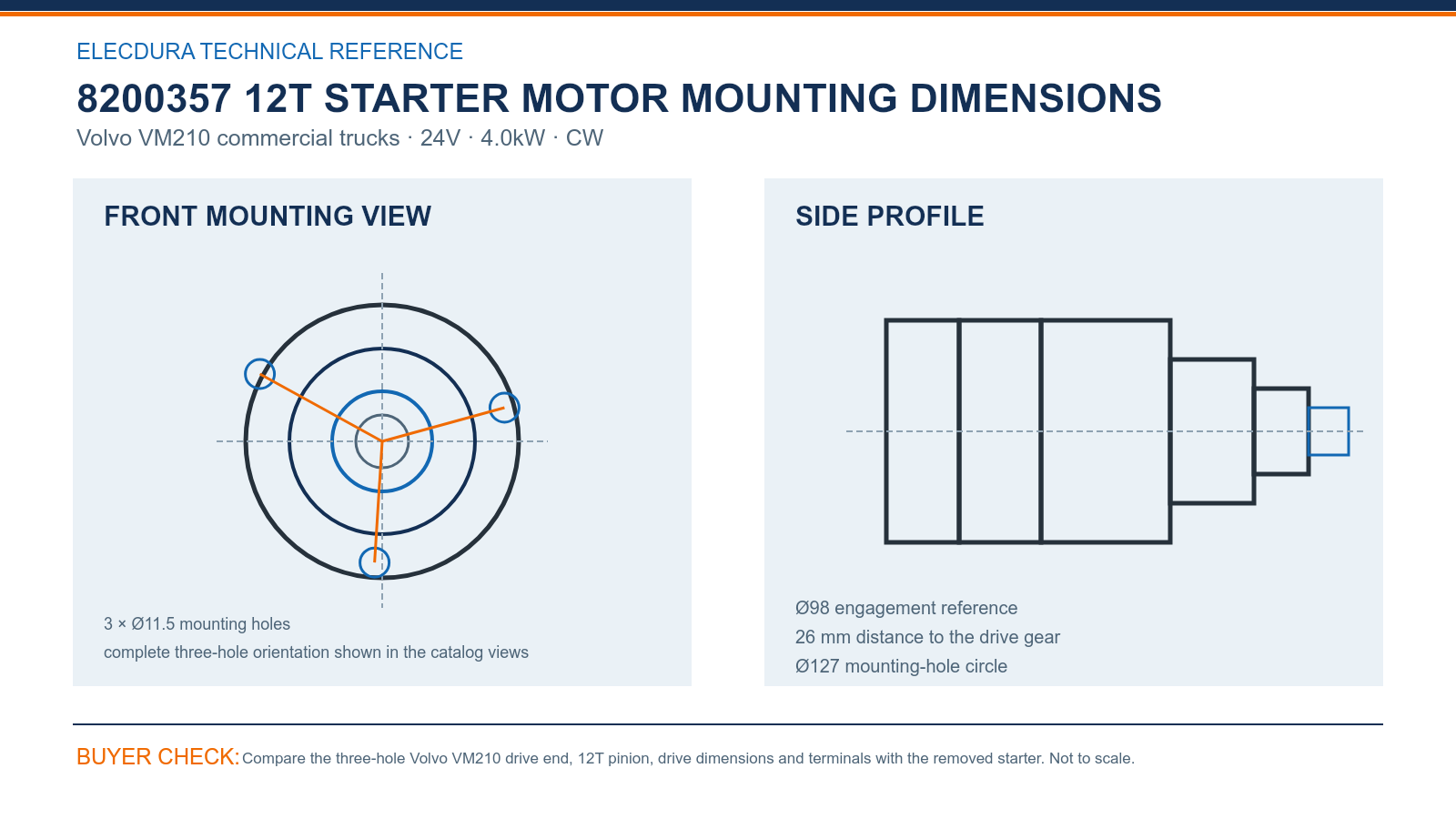

The technical view shows three Ø11.5 mounting holes, an Ø127 mounting circle, an Ø98 engagement reference and a 26 mm distance to the drive gear. Straight front and side photographs should also capture the ear orientation, solenoid position and terminals.

8200357 Starter Motor Reference Checks for Volvo Importers

8200357 and its Volvo replacement references help reconcile customer, warehouse and supplier systems. The selected VM210 chassis and exact 24V 4.0kW 12T CW product should stay visible beside the number so a broad Volvo search does not become an unsupported interchange.

Fleet buyers can allocate verified stock by vehicle group, depot and breakdown exposure. Workshops should save the accepted drive-end and terminal images with the repair record, giving future enquiries more evidence than a short Volvo number or an angled product photograph.

8200357 Starter Motor Stock Support for Commercial Workshops

For the first delivery, receiving can count the twelve pinion teeth, inspect all three ears, compare the Ø98 engagement area and check terminal insulation. Carton supports should prevent the body from striking the flange during long-distance transport or branch transfer.

Elecdura's video introduces starter assembly and electrical testing for distributor programs. Volvo buyers can use it to review production consistency and sampled inspection while the 8200357 match continues to depend on the VM210 record, stated output and measured mounting geometry.

8200357 Starter Motor FAQs for Volvo VM210 Buyers

What makes a Volvo VM210 enquiry specific enough to review?

Include the Volvo VM210 chassis, engine details, every readable 8200357-related marking and the truck's delivery deadline. Add a square front image, both body sides, the pinion and terminal side. This package connects the starter to a specific vehicle and gives the distributor a dependable baseline for later fleet replenishment.

How should related Volvo numbers support an 8200357 search?

Related Volvo numbers can help find an 8200357 candidate and reconcile customer and supplier systems. After the search, retain the VM210 application, 24V 4.0kW 12T CW specification, Ø127 three-hole face, Ø98 engagement reference and terminal arrangement. A matching number opens the comparison; the vehicle and physical details close it.

Which published values should remain on the 8200357 stock line?

The stock line should state 8200357, Volvo VM210, 24V, 4.0kW, 12T and clockwise rotation. Add the confirmed three-hole drive end to the bin or receiving record. Keeping these values together gives sales and warehouse teams enough detail to exclude a nearby Volvo starter with another output or mounting arrangement.

How do the Ø98 and 26 mm references help identify this starter?

The Ø98 value describes the engagement or locating area at the drive end, while 26 mm identifies the distance to the drive gear. Compare both with the removed starter from a square side and front view. Together with the three Ø11.5 holes, they reveal an installed-position difference that body shape alone may hide.

Which photographs support a VM210 terminal and flange review?

Provide a straight drive-end view, both body profiles, a close pinion image and the complete terminal side. If possible, add one installed photograph showing cable approach and nearby frame members. These angles allow Elecdura to compare the three-hole orientation, Ø98 engagement area, drive position and usable terminal clearance for the VM210.

What should a buyer send for a truck-down VM210 order?

Send the VM210 chassis and engine record, old starter numbers, clear flange, pinion and terminal photographs, truck location, contact person and required delivery time. State whether measurements can be taken before dispatch. This evidence lets Elecdura review 8200357 quickly while reducing the risk of an urgent but incomplete match.

How should low-turnover Volvo reserve units be stored?

Store reserve units dry, with terminal covers and rigid supports that keep the flange and pinion away from the carton walls. Mark each box 8200357, 24V 4.0kW 12T, Volvo VM210 and the owning depot. Inspect moisture protection and carton condition periodically so a rarely used spare remains ready for breakdown service.

What information supports 8200357 wholesale pricing?

Provide the Volvo VM210 chassis and engine information, every 8200357-related number, square mounting and terminal photographs, quantity, annual forecast, urgency, packing preference and destination. Explain whether the request supports a trial order, normal warehouse stock or a vehicle-down replacement. Elecdura can then confirm the product and quote appropriate price, lead time and delivery terms.

Request 8200357 Volvo Starter Motor Wholesale Pricing

Send the Volvo VM210 chassis and engine details, every readable 8200357-related number, square drive-end, pinion and terminal photographs, quantity, delivery urgency, packing request and destination to info@elecdurauto.com. Elecdura will compare the defined starter and return wholesale pricing with lead time.
