8200587 Cummins QSC QSL Starter Motor Wholesale

8200587 Starter Motor Wholesale Fitment for Cummins 6BT, QSC and QSL engines

Cummins engine-parts distributors, equipment fleets and heavy-duty electrical wholesalers use 8200587 to keep Cummins 6BT, QSC and QSL engines demand tied to one 24V, 7.5kW, 10T CW configuration. The practical distinction is the 24V 7.5kW 10T module-3.175 configuration for the 8200587 catalog product, which should be checked before a similar heavy-duty housing is accepted.

Build the 8200587 RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

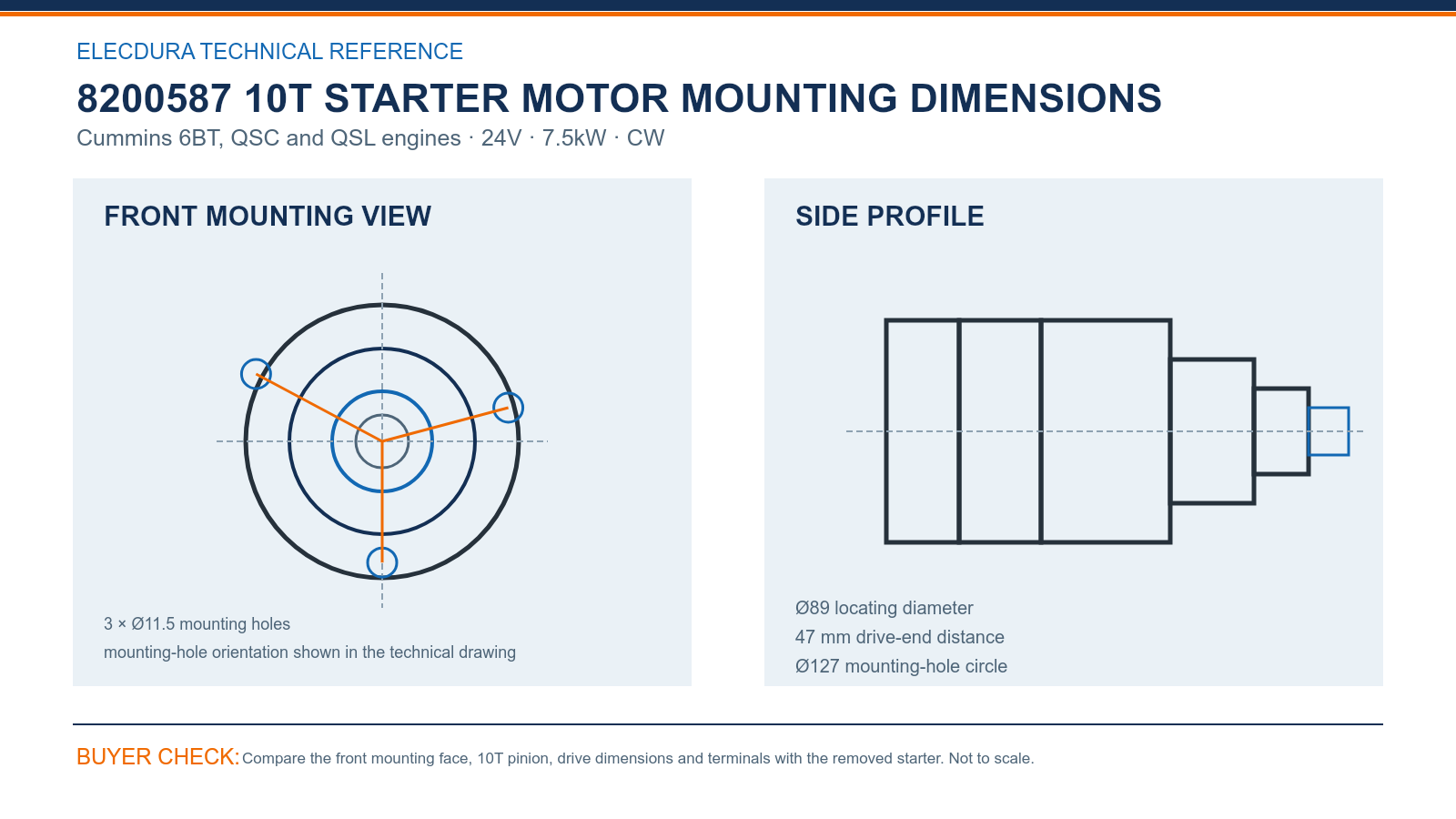

8200587 Starter Motor Specifications and Drawing for Wholesale Buyers

Compare 8200587 at the three 11.5 mm mounting holes, 127 mm mounting-hole circle and 89 mm locating diameter. The 47 mm drive-end measurement helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

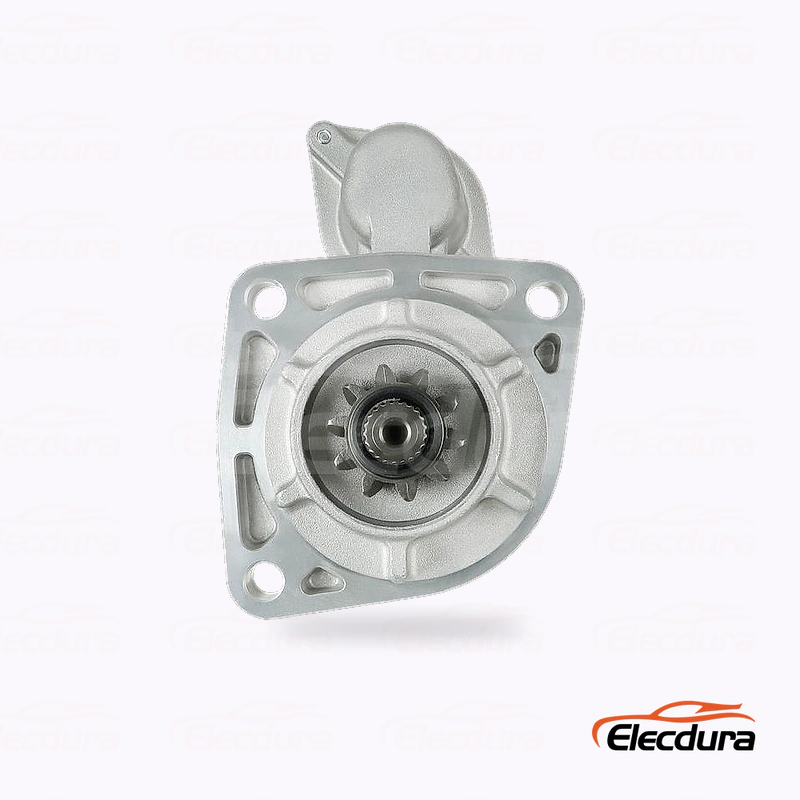

For 8200587, count the 10T pinion and confirm module 3.175, CW rotation, 24V and 7.5kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

8200587 Starter Motor OE Cross-References for Distributor Enquiries

1. Search group: 5262351, 5363434, 6304589, 8200587, 8200838, 8201136, STD3202ML can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 7.5kW, 10T, CW, the drawing and terminal photographs before accepting one physical unit.

8200587 Starter Motor Wholesale Supply and Export Planning

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested 8200587 quantity, destination and required arrival date.

Keep the approved reference and drive-end dimensions on purchasing and warehouse records. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of 8200587 remains tied to the stated Cummins 6BT, QSC and QSL engines application, 10T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

8200587 Starter Motor Questions from Commercial Buyers

How should a buyer request samples and bulk pricing for 8200587 in a Cummins QSC QSL fleet sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For 8200587, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

Which details separate 8200587 from similar starters used around Cummins 6BT, QSC and QSL engines during fleet sourcing?

For 8200587, ask the workshop for the removed starter label and the exact equipment record. Match 24V, 7.5kW, 10T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Can a purchasing team consolidate every 8200587 reference into one stock line in a Cummins QSC QSL fleet sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use 5262351, 5363434, 6304589, 8200587, 8200838 to locate possible matches, then confirm 24V, 7.5kW, 10T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

What pre-installation circuit review supports replacement with 8200587 in a Cummins QSC QSL fleet workshop?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for 8200587 helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

What should be measured on the drive end before releasing 8200587 to stock during a Cummins QSC QSL fleet inspection?

The first-lot check should cover three 11.5 mm mounting holes, 89 mm locating diameter and 47 mm drive-end measurement. Add the 10T pinion, rotation and terminal position to the inspection sheet. Recording those details helps a warehouse identify a mixed or incorrectly labelled unit before it reaches a workshop or customer.

What should an importer include in the replenishment forecast for 8200587 in a Cummins QSC QSL fleet program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For 8200587, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

What should a warehouse inspect when 8200587 starter motors arrive during a Cummins QSC QSL fleet receiving check?

For 8200587, match carton and product labels to the purchase order, then sample 24V, 10T, three 11.5 mm mounting holes and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

What traceability details should accompany a warranty enquiry for 8200587 in a Cummins QSC QSL fleet review?

Keep the carton or product traceability code and note when and where 8200587 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

8200587 Request Starter Motor Wholesale Pricing

Send the complete 8200587 reference, Cummins 6BT, QSC and QSL engines details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 24V, 7.5kW, 10T CW starter, MOQ, packing, lead time, warranty and freight.
