8200793 Cummins ISX12 Starter Motor Wholesale

8200793 Starter Motor B2B Fitment Guide for Cummins ISX12 11.9L

Cummins engine distributors, heavy-truck fleet buyers and electrical wholesalers can use 8200793 as the commercial identity for the starter required in Cummins ISX12 11.9L. The order should preserve the 11T pinion and the compact Ø127 circle and Ø10.5 holes for the stated ISX12 record, avoiding a broad substitution based only on engine family or overall housing appearance.

Send the full 8200793 application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

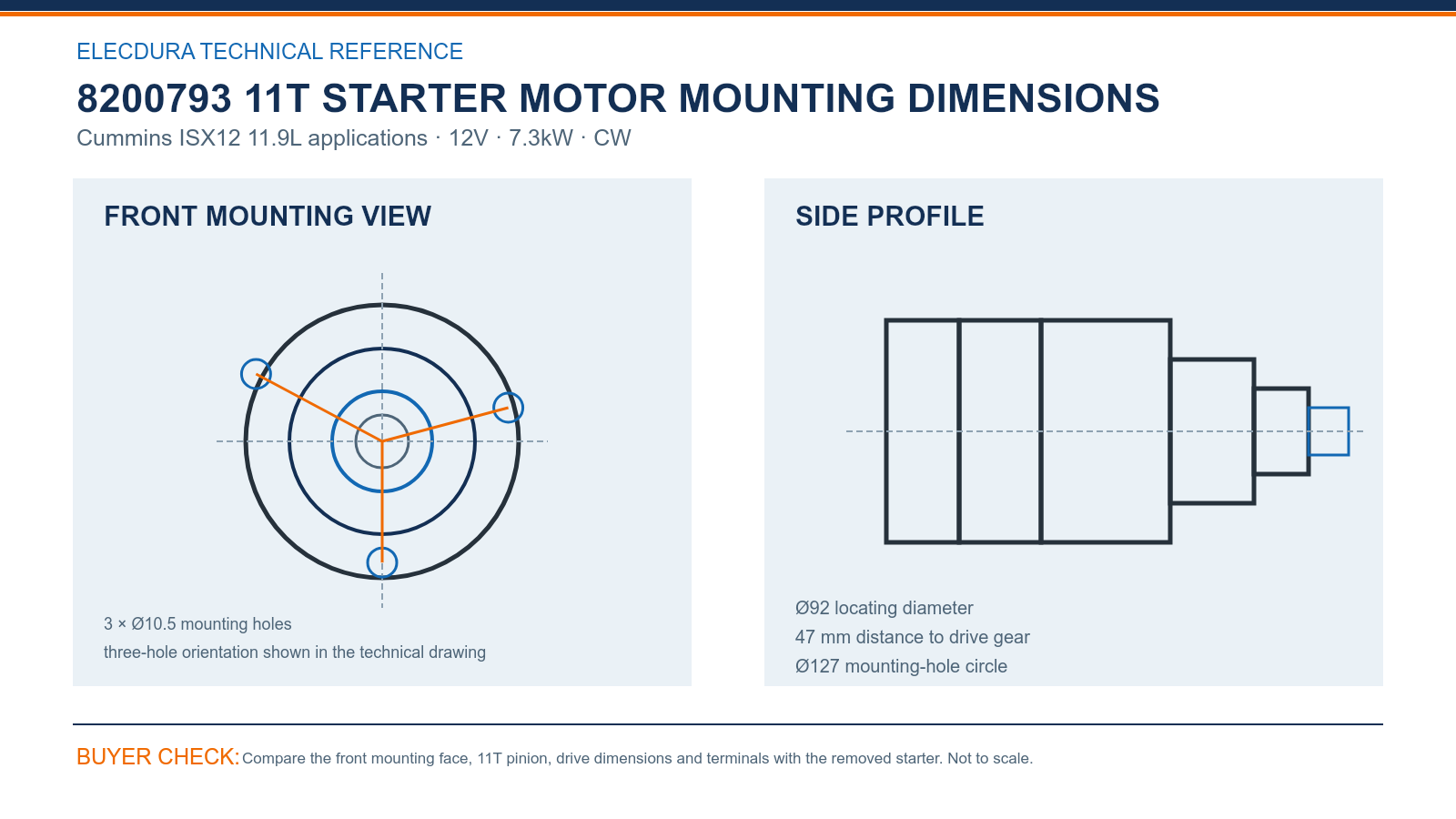

8200793 Starter Motor Drive-End Drawing for Aftermarket Distributors

8200793 Cummins ISX12 12V 7.3kW 11T starter mounting dimensions.

For 8200793 first-lot sampling, place the old and new starters in the same front-facing position. Check 3 × Ø10.5 mounting holes, Ø92 locating diameter, Ø127 mounting-hole circle and 47 mm distance to drive gear. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

After the 8200793 mounting check, verify 12V, 7.3kW, 11T and CW with module 4.233. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

8200793 Starter Motor OE Number Guide for Aftermarket Supply

1. Search group: 8200793, 8200960, 8200971, 8201083, S113 can help distributor teams locate the relevant starter family.

2. Order boundary: Confirm the complete reference with 12V, 7.3kW, 11T, CW, the drawing and terminal photographs before accepting one physical unit.

8200793 Starter Motor Bulk Order Packing and Lead-Time Support

For a bulk order of 8200793, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted 8200793 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

B2B buyers can use the video to review Elecdura’s starter-motor assembly and test process. The approved 8200793 configuration remains defined by 12V, 7.3kW, 11T, CW, mounting geometry and terminals, which should be retained in the purchase record.

8200793 Starter Motor Questions from Commercial Buyers

How should buyers use the 8200793 cross-reference group in a Cummins ISX12 dealer sourcing program?

A number match narrows the search but does not finish it. For 8200793, compare the stated application, electrical output, 11T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

What workshop readings are useful when diagnosing a starting complaint involving 8200793 in a Cummins ISX12 dealer workshop?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing 8200793. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

How can an importer avoid mixing 8200793 with a similar drive-end version during dealer sourcing?

For 8200793, begin with the machine, truck or engine identification, then read the full old-unit label. The physical check should cover 11T, Ø127 mounting-hole circle, Ø92 locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item, even when an application description overlaps.

What should be measured on the drive end before releasing 8200793 to stock during a Cummins ISX12 dealer inspection?

The first-lot check should cover 3 × Ø10.5 mounting holes, Ø92 locating diameter and 47 mm distance to drive gear. Add the 11T pinion, rotation and terminal position to the inspection sheet. Recording those details helps a warehouse identify a mixed or incorrectly labelled unit before it reaches a workshop or customer.

What should an importer include in the replenishment forecast for 8200793 in a Cummins ISX12 dealer program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For 8200793, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

What should a warehouse inspect when 8200793 starter motors arrive during a Cummins ISX12 dealer receiving check?

For 8200793, match carton and product labels to the purchase order, then sample 12V, 11T, 3 × Ø10.5 mounting holes and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

What information should accompany a distributor RFQ for 8200793 in a Cummins ISX12 dealer sourcing program?

A useful RFQ states 8200793, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving 8200793 in a Cummins ISX12 dealer review?

For a service review of 8200793, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

8200793 Request a Starter Motor Fleet Supply Quote

Email info@elecdurauto.com with 8200793, the supported Cummins ISX12 11.9L record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 12V, 7.3kW, 11T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
