8200838 Cummins 6BT Starter Motor Distributor Supply

8200838 Starter Motor Distributor Application Guide for Cummins 6BT, QSC and QSL engines

For a fleet parts team, 8200838 identifies one Cummins 6BT, QSC and QSL engines requirement. The separate 24V 7.5kW 10T catalog product identified by 8200838 and its own product image provides a clear fitment boundary for sample, stock and replacement reviews.

A useful enquiry pairs 8200838 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

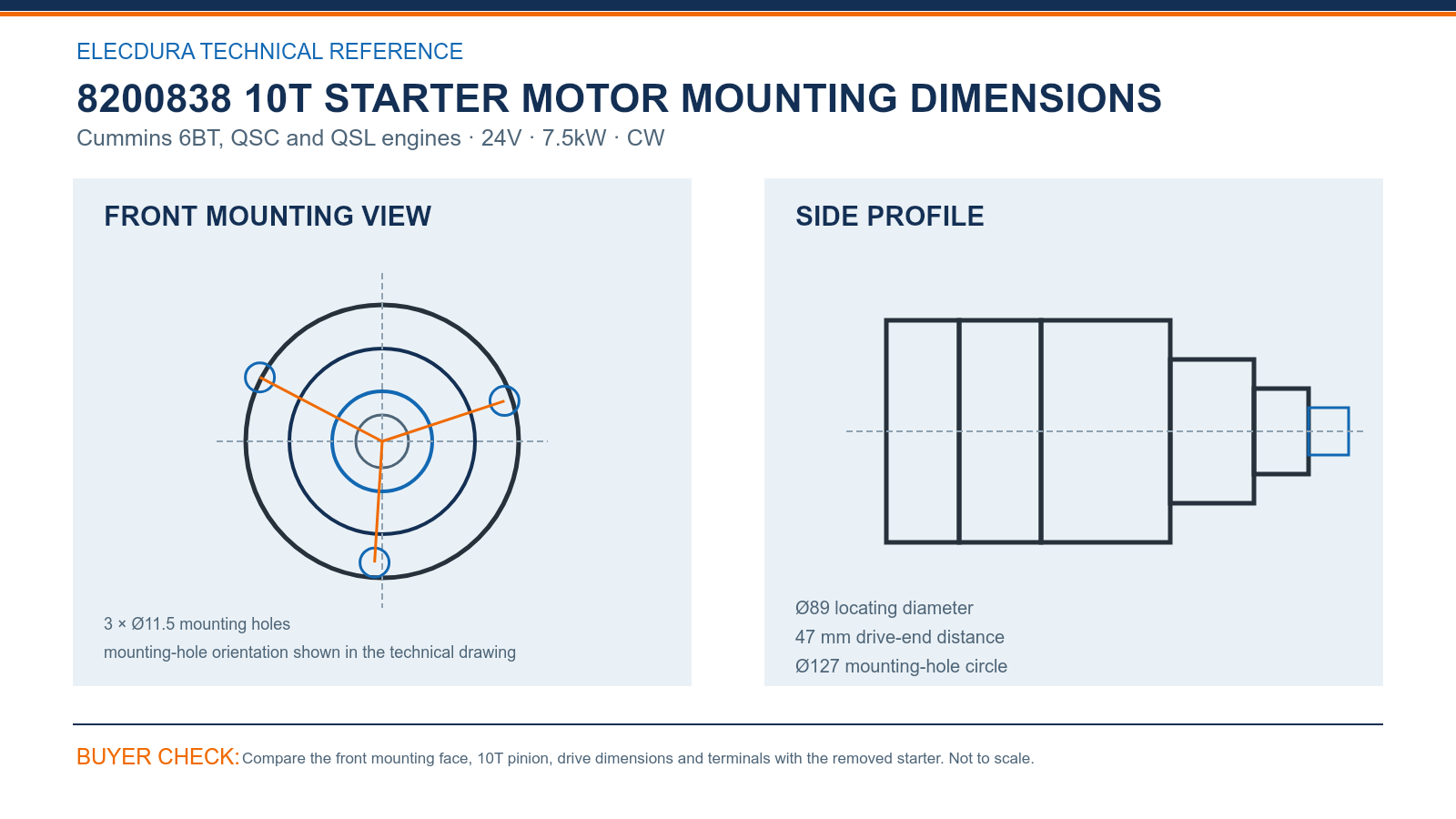

8200838 Starter Motor Mounting Dimensions for Distributor Approval

Use the 8200838 technical drawing to check 89 mm locating diameter, 47 mm distance to the drive gear and 127 mm mounting-hole circle. Add the three Ø11.5 mm mounting holes to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the 8200838 comparison with 24V, 7.5kW, the 10T drive, module 3.175 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

8200838 Starter Motor Reference Group for Wholesale Sourcing

• Use the full number: Start with 5262351, 5363434, 6304589, 8200587, 8200838, 8201136, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

8200838 Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For 8200838, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Quote against 8200838 and the submitted old unit instead of merging all shared cross-references. Once that boundary is fixed, purchasing can separate urgent units from routine replenishment and define branch quantities, stock labels and freight timing without encouraging an unverified substitute.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for 8200838; the product decision itself still depends on the complete reference, 24V 7.5kW rating, drive end, mounting face and terminal layout.

8200838 Starter Motor Questions from Commercial Buyers

What traceability details should accompany a warranty enquiry for 8200838 in a Cummins 6BT branch review for a separate 8200838 inventory line?

Keep the carton or product traceability code and note when and where 8200838 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

Which old-unit checks matter most when sourcing 8200838 during branch sourcing for a separate 8200838 inventory line?

Confirm 8200838 against the complete OE number, the stated Cummins 6BT, QSC and QSL engines use and clear front, side and terminal photographs. The decisive points are 10T, three Ø11.5 mm mounting holes and 47 mm distance to the drive gear. Those controls keep visually related starters from being combined in one order.

How should buyers use the 8200838 cross-reference group in a Cummins 6BT branch sourcing program for a separate 8200838 inventory line?

A number match narrows the search but does not finish it. For 8200838, compare the stated application, electrical output, 10T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

What workshop readings are useful when diagnosing a starting complaint involving 8200838 in a Cummins 6BT branch workshop for a separate 8200838 inventory line?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing 8200838. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Why is a straight mounting-face photo useful for confirming 8200838 during a Cummins 6BT branch inspection for a separate 8200838 inventory line?

Place the removed starter and 8200838 on the same mounting-face orientation. Compare 89 mm locating diameter, 127 mm mounting-hole circle, the three Ø11.5 mm mounting holes and the 47 mm distance to the drive gear. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

Can urgent service demand and routine 8200838 replenishment share one enquiry in a Cummins 6BT branch program for a separate 8200838 inventory line?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent 8200838 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

How can a buyer quarantine a mismatched 8200838 unit quickly during a Cummins 6BT branch receiving check for a separate 8200838 inventory line?

For 8200838, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match three Ø11.5 mm mounting holes, 89 mm locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What should be included in a wholesale enquiry for 8200838 in a Cummins 6BT branch sourcing program for a separate 8200838 inventory line?

Send the complete OE number, exact Cummins 6BT, QSC and QSL engines details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 24V 7.5kW 10T CW starter with packing, lead time, warranty and freight options.

8200838 Send a Starter Motor Distributor Enquiry

For a focused 8200838 quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
