Product Description

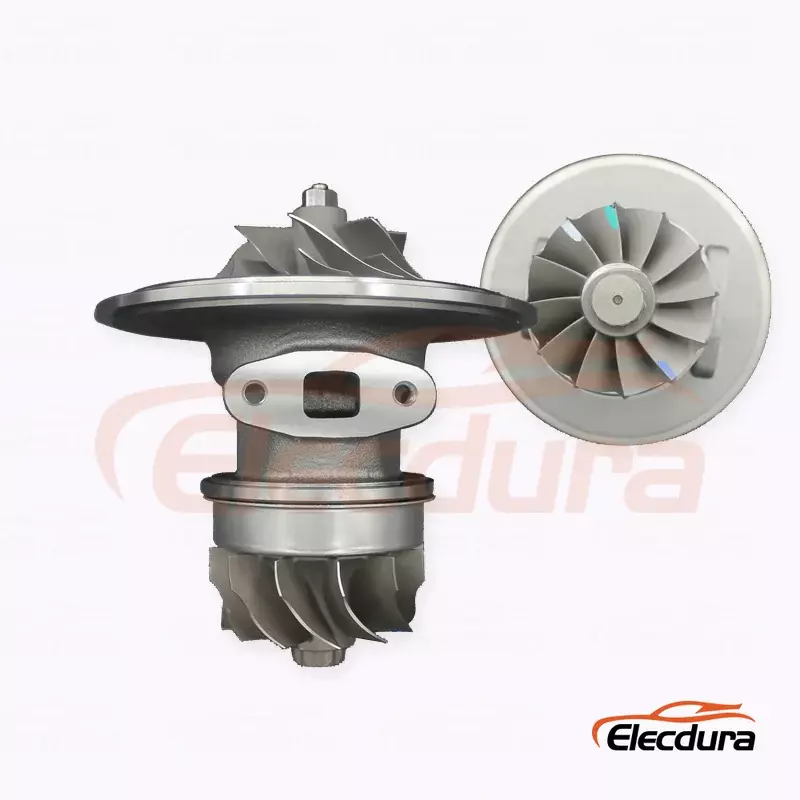

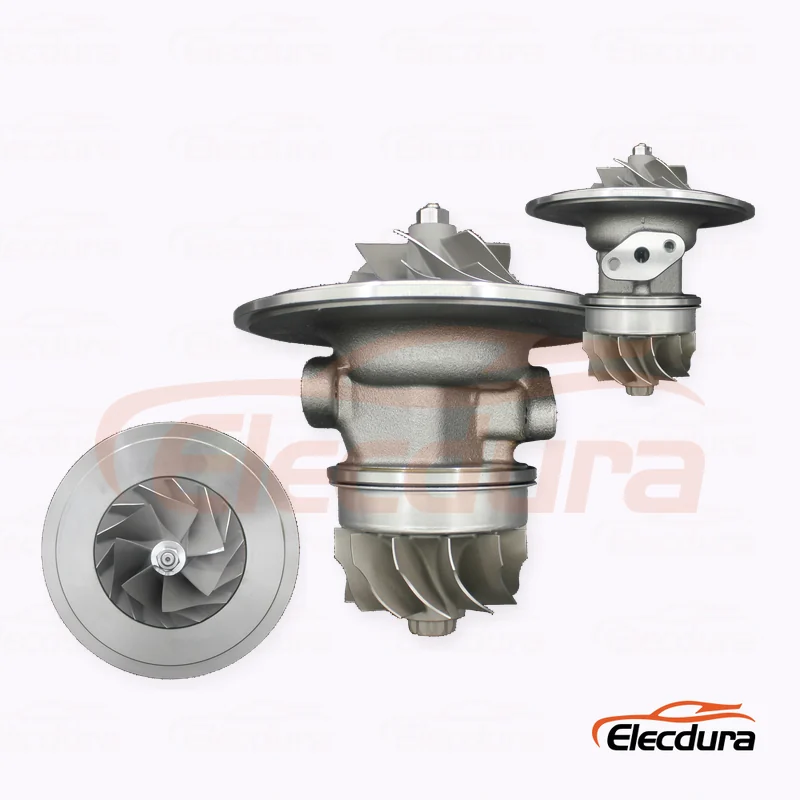

HX50W 3594505 uses CHRA 4027597 for Iveco EuroTrakker and related Cursor 13 heavy-truck repair. Vocational duty, engine rating, and a broad Holset service-number group make nameplate verification important before bulk release. Buyers should confirm OE 500390351, turbo P/N 3594505 or 2836658, F3B engine plate, oil-cooled housing layout, and wheel dimensions. Earlier 3596693, 3796925, and 4033106 references should remain typed service numbers rather than automatic proof of one cartridge version.
| Application Direction | Matching Focus | Stocking Note |
|---|---|---|
| EuroTrakker Cursor 13 vocational truck repair | 3594505, CHRA 4027597, OE, F3B rating | Control the broad HX50W service-number family |
| Specification | Details |
|---|---|
| Product Type | Turbo Core / CHRA Cartridge |
| Fit Turbo Model | HX50W |
| Turbo Part Number | 3594505 / 2836658 / 3596693 |
| OE Reference Number | 500390351 |
| Engine / Application Reference | Cursor 13 EuroTrakker heavy-truck repair reference |
| Engine Model | Iveco F3B Cursor 13 13.0L |
| Application Reference | Iveco EuroTrakker / Stralis Cursor 13 heavy-truck reference |
| Reference Year | 2001-2009 reference |
| Supply Direction | Heavy Vocational Truck Repair Supply |
| MOQ | 100 pcs |
| Warranty | 12 Months |
| Supplier Brand | Elecdurauto |
| CHRA Reference | 4027597 |
| Cooling Type | Oil cooled |
| Reference Type | Reference Number |
|---|---|
| Turbo Part Number | 3594505 / 2836658 / 3596693 |
| OE Reference Number | 500390351 |
| CHRA Reference | 4027597 |
| Previous Turbo Reference | 3596693 / 3796925 / 4033106 |
| Matching Item | Reference Information |
|---|---|
| Turbo Model | HX50W |
| Turbo Part Number | 3594505 / 2836658 / 3596693 |
| OE Reference Number | 500390351 |
| Engine Model | Iveco F3B Cursor 13 13.0L |
| Application Reference | Iveco EuroTrakker / Stralis Cursor 13 heavy-truck reference |
| Turbo Nameplate Photo | Recommended |
| Original Turbo / Cartridge Photo | Recommended when numbers are unclear |
| Cooling Type | Oil cooled |
| Special Matching Note | CHRA 4027597 and the 360-380 HP housing version must be confirmed |
| Application Reference | Engine | Reference Year | Matching Basis |
|---|---|---|---|
| Iveco EuroTrakker / Stralis Cursor 13 heavy-truck reference | Iveco F3B Cursor 13 13.0L | 2001-2009 reference | 3594505 / 2836658 and OE 500390351 align with HX50W, F3B Cursor 13 and EuroTrakker applications. |
CHRA 4027597 supports repair of serviceable Cursor 13 housings under demanding vocational duty.
Number hierarchy helps importers manage the many Holset references without overclaiming interchange.
Oil, intake, and exhaust inspection reduces repeat failures in high-load operation.
Elecdurauto supplies the core for confirmed Iveco heavy-truck programs.
CHRA 4027597 identifies the core used within the confirmed Cursor 13 HX50W family. It should be aligned with the removed Holset label, OE 500390351, and housing measurements. The cartridge reference reduces confusion among many complete-turbo numbers but does not remove the need to confirm the current version. The evidence should remain linked to the purchase order, warehouse SKU, and repair report.
They are repeatedly connected within the Iveco Cursor 13 service group, yet the exact unit should still be recorded. Complete-turbo supersessions may retain the same core while cross-reference housings or connections change. Buyers should compare the nameplate and wheel dimensions before releasing stock to an unfamiliar workshop. A number-led record gives repeat buyers a safer basis than a broad machine or engine description.
EuroTrakker operation can involve high payload, dust, low-speed pulling, extended heat, and steep grade work. Air-filter restriction, oil degradation, exhaust backpressure, and delayed shutdown can increase turbo stress. Workshops should diagnose the duty-related failure cause before fitting the new core. Photographs and measurements also provide useful evidence if a later service claim requires review. Final release records should identify 3594505, Iveco EuroTrakker Cursor 13, and the confirmed HX50W configuration.
Oil inlet, drain orientation, bearing housing, and surrounding installation determine lubrication and heat management. A related Cursor turbo can have another connection layout. Repairers should verify line condition, pressure, drain angle, and housing identity rather than assuming every HX50W application uses the same cross-reference arrangement. Bulk release should remain pending whenever the current turbo and the application record do not agree.
Cracked turbine scrolls, heavy erosion, wheel contact, distorted flanges, damaged wastegate hardware, or unidentified machining make reuse risky. The large-frame turbo operates under substantial exhaust energy, so marginal housings can compromise a correct CHRA. A complete assembly is safer when dimensions or structural condition remain uncertain. The workshop should document the result before the machine returns to high-load commercial operation.
The SKU should link 3594505, CHRA 4027597, OE 500390351, engine rating, and verified fleet examples. Related numbers can remain searchable by reference type. Replenishment should follow actual EuroTrakker and Cursor 13 demand rather than every HX50W inquiry from unrelated industrial engines. Such controls help importers reduce wrong-version returns without overstating aftermarket fitment. Final release records should identify 3594505, Iveco EuroTrakker Cursor 13, and the confirmed HX50W configuration.
