KDRDE5K-20/30C12A-111-T 24V Kobelco Hydraulic Pump Solenoid Valve for Heavy Equipment B2B Supply

KDRDE5K-20/30C12A-111-T Kobelco Hydraulic Pump Solenoid Valve Supplier for B2B Replacement

KDRDE5K-20/30C12A-111-T is a 24V hydraulic pump solenoid valve for Kobelco SK200-2 and compatible excavator pump control. Buyers should confirm the complete old marking, electrical version, connector, threaded cartridge with lead connector and hydraulic function before approving replacement stock.

KDRDE5K-20/30C12A-111-T Hydraulic Pump Solenoid Valve Specifications for Wholesale Buyers

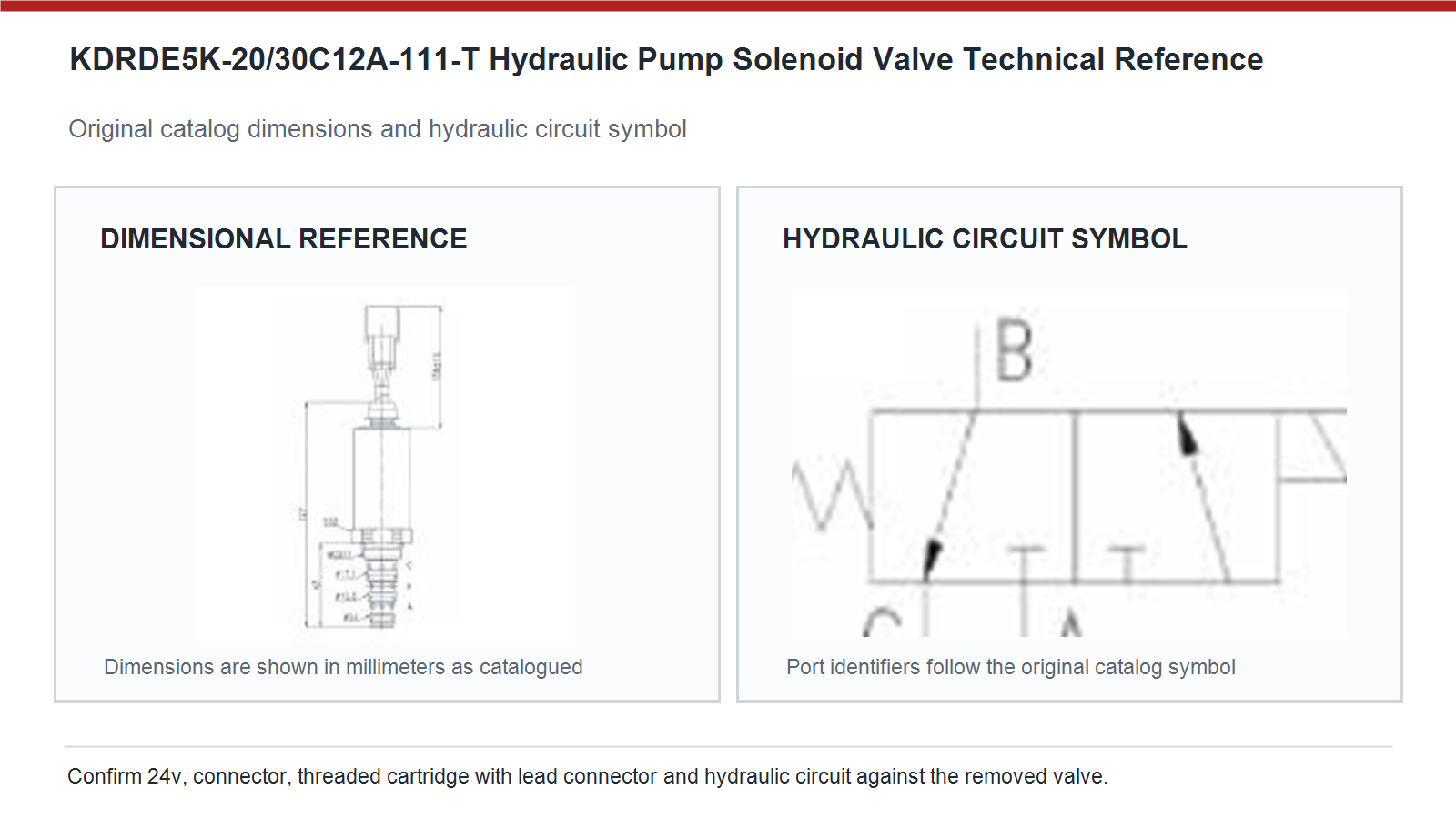

KDRDE5K-20/30C12A-111-T Hydraulic Pump Solenoid Valve Dimensions and Hydraulic Circuit

Use the original catalog dimensional reference and hydraulic symbol to compare the valve with the removed component and the machine schematic before purchase approval.

KDRDE5K-20/30C12A-111-T Heavy Equipment Solenoid Valve Matching Guide

Complete every control point below before a sample or bulk order is released.

KDRDE5K-20/30C12A-111-T Hydraulic Solenoid Valve Service Diagnostics

Separate electrical command, cartridge movement and machine response so the actual wiring or hydraulic fault is not hidden by a parts replacement.

KDRDE5K-20/30C12A-111-T Hydraulic Pump Solenoid Valve Technical FAQ

What must be matched before ordering KDRDE5K-20/30C12A-111-T as a hydraulic pump solenoid valve during a controller output fault is suspected?

During a controller output fault is suspected, keep the verified reference, measurements and test result in the service record. Approve KDRDE5K-20/30C12A-111-T from the complete old valve marking, 24v electrical version, connector keying, threaded cartridge with lead connector, sealing lands and normal hydraulic state. A shared equipment model does not prove interchangeability because pump and manifold revisions can change during production. Send the machine model, serial number and clear removed part photos with the inquiry.

What does the 41 bar pressure reference mean for KDRDE5K-20/30C12A-111-T during cold start commissioning is completed?

During cold start commissioning is completed, keep the verified reference, measurements and test result in the service record. The 41 bar figure is a catalog or verified product reference, not permission to ignore the equipment hydraulic schematic. Confirm which ports see pressure in both de-energized and energized states, review return line conditions and follow the machine service limits. Pressure capability does not correct a wrong spool function, cartridge depth or manifold port relationship.

What should be checked if the KDRDE5K-20/30C12A-111-T hydraulic pump solenoid valve does not switch during a seal leakage complaint is assessed?

During a seal leakage complaint is assessed, keep the verified reference, measurements and test result in the service record. Measure supply and ground at the loaded connector, then check coil resistance and verify that the controller is actually issuing the command. If electrical input is correct, inspect oil cleanliness, filter condition, cartridge movement and manifold contamination. Separate electrical command from hydraulic response before replacing another valve, otherwise a harness or blocked pilot passage may be missed.

How should suffixes and cross references be handled for KDRDE5K-20/30C12A-111-T during a valve switches slowly after oil warms?

During a valve switches slowly after oil warms, keep the verified reference, measurements and test result in the service record. Treat every suffix as an engineering identifier until its meaning is proven. A suffix can change voltage, connector, spring calibration, spool geometry or mounting details while the base model remains similar. Keep the complete old marking on the quotation and do not shorten KDRDE5K-20/30C12A-111 / YN35V0004F1 / SKX5P-17-212A in purchasing records. Accept a cross reference only after dimensional, electrical and hydraulic checks agree.

Why must the de-energized position of KDRDE5K-20/30C12A-111-T be confirmed during a first article sample is reviewed?

During a first article sample is reviewed, keep the verified reference, measurements and test result in the service record. The spring side of the circuit symbol defines what the machine does when electrical power is absent. That state can hold, unload, block or route pilot pressure, and the wrong choice may create movement or pump load at startup. Compare the original schematic with the catalog symbol and verify the safe normal condition before energizing the replacement in the machine.

How should bulk stock of KDRDE5K-20/30C12A-111-T be packed and stored during contaminated hydraulic oil has been discovered?

During contaminated hydraulic oil has been discovered, keep the verified reference, measurements and test result in the service record. Keep ports capped, seals protected and connector faces free from moisture or impact. Separate 24v and suffix variants with readable carton labels so warehouse picking cannot mix them. Store the valves in a clean, dry area away from welding dust and corrosive chemicals, and retain lot traceability to the approved sample and incoming inspection record.

What voltage drop test is useful before replacing KDRDE5K-20/30C12A-111-T during a manifold bore shows possible wear?

During a manifold bore shows possible wear, keep the verified reference, measurements and test result in the service record. Measure voltage across the coil while the controller commands the valve, then measure the positive and ground side drops separately. A static open circuit reading can look normal while a corroded terminal collapses under load. Compare the result with the confirmed 24v requirement and repair excessive resistance before judging the hydraulic pump solenoid valve itself as defective.

Request a Bulk Quote for KDRDE5K-20/30C12A-111-T Hydraulic Pump Solenoid Valve

Send the complete old valve marking, confirmed voltage, machine model and serial number, connector photos, interface dimensions and required quantity for a fitment focused B2B quotation.
