KWE5K-20/G24D05-T
KWE5K-20/G24D05 / V9405205563
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
KWE5K-20/G24D05 / V9405205563
Kato excavator hydraulic pump control using KWE5K-20/G24D05
Confirm confirm from removed valve, connector, threaded cartridge with lead connector, seals and hydraulic circuit before installation.
| Quantity: | |
|---|---|
KWE5K-20/G24D05-T is a Confirm from removed valve hydraulic pump solenoid valve for Kato excavator hydraulic pump control using KWE5K-20/G24D05. Buyers should confirm the complete old marking, electrical version, connector, threaded cartridge with lead connector and hydraulic function before approving replacement stock.
Specification | Value |
|---|---|
Product Type | Hydraulic Pump Solenoid Valve |
Primary Reference | KWE5K-20/G24D05-T |
Cross References | KWE5K-20/G24D05 / V9405205563 |
Electrical Version | Confirm from removed valve |
Working Pressure Reference | 41 bar |
Interface | Threaded cartridge with lead connector |
Application Scope | Kato excavator hydraulic pump control using KWE5K-20/G24D05 |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |

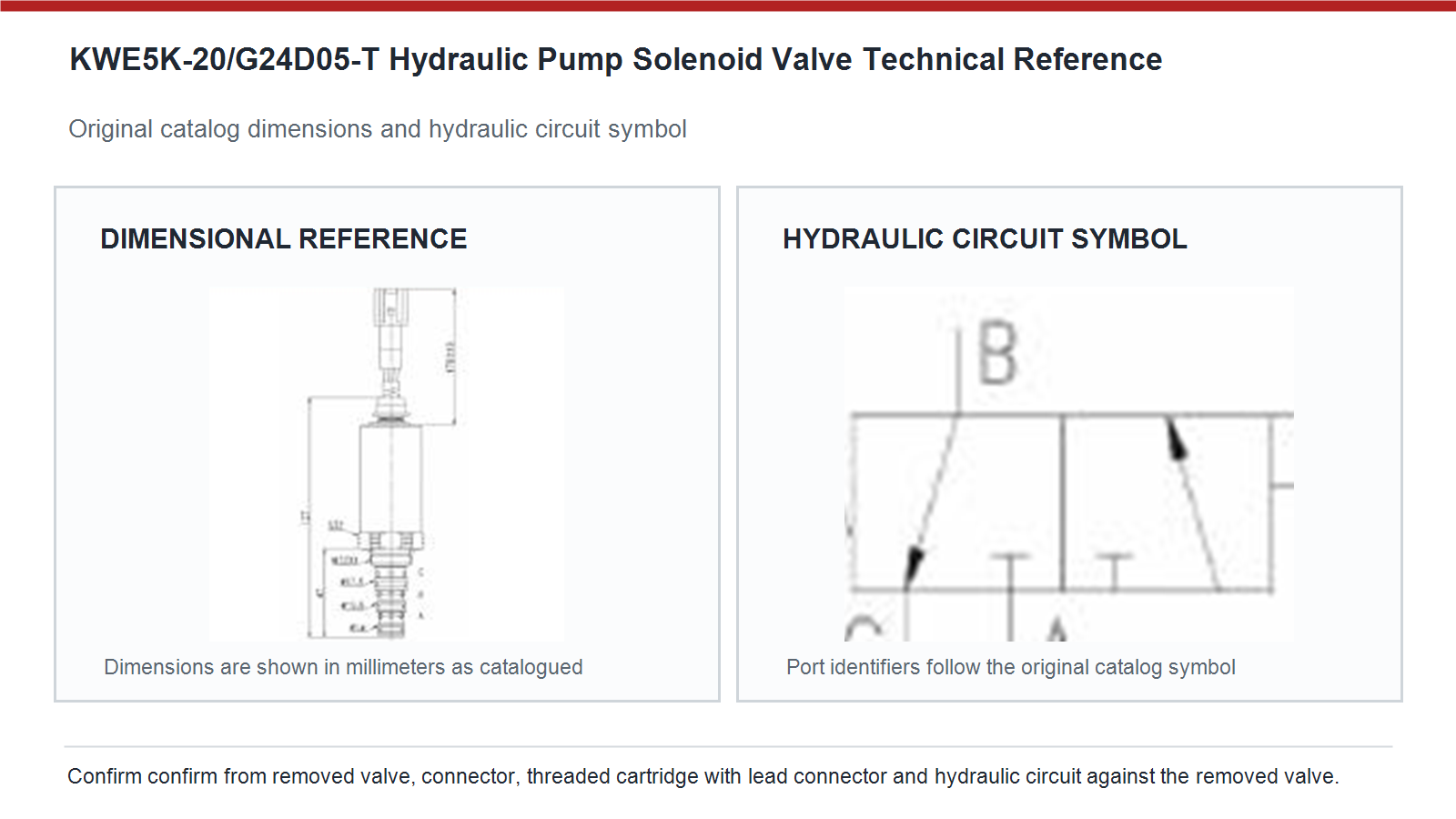

Use the original catalog dimensional reference and hydraulic symbol to compare the valve with the removed component and the machine schematic before purchase approval.
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | KWE5K-20/G24D05 / V9405205563 |
Electrical | Confirm from removed valve; verify at the loaded connector during the actual command |
Mechanical | Compare threaded cartridge with lead connector, cartridge length, seals and installed clearance |
Hydraulic | Confirm normal state, energized state and manifold port relationship |
Machine Evidence | Kato excavator hydraulic pump control using KWE5K-20/G24D05 |
Separate electrical command, cartridge movement and machine response so the actual wiring or hydraulic fault is not hidden by a parts replacement.
Observed Condition | Recommended Check |
|---|---|
No movement | Check loaded connector voltage, ground, controller command and coil resistance. |
Slow response | Inspect oil cleanliness, filter condition, viscosity and cartridge movement. |
Reversed response | Stop operation and compare normal and energized port logic with the original valve. |
External leakage | Inspect seals, cartridge surface, manifold bore and correct seating depth. |
Repeated heating | Confirm voltage, duty cycle, connector resistance and full magnetic movement. |
During a new supplier lot enters dimensional inspection, keep the verified reference, measurements and test result in the service record. Approve KWE5K-20/G24D05-T from the complete old valve marking, confirm from removed valve electrical version, connector keying, threaded cartridge with lead connector, sealing lands and normal hydraulic state. A shared equipment model does not prove interchangeability because pump and manifold revisions can change during production. Send the machine model, serial number and clear removed part photos with the inquiry.
During a serial controlled overhaul is prepared, keep the verified reference, measurements and test result in the service record. The 41 bar figure is a catalog or verified product reference, not permission to ignore the equipment hydraulic schematic. Confirm which ports see pressure in both de-energized and energized states, review return line conditions and follow the machine service limits. Pressure capability does not correct a wrong spool function, cartridge depth or manifold port relationship.
During a pilot passage blockage is investigated, keep the verified reference, measurements and test result in the service record. Measure supply and ground at the loaded connector, then check coil resistance and verify that the controller is actually issuing the command. If electrical input is correct, inspect oil cleanliness, filter condition, cartridge movement and manifold contamination. Separate electrical command from hydraulic response before replacing another valve, otherwise a harness or blocked pilot passage may be missed.
During a warm oil response complaint is diagnosed, keep the verified reference, measurements and test result in the service record. Use the drawing to compare overall length, thread or flange position, sealing diameters and connector clearance with the removed component. Read the spring side of the hydraulic symbol as the normal state and the solenoid side as the energized state. Port letters are catalog identifiers and must be reconciled with the equipment schematic before commissioning.
During a distributor separates similar suffix variants, keep the verified reference, measurements and test result in the service record. Verify commanded voltage under load, coil duty cycle, connector resistance and whether the hydraulic element reaches its intended position. Low voltage can prevent full magnetic pull, while excessive voltage or continuous energization can overheat the winding. Contamination that restricts cartridge movement can also increase operating stress, so correct the electrical or hydraulic root cause before fitting another coil.
During a first article sample is reviewed, keep the verified reference, measurements and test result in the service record. Serial number evidence is essential whenever the same equipment family used more than one pump, manifold or electrical harness. Use it with the parts diagram rather than as a substitute for physical checks. If the old valve label is damaged, collect connector, mounting, cartridge and installed location photos so the application can be narrowed without guessing from the machine name alone.
During a warm oil response complaint is diagnosed, keep the verified reference, measurements and test result in the service record. Treat every suffix as an engineering identifier until its meaning is proven. A suffix can change voltage, connector, spring calibration, spool geometry or mounting details while the base model remains similar. Keep the complete old marking on the quotation and do not shorten KWE5K-20/G24D05 / V9405205563 in purchasing records. Accept a cross reference only after dimensional, electrical and hydraulic checks agree.
Send the complete old valve marking, confirmed voltage, machine model and serial number, connector photos, interface dimensions and required quantity for a fitment focused B2B quotation.
