M000A0301 Daewoo DH220-3 Starter Motor Wholesale

M000A0301 Daewoo DH220-3 Starter Wholesale for Excavators

A stopped DH220-3 can hold an excavator, operator and support crew at the same site. Buyers need the machine model, engine details, old-starter markings and delivery location early enough to choose between an urgent single replacement and planned reserve stock.

The 6.0kW rating and three Ø12 holes are important separators for this version. An 11T module-3 pinion should not be matched to another Daewoo starter unless the Ø127 circle, Ø90 locating diameter and terminal layout also agree.

M000A0301 6.0kW Starter Dimensions for Equipment Buyers

Describe M000A0301 as 24V, 6.0kW, 11T, module 3 and CW. Keeping the output rating and drive details together helps purchasing and receiving teams distinguish the DH220-3 unit from lower-output starters with a similar silhouette.

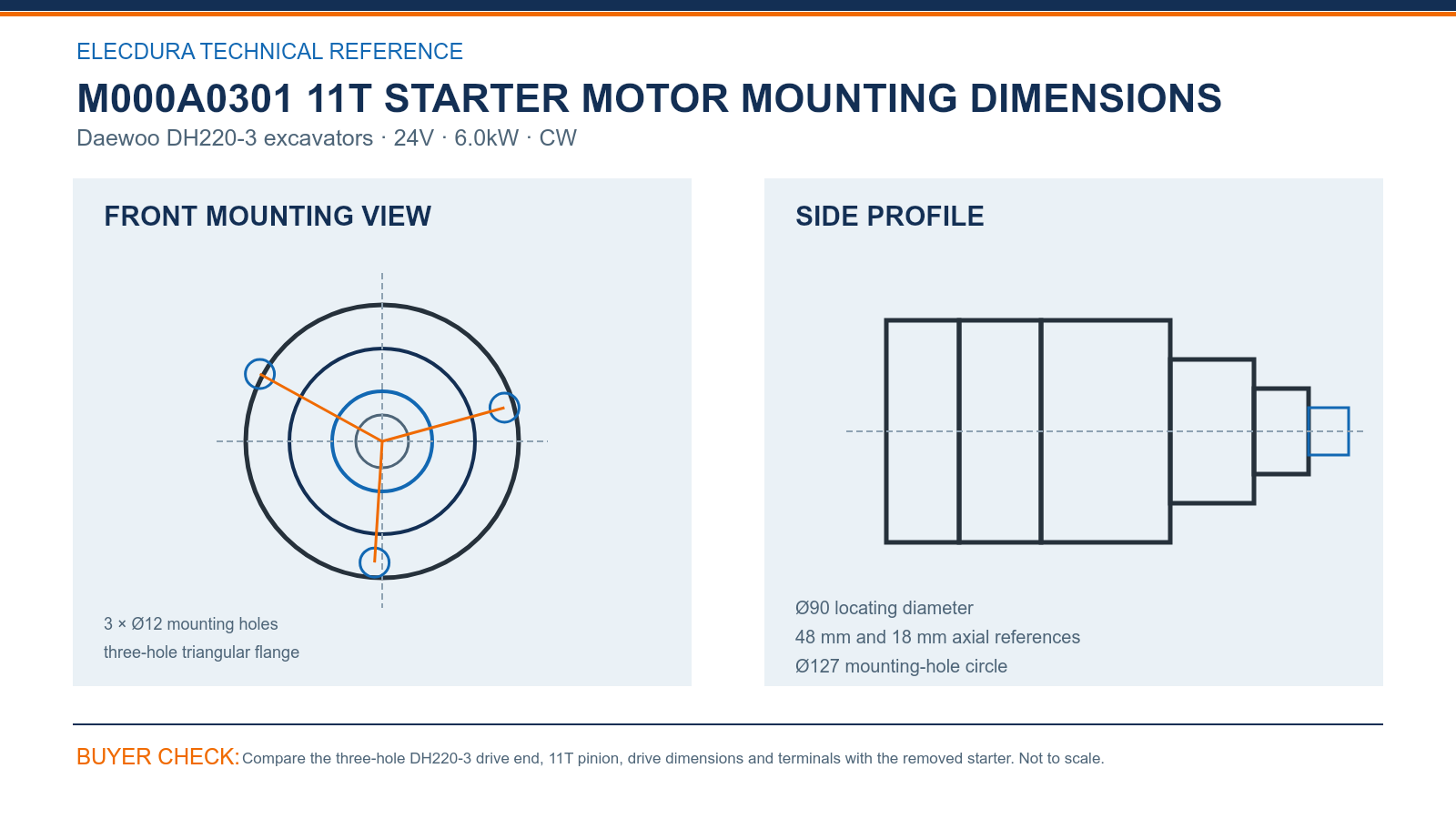

M000A0301 Daewoo DH220-3 Starter Drawing for Excavator Buyers — compare the drawing with the removed starter before placing a volume order.

Compare three Ø12 holes on the Ø127 circle, the Ø90 locating diameter, and the 48 mm and 18 mm axial references. The removed unit should be photographed from the drive end and terminal side before it leaves the machine service area.

M000A0301 Daewoo Reference Matching for Parts Distributors

Daewoo numbers 65262017049 and 65262017124, together with TM000A0301, 5262017124 and 600290, support sourcing across Mando and Valeo routes. The DH220-3 identity and 6.0kW construction remain central to the quotation.

Construction fleets should allocate this product to confirmed DH220-3 machines rather than every Daewoo excavator carrying a related number. A saved face image and old-unit label make later site requests faster without weakening the fitment boundary.

M000A0301 DH220-3 Starter Inspection and Stock Planning

Count eleven teeth and inspect the Ø90 locating face, three holes, solenoid studs, cable positions and packing around the heavy starter. For reserve units sent to remote projects, mark the accepted DH220-3 stock code before dispatch.

Elecdura's production video shows starter assembly and electrical testing relevant to excavator supply. Daewoo buyers can use it while agreeing on sample testing, protective packing, lot labels, private-brand cartons and delivery timing for active projects.

M000A0301 Starter FAQs for Daewoo DH220-3 Buyers

Which DH220-3 details should buyers send for M000A0301?

Send the DH220-3 machine identity, engine details, complete old-unit markings and clear drive-end, pinion and terminal photographs. State the site, quantity and required date. These inputs keep M000A0301 tied to the 6.0kW 11T construction and the three Ø12 mounting holes; keep this point with future M000A0301 orders for Daewoo DH220-3 excavators.

Why should the 6.0kW rating remain visible in the order?

The 6.0kW rating helps distinguish this heavy excavator starter from lower-output units with a similar body. Keep it beside 24V, 11T, module 3 and CW on the quotation and carton label so receiving staff recognize the intended DH220-3 product; keep this point with future M000A0301 orders for Daewoo DH220-3 excavators.

How do Mando and Valeo references help source this starter?

Mando and Valeo numbers broaden the search when the original M000A0301 marking is missing or worn. They should be used with the Daewoo machine identity, 6.0kW rating and measured three-hole face. That approach joins alternative brands without weakening the physical fitment check; keep this point with future M000A0301 orders for Daewoo DH220-3 excavators.

What distinguishes the three Ø12 mounting holes?

The flange uses three Ø12 holes on an Ø127 circle with an Ø90 locating diameter. Another three-hole starter may use smaller openings or another register. Measure the removed unit and add a square face photograph before confirming a shipment for DH220-3 equipment; keep this point with future M000A0301 orders for Daewoo DH220-3 excavators.

How should a fleet prepare reserve units for remote projects?

Size reserve quantity from the active DH220-3 population, project distance and normal replenishment time. Mark each spare with the accepted machine and face images before dispatch. Protective packing and a clear terminal cover are especially important when stock travels to remote construction sites; keep this point with future M000A0301 orders for Daewoo DH220-3 excavators.

Which incoming checks protect a heavy excavator starter?

Inspect carton support before lifting the unit out, then count eleven teeth and examine the locating surface, three Ø12 holes, terminals and labels. Record sampled electrical performance. Heavy starters need rigid support so transport does not load the nose or damage exposed connections; keep this point with future M000A0301 orders for Daewoo DH220-3 excavators.

What should technicians test before condemning the old starter?

Test battery capacity, ground and positive cable voltage drop, relay output and the engine's mechanical freedom. A worn connection or tight engine can resemble starter failure. If replacement is justified, keep the readings and old-unit photographs with the DH220-3 maintenance entry; keep this point with future M000A0301 orders for Daewoo DH220-3 excavators.

What information helps Elecdura quote M000A0301 efficiently?

Include the machine and engine details, M000A0301 or Daewoo references, face and terminal photographs, order quantity, delivery site, packing preference and deadline. Elecdura can then assess the exact excavator version and provide wholesale pricing, availability and shipment planning; keep this point with future M000A0301 orders for Daewoo DH220-3 excavators.

Request M000A0301 Daewoo Starter Motor Wholesale Pricing

Send the DH220-3 machine and engine details, M000A0301 or Daewoo numbers, drive-end and terminal photographs, quantity, destination and service deadline to info@elecdurauto.com. Elecdura will review the configuration and provide wholesale pricing and lead time.
