M002T54271 Mitsubishi 4DR5 Starter Motor Wholesale

M002T54271 Starter Motor Wholesale Value for 4DR5 Equipment

A 4DR5 enquiry may come from a forklift workshop, a light-commercial vehicle dealer or an industrial service company. Stating the host machine lets Elecdura discuss the same M002T54271 product without implying that every 4DR5 installation uses an identical starter.

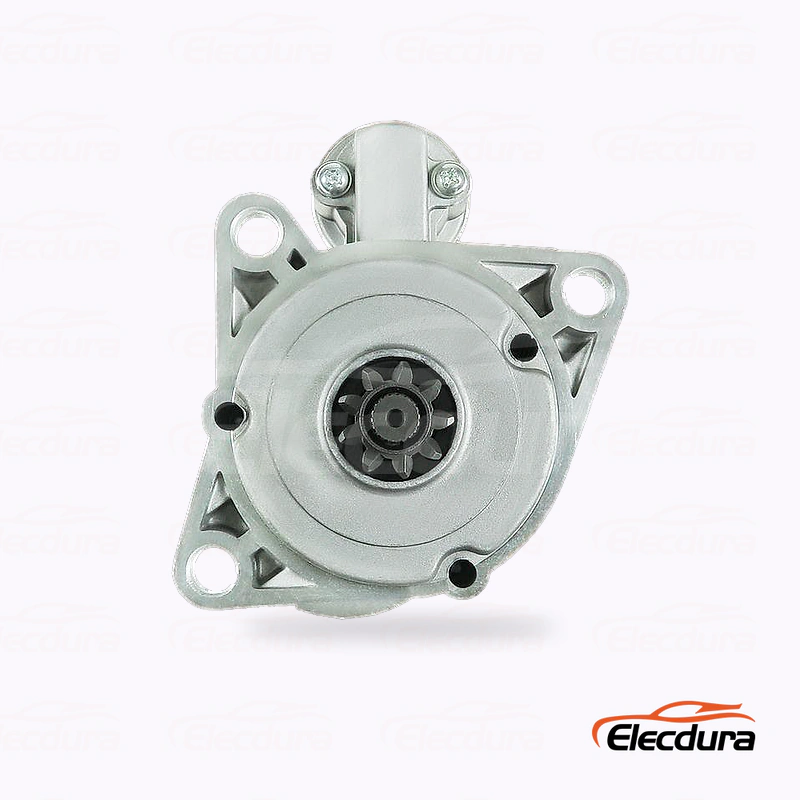

The wide three-hole flange and nine-tooth drive are more useful than a single side photograph. Buyers should compare the mounting face, pinion, terminal orientation and available clearance, especially when stock is intended for several equipment channels.

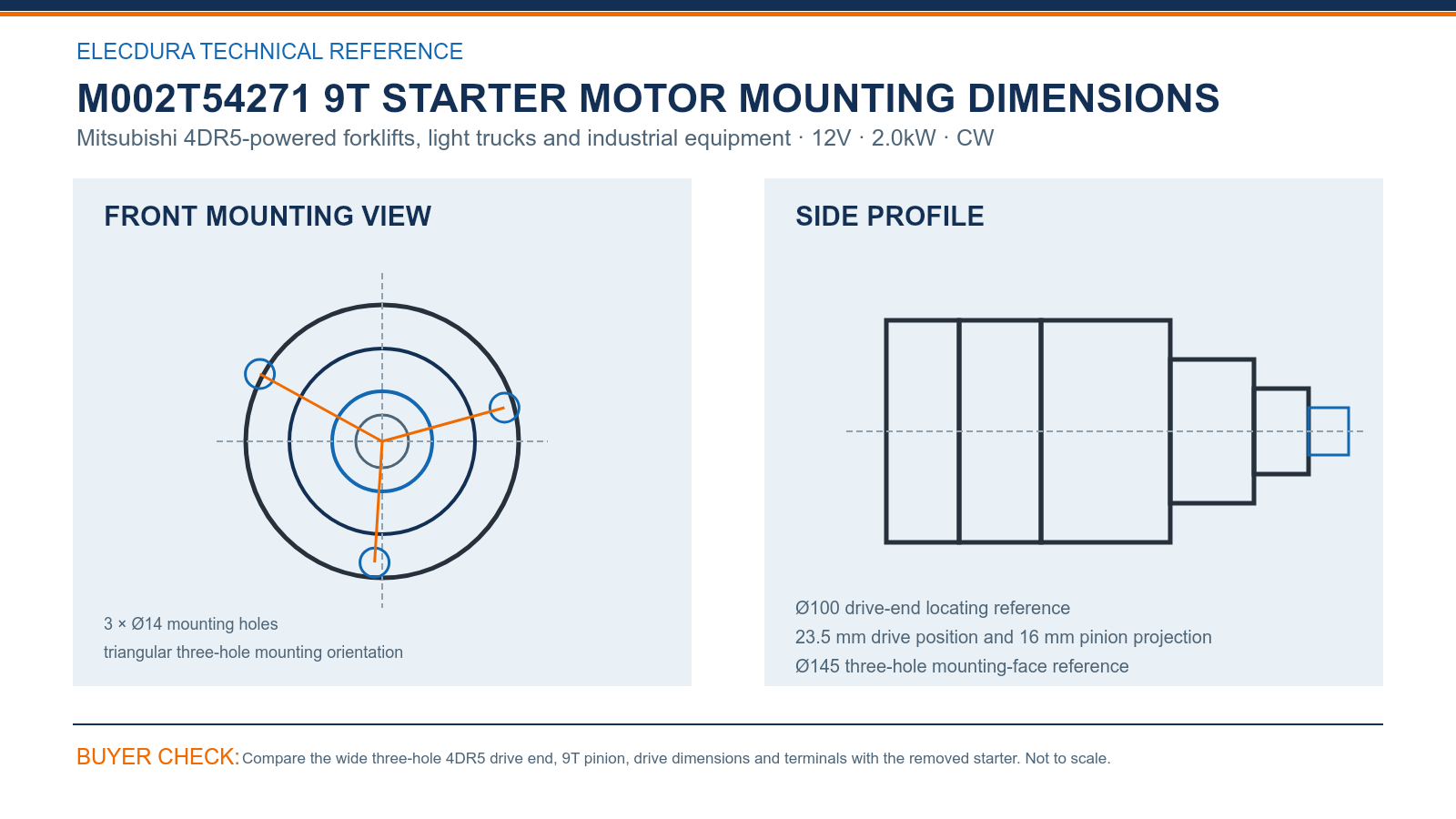

M002T54271 Starter Motor Drawing for Industrial B2B Matching

The required specification is 12V, 2.0kW, 9T, module 3 and clockwise rotation. This combination defines the compact cranking platform and gear interface, helping buyers separate M002T54271 from higher-output or different-tooth 4DR5 alternatives.

M002T54271 Mitsubishi 4DR5 Starter Motor Drawing for Wholesale Matching — compare the drawing with the removed starter before placing a volume order.

Verify three Ø14 holes, the Ø145 face, Ø100 locating diameter, 23.5 mm drive position and 16 mm pinion projection. A measured front view is particularly useful when the replacement will travel to a forklift branch or remote worksite.

M002T54271 Starter Motor Reference Checks for Parts Wholesalers

M002T54271, M002T54272 and Mazda 4857-18-400 support cross-reference searches, with 19716 and S5415S as additional market identifiers. Each quotation should still name the exact forklift, truck or industrial machine and carry comparable old-unit images.

Wholesalers may keep one confirmed item while separating demand by forklift, road vehicle and industrial customer. That segmentation improves forecasting and complaint analysis, and it prevents one successful 4DR5 installation from becoming a blanket claim for unrelated machines.

M002T54271 Starter Motor Multi-Channel Supply and Testing Capability

First-lot inspection should cover pinion count, flange condition, terminal layout, rating label and carton support beneath the motor. If several branches share inventory, attach the verified M002T54271 image set to the stock code so transfers remain understandable.

The production video below shows Elecdura starter assembly and electrical testing for B2B orders. It allows multi-channel distributors to review manufacturing capability while they define sample quantities, packing, private-label requirements and delivery timing for 4DR5 stock.

M002T54271 Starter Motor FAQs for 4DR5 Equipment Buyers

Why should a 4DR5 buyer name the forklift, truck or industrial machine?

The host machine determines how the enquiry should be understood even when the engine is the same. Forklift compartments, road vehicles and stationary equipment can present different clearance, cabling and service priorities. Naming the equipment keeps M002T54271 connected to a real installation instead of creating an unlimited 4DR5 fitment claim.

What should purchasing retain beside the 9T description?

Keep 12V, 2.0kW, nine teeth, module 3 and clockwise rotation together with M002T54271. Add the 4DR5 engine and host machine on the same order line. This prevents an otherwise similar starter with another output or pinion form from being picked simply because its housing resembles the product photograph.

How is the wide three-hole mounting face verified?

Compare all three Ø14 holes, the Ø145 face and Ø100 locating shoulder from a square front image. Then measure the 23.5 mm drive position and 16 mm pinion projection from the side. These dimensions give a remote buyer a practical check before the starter is shipped to a forklift branch or worksite.

Can Mazda 4857-18-400 support a search for M002T54271?

Yes, 4857-18-400 sits within the listed reference group and can be used as a sourcing route. Keep the full Mazda number, 4DR5 application and old-unit photographs in the enquiry. The wide three-hole flange and nine-tooth drive should agree before the number is converted into a confirmed wholesale item.

Should forklift and light-truck demand share one warehouse bin?

They can share a verified physical product, but their demand and customer histories should remain separate. Label the bin with M002T54271, 9T and the accepted face image, while recording which machines have been matched. This gives sales teams flexibility without letting one successful forklift installation define every 4DR5 vehicle.

Which photographs reveal 4DR5 installation-clearance risks?

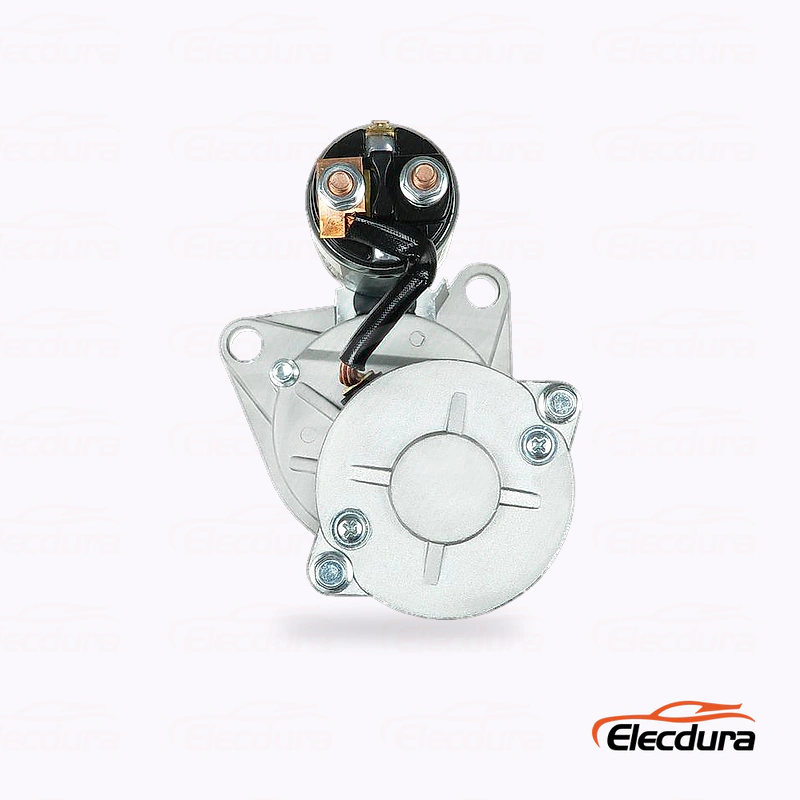

Provide straight views of the drive end, both body sides, terminal end and rating label. Add a compartment photograph showing nearby castings, cables and access space when the starter sits tightly in the machine. Matching camera angles make it easier to compare housing length and terminal orientation before an overseas shipment is prepared.

What receiving checks suit a mixed-channel M002T54271 order?

Count nine teeth, inspect all three mounting positions and compare the rating label and terminal arrangement with the accepted images. Check carton support and moisture protection, especially when units will be redistributed. Separate any visible variation before the lot is divided among forklift, truck and industrial-equipment customers.

What details should accompany a wholesale M002T54271 request?

Send the 4DR5 engine information, exact machine model, old-starter references, clear flange, pinion and terminal photographs, required quantity and annual estimate. Add destination, packing and delivery target. Elecdura can then review the nine-tooth product against the real installation and prepare a relevant commercial response. Include the intended customer channel for more precise terms.

Request M002T54271 Starter Motor Wholesale Pricing for Mitsubishi 4DR5

Send the 4DR5 engine plate, forklift, truck or equipment model, all readable starter numbers, straight flange and terminal photographs, quantity and destination to info@elecdurauto.com. Elecdura will compare M002T54271 with the supplied details and return wholesale pricing.
