M002T57271 Mitsubishi 4D56 Starter Motor Distributor

M002T57271 Starter Motor Distributor Value for Mitsubishi 4D56

The 4D56 aftermarket includes vans, pickups and utility vehicles sold under different brands. M002T57271 becomes a useful procurement item when the buyer supplies the vehicle identity and keeps the 13T version separate from nearby ten-tooth supersession groups.

A shared M002T family number does not make the 4D55 and 4D56 products identical. Count thirteen teeth, compare the two M11 mounting positions, check the drive projection and confirm terminal clearance before M002T57271 is allocated to a customer.

M002T57271 13T Starter Motor Specifications for B2B Buyers

The offered product is 12V, 2.2kW, 13T, module 2.54 and clockwise rotation. Those values define both cranking output and engagement geometry, and they should appear together on quotations, stock labels and receiving sheets.

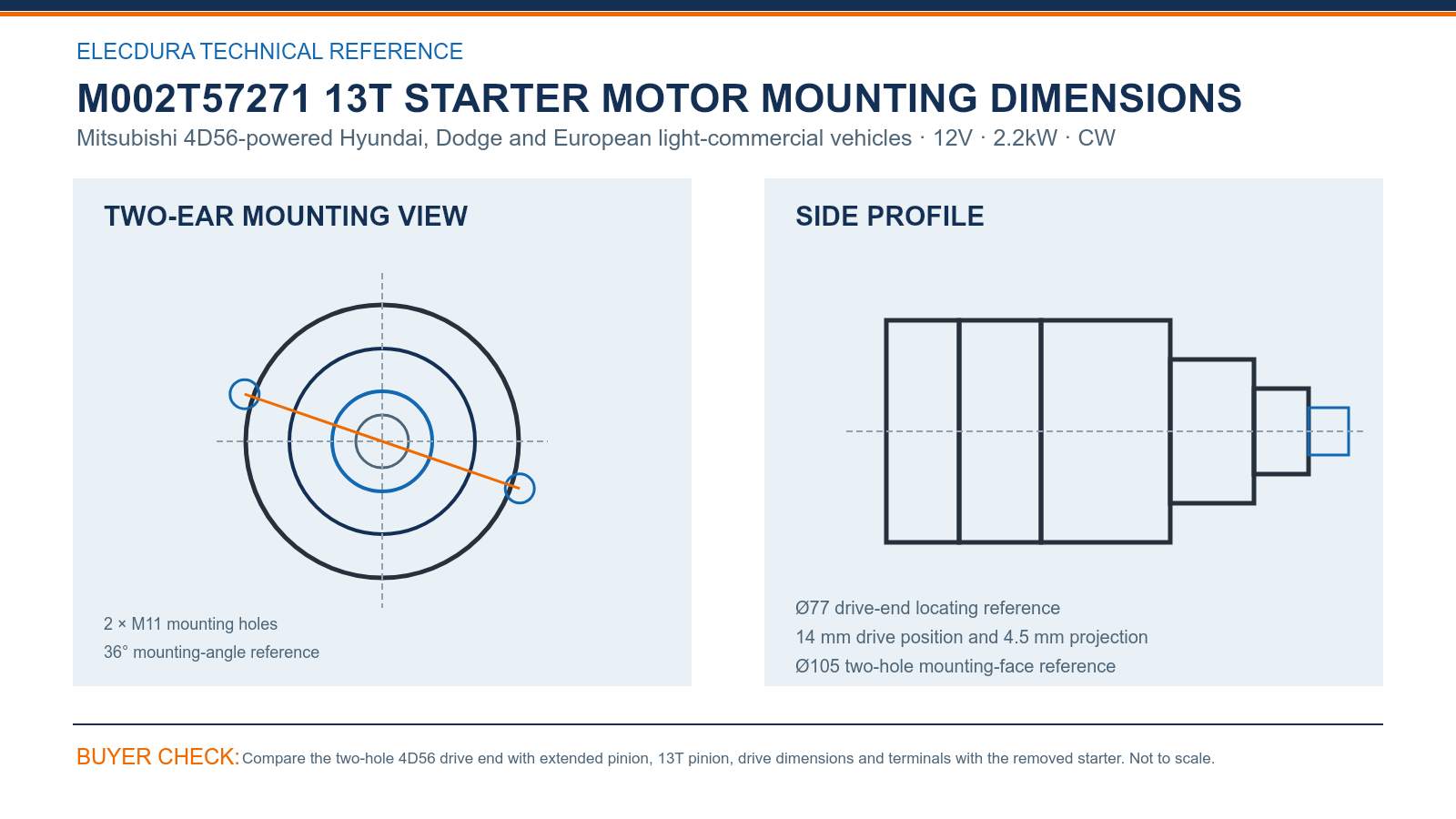

M002T57271 Mitsubishi 4D56 Starter Motor Drawing for Distributors — compare the drawing with the removed starter before placing a volume order.

Use the drawing to compare two M11 holes, the Ø105 mounting face, Ø77 locating diameter, 14 mm drive position and 4.5 mm projection. The 36° orientation reference helps distinguish this compact 4D56 flange from another two-ear housing.

M002T57271 Starter Motor Reference Separation for Distributors

M002T57271 sits within a broad Mitsubishi and Magneti Marelli reference family. Because several listed numbers also appear near other diesel applications, the vehicle, 4D56 engine, thirteen-tooth pinion and measured drive end should remain the decisive purchasing information.

A distributor can serve Hyundai and Dodge channels with the same confirmed physical starter while keeping brand-specific order histories. Do not merge unverified European models into that stock line merely because a seller lists a familiar cross-reference.

M002T57271 Starter Motor Aftermarket Supply and Testing Capability

On the first delivery, sample cartons for thirteen teeth, M11 ears, rating label, terminal caps and drive protection. Branch labels should display M002T57271 and 13T prominently, reducing warehouse substitutions during urgent 4D56 orders.

The video below introduces Elecdura production and electrical testing for starter-motor wholesale programs. It gives 4D56 distributors a view of manufacturing capability while commercial details such as samples, carton marking, consolidation and delivery schedules are agreed separately.

M002T57271 13T Starter Motor FAQs for 4D56 Distributors

What information keeps M002T57271 tied to a 4D56 vehicle?

State the vehicle make, model, year and 4D56 engine details, then add the complete marking and photographs from the removed starter. The thirteen-tooth pinion should be visible. This combination gives a Hyundai, Dodge or European-market distributor a defined installation instead of a broad claim based only on the engine family.

Why should this product remain separate from the 36100-42010 stock line?

M002T57271 is specified at 2.2kW with thirteen teeth and two M11 mounting positions, whereas 36100-42010 represents a different ten-tooth configuration. Even when cross-reference families overlap, tooth count, output and drive geometry must stay distinct on quotations, cartons and warehouse locations. Separate shelving also makes urgent picking safer for staff.

How should the M11 mounting face be measured?

Verify both M11 holes on the Ø105 face and check the Ø77 locating shoulder. Compare the 14 mm drive position, 4.5 mm projection and 36° orientation from straight views. Measuring these points together gives the buyer a useful screen against another two-ear Mitsubishi starter with a different engagement position.

What value do the Magneti Marelli numbers add to an enquiry?

The listed Magneti Marelli references provide additional sourcing paths for distributors already using those catalogues. Keep the complete number and connect it to M002T57271, 13T, the 4D56 vehicle and matching photographs. That approach expands procurement options without allowing an isolated cross-reference to override the physical product.

Can Hyundai and Dodge customers be supplied from one M002T57271 item?

Yes, if each vehicle has been compared to the same thirteen-tooth drive, mounting face and terminal arrangement. Keep customer and model histories separate so one brand does not become evidence for every other application. Shared inventory should represent a verified product, while sales notes preserve where it has actually been matched.

What should receiving staff check before shelving the 4D56 shipment?

Open several cartons and confirm thirteen teeth, two undamaged M11 ears, the 2.2kW label and terminal protection. Compare the 14 mm drive position and product outline with the agreed images. Put any differing pinion or housing aside before the remaining units are labeled for M002T57271 distribution.

What should a workshop test when a 4D56 vehicle cranks slowly?

Begin with a battery load test, then measure positive-cable and ground voltage drop during cranking. Check terminal heat, relay operation and engine freedom, and inspect the ring gear where possible. This evidence helps determine whether the vehicle needs M002T57271 or whether resistance elsewhere is limiting starter performance.

Which details produce a useful M002T57271 distributor quote?

Send the vehicle brand, model, year, 4D56 engine plate, old-unit references and clear pinion, front and terminal images. Include order quantity, annual estimate, destination and required packing. Elecdura can then confirm the specified thirteen-tooth version and respond with sample, price and delivery information relevant to the buyer.

Request M002T57271 Starter Motor Distributor Pricing for 4D56

Send the Hyundai, Dodge or other vehicle model, year, 4D56 engine details, complete old-starter references, mounting and terminal photographs, quantity and destination to info@elecdurauto.com. Elecdura will review the M002T57271 13T configuration and prepare distributor pricing.
