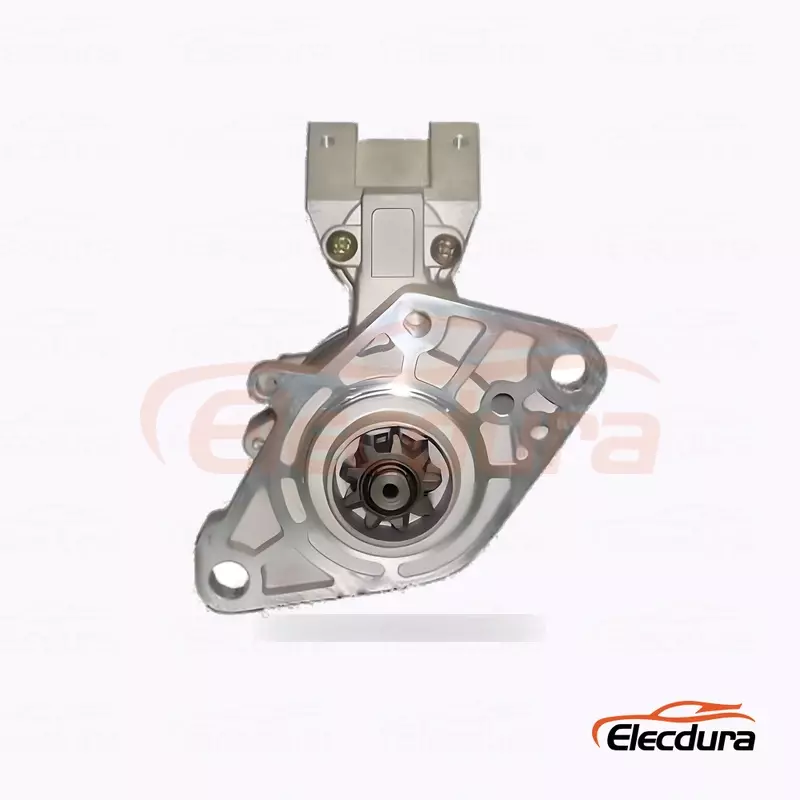

M002T61771 Fuso 4DR7 Starter Motor Distributor

M002T61771 Fuso 4DR7 Starter Distributor Value for Canter Fleets

Canter operators often depend on short delivery routes and daily urban work, so a failed starter quickly affects several scheduled jobs. A useful distributor quotation should connect M002T61771 to the 4DR7 engine, current vehicle population and branch demand rather than treating it as a generic Mitsubishi unit.

The flange combines two Ø13.5 holes with two M10 × 1.25 points. That mixed pattern, the 9T module-3 pinion and the 60 mm engagement reference are more useful for separating this version from nearby Canter starters than body length viewed from an angle.

M002T61771 9T Starter Dimensions for Wholesale Verification

M002T61771 should remain paired with 12V, 2.0kW, 9T, module 3 and CW rotation in quotations and stock labels. This concise identity supports receiving checks and prevents a similar 2.2kW or differently geared Fuso starter from being issued to the workshop.

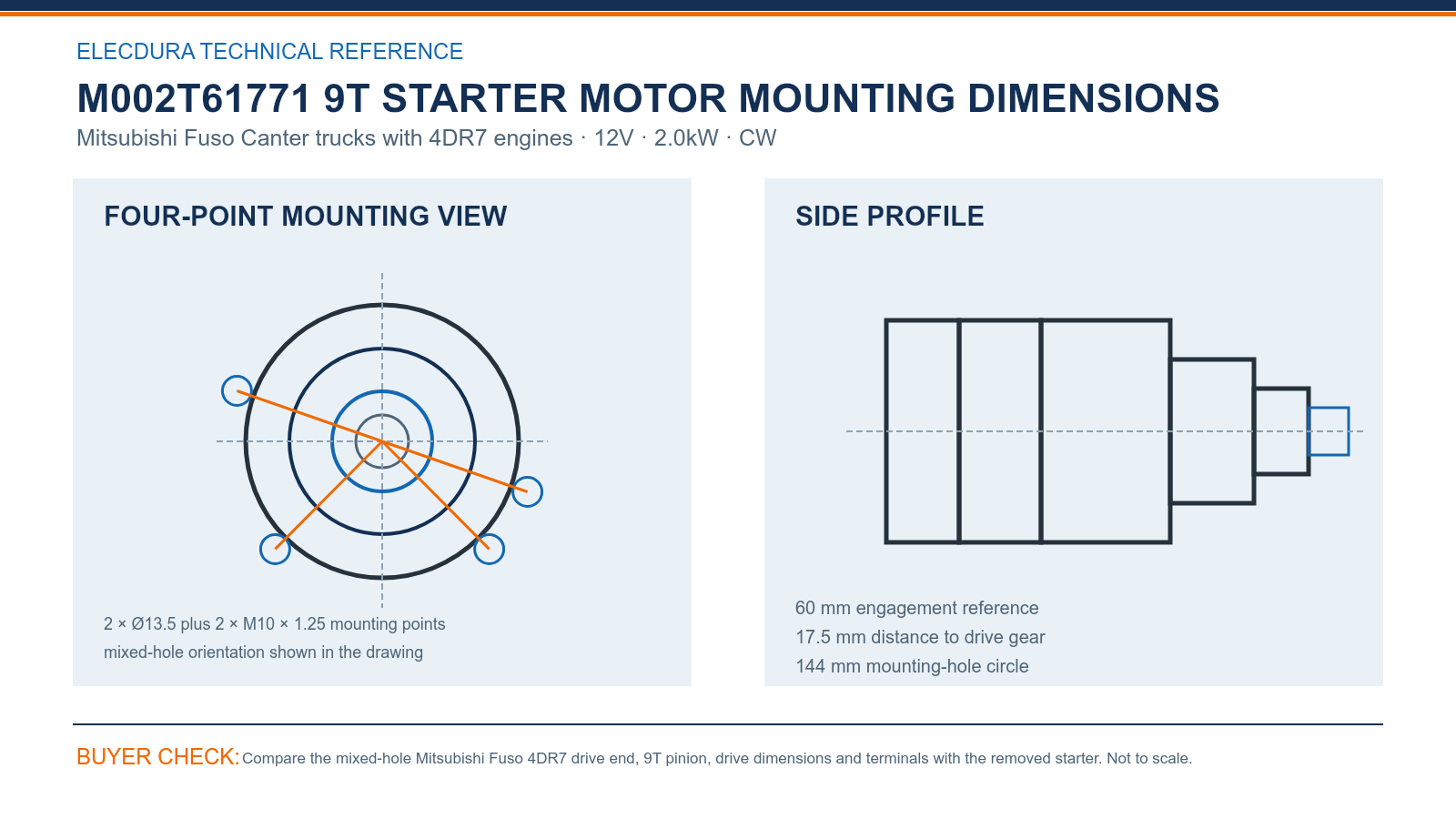

M002T61771 Fuso 4DR7 Starter Drawing for Truck Distributors — compare the drawing with the removed starter before placing a volume order.

Measure the 144 mm mounting circle, 17.5 mm distance to the drive gear and 60 mm engagement reference. Ask for a square mounting-face photo that shows both threaded points and both open holes, plus a terminal-side view with the cable positions visible.

M002T61771 ME001565 Fitment Matching for Commercial Buyers

ME001565, M2T61771, 18240N and STR71035 are useful cross-reference routes for this Fuso family. The final match should still combine the 4DR7 engine, 9T pinion and four-point mixed flange before a distributor substitutes one number for another.

For Canter fleets, separate planned branch stock from urgent workshop demand and note whether vehicles share the same 4DR7 starter face. A confirmed sample can then anchor replenishment, while any truck with a different engine suffix or flange stays outside this product group.

M002T61771 Canter Starter Supply Checks for Distributor Orders

During first-lot receipt, sample the pinion, threaded flange points, terminal covers and body support from cartons in different pallet positions. Photograph the accepted marking and mounting face before distribution so a later claim can be traced to a specific shipment and comparison set.

Elecdura's production and electrical-testing video helps Fuso distributors discuss how starter lots are assembled, checked and packed. Use it alongside your own sampling level, label format, carton protection and delivery plan for recurring Canter demand.

M002T61771 Starter FAQs for Fuso Canter 4DR7 Distributors

Which Fuso Canter details help identify M002T61771?

Identify the Fuso Canter model, model year, 4DR7 engine and chassis number, then record M002T61771, ME001565 or any other marking on the removed unit. Front, side and terminal photographs should show the complete mixed-hole flange. Add quantity and destination so the distributor request covers both fitment and commercial delivery needs.

Why is the mixed threaded flange important on this 4DR7 starter?

This drive end combines two Ø13.5 open holes with two M10 × 1.25 threaded points. That pattern separates the starter from nearby Fuso units that may have the same 12V rating or a similar housing. Verify all four positions, the 144 mm circle and thread condition before treating another 4DR7 reference as interchangeable.

How should ME001565 and M2T61771 support the match?

ME001565 and M2T61771 are valuable search references because they connect different parts listings to the M002T61771 family. They become reliable purchasing evidence only when the 4DR7 engine, 9T module-3 pinion and mixed flange also match. Record the complete set on the quotation instead of choosing whichever number is easiest to read.

How should a Fuso buyer interpret the 9T module-3 drive?

The nine-tooth count identifies how many pinion teeth engage the ring gear, and module 3 describes their size and pitch. A 4DR7 starter with another tooth form can share similar electrical values but cannot be assumed to mesh correctly. Purchasing and receiving should check both details before the unit enters Canter branch stock.

How should distributors label M002T61771 branch stock?

Label the bin with M002T61771, Fuso Canter 4DR7, 12V 2.0kW, 9T and the mixed Ø13.5/M10 flange. Attach an accepted front-face photograph to the stock record. If another Canter engine uses a related number, keep it in a separate location until its mounting points and pinion have been compared.

What should receiving inspect on a Canter starter delivery?

Receiving should count nine teeth, inspect both threaded mounting points and confirm that the two open holes are undamaged. Check the 4DR7 marking, terminal insulators, connector direction and carton support across several units. Any mismatch in the flange or pinion should hold that carton outside saleable M002T61771 inventory until the lot is reviewed.

Which truck-side checks help avoid an unnecessary starter return?

Before authorizing a return, test battery capacity, cranking voltage and cable voltage drop under load. Inspect the engine ground, relay, ignition signal and ring gear, then verify that the engine turns without abnormal resistance. Comparing those results with a bench test prevents a weak connection or battery fault from being attributed to the Canter starter.

What information completes an M002T61771 distributor enquiry?

A useful enquiry includes the Canter model and chassis, 4DR7 engine, old M002T61771 or ME001565 references and square photographs of the flange and terminals. State the quantity, expected repeat demand, packaging needs, destination port and requested delivery date. Elecdura can then return distributor pricing for the correct mixed-hole version.

Request M002T61771 Fuso 4DR7 Starter Distributor Pricing

Email the Fuso model, 4DR7 engine details, all old-starter references, square flange and terminal photographs, order quantity and destination to info@elecdurauto.com. Elecdura will match M002T61771 and provide distributor pricing, packing options and lead time.
