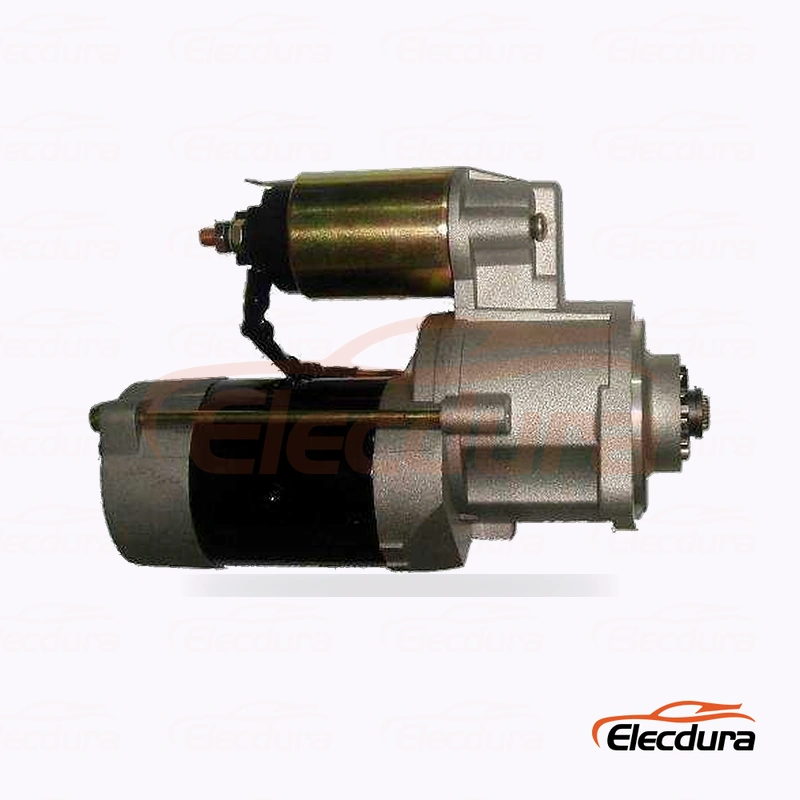

M002T65271 Mitsubishi FD20 Starter Motor Wholesale

M002T65271 Mitsubishi FD20 Starter Wholesale Supply

A stopped FD20 can interrupt loading, production or dispatch even when the starter itself is a small stock item. Buyers should identify the forklift model, engine, working environment and service deadline so the quotation reflects the value of keeping material moving.

The M002T65271 family appears across older industrial references with more than one tooth listing. For this Elecdura product, the supplier data defines 11T module 3 together with the Ø105 two-hole face and Ø82.5 locating diameter.

M002T65271 Forklift Starter Dimensions for B2B Buyers

Use 24V, 3.2kW, 11T, module 3 and clockwise rotation for the FD20 order. Keeping the full specification on the bin label prevents a warehouse from substituting a visually similar industrial starter during an urgent shift change.

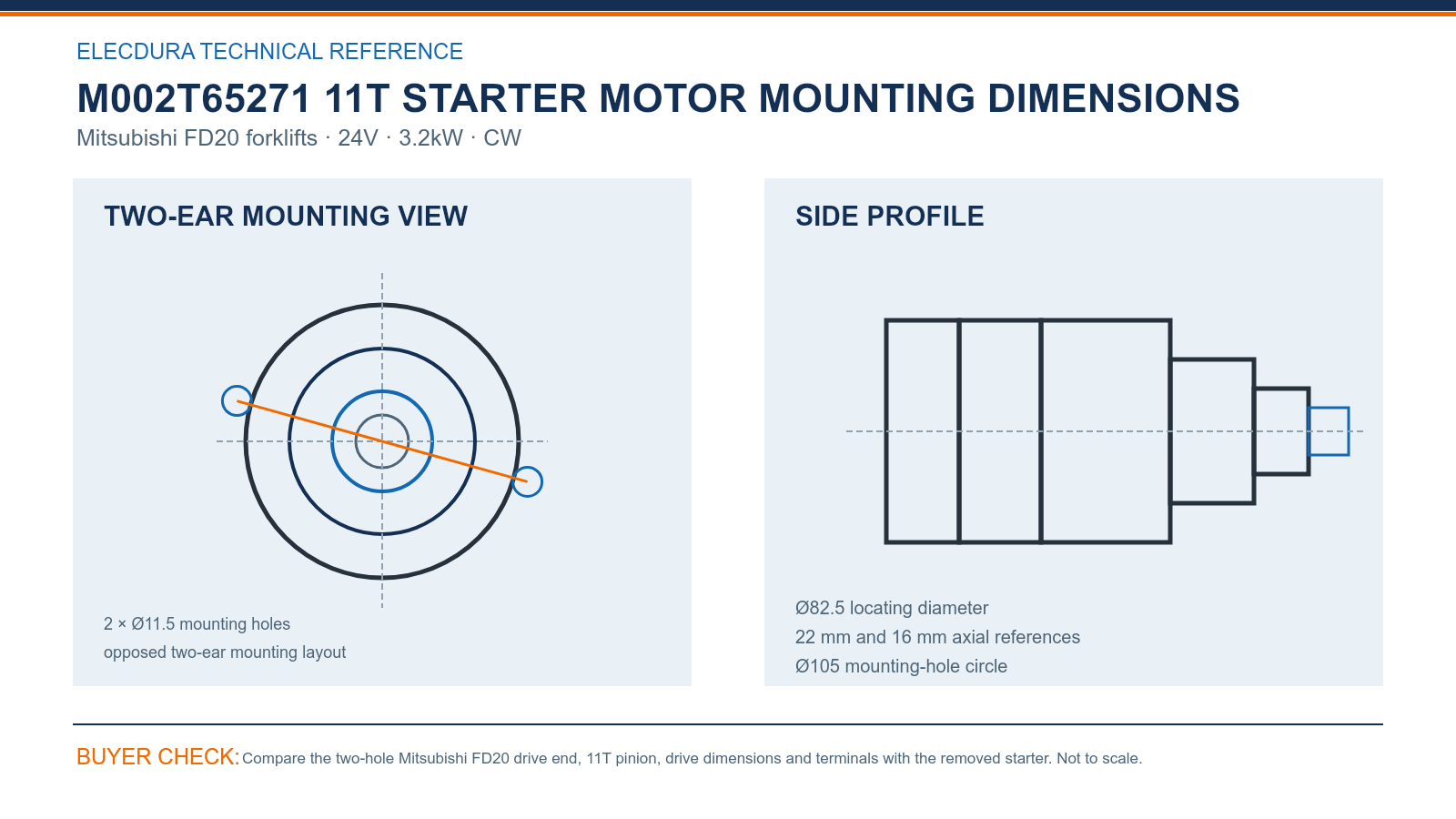

M002T65271 Mitsubishi FD20 Starter Drawing for Forklift Parts Buyers — compare the drawing with the removed starter before placing a volume order.

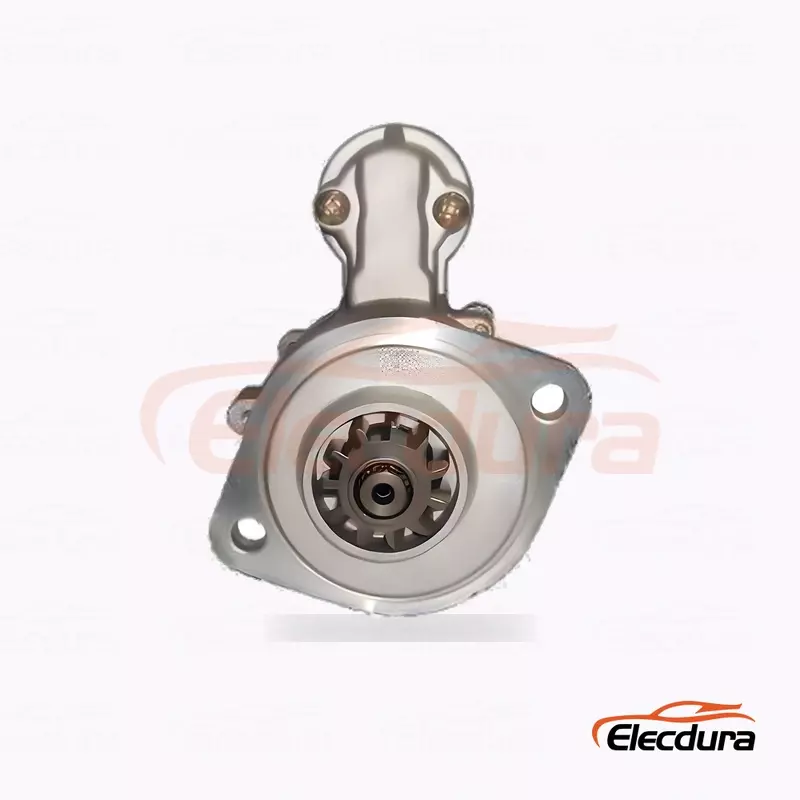

Verify two Ø11.5 mounting holes on the Ø105 circle, the Ø82.5 locating surface, and the 22 mm and 16 mm axial references. A square face image and clear pinion photograph are more useful than a general side view when comparing an older forklift unit.

M002T65271 Industrial Cross References for Parts Wholesalers

M002T65272, M003T54071, M005T27671 and Mitsubishi 3446603101 or 3446615102 widen the industrial search. Cargo 111913 and WAI 18245N add aftermarket routes, but the FD20 model and stated eleven-tooth construction should stay visible.

Forklift service companies should link M002T65271 to confirmed FD20 machines and record any engine or serial details available. Do not extend the stock line to every FD-series truck until the removed starter matches the two-hole face, pinion and terminals.

M002T65271 FD20 Shift Spare and Warehouse Planning

Plan reserve quantity from the active FD20 population, number of shifts and normal replenishment time. Incoming inspection can count teeth, check both holes and terminals, confirm label data and save the accepted unit photographs beside the maintenance-store item.

The video below introduces Elecdura starter assembly and electrical testing. Material-handling distributors can use it while discussing sampled test records, compact but protective packing, private labels, branch stock deliveries and timing for factories or logistics centres.

M002T65271 Starter FAQs for Mitsubishi Forklift Buyers

Which forklift details make an M002T65271 enquiry useful?

Send the Mitsubishi FD20 model, engine or serial information, complete old-starter markings and clear photographs from the front, side and terminal end. State the site and shift deadline. These inputs connect M002T65271 to a real forklift rather than a broad industrial application. Preserve the confirmed Mitsubishi FD20 forklifts mounting comparison in the customer's M002T65271 reorder notes.

Why should this FD20 product remain defined as 11T?

Public references may group this family with more than one tooth option, but the supplier data defines this Elecdura product as 11T module 3. Keep that value with 24V 3.2kW, the Ø105 face and the removed-unit photograph throughout purchasing. Carry the FD20 identity, Ø105 two-hole face and 11T module-3 pinion through packing and branch transfers for M002T65271.

How do the Mitsubishi 34466 references help older stock searches?

The 34466 series links older Mitsubishi industrial part records to M002T65271, M003T54071 and related starters. Use the full number found on the truck, then add the FD20 identity and measured flange. Shortened numbers can easily connect the wrong industrial application. Retain the FD20 identity, Ø105 two-hole face and 11T module-3 pinion with the M002T65271 delivery lot for after-sales review.

What should buyers measure on the two-hole flange?

Measure both Ø11.5 holes, their Ø105 mounting circle and the Ø82.5 locating diameter. Check 22 mm and 16 mm axial references from the side. A square front photograph and pinion close-up make the compact ear spacing easier to verify. Include the FD20 identity, Ø105 two-hole face and 11T module-3 pinion in forecasts and repeat purchases for M002T65271.

How much reserve stock suits a multi-shift forklift site?

Base reserve quantity on active FD20 units, number of shifts, critical loading tasks and supplier replenishment time. A single-shift yard may need less local stock than a continuous production site. Label every spare with the accepted FD20 face and 11T definition. Keep the accepted FD20 face and pinion images with the M002T65271 maintenance-store record.

Which checks belong in a maintenance-store receipt?

Count eleven teeth, inspect both mounting holes and the Ø82.5 locating surface, then compare terminals, labels and carton condition. Record a sampled electrical result and the accepted front image before placing the unit in the maintenance store or issuing it to a technician. Attach the Mitsubishi FD20 forklifts comparison to the M002T65271 quotation so receiving can review the same version.

What forklift electrical issues can mimic starter failure?

Check the 24V battery set, cable connections, ground path, key or relay signal and whether the engine turns freely. Industrial trucks often operate in dusty or corrosive areas where resistance increases. Record the test results before removing the old starter. Keep the matched images and the FD20 identity, Ø105 two-hole face and 11T module-3 pinion beside the M002T65271 stock record.

What should an FD20 wholesale request contain?

Include the FD20 model, engine and serial details available, all Mitsubishi or aftermarket numbers, pinion, flange and terminal photographs, order quantity, annual usage, destination and required date. Elecdura will review M002T65271 and provide wholesale pricing, packing choices and lead time. Use the FD20 identity, Ø105 two-hole face and 11T module-3 pinion on the purchase order for M002T65271.

Request M002T65271 Mitsubishi Starter Motor Wholesale Pricing

Email the Mitsubishi FD20 model, engine or serial details, complete old-starter markings, pinion, flange and terminal photographs, required quantity and destination to info@elecdurauto.com. Elecdura will review M002T65271 and return wholesale pricing and a practical supply schedule.
