M003T57575 Kobelco SK210-IV Starter Motor Distributor

M003T57575 Kobelco Starter Motor Wholesale for SK210-IV

An SK210-IV enquiry should include the machine serial, Mitsubishi 4D30 engine record, removed starter and jobsite location. These details help a dealer separate planned stock from a machine-down request and keep the fourteen-tooth version traceable after the urgent order is closed.

This product shares a broader application and reference area with another SK210-IV starter, but it is not the same stock line. M003T57575 requires a 14T module-3 drive and its specified 34 mm and 21 mm axial references; do not merge it with the 13T version.

M003T57575 Starter Drawing for B2B 14T Drive Verification

The required set is 24V, 5.0kW, 14T, module 3 and clockwise rotation. Fourteen teeth must remain prominent on the quotation, bin label and receiving sheet because tooth-count drift would place a physically different starter under a familiar excavator description.

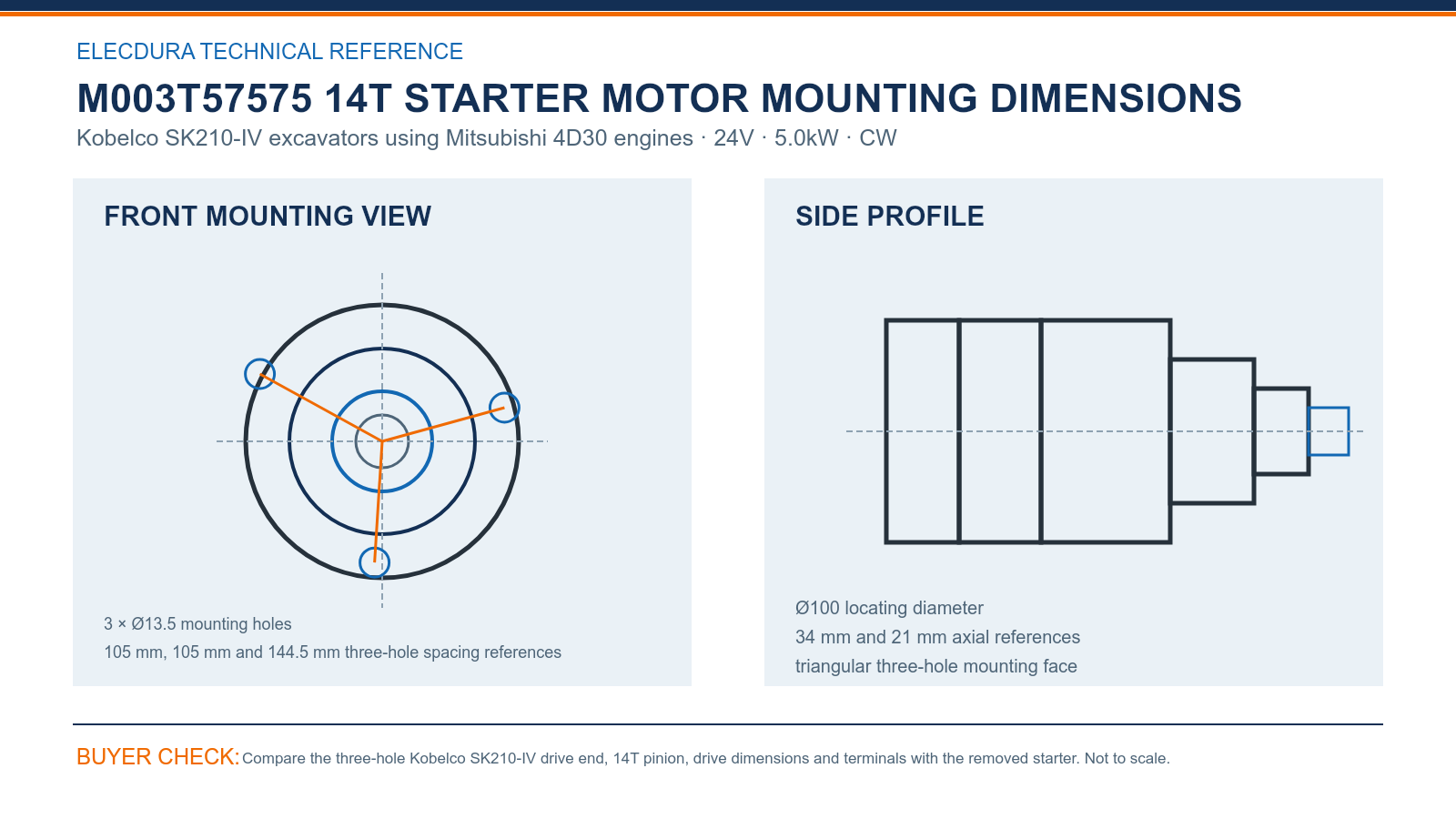

M003T57575 Kobelco SK210-IV Starter Drawing for Excavator Buyers — compare the drawing with the removed starter before placing a volume order.

Compare three Ø13.5 mounting holes, the Ø100 locating diameter, 34 mm and 21 mm axial references, and the 105 mm, 105 mm and 144.5 mm spacing values. A pinion close-up and square front view should accompany the technical drawing.

M003T57575 Starter Motor Fitment Checks for Excavator Buyers

M003T57575 and its related Mitsubishi or Kobelco references support product lookup. Keep the SK210-IV serial, 4D30 record and fourteen-tooth identity attached so the number cannot be combined with the separate ME049186 thirteen-tooth starter used in a similar application.

Kobelco dealers can allocate confirmed units by machine population and jobsite distance. Each reserve carton should identify the 14T version clearly, while customer records should retain the accepted pinion and flange photographs for future emergency shipments.

M003T57575 Starter Motor Supply for Jobsite and Dealer Stock

Before dispatch, receiving should count fourteen teeth, inspect the three ears, Ø100 locating surface, terminals and solenoid, and confirm the 5.0kW marking. Direct-to-site packing must protect the flange and pinion so the installer can compare the unit on arrival.

Elecdura's video shows starter-motor production and electrical testing for wholesale programs. Excavator buyers can use it to review manufacturing and inspection capability while every M003T57575 order remains tied to the fourteen-tooth drive and confirmed SK210-IV machine.

M003T57575 Starter Motor FAQs for Kobelco B2B Buyers

Which SK210-IV details identify an M003T57575 requirement?

Provide the Kobelco SK210-IV model and serial, Mitsubishi 4D30 engine record, all old-starter markings and the current jobsite or dealer-stock requirement. Add square flange, pinion and terminal photographs. This connects M003T57575 to the actual excavator and preserves the fourteen-tooth selection for future emergency orders. Retain the SK210-IV record, 14T module-3 pinion, three Ø13.5 holes and 34/21 mm drive references with the M003T57575 delivery lot for after-sales review.

Why must this 14T starter remain separate from the 13T version?

The related ME049186 product uses thirteen teeth and different axial values, so it is a separate starter despite the similar SK210-IV context. Keep M003T57575, 14T module 3, 34 mm and 21 mm drive references on every document. Merging the lines would hide a physical difference at the gear interface.

What makes a pinion photograph useful before volume supply?

A direct pinion image lets the buyer count fourteen teeth, assess tooth form and compare the drive with the removed starter without perspective from the housing. Place a ruler or measurement reference beside it where possible. The photograph becomes a practical check for sales, receiving and jobsite technicians before volume quantities are supplied.

Which measurements verify the M003T57575 three-hole face?

Compare three Ø13.5 mounting holes, the Ø100 locating diameter, 34 mm and 21 mm axial references, and the 105 mm, 105 mm and 144.5 mm spacing values. Use a square front view plus a side profile. Together these checks identify the fourteen-tooth drive end beyond the general Mitsubishi starter body.

How should a fourteen-tooth starter be prepared for jobsite delivery?

Restrain the housing with rigid supports and protect the three ears, fourteen-tooth pinion, solenoid and terminals from direct impact. Mark the carton M003T57575 14T and include the SK210-IV serial, site contact and accepted images with the delivery. The installer can then verify the correct version before removing protective packing.

What should a Kobelco dealer place on the stock label?

Use M003T57575, Kobelco SK210-IV, 24V 5.0kW, 14T module 3 and the confirmed machine group on the bin label. Avoid a short label such as Kobelco starter. The tooth count should be prominent so warehouse staff cannot confuse this unit with the thirteen-tooth ME049186 product during an urgent dispatch.

Which incoming checks confirm the correct SK210-IV version?

Count fourteen pinion teeth, inspect all three mounting holes and the Ø100 locating surface, verify the 5.0kW identification and check terminal insulation. Compare the 34 mm and 21 mm side profile with the accepted images. Record the lot before units enter SK210-IV dealer stock or leave for a jobsite.

What information supports M003T57575 wholesale terms?

Send the SK210-IV serial, 4D30 engine details, complete M003T57575 markings, clear fourteen-tooth pinion, drive-end and terminal photographs, quantity, site or stock purpose, packing requirement and destination. Include the needed delivery date and forecast where available. Elecdura can then confirm the separate 14T version and prepare wholesale price, lead time and shipment terms.

Request M003T57575 Starter Motor Wholesale Pricing

Send the Kobelco SK210-IV serial, Mitsubishi 4D30 engine details, complete M003T57575 markings, clear 14T pinion, flange and terminal photographs, quantity, site urgency, packing request and destination to info@elecdurauto.com. Elecdura will confirm the fourteen-tooth version and provide wholesale terms.
