M008T50471 Kubota V3307 Starter Motor Distributor

M008T50471 Starter Motor Distributor Supply for Kubota V3307

V3307-powered Gehl, Manitou and Mustang machines often move between jobsites. Pairing M008T50471 with the host machine, 3.6kW rating and nine-tooth drive gives the distributor a portable stock definition.

A Kubota V3307 engine name does not prove every installation uses the same starter. Confirm the 55°/35° ear orientation, Ø82.5 locating section and cable position before the item is assigned to another equipment brand.

M008T50471 Starter Motor Dimensions for Compact Equipment Buyers

The product is specified as 12V, 3.6kW, 9T, module 3 and CW. The nine-tooth drive and higher output should remain visible because a common 2.0kW Kubota starter may have a similar body.

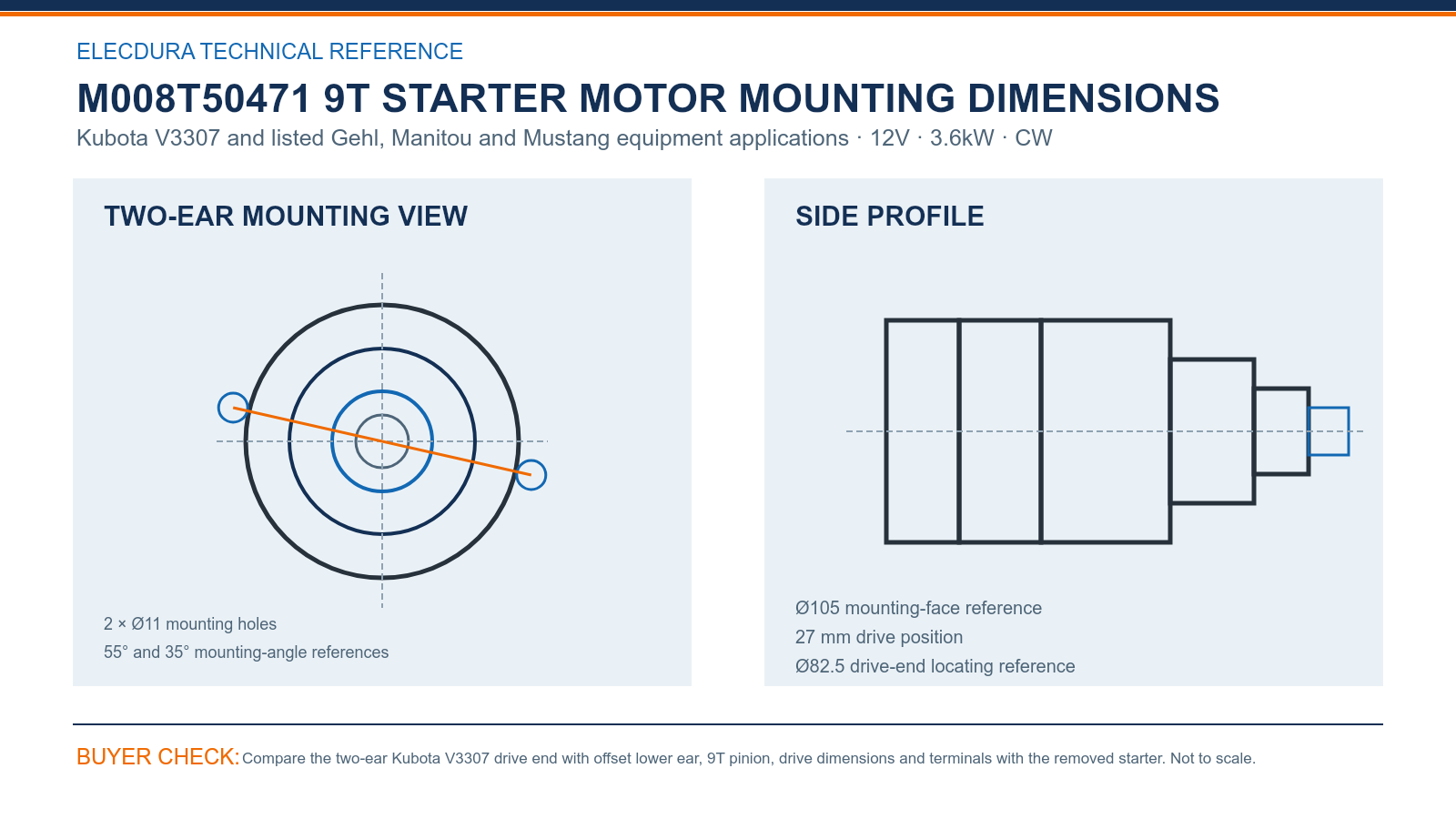

M008T50471 Kubota V3307 Starter Dimensions for Equipment Distributors — compare the drawing with the removed starter before placing a volume order.

Check the Ø105 face, Ø82.5 locating section, 27 mm drive position, two Ø11 holes and 55°/35° orientation. Add a side photograph showing the solenoid and lower cable route.

M008T50471 Starter Motor References for Kubota Parts Importers

M008T50471/50473/50671/50672, Kubota 1G777-6301x and 1K012-6301x, LRS02436, 17586N and STR71106 provide the main search paths. Keep the V3307 machine identity beside them when comparing offers, samples and repeat orders.

Rental fleets can hold shared stock only for machines already matched to this physical version. Track demand by Gehl, Manitou, Mustang or Kubota equipment so a new installation is not assumed from engine commonality.

M008T50471 Starter Motor Rental Fleet Stock and Dispatch Checks

Receiving should verify the 3.6kW label, nine-tooth pinion, two ears, locating diameter and cable routing. Protect the offset lower ear and terminals when cartons are transferred between rental branches.

Elecdura's factory video introduces starter assembly and electrical testing. Compact-equipment distributors can use it when defining sample checks, branch labels and repeat delivery schedules for M008T50471.

M008T50471 Starter Motor FAQs for Kubota V3307 Equipment Buyers

What distinguishes M008T50471 from common Kubota starters?

This product combines 12V, 3.6kW and a nine-tooth module-3 drive. The higher output and pinion count should remain visible with the V3307 application and face image. For Kubota V3307 and listed Gehl, Manitou and Mustang equipment applications, the RFQ should keep M008T50471, 12V, 3.6kW, 9T, module 3 and CW on one purchasing line.

May Gehl, Manitou and Mustang share one stock item?

They may share confirmed physical inventory only after each machine matches the same V3307 starter version. Record confirmed models and serials separately so engine commonality does not become universal fitment. Before Kubota V3307 and listed Gehl, Manitou and Mustang equipment applications stock is picked or received, warehouse staff should see the 3.6kW version and M008T50471 identity together.

How do the 55° and 35° angles help?

They identify the orientation of the two mounting ears on the V3307 drive end. Use them with the Ø105 face, Ø82.5 locating section and 27 mm position. A shared-stock decision is valid only for the supported kubota v3307 and listed gehl, manitou and mustang equipment applications shown by the retained records.

Which Kubota references should purchasing search?

Start with 1G777-63010/11/12 and 1K012-63010/11 alongside M008T50471. LRS02436, 17586N and STR71106 can support broader distributor searches. Those checks give receiving a repeatable physical baseline for the M008T50471 product serving Kubota V3307 and listed Gehl, Manitou and Mustang equipment applications. A dated M008T50471 measurement sheet for Kubota V3307 and listed Gehl, Manitou and Mustang equipment applications should remain available to purchasing and receiving.

What should follow a starter between rental branches?

The transferred carton needs the confirmed machine list, 3.6kW label and front and cable images. Receiving should verify the nine-tooth pinion before the unit joins local service stock. For Kubota V3307 and listed Gehl, Manitou and Mustang equipment applications, cross references widen sourcing while the accepted M008T50471 application and product images guide selection.

What shipping damage is most relevant here?

Inspect the offset lower ear, solenoid terminals and cable route for impact or bending. The carton must support the motor body without loading the pinion or electrical connections. The Kubota V3307 and listed Gehl, Manitou and Mustang equipment applications shipping record should preserve the M008T50471 label, destination allocation and inspected product version.

What should technicians test before fitting the replacement?

Load-test the 12V battery, measure cable and ground voltage drop and verify start-signal voltage. Inspect the ring gear and confirm the V3307 engine turns freely before installation. For Kubota V3307 and listed Gehl, Manitou and Mustang equipment applications, diagnostic evidence protects the buyer and supplier from a return caused by the vehicle electrical system.

Which details help Elecdura prepare distributor terms?

Provide the machine brand, model and serial, V3307 plate, complete references and clear product photographs. Add quantities, branch split, destination, packing needs and requested delivery date. Elecdura can then review the exact M008T50471 configuration for Kubota V3307 and listed Gehl, Manitou and Mustang equipment applications and propose suitable supply terms.

Request M008T50471 Kubota V3307 Starter Motor Distributor Pricing

Send the V3307 engine plate, Gehl, Manitou, Mustang or Kubota machine details, complete references, flange and cable photos, quantity and destination to info@elecdurauto.com. Elecdura will assess M008T50471 and quote distributor supply.
