M008T70471 Mitsubishi S4L2 K3D Starter Motor Wholesale

M008T70471 Starter Motor Wholesale for S4L2 and K-Series Engines

Small Mitsubishi engines appear across generators, mini equipment and industrial machines, so an engine code by itself can create broad enquiries. State S4L2, K3D, K4D or K4E beside M008T70471 before discussing volume and delivery.

Thirteen teeth, the triangular face and the 29 mm drive position are practical separators. A similar compact starter can share a brand and voltage while placing its mounting ears or pinion at a different position.

M008T70471 Starter Motor Drive-End Data for Equipment Importers

The product is specified as 12V, 2.0kW, 13T, module 2.54 and CW. Purchasing records should preserve the tooth count and module together because both define the gear interface expected by this Mitsubishi engine group.

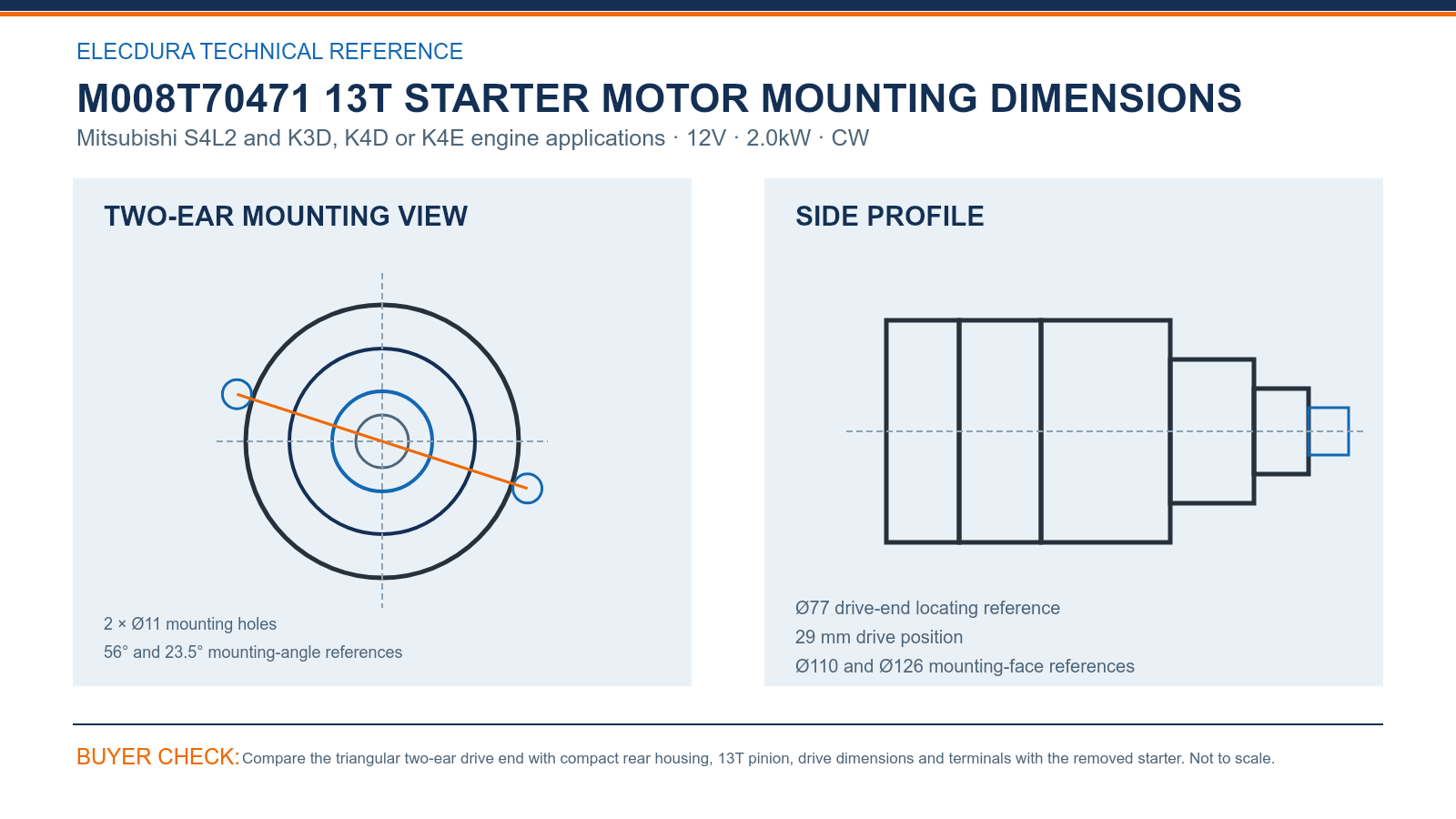

M008T70471 Mitsubishi S4L2 K3D Starter Dimensions for Importers — compare the drawing with the removed starter before placing a volume order.

Check the Ø110 and Ø126 face references, Ø77 locating section, 29 mm drive position, two Ø11 holes and 56°/23.5° angles. Use a square drive-end photograph so the ear orientation can be compared without perspective distortion.

M008T70471 Starter Motor Cross-References for Mitsubishi Buyers

M008T70471, M008T70471A and M008T70473 sit within a wider M2T, M3T and MM409 reference family. Attach the exact engine code and accepted triangular-face image whenever an alternate number is used for sourcing.

Confirmed physical stock can support several listed Mitsubishi engines when the drive end and terminal layout match. Demand should still be tracked by engine family so an S4L2 match is not assumed for an unreviewed K-series machine.

M008T70471 Starter Motor Stock Checks for Compact Equipment

Incoming teams should count thirteen teeth, read the 2.0kW rating and inspect both mounting ears for impact. Store the front and terminal images with the bin label to make later branch transfers easier to verify.

The Elecdura manufacturing clip shows starter assembly and final electrical checks. Compact-equipment importers can use it while defining first-lot inspection, labeling and recurring supply requirements for M008T70471.

M008T70471 Starter Motor FAQs for Mitsubishi Engine Parts Importers

How should S4L2 and K-series demand be described?

State the exact S4L2, K3D, K4D or K4E engine code and the host machine. The engine family should remain beside M008T70471 rather than being replaced by a broad Mitsubishi description. For Mitsubishi S4L2 and K3D, K4D or K4E engine applications, the RFQ should keep M008T70471, 12V, 2.0kW, 13T, module 2.54 and CW on one purchasing line.

Why are 13 teeth and module 2.54 both needed?

Tooth count and module describe the gear interface expected by the application. Keeping both values visible reduces the risk of accepting a compact starter with a similar body but another pinion. Before Mitsubishi S4L2 and K3D, K4D or K4E engine applications stock is picked or received, warehouse staff should see the 2.0kW version and M008T70471 identity together.

Which dimensions identify the M008T70471 drive end?

Compare the Ø77 locating section, 29 mm drive position and two Ø11 holes. The 56° and 23.5° angle references help confirm the triangular ear orientation. A shared-stock decision is valid only for the supported mitsubishi s4l2 and k3d, k4d or k4e engine applications shown by the retained records.

How should M2T and MM409 cross-references be used?

They support sourcing within the wider Mitsubishi family but do not replace the physical comparison. Attach the exact engine code and accepted front image to whichever complete cross-reference is quoted. Those checks give receiving a repeatable physical baseline for the M008T70471 product serving Mitsubishi S4L2 and K3D, K4D or K4E engine applications.

Can one M008T70471 item serve several listed engines?

Yes, after each S4L2 or K-series installation matches the same drive end and terminal layout. Keep demand by engine family visible so an unreviewed machine is not added to common inventory. For Mitsubishi S4L2 and K3D, K4D or K4E engine applications, cross references widen sourcing while the accepted M008T70471 application and product images guide selection.

What shipping damage matters on this compact starter?

Inspect both triangular mounting ears, the exposed pinion and solenoid terminals for impact. The carton should support the motor body without loading the compact rear housing or electrical connections. The Mitsubishi S4L2 and K3D, K4D or K4E engine applications shipping record should preserve the M008T70471 label, destination allocation and inspected product version.

Which photographs make a Mitsubishi engine enquiry useful?

Provide straight front, pinion, side, terminal and rating-label images of the removed starter. Include a wider compartment view when cable routing or rear-housing clearance is limited. For Mitsubishi S4L2 and K3D, K4D or K4E engine applications, diagnostic evidence protects the buyer and supplier from a return caused by the vehicle electrical system.

Which commercial details should accompany M008T70471?

Add quantity, destination, packing method and requested delivery window to the technical identity. Tell Elecdura whether the order supports a first sample, branch stock or scheduled replenishment. Elecdura can then review the exact M008T70471 configuration for Mitsubishi S4L2 and K3D, K4D or K4E engine applications and propose suitable supply terms.

Request M008T70471 Mitsubishi Starter Motor Wholesale Pricing

Send the Mitsubishi engine code, machine model, complete old-starter numbers, mounting and terminal photographs, quantity, delivery target and destination to info@elecdurauto.com. Elecdura will compare M008T70471 with the submitted unit and quote wholesale supply.
