M008T70971 Kubota V3300T Starter Motor Wholesale

M008T70971 Starter Motor Wholesale Supply for Kubota V3300T Equipment

Kubota V3300T demand may come from generators, tractors or industrial equipment with different service histories. A quotation should identify the host machine and retain M008T70971 with the 2.0kW label rather than relying on the engine family alone.

The related 1C010-63010 group also appears beside higher-power V3300 replacements. Compare the nine-tooth drive, two-ear face, lower support and cable position before a sample is assigned to an existing fleet.

M008T70971 Starter Motor Specifications and Mounting Data for Buyers

The supplier-defined combination is 12V, 2.0kW, 9T, module 3 and CW. Keeping those five values together helps purchasing distinguish this compact product from V3300 starters that share references but use another output rating or housing.

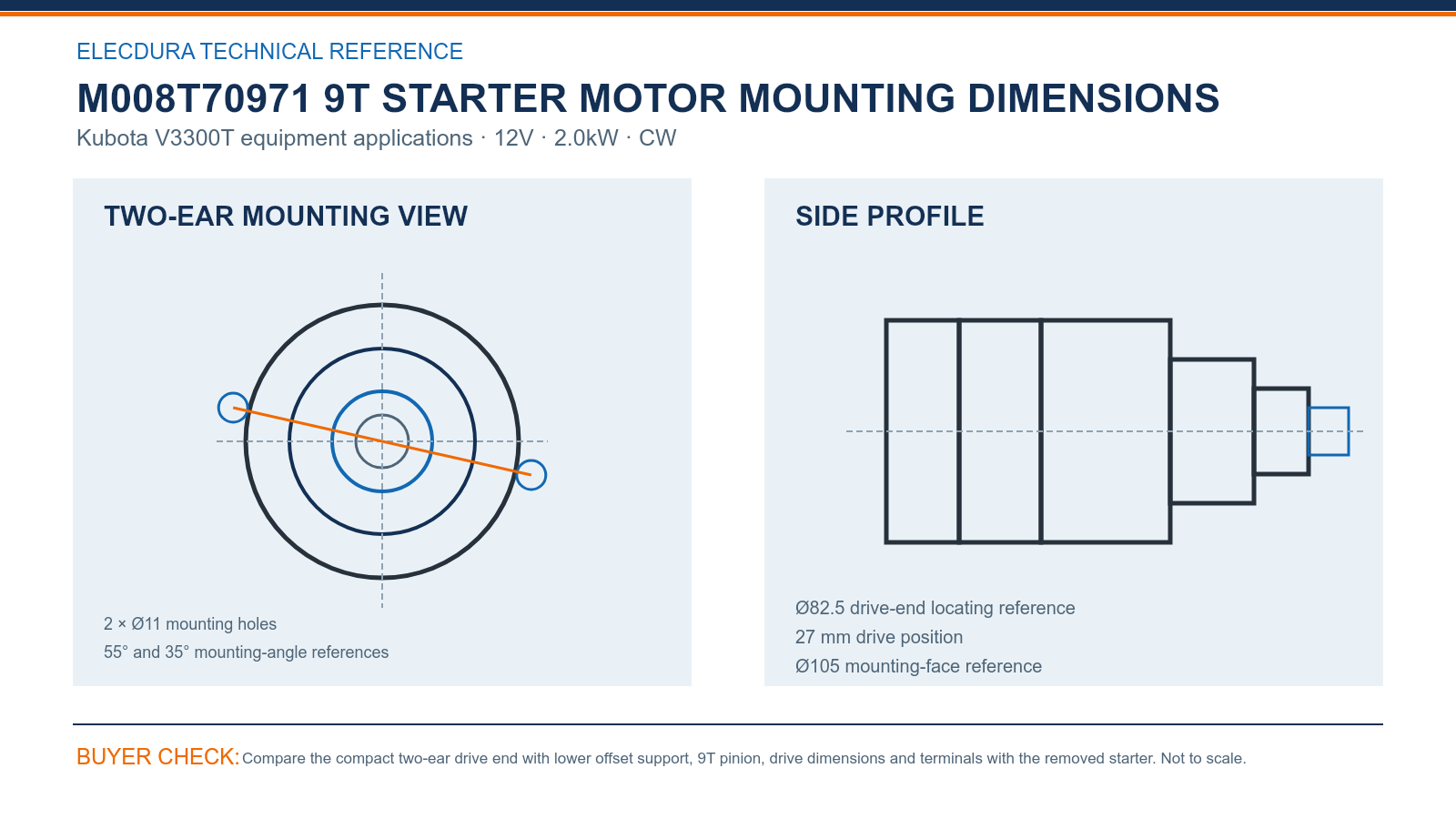

M008T70971 Kubota V3300T Starter Dimensions for Wholesale Matching — compare the drawing with the removed starter before placing a volume order.

Compare the Ø105 face, Ø82.5 locating reference, 27 mm drive position, two Ø11 holes and 55°/35° orientation. A straight side image should also show the lower offset support and solenoid terminal direction.

M008T70971 Starter Motor References for Kubota Parts Wholesalers

M008T70971 and its M8T variants connect with Kubota 1C010-63010 through -63015 and 1G772-63010. Keep the full selected number, V3300T machine identity and accepted front image together on the purchasing line.

A wholesaler can group replenishment only after each generator or equipment model matches the same face, drive position and cable clearance. Machines that use a higher-output V3300 starter should remain under a separate item definition.

M008T70971 Starter Motor Receiving and Generator-Service Checks

For the first shipment, sample cartons from different pallet positions, read the 2.0kW labels and count nine pinion teeth. Check the lower mounting support and terminal protection before branch stock is made available.

Elecdura's factory video introduces starter assembly and electrical testing for B2B supply. Kubota distributors can pair that review with V3300T-specific sample checks, compact-housing photographs and planned replenishment quantities.

M008T70971 Starter Motor FAQs for Kubota V3300T Wholesale Buyers

Why must 2.0kW stay visible on an M008T70971 enquiry?

The V3300 reference group also appears beside starters with other output ratings. Writing 2.0kW beside M008T70971 protects the intended compact version during quotation and receiving. For Kubota V3300T equipment applications, the RFQ should keep M008T70971, 12V, 2.0kW, 9T, module 3 and CW on one purchasing line.

Which V3300T equipment details should accompany the request?

Provide the host machine or generator brand, model, serial and engine plate. Those details show where the starter will operate and allow the mounting photograph to be compared with the correct asset. Before Kubota V3300T equipment applications stock is picked or received, warehouse staff should see the 2.0kW version and M008T70971 identity together.

How can the two-ear face be checked before ordering?

Measure the Ø105 face and Ø82.5 locating section, then confirm two Ø11 holes. A square front photograph should also show the 55° and 35° ear orientation without perspective distortion. A shared-stock decision is valid only for the supported kubota v3300t equipment applications shown by the retained records.

Which Kubota references belong with M008T70971?

Use the complete 1C010-63010 through -63015 or 1G772-63010 marking found on the old unit. Do not shorten the number when two V3300 starters are being compared. Those checks give receiving a repeatable physical baseline for the M008T70971 product serving Kubota V3300T equipment applications. A dated M008T70971 measurement sheet for Kubota V3300T equipment applications should remain available to purchasing and receiving.

May generator and equipment branches share M008T70971 stock?

They may share confirmed units after each installation matches the same nine-tooth drive, face and cable clearance. Track consumption by host model so a new application is reviewed before joining common stock. For Kubota V3300T equipment applications, cross references widen sourcing while the accepted M008T70971 application and product images guide selection.

What should receiving inspect on the first M008T70971 lot?

Read the 2.0kW labels across several cartons and count nine pinion teeth. Inspect the lower support, both ears, solenoid terminals and pinion protection before assigning the lot to branches. The Kubota V3300T equipment applications shipping record should preserve the M008T70971 label, destination allocation and inspected product version.

What electrical checks should precede starter replacement?

Load-test the 12V battery and measure voltage drop through positive and ground cables. Verify the start signal and inspect the ring gear so a machine-side fault is not attributed to the replacement starter. For Kubota V3300T equipment applications, diagnostic evidence protects the buyer and supplier from a return caused by the vehicle electrical system.

What information helps Elecdura quote M008T70971?

Send the engine plate, host model, complete references, front and terminal images and quantity. Add packing requirements, destination and requested delivery date for a useful wholesale response. Elecdura can then review the exact M008T70971 configuration for Kubota V3300T equipment applications and propose suitable supply terms.

Request M008T70971 Kubota V3300T Starter Motor Wholesale Pricing

Email the Kubota engine plate, host machine or generator model, complete old-unit number, front and terminal photographs, quantity, packing request and destination to info@elecdurauto.com. Elecdura will assess the M008T70971 version and prepare wholesale pricing.
