M008T75071 Mitsubishi 4M40 11T Starter Motor Wholesale

M008T75071 11T Starter Motor Wholesale Value for Mitsubishi 4M40

Mitsubishi diesel specialists frequently encounter M008T75071 across more than one application description. For this offer, the buyer should state 4M40, the vehicle and the eleven-tooth requirement so purchasing does not collapse it into another version sharing the same headline OE.

The 11T pinion is a decisive separator, but the drive end must also match. Compare the two Ø12 holes, locating shoulder, drive position and terminals with the removed 4M40 starter before quoting M008T75071 for a vehicle in the listed range.

M008T75071 11T Starter Motor Drawing for B2B Verification

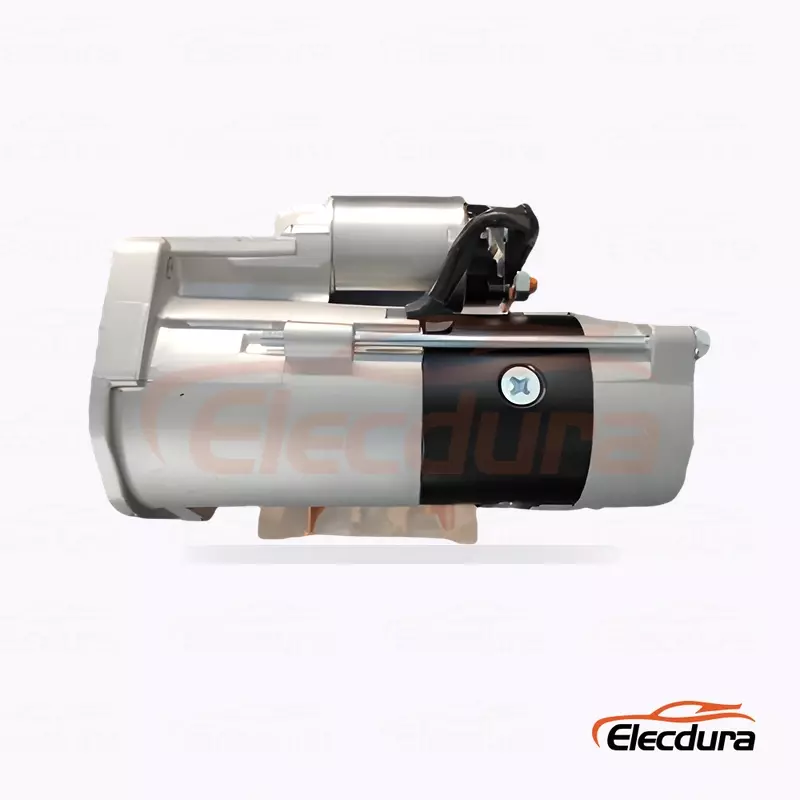

The offered product is 12V, 2.2kW, 11T, module 2.54 and clockwise rotation. Keeping 4M40 and 11T in the title, stock label and purchase order prevents accidental substitution with the separate 4M41 10T item.

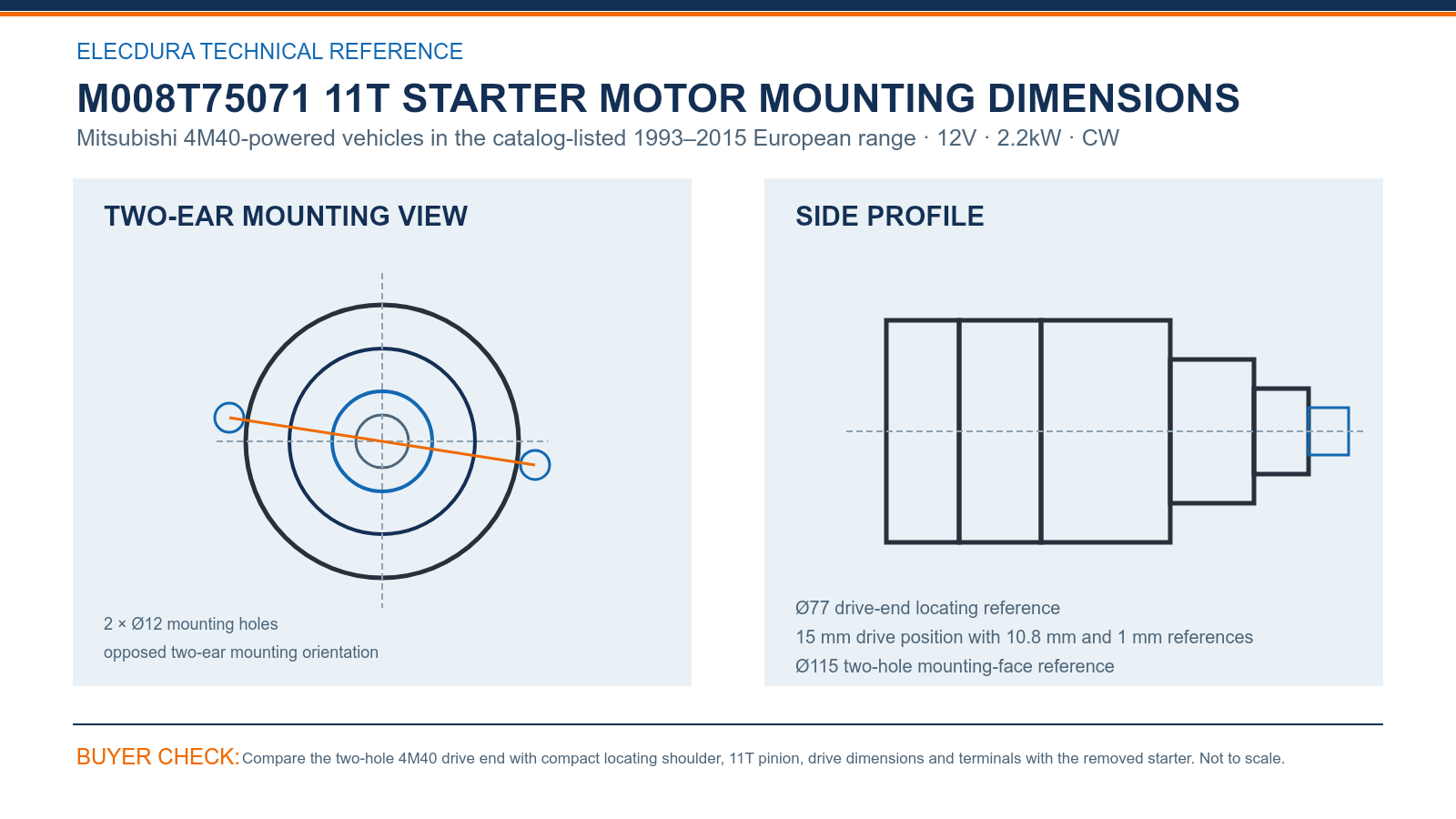

M008T75071 Mitsubishi 4M40 11T Starter Motor Drawing for Wholesalers — compare the drawing with the removed starter before placing a volume order.

The represented 4M40 drawing shows an Ø115 face, Ø77 locating reference, two Ø12 holes and a 15 mm drive position, plus 10.8 mm and 1 mm references. These values should be compared as a set rather than one dimension at a time.

M008T75071 Starter Motor Version Separation for 4M40 Wholesalers

M008T75071, M008T75071A and M008T75073 appear with several ME numbers in the common search group. For this specific item, references are useful only when the 4M40 application, eleven teeth and matching drawing are also present.

If a distributor sells both 4M40 and 4M41 starters, create separate warehouse descriptions and avoid shared unlabeled bins. The reference may overlap, but tooth count, mounting details and customer application need to remain visible from enquiry through dispatch.

M008T75071 11T Starter Motor Supply and Production Capability

Incoming inspection should open cartons from different pallet areas and confirm 11T, the two Ø12 ears, 2.2kW label and pinion protection. A clear 4M40 carton marking gives picking staff a simple safeguard against the adjacent 10T version.

The Elecdura video introduces starter production and electrical testing for international B2B supply. It supports factory assessment while Mitsubishi specialists specify first samples, version labeling, protective packing and shipment timing for the defined 4M40 11T product.

M008T75071 11T Starter Motor FAQs for 4M40 Wholesalers

Which M008T75071 product is represented for the 4M40 application?

This product follows the offered specification as a 12V 2.2kW 11T clockwise starter for listed Mitsubishi 4M40 applications. The 4M40 engine and eleven-tooth drive belong together in every enquiry. Buyers should compare the two-hole face and old-unit photographs rather than relying on M008T75071 by itself.

Why is the 4M40 11T starter separate from the 4M41 10T listing?

Although the headline OE group overlaps, the two items have different applications, tooth counts and mounting details. Combining them would hide information a buyer needs for engagement and fitment. Elecdura therefore keeps the 4M40 11T and 4M41 10T products as distinct listings, stock descriptions and quotation lines.

Which drawing values identify the 4M40 version?

Compare the Ø115 mounting face, Ø77 locating diameter and two Ø12 holes. From the side, check the 15 mm drive position together with the 10.8 mm and 1 mm references shown. Agreement across the complete drawing gives more confidence than a shared OE or a similar rear-housing photograph.

How should the ME200206 and ME204425 references be interpreted?

Both numbers belong to the listed search group and can help connect older Mitsubishi purchasing histories to M008T75071. For this item, retain the 4M40 engine, eleven teeth and matching drive-end image beside the chosen ME number. Those details prevent a valid reference route from ending at the separate ten-tooth product.

What does the listed 1993–2015 European range mean for buyers?

It provides useful market context, but it should not replace the exact vehicle model, year and engine information. A distributor should confirm each 4M40 application within that range against the removed starter. This keeps the date span from becoming an automatic claim for every Mitsubishi vehicle sold during those years.

How should the 4M40 cartons be labeled to prevent a warehouse mix-up?

Print M008T75071, Mitsubishi 4M40, 11T and 2.2kW where picking staff can see them without opening the carton. Keep the product image or an product barcode linked to the same definition. Do not label the bin with the OE alone when a separate 4M41 ten-tooth version is stocked nearby.

Which customer photographs best confirm an 11T 4M40 request?

Ask for a clear pinion count, square mounting-face view, both body sides, terminal end and readable rating label. Include the vehicle and engine plate as separate images. Matching the customer’s views to the drawing allows sales staff to verify the eleven-tooth version before freight, packing and delivery arrangements are finalized.

What should a 4M40 wholesaler include in the M008T75071 email?

Provide vehicle model, year, 4M40 engine details, complete old-starter marking, pinion photograph and measured front and side views. Add quantity, annual demand, destination and packing needs. Elecdura can then review the specified 11T product and return a quotation that remains distinct from the 4M41 version.

Request M008T75071 11T Starter Motor Wholesale Pricing for 4M40

Email the Mitsubishi vehicle, year, 4M40 engine information, complete old-starter number, pinion count, mounting-face and terminal photographs, quantity and destination to info@elecdurauto.com. Elecdura will review the M008T75071 11T version and return wholesale pricing.
