M008T75071 Mitsubishi 4M41 10T Starter Motor Distributor

M008T75071 10T Starter Motor Distributor Value for Mitsubishi 4M41

A buyer searching M008T75071 may see several application and tooth-count claims. This Elecdura offer is deliberately tied to the 4M41 engine and ten-tooth drive, giving Mitsubishi parts distributors a clear SKU definition for enquiry and warehouse use.

Do not select this item by OE alone. The buyer should count ten teeth, compare two M10 holes, verify the Ø77.5 locating shoulder and check terminal clearance against the removed 4M41 starter before a volume commitment.

M008T75071 10T Starter Motor Dimensions for B2B Matching

The required specification is 12V, 2.2kW, 10T, module 2.54 and clockwise rotation. Pairing those values with 4M41 protects the order from the separate 11T product, even when both items share M008T75071 in the reference family.

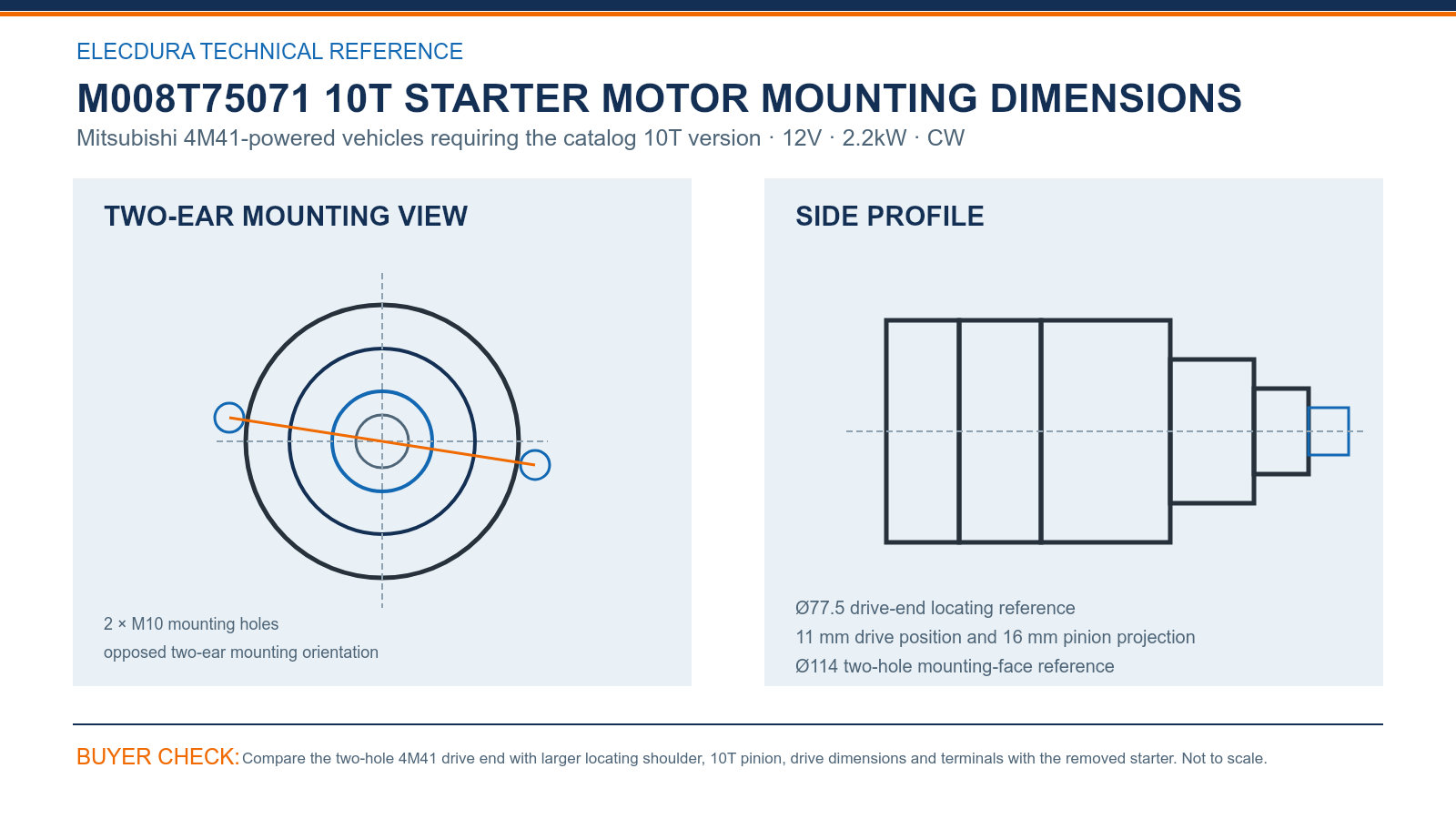

M008T75071 Mitsubishi 4M41 10T Starter Motor Drawing for Distributors — compare the drawing with the removed starter before placing a volume order.

Use the 4M41 drawing to verify an Ø114 face, Ø77.5 locating diameter, two M10 holes, 11 mm drive position and 16 mm pinion projection. These details create a physical checkpoint that is distinct from the neighboring 4M40 drawing.

M008T75071 Starter Motor OE Separation for 4M41 Distributors

The common group includes M008T75071, its A and 73 suffixes, and multiple Mitsubishi ME references. For this item, the acceptable sourcing path must end at a ten-tooth 4M41 product with the represented two-hole drive end.

Mitsubishi specialists should keep 4M41 10T quantities, images and customer histories separate from 4M40 demand. When a buyer cannot confirm the engine or tooth count, request photographs and measurements before promising the product from shared stock.

M008T75071 10T Starter Motor Supply and Testing Capability

Receiving staff should confirm ten teeth, M10 mounting positions, the 2.2kW label and terminal protection before shelving the first lot. Mark both 4M41 and 10T on cartons so branch transfers do not depend on the repeated OE number alone.

The production video below shows Elecdura starter assembly and electrical testing for B2B supply. It lets 4M41 distributors assess manufacturing capability while they define sample review, carton labeling, consolidation and delivery requirements for this separate 10T version.

M008T75071 10T Starter Motor FAQs for 4M41 Distributors

How is the 4M41 M008T75071 product defined?

The offered version is 12V, 2.2kW, 10T, module 2.54 and clockwise rotation for Mitsubishi 4M41 applications. Keep 4M41 and ten teeth visible on the quotation and carton. That wording tells the buyer exactly which member of the overlapping M008T75071 family is being offered. Clear version wording also protects repeat warehouse picks.

What prevents the 4M41 item from being confused with the 4M40 product?

The 4M41 product uses ten teeth, two M10 mounting holes, an Ø77.5 locating reference and an 11 mm drive position. The 4M40 item represents eleven teeth and different mounting values. Comparing application, pinion and drawing together is the most reliable way to keep the two products separate.

Why do the M10 mounting holes matter on this version?

They are part of the specific 4M41 drive-end geometry and differ from the two Ø12 holes shown for the neighboring 4M40 item. Verify both M10 positions, the Ø114 face and the 16 mm pinion projection. A square front photograph should show that complete relationship before the starter is added to stock.

Can M008T75071A or M008T75073 be quoted for this product?

Yes, those suffixes can support the sourcing path when they appear with the 4M41 application and ten-tooth physical starter. Retain the exact old-unit suffix rather than replacing it with the shortest number. The matching drive-end and terminal photographs should accompany the reference through quotation and receiving.

Which vehicle details should a 4M41 distributor request?

Ask for make, model, production year, chassis or VIN information and a readable 4M41 engine plate. Add the starter label, pinion and mounting photographs. These details help determine whether the customer needs the specified ten-tooth product and reduce reliance on a search result that lists M008T75071 without application context.

How should a warehouse organize overlapping M008T75071 inventory?

Create separate locations or clearly divided bins for 4M41 10T and 4M40 11T stock. Display engine, tooth count and a front-view identifier beside the OE. Picking scans should lead to the full product description, so a repeated number cannot silently override the physical differences during branch transfer.

What first-delivery checks suit the 4M41 10T version?

Sample multiple cartons and count ten teeth before inspecting both M10 ears, the 2.2kW label, pinion protection and terminals. Compare the Ø77.5 locating shoulder and 11 mm drive position with the drawing. Isolate any eleven-tooth or differently mounted unit before the lot is accepted. Photograph the sampled face before releasing stock to branches.

What creates a complete M008T75071 4M41 distributor enquiry?

Send the vehicle and year, 4M41 engine plate, full old-starter number, clear tooth-count, mounting and terminal photographs, quantity and forecast. Add destination, packing and requested delivery date. Elecdura can then review the separate 10T configuration and prepare distributor pricing without mixing it with the 4M40 product.

Request M008T75071 10T Starter Motor Distributor Pricing for 4M41

Send the vehicle model and year, 4M41 engine details, old-unit markings, clear pinion, mounting-face and terminal images, order quantity and destination to info@elecdurauto.com. After comparing those details, Elecdura can return a 4M41-focused distributor offer with matching feedback and delivery options.
