M008T77071 Daewoo DH55 Isuzu Starter Motor Wholesale

M008T77071 Starter Motor Wholesale Supply for Daewoo DH55 Fleets

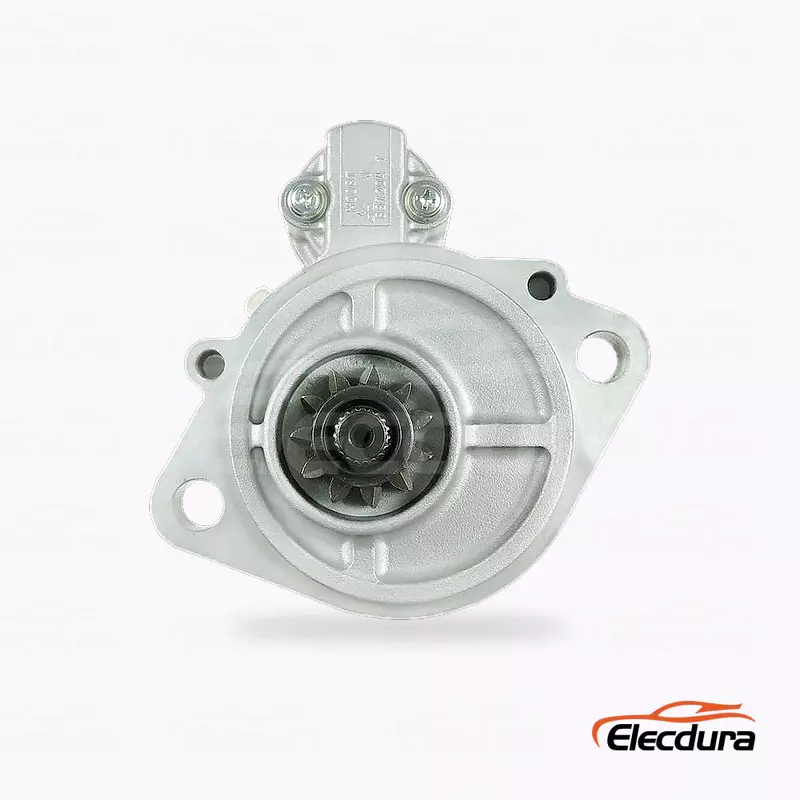

Compact excavators create high downtime cost despite using a smaller starter. Pairing M008T77071 with the DH55 machine, Isuzu engine information and straight drive-end photographs gives the parts counter a faster first-order definition.

Case, Gehl, Mustang and Isuzu applications span several model years. The listing does not make every machine interchangeable; the compact face, module-2.75 pinion and terminal position must match the removed unit.

M008T77071 Starter Motor Dimensions for Compact Equipment Buyers

This starter is specified as 12V, 2.2kW, 11T, module 2.75 and CW. Module 2.75 should stay beside the tooth count because a similar eleven-tooth compact starter can use a different gear form.

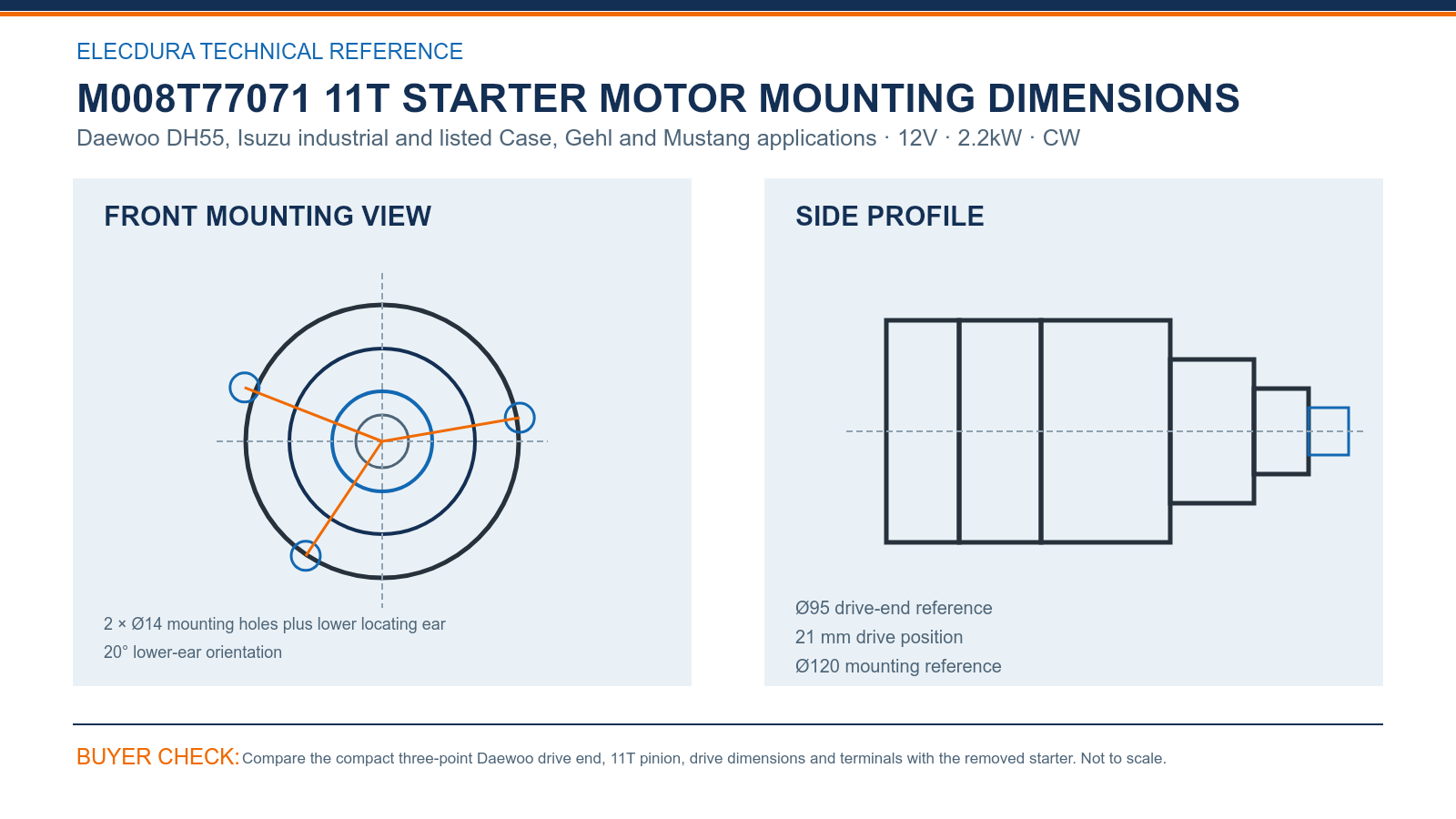

M008T77071 Daewoo DH55 Starter Dimensions for Compact Equipment Buyers — compare the drawing with the removed starter before placing a volume order.

Check the Ø95 locating section, 21 mm drive position, Ø120 face, two Ø14 holes and lower locating ear. The 20° orientation helps confirm the compact three-point layout.

M008T77071 Starter Motor References for Isuzu Parts Distributors

M008T77071/72/74/75, Isuzu 8972047130/8971704000/8973494020, Ingersoll Rand 54386016 and JCB 71440357 form the practical search group. Retain the actual machine and engine with the selected number throughout quotation and first-shipment review.

Rental fleets should record accepted machines by model and serial rather than treating the broad year ranges as universal fitment. A stored front image lets service branches compare later replacements without relying on memory.

M008T77071 Starter Motor Fleet Sampling and Service Stock

First-lot cartons should protect the compact nose and terminals while supporting the motor body. Receiving can sample the 2.2kW label, 11T pinion, two holes, lower ear and cable routing before branch distribution.

The Elecdura video shows starter assembly and electrical checks for wholesale programs. Compact-equipment buyers can use it when discussing sample inspection, rental-fleet labels and repeat delivery for M008T77071.

M008T77071 Starter Motor FAQs for Compact Equipment Parts Buyers

What details make a DH55 enquiry useful?

Send the Daewoo machine model and serial, Isuzu engine plate and all old-starter markings. Square front and terminal photographs should show the compact face and lower locating ear. For Daewoo DH55, Isuzu industrial and listed Case, Gehl and Mustang applications, the RFQ should keep M008T77071, 12V, 2.2kW, 11T, module 2.75 and CW on one purchasing line.

Do the listed Case, Gehl and Mustang years prove fitment?

They provide application screening but do not replace a physical comparison. Check the starter from the actual machine because model-year changes can alter nose, pinion or cable layout. Before Daewoo DH55, Isuzu industrial and listed Case, Gehl and Mustang applications stock is picked or received, warehouse staff should see the 2.2kW version and M008T77071 identity together.

Why should module 2.75 be recorded?

Module defines pinion tooth size and form while 11T records only the tooth count. Both values, together with 12V 2.2kW and CW, protect the ring-gear interface. A shared-stock decision is valid only for the supported daewoo dh55, isuzu industrial and listed case, gehl and mustang applications shown by the retained records.

Which mounting features identify M008T77071?

Compare the Ø95 locating section, 21 mm drive position, Ø120 face and two Ø14 holes. The lower locating ear and 20° orientation should agree with the removed compact starter. Those checks give receiving a repeatable physical baseline for the M008T77071 product serving Daewoo DH55, Isuzu industrial and listed Case, Gehl and Mustang applications.

How should the Isuzu reference group be used?

Use 8972047130, 8971704000 and 8973494020 to widen the cross-reference search. Keep M008T77071 and the actual DH55 or supported machine identity on the visible order line. For Daewoo DH55, Isuzu industrial and listed Case, Gehl and Mustang applications, cross references widen sourcing while the accepted M008T77071 application and product images guide selection.

How can a rental fleet manage shared stock?

Record each confirmed machine model and serial beside the accepted front and terminal images. Branches may share one confirmed item while unreviewed equipment remains outside the common pool. The Daewoo DH55, Isuzu industrial and listed Case, Gehl and Mustang applications shipping record should preserve the M008T77071 label, destination allocation and inspected product version.

What carton protection suits this compact starter?

Support the motor body, shield the pinion and prevent the lower ear from taking impact. Cap the terminals and keep the cable away from sharp casting edges during branch transfers. For Daewoo DH55, Isuzu industrial and listed Case, Gehl and Mustang applications, diagnostic evidence protects the buyer and supplier from a return caused by the vehicle electrical system.

Which information supports wholesale planning?

Provide quantity by machine type, annual consumption, destination and target delivery date. Add engine plates, complete references and clear mounting photographs so the first lot has a defined comparison. Elecdura can then review the exact M008T77071 configuration for Daewoo DH55, Isuzu industrial and listed Case, Gehl and Mustang applications and propose suitable supply terms.

Request M008T77071 Daewoo DH55 Starter Motor Wholesale Pricing

Email the DH55 or supported machine model and serial, engine plate, full references, flange and terminal photographs, quantity and delivery location to info@elecdurauto.com. Elecdura will review M008T77071 and prepare wholesale terms.
