M008T80371 Daewoo DH55 Starter Motor Wholesale

M008T80371 Daewoo DH55 Starter Wholesale for Excavator Fleets

DH55 excavators are often assigned to utilities, landscaping and confined jobsites where a no-start event disrupts both the machine and the crew waiting around it. A useful quotation therefore identifies the DH55, 4JG1 engine and delivery location before the buyer commits to emergency or reserve quantities.

The shared Isuzu reference group also appears with a module-3 drive, so eleven teeth and 24V are not enough to identify this version. Keep the module-2.75 pinion, Ø95 locating diameter and two-hole face attached to M008T80371 throughout purchasing and receiving.

M008T80371 11T Starter Dimensions for Distributor Matching

Label this product as 24V, 3.2kW, 11T, module 2.75 and CW. Putting the complete definition on the quotation, carton and stock bin protects a DH55 order from being mixed with another 4JG1 starter that carries familiar numbers but a different gear form.

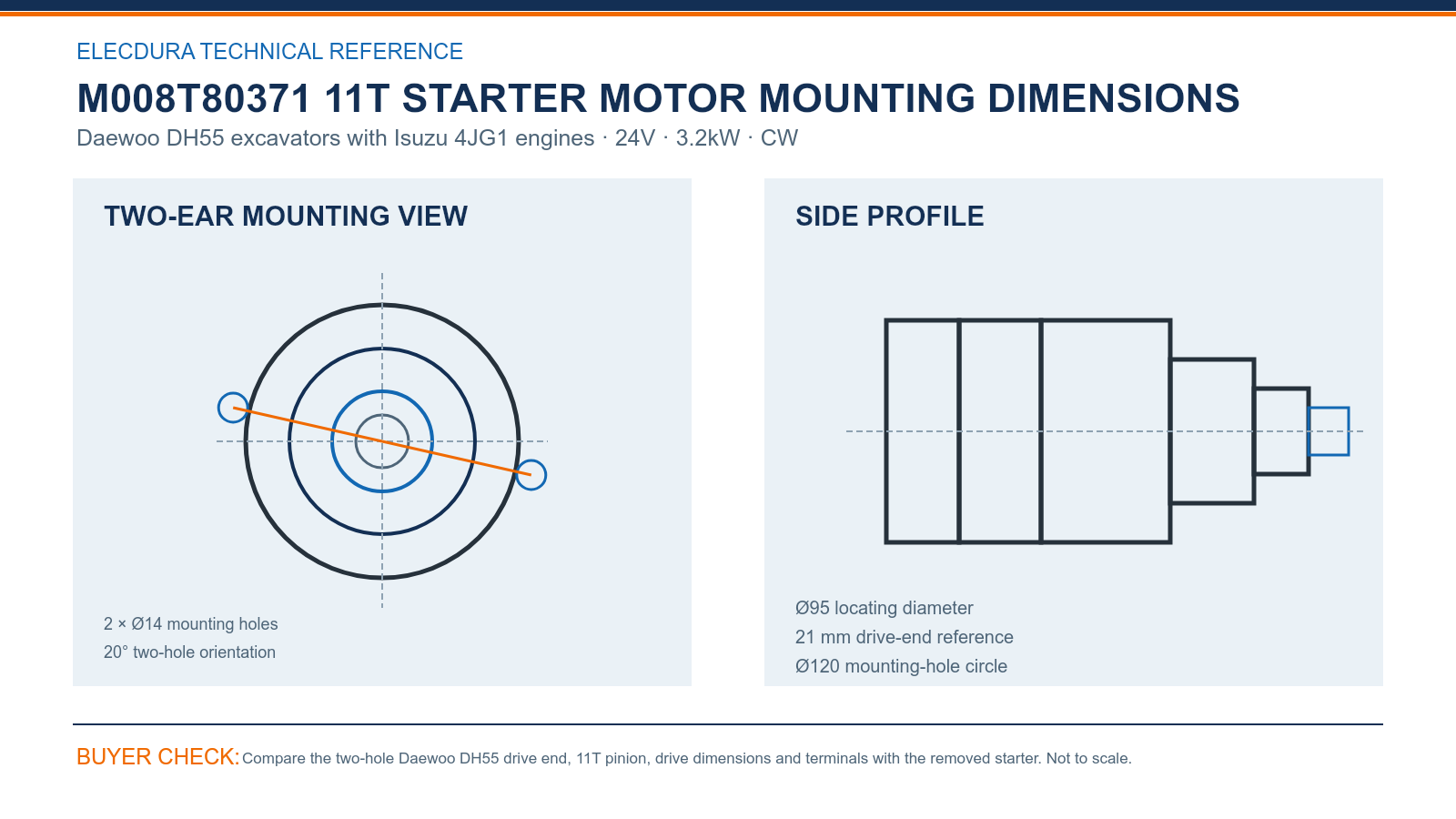

M008T80371 Daewoo DH55 Starter Drawing for Equipment Distributors — compare the drawing with the removed starter before placing a volume order.

Compare both Ø14 holes on the Ø120 circle, the Ø95 locating diameter, 20° orientation and 21 mm drive-end reference with the removed starter. Straight front and pinion-side photographs make those checks clearer than a single angled image taken inside the excavator.

M008T80371 Isuzu 4JG1 Fitment Support for Equipment Buyers

M008T80373, M008T81571 and the 8971374780-series Isuzu numbers broaden the sourcing route. Their presence should lead back to the confirmed DH55 machine, module-2.75 drive and matching two-hole nose rather than to a general 4JG1 stock description.

Excavator distributors can size reserve stock from the active DH55 population, jobsite distance and normal replenishment time. If another machine presents the same OE family, retain a separate application note until its pinion module and mounting face have been compared.

M008T80371 DH55 Starter Supply Checks for Volume Orders

Sample the first shipment for eleven teeth, undamaged locating face, clean Ø14 holes, protected terminals and stable support inside each carton. Retain one accepted front, side and label image set so branches can identify later replenishment without opening every unit.

Elecdura's production video shows starter assembly and electrical testing relevant to B2B supply. Daewoo equipment buyers can use it while agreeing on first-lot sampling, packing for heavy units, lot labeling and delivery timing for field-service coverage.

M008T80371 Starter FAQs for Daewoo DH55 Equipment Buyers

Which DH55 details should accompany an M008T80371 enquiry?

Send the Daewoo DH55 model and serial range, Isuzu 4JG1 engine plate, every readable old-starter number, and clear front, pinion and terminal views. Add the required quantity, delivery point and required date. These details let Elecdura quote M008T80371 as the 24V 3.2kW 11T module-2.75 version rather than a general 4JG1 starter.

Why must the module-2.75 drive remain visible for this product?

Module 2.75 describes the pinion tooth form, not just the number of teeth. A related Isuzu starter can also be 24V, 3.2kW and 11T while using module 3. Confirm the module-2.75 gear and matching ring-gear application before ordering; the wrong module can cause poor engagement, abnormal noise or damage even when the housing bolts on.

What should buyers compare on the M008T80371 drawing?

Compare the two Ø14 mounting holes, Ø120 mounting circle, Ø95 locating diameter, 20° hole orientation and 21 mm drive-end reference with the removed starter. The mounting-face photograph should be square to the flange, while a separate side view should show pinion projection and terminal position. Those checks provide a practical remote match for a DH55 order.

How should the 8971374780-series references support sourcing?

Use 8971374780, 8971374781, 8972047190 and related numbers to find possible stock for the same Isuzu family. They do not replace the DH55 and 4JG1 identification or the module-2.75 check. Keep M008T80371, the application, the 11T gear and the confirmed two-hole face together on the quotation and purchase order.

How can a compact-excavator fleet plan DH55 starter stock?

Base reserve quantity on the number of active DH55 excavators, recent starter failures, jobsite distance and normal replenishment time. A distributor serving remote projects may hold one emergency unit near the machines and replenish from central stock. Store the confirmed module-2.75 version separately from the similar module-3 Isuzu product so urgent picking remains accurate.

Which first-lot checks matter for M008T80371?

Count eleven teeth, confirm the module-2.75 pinion, and inspect the Ø14 holes, locating face, nose casting and solenoid terminals for damage. Compare the product label and three accepted views with units sampled from different cartons. Also check that the heavy starter is firmly supported and that the pinion and cable studs cannot contact the carton during transport.

What machine-side tests should precede a DH55 starter return?

Load-test the 24V battery bank, inspect grounds and high-current cables, and measure voltage drop during cranking. Confirm that the start signal reaches the solenoid and inspect the ring gear through the available opening. These checks separate a weak power supply, cable fault or damaged ring gear from a starter defect before a DH55 unit is returned.

What makes an M008T80371 wholesale request actionable?

A quotation-ready request includes the DH55 and 4JG1 identity, all OE and Mitsubishi numbers, the 24V 3.2kW 11T module-2.75 requirement, and clear face, pinion and terminal photographs. Add quantity, packing preference, destination and delivery deadline. This gives Elecdura enough information to review the configuration and return useful wholesale pricing and lead time.

Request M008T80371 Daewoo DH55 Starter Wholesale Pricing

Email the DH55 machine and serial details, Isuzu 4JG1 engine information, old-starter numbers, drive-end and terminal photographs, quantity, destination and required date to info@elecdurauto.com. Elecdura will review M008T80371 and return wholesale pricing and lead time.
