M008T87171 Kobelco SK200-6 Starter Motor Wholesale

M008T87171 Kobelco SK200-6 Starter Wholesale for Equipment Fleets

SK200-series excavators often work under high utilization, and a starter shortage can idle a machine while labor and transport remain committed. Distributors should identify the exact Kobelco or New Holland model, Mitsubishi engine and required delivery point before selecting from the M008T87171 family.

This product follows the specified 24V 3.5kW 11T definition. Keep that electrical rating together with the Ø100 locating diameter and 144.5 mm two-hole spacing so external listings with another power value do not alter the product supplied.

M008T87171 11T Starter Dimensions for Distributor Verification

Use 24V, 3.5kW, 11T, module 3 and CW beside M008T87171 on commercial documents. The complete specification gives equipment buyers a consistent reference when comparing old units, samples and repeat deliveries.

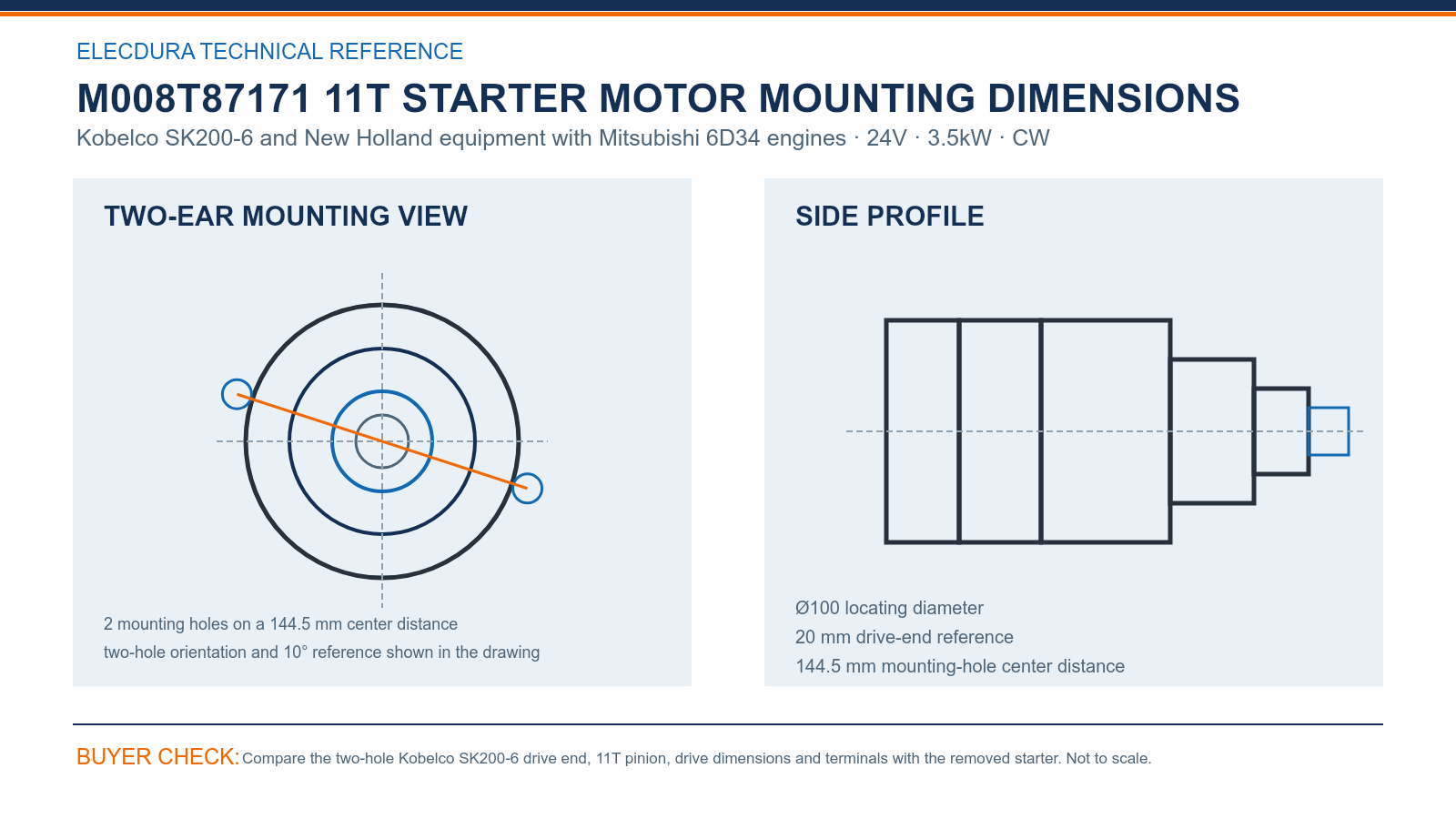

M008T87171 Kobelco SK200-6 Starter Drawing for Equipment Buyers — compare the drawing with the removed starter before placing a volume order.

Compare the Ø100 locating diameter, 20 mm drive-end reference, 144.5 mm mounting center distance and 10° orientation with the removed starter. Include a straight face view and a terminal-side image because machine access can make one installed photograph misleading.

M008T87171 ME049303 Fitment Support for Excavator Buyers

ME049303, ME080740, VAME049303, S5041 and STR71027 support the Kobelco and New Holland search path. Final selection should still connect the specific machine, Mitsubishi engine and the required two-hole 11T configuration.

Construction fleets can position reserve units by machine count, jobsite distance and availability of a service truck. Distributors carrying both Kobelco and New Holland demand should keep separate machine histories even when an accepted starter configuration serves both groups.

M008T87171 Construction Starter Supply Checks for Volume Orders

Inspect eleven teeth, mounting ears, locating face, solenoid studs and heavy-unit packaging across the first shipment. Keep the machine-specific sample images and label with the lot so a later branch request can be compared before the unit travels to a remote jobsite.

The Elecdura video presents starter assembly and electrical testing relevant to construction-equipment supply. Use it while agreeing on sample checks, reinforced packing, lot labels and a replenishment cadence for excavator fleets.

M008T87171 Starter FAQs for Kobelco and New Holland Buyers

Which machine details should accompany M008T87171?

Identify the Kobelco or New Holland machine model, serial number and Mitsubishi engine designation, then list every readable starter reference. Add a straight two-hole mounting-face image, pinion-side view, terminal photograph and electrical label. Quantity, jobsite region and required delivery date complete the information needed for an M008T87171 quotation.

Why must buyers retain the specified 24V 3.5kW rating?

This product follows the specified 24V 3.5kW 11T CW definition even though other M008T87171 listings show different power values. Keep this rating unchanged in the quotation and carton description. The buyer should compare the old-unit label and machine details rather than silently blending specifications from different sources.

What should be compared on the M008T87171 drawing?

Compare the Ø100 locating diameter, 144.5 mm mounting center distance, 20 mm drive-end reference and the 10° orientation shown. Check the two mounting ears and terminal clocking against square photographs of the removed unit. A similar Kobelco starter body does not confirm these mounting and pinion relationships.

How should ME049303 and VAME049303 support the search?

ME049303 and VAME049303 connect Mitsubishi and New Holland parts listings to the M008T87171 family. Use them to widen sourcing, then verify the exact Kobelco or New Holland machine, 6D34-series engine, 11T drive and two-hole face. Retain all matching references on the purchase order for receiving and later service support.

How can an excavator fleet plan M008T87171 reserve stock?

Review active excavators, distance from each jobsite to the service depot, recent failure history and the cost of machine recovery. Remote projects may justify a local verified spare, while several nearby machines can share central stock. Separate urgent field coverage from dealer resale forecasts when deciding the order quantity.

Which field photographs are useful for this heavy starter?

Ask the technician to photograph the mounting face straight on, the pinion and locating diameter from the side, the terminal arrangement and the electrical label. Include one wider image showing the starter installed on the engine when access allows. A ruler beside key features can help if part numbers are worn or unreadable.

What should distributors inspect when M008T87171 cartons arrive?

Count eleven teeth and inspect both mounting ears, the locating face, nose casting, solenoid studs and terminal covers across sampled cartons. Verify the 24V 3.5kW product label and check that heavy-unit packaging prevents movement. Keep any different rating or face outside saleable M008T87171 stock until the shipment is reconciled.

Which details let Elecdura price an M008T87171 order accurately?

Send the Kobelco or New Holland model, machine serial, Mitsubishi engine, all M008T87171 family numbers and clear face, pinion, terminal and label photographs. Include quantity, annual requirement, packing or labeling needs, destination and required date. Elecdura can then confirm the required configuration and prepare project-specific commercial terms.

Request M008T87171 Kobelco SK200-6 Starter Wholesale Pricing

Email the Kobelco or New Holland model, Mitsubishi engine, machine serial, old-starter numbers, face and terminal photographs, quantity and destination to info@elecdurauto.com. Elecdura will confirm the required M008T87171 configuration and prepare project-specific commercial terms.
