M009T50371 Mitsubishi Fuso FK Starter Motor Distributor

M009T50371 Fuso FK Starter Distributor Value for 7.5L Fleets

Older Fuso FK vehicles may be spread across regional fleets and independent workshops, making dependable identification more valuable than a broad model claim. Buyers should include the engine, year and complete old-unit markings with the enquiry.

This product is defined at 4.5kW and must not be mixed with a nearby 5.0kW version. Confirm the two Ø13.5 holes, 11T drive and terminal arrangement before accepting an alternative for the same reference family.

M009T50371 Two-Hole Starter Dimensions for B2B Matching

Elecdura presents M009T50371 as 12V, 4.5kW, 11T, module 3 and clockwise rotation. Preserve this definition on the purchase order and rating-label check so another Fuso starter does not enter the same bin.

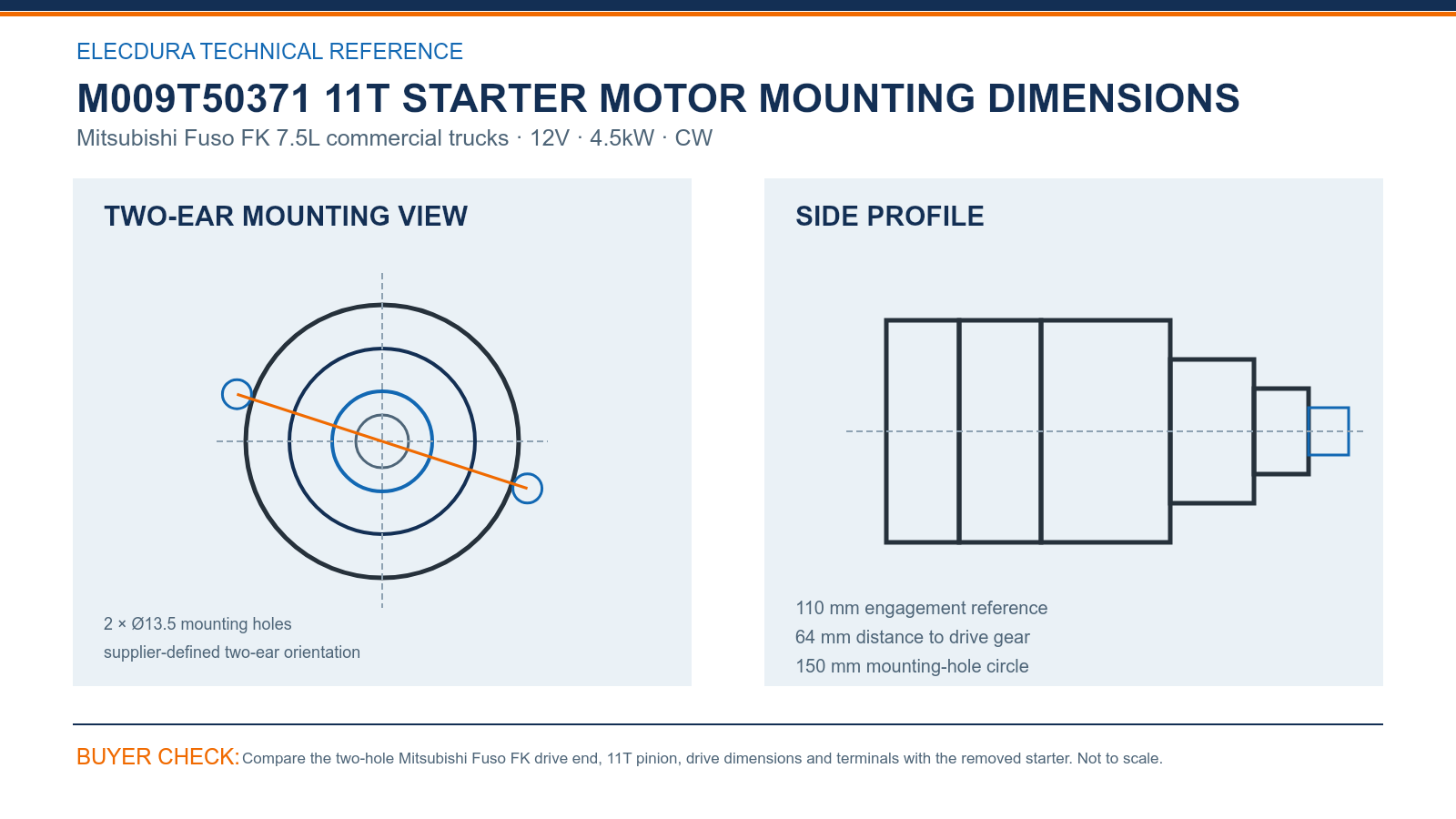

M009T50371 Mitsubishi Fuso FK Starter Drawing for Distributors — compare the drawing with the removed starter before placing a volume order.

The two-hole drawing calls for a 150 mm mounting circle, Ø13.5 holes, 110 mm engagement reference and 64 mm drive-gear distance. Compare both ears squarely because an angled photograph can conceal their spacing.

M009T50371 ME302485 Reference Guidance for Fuso Buyers

M009T50371, M9T50371 and ME302485 form the strongest search group for this item. Attach the FK or FKS 7.5L application and old-starter views to prevent the recognized Mitsubishi numbers from becoming an overly broad fitment promise.

A distributor can record which FK and FKS customers have passed the physical comparison, then use that history for faster repeat orders. Unknown vehicle variants should remain pending until their two-ear face and terminal side agree.

M009T50371 Starter Supply Consistency and Production Testing

First-lot receiving should sample the 4.5kW label, eleven-tooth pinion, both mounting holes, studs and packing support. Save the accepted image set with the warehouse item to make future Fuso deliveries easier to inspect.

Elecdura’s video presents starter production and electrical testing for B2B orders. Fuso distributors can assess manufacturing capability while setting their own lot-sampling, export-carton, branch-label and delivery requirements.

M009T50371 Starter FAQs for Mitsubishi Fuso Buyers

Which Fuso FK details should be sent with M009T50371?

Send the Fuso FK or FKS model, engine designation, year and chassis or VIN details, together with every readable marking on the removed starter. Include square photographs of the two-ear mounting face, eleven-tooth pinion and terminal side. These details help separate M009T50371 from other Mitsubishi starters used on visually similar medium-duty trucks.

Which power rating belongs on an M009T50371 purchase order?

The M009T50371 product on this listing is specified at 12V and 4.5kW with an 11T module-3 drive and clockwise rotation. Put that complete line on the purchase order. A 5.0kW unit should be treated as another version and compared separately rather than substituted under the same short reference without dimensional confirmation.

What should buyers measure on the M009T50371 two-ear flange?

Measure both Ø13.5 holes, their 150 mm mounting circle, the 110 mm engagement reference and the 64 mm distance to the drive gear. Compare ear thickness, locating surface, orientation and solenoid position from a square front view. An angled image can make the two holes appear closer and conceal a nonmatching flange.

Can ME302485 alone authorize an M009T50371 order?

No. ME302485 is a valuable Mitsubishi cross-reference, but it does not show the truck, pinion, flange or terminal arrangement. An order should also connect the number to the Fuso FK 7.5L application, the 12V 4.5kW 11T definition and matching two-ear photographs of the removed unit.

How should a distributor preserve confirmed FK fitment history?

Keep a record containing the customer or fleet, Fuso model, engine, chassis range, old-starter numbers and the accepted mounting, pinion and terminal images. Add the Elecdura product reference, order date and shipment lot. That package lets later counter staff repeat a confirmed M009T50371 supply without relying on memory or a broad FK description.

Which M009T50371 features belong on the warehouse label?

The warehouse label should show M009T50371, 12V 4.5kW, 11T, module 3 and clockwise rotation, plus the Fuso FK 7.5L scope. A short note for the two Ø13.5-hole, 150 mm circle flange helps prevent mixing. Keep cross-references secondary so they do not replace the primary stock identity.

What should be sampled from the first Fuso FK shipment?

Select cartons from more than one pallet position and check the rating label, eleven-tooth pinion, both mounting ears, locating face and terminal layout. Inspect the nose housing, studs, protective caps and body support for damage. Photograph the sampled units and carton marks so later shipments can be compared with the accepted first lot.

What information helps Elecdura quote M009T50371 efficiently?

Provide the Fuso model, engine, year and chassis details, complete M009T50371 or ME302485 markings, and clear mounting, pinion and terminal photographs. State the quantity, expected repeat demand, packaging or labeling request, destination and required delivery date. Elecdura can then confirm the 4.5kW two-ear version and return a focused distributor quotation.

Request M009T50371 Fuso FK Starter Distributor Pricing

Send the Mitsubishi Fuso FK or FKS model, engine and year, complete old-unit references, straight mounting and terminal views, quantity, destination and delivery target to info@elecdurauto.com. Elecdura will review M009T50371 and return distributor pricing.
