M009T50471 Deutz TCD2013 Starter Wholesale Planning

TCD2013 demand can come from tractors, industrial engines and equipment rebuilders, each with different stocking cycles. Sharing the engine suffix, host machine and seasonal forecast helps Elecdura discuss quantities and delivery timing around the buyer’s actual market.

M009T50471 belongs to a reference family that can contain nearby ratings. This Elecdura product remains 12V 4.5kW 12T, and its three-hole face and removed-unit outline should agree before purchase.

M009T50471 12T Starter Drawing for Agricultural Buyers

The product is defined as 12V, 4.5kW, 12T, module 3 and clockwise rotation. This complete line separates it from other Deutz starters and should stay unchanged from quotation through receiving and branch stock.

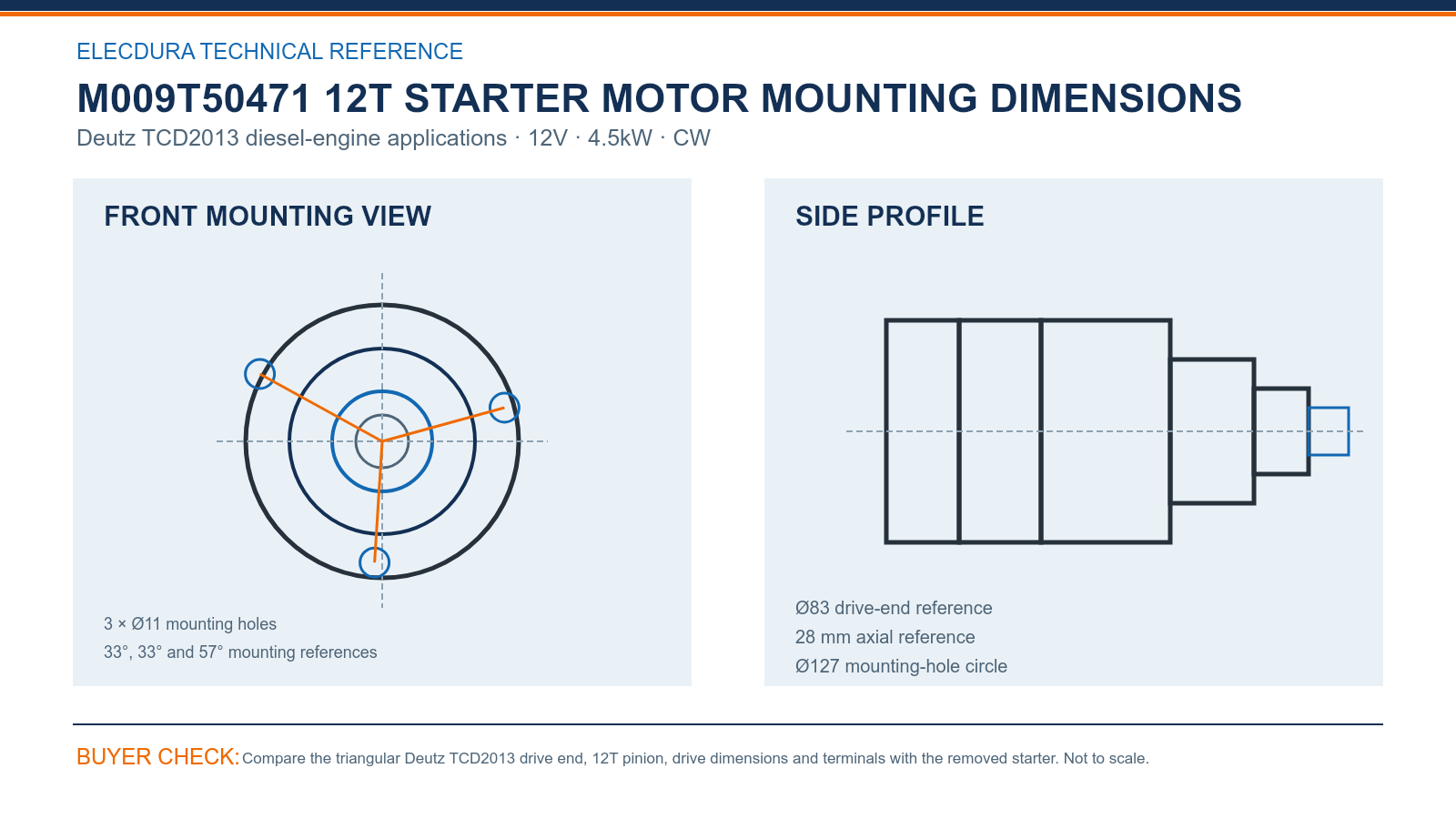

M009T50471 Deutz TCD2013 Starter Drawing for Equipment Buyers — compare the drawing with the removed starter before placing a volume order.

Use the drawing to compare three Ø11 holes on a Ø127 circle, the Ø83 drive-end reference, 28 mm axial value and the 33°, 33° and 57° orientation. A square front photograph is valuable for remote equipment support.

M009T50471 Deutz Reference Matching for Engine Distributors

M009T50471, M9T50471, 01182761 and 1182761 are useful procurement routes. Add the exact TCD2013 engine and machine details because a cross-reference match alone does not define mounting clearance or the customer’s installation.

Agricultural dealers can separate pre-season reserve quantity from normal workshop demand, while industrial distributors may plan against project schedules. Keeping the equipment segment on each order makes shared physical stock easier to allocate correctly.

M009T50471 Starter Seasonal Supply and Electrical Testing

Inspect the first lot for twelve teeth, flange integrity, label rating, terminal covers and carton support. Where products go directly to rural branches, record accepted photographs before redistribution so later shipments can be compared without returning a unit.

The Elecdura video introduces starter assembly and electrical testing for wholesale supply. Deutz buyers can review production capability while maintaining their own sampling, private-label, documentation and seasonal-delivery requirements.

M009T50471 Starter FAQs for Deutz Equipment Buyers

Which TCD2013 engine details strengthen an M009T50471 request?

State the complete TCD2013 engine designation and suffix, the tractor or industrial machine make and model, serial range and year where available. Add the old starter numbers and straight photographs of its three-hole face, pinion and terminals. This separates an M009T50471 request from nearby Deutz versions that may share only part of the reference family.

Which rating should a buyer use when another M009T50471 version appears?

Use the specification stated for this Elecdura product: 12V, 4.5kW, 12T, module 3 and clockwise rotation. If another M009T50471 version carries a different rating, quote it as a separate comparison instead of blending the values. The selected unit should also match the three-hole mounting face and removed starter before purchase.

What dimensions identify the Deutz three-hole mounting face?

The face uses three Ø11 holes on a Ø127 mounting circle, with an Ø83 drive-end reference and a 28 mm axial value. Compare the 33°, 33° and 57° hole orientation as well as the locating shoulder and terminal side. Those measurements distinguish the flange more reliably than the overall starter silhouette.

How can agricultural dealers forecast M009T50471 seasonal demand?

Count the TCD2013 machines supported, their operating hours during planting or harvest, previous no-start incidents and the time required to reach rural branches. Separate pre-season replenishment from normal workshop consumption, then allow for international lead time and a small emergency buffer. This produces a forecast tied to equipment use rather than a generic annual estimate.

What role do 01182761 and 1182761 play in Deutz sourcing?

01182761 and 1182761 help connect Deutz enquiries to the M009T50471 reference family and can improve parts-counter searches. They should not replace the engine suffix or physical comparison. Keep the selected OE number beside the 12V 4.5kW 12T specification, three-hole dimensions and old-unit photographs when the item moves from quotation to receiving.

What should a remote branch check when M009T50471 arrives?

On arrival, the branch should confirm the M009T50471 label, twelve teeth, Ø127 three-hole face and terminal position before opening all cartons. Inspect the nose, ears, studs and protective packaging for transport damage, photograph a sample and record the shipment lot. Any mismatch should remain isolated until the purchasing team compares it with the accepted details.

Which engine-side checks belong before starter replacement?

Check battery capacity and state of charge, positive and ground-cable voltage drop during cranking, terminal cleanliness, relay operation and voltage at the solenoid trigger terminal. Verify that the engine and ring gear rotate normally and inspect for oil or debris around the drive end. These checks prevent a wiring, battery or mechanical fault from being assigned to the replacement starter.

What completes a Deutz TCD2013 wholesale enquiry?

A complete request includes the TCD2013 suffix, host machine model and serial, every readable old-starter number, and front, side, pinion and terminal photographs. Add immediate quantity, seasonal forecast, packaging or private-label needs, delivery destination and requested date. Elecdura can use that package to review M009T50471 and prepare wholesale pricing for the stated equipment population.

Request M009T50471 Deutz TCD2013 Wholesale Pricing

Email the Deutz TCD2013 engine suffix, host machine, complete starter references, mounting and terminal photographs, immediate quantity, annual forecast, packing needs and destination to info@elecdurauto.com. Elecdura will review M009T50471 and provide wholesale terms.
