M009T60971 Mitsubishi 6M70 Starter Motor Distributor

M009T60971 Mitsubishi 6M70 Starter Distributor Supply

A 6M70 truck may reach a workshop with only a worn label and an urgent return-to-service date. The distributor can reduce uncertainty by collecting the engine plate, vehicle identity, straight face photograph and all legible numbers before pricing the replacement.

Module 3.5 is the key gear detail for this 11T version. A nearby Mitsubishi starter may share 24V and 5.5kW yet use another pinion form, so the gear definition and Ø136 two-hole flange must travel together through purchasing.

M009T60971 Module-3.5 Starter Dimensions for Buyers

Describe M009T60971 as 24V, 5.5kW, 11T, module 3.5 and CW. This complete line helps sales, purchasing and receiving teams identify the same unit without depending on a shortened M9T number or overall housing appearance.

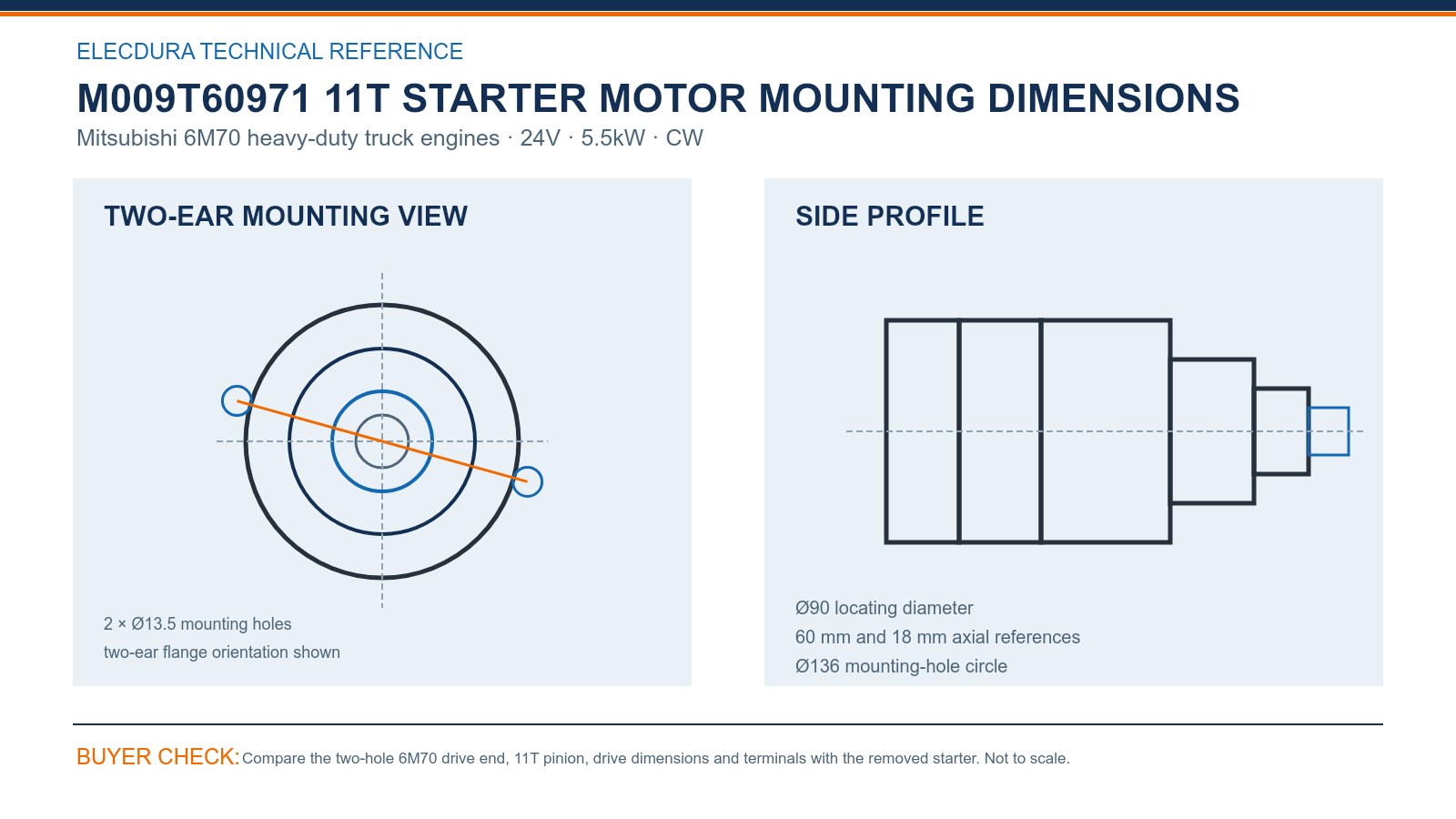

M009T60971 Mitsubishi 6M70 Starter Drawing for Heavy-Duty Buyers — compare the drawing with the removed starter before placing a volume order.

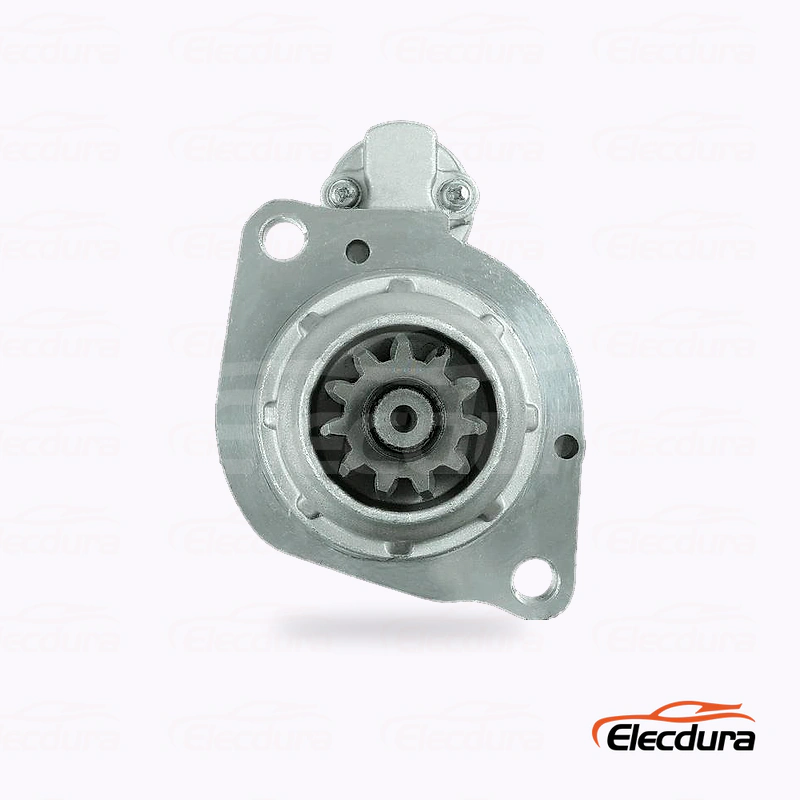

Set the removed 6M70 unit beside the drawing and verify its two Ø13.5 holes, Ø136 circle and Ø90 locating surface. The side measurement should agree with the 60 mm and 18 mm references, supported by a square flange image and close pinion view.

M009T60971 6M70 Reference Matching for Truck Importers

M009T60971A, M009T60971B, M9T60971 variants, S5218, UD12420S and STR71267 are useful for cross-reference searches. The confirmed 6M70 engine and module-3.5 pinion remain the practical boundary for this distributor stock line.

Fleets operating mixed Mitsubishi engines should not group this product under a broad 11T label. Assign it to confirmed 6M70 vehicles, store the accepted face photograph with the bin record and keep other engine families under separate fitment notes.

M009T60971 Heavy-Duty Starter Receiving and Stock Planning

Sample incoming units for eleven teeth, undamaged Ø90 locating surface, clear hole alignment, protected electrical studs and firm carton support. If stock will be divided among branches, use the same accepted images and product description at every location.

The Elecdura video introduces assembly and electrical testing for heavy-duty starter supply. Mitsubishi distributors can combine that manufacturing view with agreed sample checks, packing protection, private-label requirements, forecast quantities and staggered delivery schedules.

M009T60971 Starter FAQs for Mitsubishi 6M70 Distributors

Why does module 3.5 matter for M009T60971?

Module 3.5 describes the pinion tooth form, not only the tooth count. An 11T starter with another module can carry familiar Mitsubishi features yet engage differently. Keep module 3.5 beside M009T60971, the 6M70 engine and the Ø136 two-hole face throughout purchasing and receiving; keep this point with future M009T60971 orders for Mitsubishi 6M70 heavy-duty truck engines.

How can a distributor confirm the 6M70 application?

Send the engine plate, truck model, complete old-starter label and clear photographs of the flange, pinion and terminals. Confirm 24V, 5.5kW, 11T and module 3.5. Those details give a distributor a stronger fitment basis than a shortened M9T marking alone; keep this point with future M009T60971 orders for Mitsubishi 6M70 heavy-duty truck engines.

What should be measured on the two-hole flange?

Measure the two Ø13.5 mounting holes, their Ø136 circle and the Ø90 locating diameter. The side view should also agree with the 60 mm and 18 mm axial references. Use a square front photograph so the ear spacing is not distorted by camera angle; keep this point with future M009T60971 orders for Mitsubishi 6M70 heavy-duty truck engines.

Do M009T60971A and M009T60971B identify the same order automatically?

No. The suffixes are useful cross-reference routes, but the order should still state the 6M70 engine and the complete physical construction. Compare the 11T module-3.5 pinion, Ø136 face and terminals before treating an A or B suffix as interchangeable for fleet stock; keep this point with future M009T60971 orders for Mitsubishi 6M70 heavy-duty truck engines.

How should mixed Mitsubishi engine fleets store this product?

Create a distinct bin description for the 6M70 version and attach the accepted mounting-face image. Do not group every Mitsubishi 24V 5.5kW starter under one label. Engine identity, module 3.5 and the two-hole geometry should remain visible when stock moves between branches; keep this point with future M009T60971 orders for Mitsubishi 6M70 heavy-duty truck engines.

What receiving checks suit a distributor shipment?

Verify M009T60971 on the label, count eleven teeth, inspect both mounting ears, examine the Ø90 locating surface and compare terminal positions. Sample electrical testing and firm carton support should be recorded before units are split among customers or regional warehouses; keep this point with future M009T60971 orders for Mitsubishi 6M70 heavy-duty truck engines.

Which truck faults can imitate a failed 6M70 starter?

Low battery capacity, corroded grounds, excessive cable voltage drop, relay faults and a mechanically tight engine can all reduce cranking. Test these conditions before returning the starter. If the unit is replaced, retain the results and removed-starter photographs with the 6M70 service history; keep this point with future M009T60971 orders for Mitsubishi 6M70 heavy-duty truck engines.

What should accompany a request for M009T60971 pricing?

Include the 6M70 engine plate, vehicle model, full Mitsubishi references, face and pinion photographs, quantity, destination, branding or packing needs and delivery deadline. Elecdura can then align the M009T60971 configuration with distributor pricing, production timing and shipment planning; keep this point with future M009T60971 orders for Mitsubishi 6M70 heavy-duty truck engines.

Request M009T60971 6M70 Starter Motor Distributor Terms

Email the Mitsubishi engine plate, truck model, M009T60971 or related markings, mounting-face and pinion photographs, order quantity and delivery location to info@elecdurauto.com. Elecdura will confirm the distributor offer, lead time and packing options.
