M009T61479 Volvo FM9 Starter Motor Wholesale

M009T61479 Volvo FM9 Starter Wholesale for Fleet Support

FM9 trucks often remain productive in regional haulage, municipal and vocational work long after parts demand becomes intermittent. Wholesalers need the chassis, engine and active vehicle count to judge whether a buyer requires one recovery unit or a sustainable stock position.

Eleven teeth and module 3.175 separate this product from adjacent 12T Volvo starters with similar output and heavy-duty appearance. The Ø127 three-hole circle and Ø89 locating diameter should confirm that distinction before warehouse stock is combined.

M009T61479 11T Starter Dimensions for B2B Matching

Identify M009T61479 as 24V, 5.5kW, 11T, module 3.175 and CW. The complete line belongs on the quotation, carton and FM9 stock record so a shared 3801287 reference does not hide a different drive configuration.

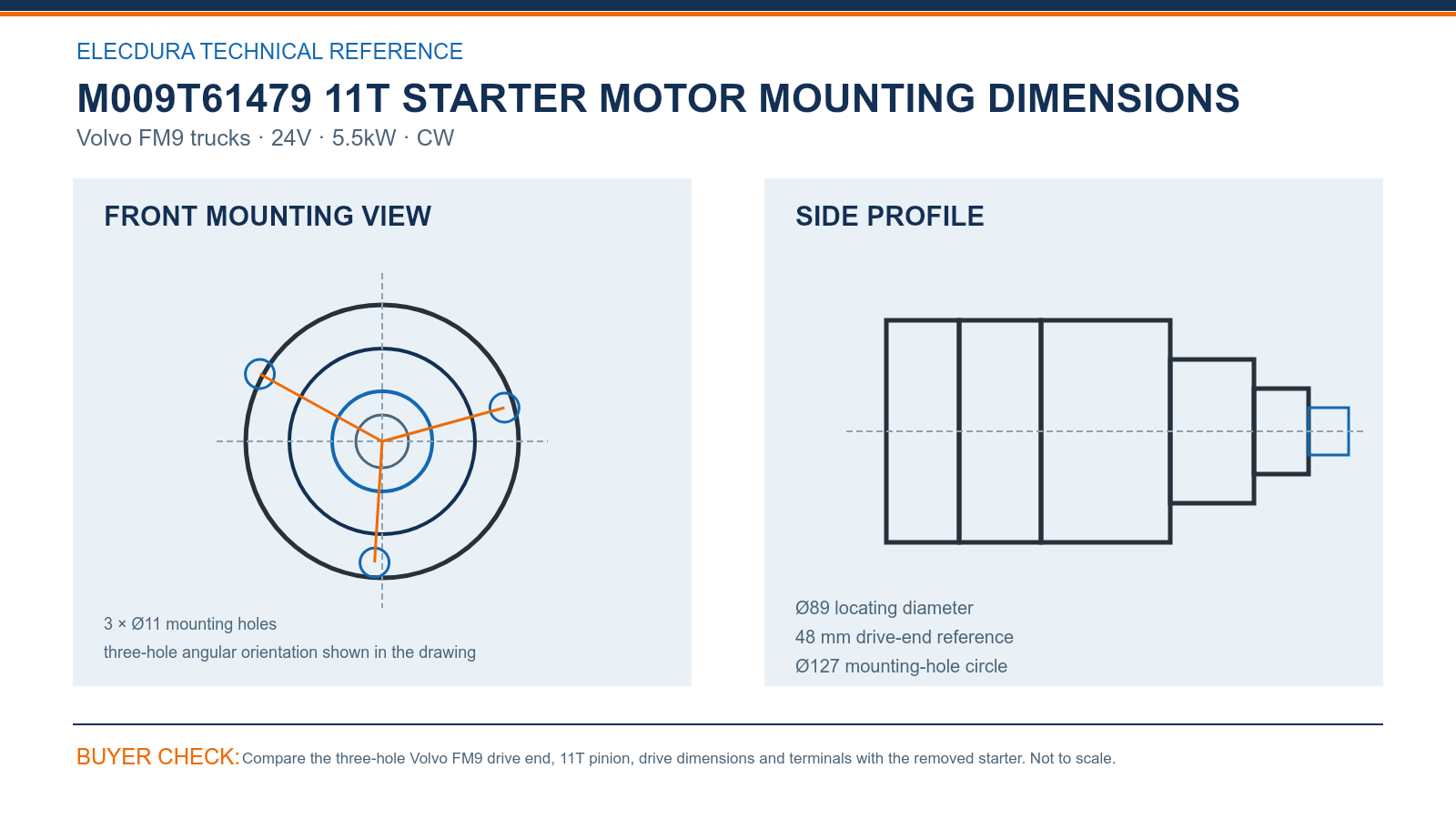

M009T61479 Volvo FM9 Starter Drawing for Fleet Buyers — compare the drawing with the removed starter before placing a volume order.

Compare three Ø11 holes on the Ø127 circle, the Ø89 locating diameter and 48 mm drive-end reference. A straight mounting-face photograph and pinion close-up are especially useful when the removed starter has been rebuilt or relabeled.

M009T61479 3801287 Cross-Reference Guidance for Buyers

M009T65479, M9T61472 through M9T61474, 3801287, 3803847 and 3807225 support the sourcing search. Use those numbers with the FM9 chassis and confirmed 11T drive instead of applying the group to every Volvo truck.

A distributor serving mature FM9 fleets can base inventory on breakdown history, remaining vehicle count and normal inbound lead time. Preserve the accepted sample and chassis range so low-frequency orders remain accurate even when staff or depots change.

M009T61479 FM9 Starter Supply Checks for Repeat Orders

On arrival, sample tooth count, flange condition, pinion travel area, terminal insulation and label clarity. Use fitted carton support and retain a photographed first-lot unit because heavy products may be transferred more than once before installation.

Elecdura's production and test video gives FM9 buyers a view of heavy-duty starter supply capability. It supports discussions about sample inspection, batch identification, packing strength and delivery cadence without replacing the vehicle and drive-end comparison.

M009T61479 Starter FAQs for Volvo FM9 Parts Wholesalers

How is M009T61479 separated from a 12T Volvo starter?

M009T61479 uses an 11T module-3.175 drive, while neighboring Volvo heavy-duty starters may use twelve teeth with similar voltage and power. Count the teeth, confirm the module and compare the Ø127 three-hole face before combining stock. Mark 11T prominently on quotations and bins so an FM9 request is not filled from a 12T family.

Which FM9 details should remain with a wholesale order?

Keep the Volvo FM9 model, chassis range, engine details, all old-starter numbers and a clear product label with the order. Add mounting-face, pinion and terminal photographs, quantity and destination. Mature fleets may contain previous service replacements, so the physical views are important when the number on an old invoice no longer matches the installed unit.

How should 3801287 and M9T61472 support sourcing?

3801287, M9T61472 and related numbers provide alternative search paths into the M009T61479 family. Use them with the FM9 chassis, 24V 5.5kW 11T module-3.175 definition and matching three-hole face. If a source shows twelve teeth or different mounting dimensions, keep that listing outside this FM9 stock record until verified.

Why is an accepted sample valuable for mature FM9 fleets?

An accepted sample preserves the correct 11T drive, mounting face, terminal side and label for a product that may be ordered only occasionally. Store its photographs with the FM9 customer or stock record. When staff, suppliers or depots change, the sample evidence gives the next buyer a dependable comparison instead of relying on memory or a broad reference.

How should wholesalers size low-frequency FM9 stock?

Use the remaining active FM9 vehicle count, recent failure history, typical delivery time and cost of vehicle downtime to set quantity. Low-frequency demand may justify one checked service unit plus planned replenishment rather than deep stock. Keep the confirmed 11T product clearly separated from the faster-moving 12T Volvo starter families in the same warehouse.

What should receiving inspect on M009T61479?

Count eleven teeth and inspect the three Ø11 holes, Ø127 circle, Ø89 locating face, nose casting, label and terminal insulation. Compare sampled units with the accepted front and cable-side photographs. Check fitted carton support for movement because the heavy starter may pass through several transfers before it reaches an FM9 workshop.

Which vehicle checks precede an FM9 starter return?

Test both batteries under load, check battery links and grounds, and measure positive and negative cable voltage drop during cranking. Verify the start signal at the solenoid and inspect the ring gear where possible. These checks help prevent an FM9 wiring, battery or engagement problem from being recorded incorrectly as a defective M009T61479 starter.

What completes an M009T61479 wholesale enquiry?

Send the FM9 chassis and engine details, M009T61479, 3801287 and all other readable numbers, plus square face, pinion and terminal photographs. State quantity, destination, required date and packing preference. Elecdura can then review the 24V 5.5kW 11T module-3.175 version and return wholesale pricing and replenishment lead time.

Request M009T61479 Volvo FM9 Starter Wholesale Pricing

Email the Volvo FM9 chassis and engine details, M009T61479 or 3801287 markings, front and terminal photographs, required quantity and destination to info@elecdurauto.com. Elecdura will review the eleven-tooth version and return wholesale pricing and lead time.
