M009T61971 CNHTC MC11 Starter Motor Wholesale

M009T61971 Starter Motor Distributor Application Guide for CNHTC MC11.44-40 heavy-truck

For a fleet parts team, M009T61971 identifies one CNHTC MC11.44-40 heavy-truck requirement. The 24V 8.0kW 12T module-3.5 catalog configuration provides a clear fitment boundary for sample, stock and replacement reviews.

Before comparing M009T61971 prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

M009T61971 Starter Motor Technical Data for Fleet Parts Buyers

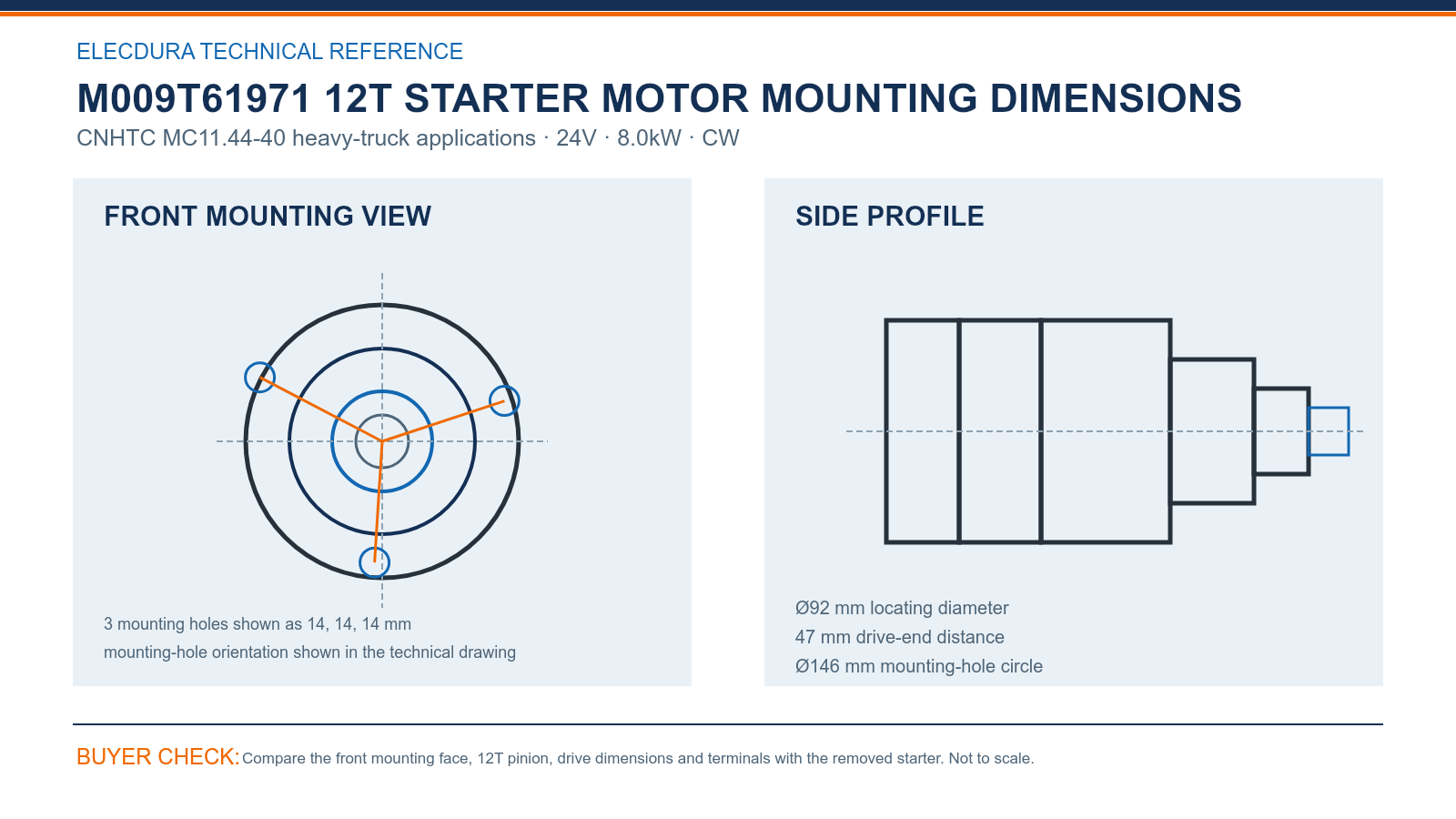

M009T61971 CNHTC MC11.44-40 heavy-truck 24V 8.0kW 12T starter mounting dimensions.

For M009T61971 first-lot sampling, place the old and new starters in the same front-facing position. Check 3 mounting holes shown as 14, 14, 14 mm, Ø92 mm locating diameter, Ø146 mm mounting-hole circle and 47 mm drive-end distance. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

Complete the M009T61971 comparison with 24V, 8.0kW, the 12T drive, module 3 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

M009T61971 Starter Motor OE Number Guide for Aftermarket Supply

• Use the full number: Start with M009T61971, M009T62071, M009T62971, 51262017199, 19927N, retaining prefixes, suffixes and separators in the RFQ.

• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

M009T61971 Starter Motor Distributor Stock and Delivery Support

Elecdura can prepare M009T61971 orders for regional inventory, fleet workshops or industrial service demand. The standard starting point is 20 pieces, normally 7–15 days after order confirmation, with an 18-month warranty under agreed terms and packing selected for the destination and shipment method.

Stock planning should reflect the supported CNHTC MC11.44-40 heavy-truck population, recent consumption and transfer time between service locations. Keeping M009T61971, the 12T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

For supplier evaluation, the video presents Elecdura starter-motor assembly and testing. A M009T61971 order should still be released against the complete OE number, CNHTC MC11.44-40 heavy-truck details, electrical specification and physical comparison, giving purchasing both capability information and a clear product boundary.

M009T61971 Starter Motor Questions from Commercial Buyers

Which first-lot checks protect a distributor receiving M009T61971 during a CNHTC MC11 branch receiving check?

For M009T61971, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 14, 14, 14 mm, Ø92 mm locating diameter and the specified 12T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Can a purchasing team consolidate every M009T61971 reference into one stock line in a CNHTC MC11 branch sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use M009T61971, M009T62071, M009T62971, 51262017199, 19927N to locate possible matches, then confirm 24V, 8.0kW, 12T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

How can an importer avoid mixing M009T61971 with a similar drive-end version during branch sourcing?

For M009T61971 in CNHTC MC11.44-40 heavy-truck, confirm the machine or engine identity and read the full old-unit label. Check 12T, Ø146 mm mounting-hole circle, Ø92 mm locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item when the stated application overlaps.

Before removing M009T61971, what should the workshop test under load during a CNHTC MC11 branch electrical check?

Before fitting M009T61971, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What physical controls belong on a first-lot check for M009T61971 during a CNHTC MC11 branch inspection?

For M009T61971, compare 3 mounting holes shown as 14, 14, 14 mm and Ø146 mm mounting-hole circle in a straight front view, then Ø92 mm locating diameter and 47 mm drive-end distance in the side view. Add 12T, CW and terminal orientation; this is more reliable than an angled overall photograph.

How should Mitsubishi distributors plan stock for M009T61971 in a CNHTC MC11 branch program?

Keep the accepted CNHTC configuration separate from other M009T61971 market applications. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What information should accompany a distributor RFQ for M009T61971 in a CNHTC MC11 branch sourcing program?

A useful RFQ states M009T61971, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving M009T61971 in a CNHTC MC11 branch review?

For a service review of M009T61971, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

M009T61971 Email for Starter Motor B2B Pricing

A complete RFQ for M009T61971 should state the application, removed-unit number, physical photographs, quantity, destination and delivery target. Send these details to info@elecdurauto.com for a direct response on the correct 24V 8.0kW 12T CW starter, MOQ, packaging, warranty and shipping choices.
