FM12 demand can span long-haul tractors, regional fleets and vehicles that have passed through several maintenance providers. Buyers should submit chassis, engine and old-unit information together so the quoted product reflects the actual truck rather than a remembered cross-reference.

This unit uses a 12T module-3.175 pinion and three Ø14 holes on an Ø146 circle. A different Volvo starter may share 24V and 5.5kW while using an Ø127 face, so the flange diameter is a decisive stock separator.

M009T62172 12T Starter Dimensions for Distributor Matching

Write M009T62172 as 24V, 5.5kW, 12T, module 3.175 and CW. Keeping that line intact across enquiry, purchase order and carton prevents a Volvo heavy-duty starter from being chosen by power rating alone.

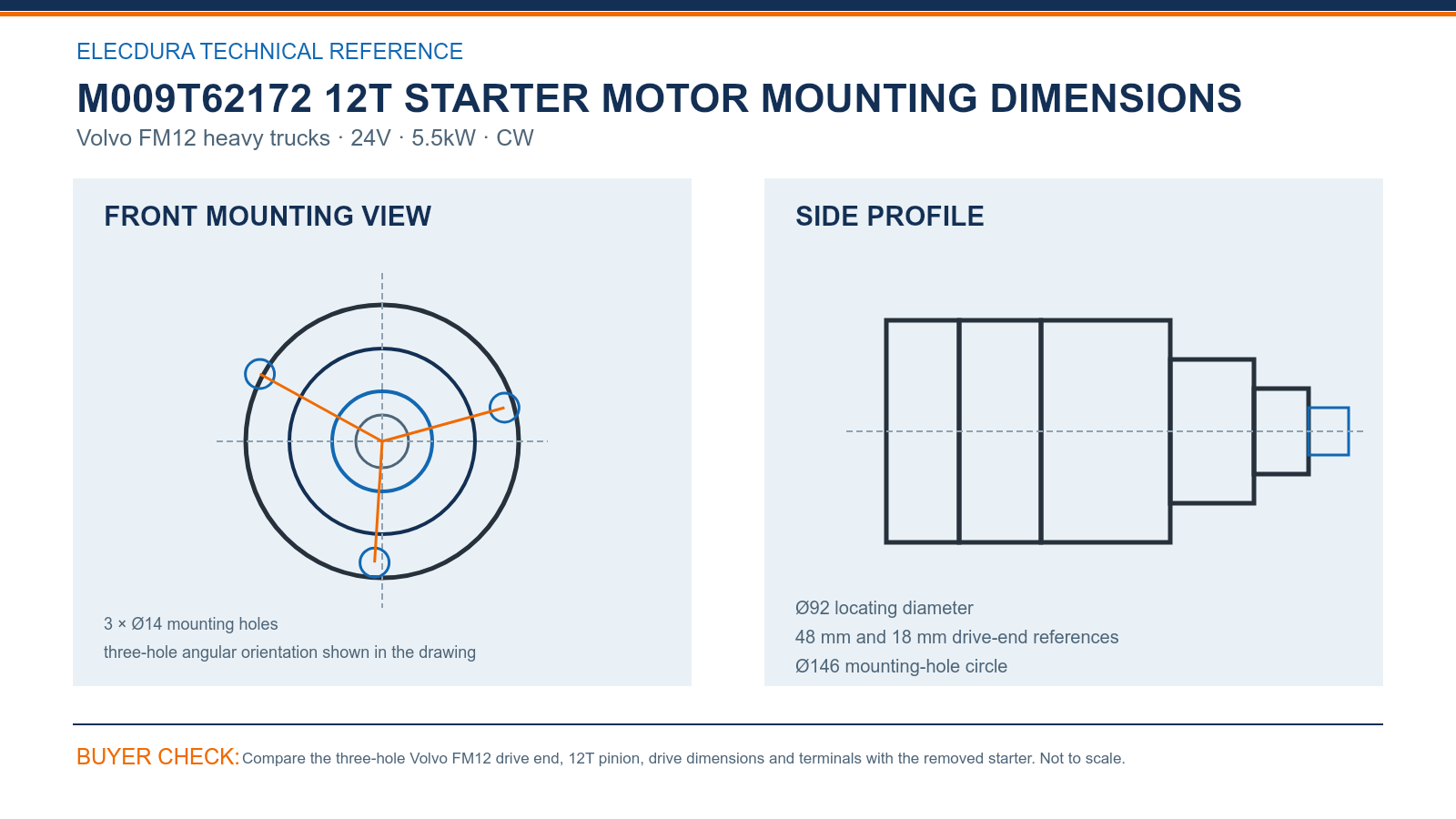

M009T62172 Volvo FM12 Starter Drawing for Truck Parts Importers — compare the drawing with the removed starter before placing a volume order.

Compare the Ø146 mounting circle, three Ø14 holes, Ø92 locating diameter, and 48 mm and 18 mm drive-end references. Straight face and terminal photographs should show whether the truck's cable direction and available clearance match the proposed unit.

M009T62172 Renault Volvo Reference Support for B2B Buyers

M009T61171, M009T62173, M009T66371 and Renault 7420714203 and 7421632125 widen the search. The FM12 chassis and illustrated Ø146 face should remain attached before the numbers are treated as interchangeable.

Fleet distributors can assign stock by confirmed FM12 population and delivery time to each depot. If a related FH12 or Renault request uses the same reference family, preserve a separate fitment record until its flange and terminal positions match.

M009T62172 FM12 Starter Supply Checks for Volume Orders

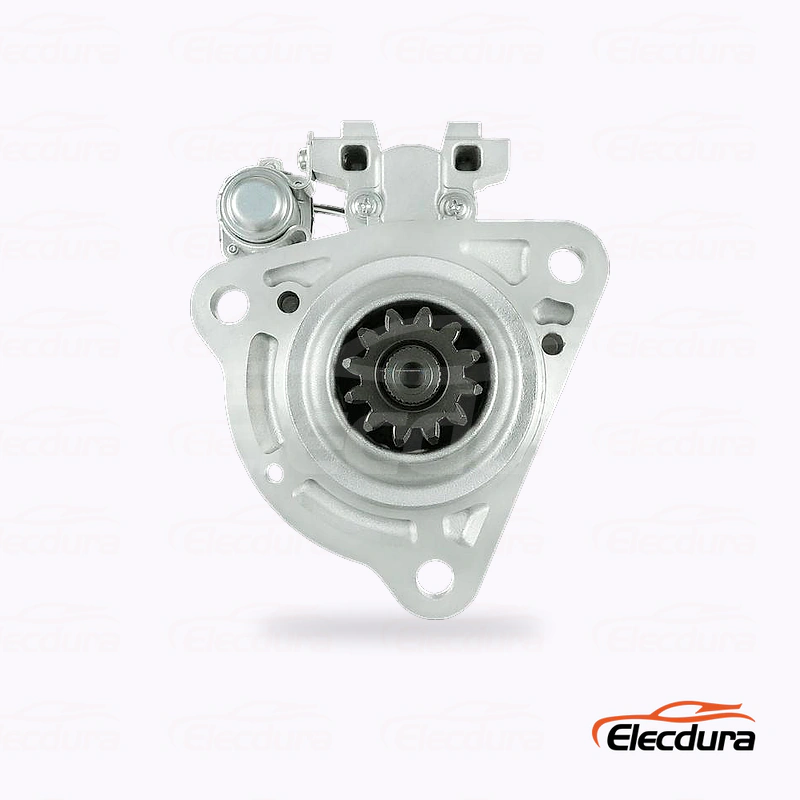

Inspect the twelve-tooth drive, three mounting ears, Ø92 locating face, insulated terminals and heavy-unit carton support across sampled deliveries. Store the accepted face and label images with the lot for later branch transfers.

Elecdura's heavy-duty starter production video helps distributors review assembly and electrical-testing capability. Use it alongside your agreed sample plan, pallet protection, label requirements and delivery schedule for FM12 fleet replenishment.

M009T62172 Starter FAQs for Volvo FM12 Fleet Buyers

Which FM12 details should accompany M009T62172?

Include the Volvo FM12 model, chassis range, engine designation and every readable Mitsubishi, Volvo or Renault number. Add square mounting-face, pinion and terminal photographs, quantities by depot and the required date. This information ties M009T62172 to the actual truck and avoids choosing a related heavy-duty starter from the reference group without a physical comparison.

Why must an FM12 order retain the Ø146 mounting circle?

The Ø146 circle separates this FM12 product from Volvo starters that use an Ø127 three-hole face. Confirm all three Ø14 holes, the Ø92 locating diameter and the 48 mm and 18 mm drive references. A same-voltage, same-power starter with a smaller mounting circle should remain a different stock line even if several references overlap.

How should Renault 7420714203 support the sourcing search?

Renault 7420714203 and the related Mitsubishi numbers can help locate the M009T62172 replacement family. Use them with the FM12 chassis, 24V 5.5kW 12T module-3.175 drive and Ø146 face. A Renault reference broadens the sourcing search but does not automatically extend fitment to every Renault or Volvo truck.

Can a related FH12 request use the same stock record?

Only after the FH12 unit matches the full electrical specification, 12T module-3.175 drive, Ø146 mounting circle, locating diameter and terminal position. Keep separate vehicle notes even when the accepted physical product is the same. If any of those features differ, use a separate stock record instead of inheriting the FM12 match from one shared number.

How should a regional fleet position FM12 starter stock?

Plan central and depot quantities from active FM12 vehicles, route exposure, failure history and transfer time between locations. Keep an inspected spare where roadside delay is most expensive, with additional stock at the main warehouse. Attach the confirmed Ø146 face and terminal photographs to each depot record so branch transfers remain accurate.

Which receipt checks matter for this heavy starter?

Count twelve teeth and inspect the three Ø14 holes, Ø92 locating face, mounting ears, terminals, labels and heavy-unit carton supports. Sample cartons from different pallet positions and compare the accepted front and cable-side images. Document any transport damage before the lot is divided among depots so it is not confused with a product mismatch.

What truck-side diagnosis should precede a return?

Load-test the 24V batteries, inspect links, grounds and master switches, and measure cable voltage drop during cranking. Verify the start signal at the solenoid and inspect ring-gear teeth where possible. These tests separate battery, cable, relay and engagement faults from a starter defect before an M009T62172 warranty request is submitted.

What makes an M009T62172 wholesale request complete?

Provide the FM12 chassis and engine, all Mitsubishi, Volvo and Renault references, clear face, pinion and terminal photographs, quantity, destination and required delivery date. Include labeling or packing preferences. Elecdura can then verify the 12T module-3.175 drive and Ø146 flange and return useful wholesale pricing, lead time and supply terms.

Request M009T62172 Volvo FM12 Starter Wholesale Pricing

Email the FM12 chassis and engine details, all Mitsubishi, Volvo or Renault numbers, front and terminal photographs, quantity by depot and destination to info@elecdurauto.com. Elecdura will review M009T62172 and return wholesale terms.
