M009T67171 Volvo D8K Starter Motor Distributor

M009T67171 Volvo D8K Starter Distributor Supply

Volvo FE and FL fleets may use the D8K platform across several power ratings and chassis configurations. A useful request names the D8K250 or D8K280 engine, vehicle details and old starter so M009T67171 can be quoted for an identifiable fleet population.

The 12T module-3.175 drive must agree with the Ø127 flange and 34 mm axial position. Another 5.5kW Mitsubishi starter can look related yet use a different tooth count or mounting orientation, which makes the square face photograph essential.

M009T67171 12T Starter Dimensions for Fleet Matching

Present M009T67171 as 24V, 5.5kW, 12T, module 3.175 and CW. This exact line should appear on purchase orders, labels and branch records so a Volvo distributor preserves the same D8K version through transfers and replenishment.

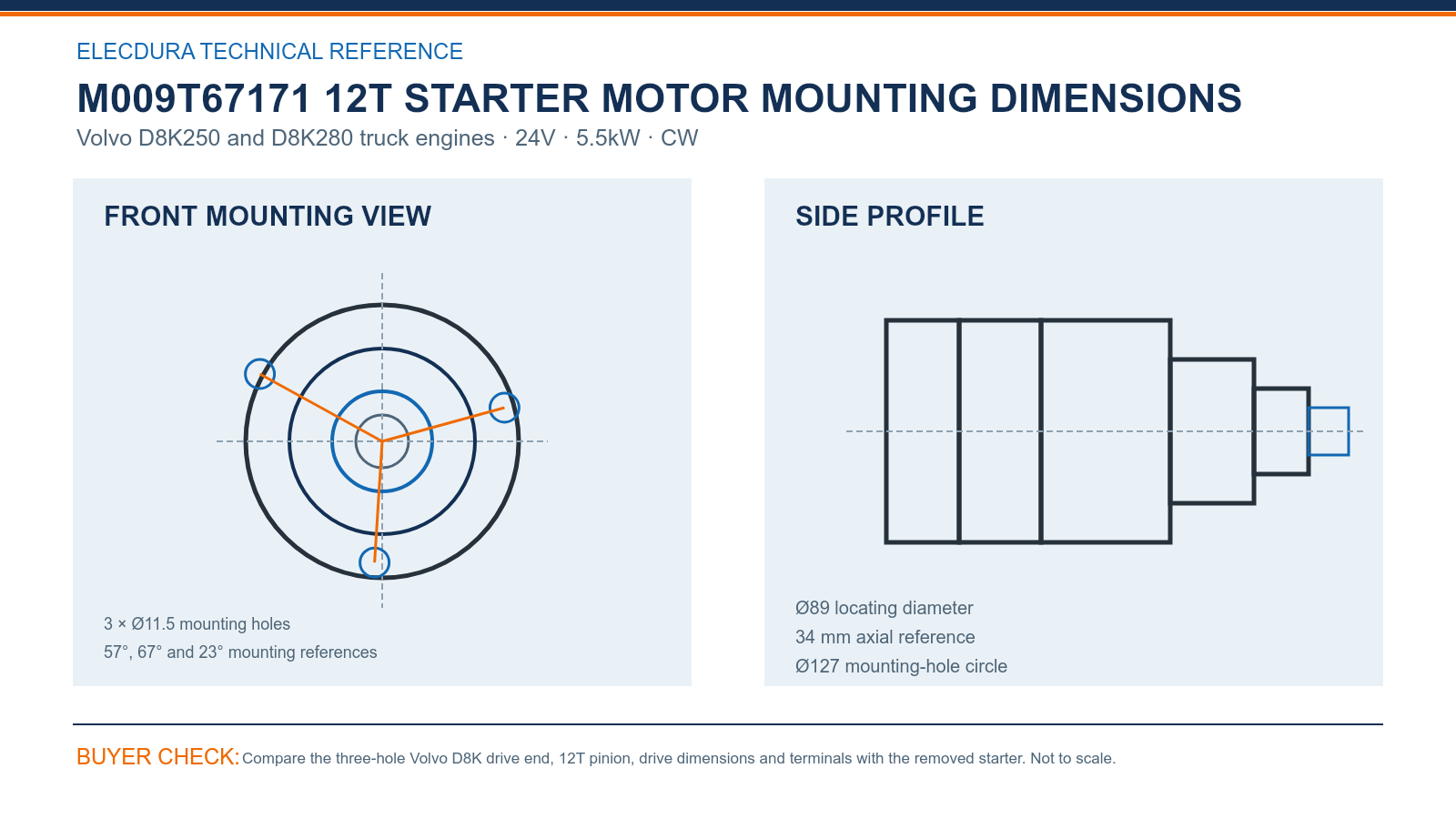

M009T67171 Volvo D8K Starter Drawing for Fleet Distributors — compare the drawing with the removed starter before placing a volume order.

Compare three Ø11.5 holes, the Ø127 circle, Ø89 locating diameter, 34 mm drive position and the 57°, 67° and 23° hole orientations. Photograph the front, pinion and terminals on the removed unit before the truck returns to service.

M009T67171 Volvo OE References for Truck Parts Buyers

Volvo 21774085, 21774086, 22380003, 22602913, 23287028 and 23291795 link M009T67171 to current purchasing records. Mitsubishi M009T67172 and M009T68971 expand searches, but D8K engine and drive-end confirmation still define the order.

A fleet can group confirmed D8K250 and D8K280 vehicles under one stock line after both versions match the stated starter. Keep chassis-specific notes and accepted images so the product does not automatically extend to every Volvo FE, FL or Penta application found online.

M009T67171 FE FL Starter Stock and Receiving Checks

Receiving staff should count twelve teeth, inspect three Ø11.5 holes and the Ø89 locating face, compare cable positions and sample electrical output. Consistent labels and image records help a central Volvo warehouse distribute units without losing the D8K fitment boundary.

Elecdura's manufacturing video presents starter assembly and electrical testing for distributor programs. Volvo buyers can use it while setting sample inspection, carton strength, terminal protection, private-label requirements, annual forecasts and staged delivery plans for fleet depots.

M009T67171 Starter FAQs for Volvo D8K Fleet Buyers

What confirms M009T67171 for a Volvo D8K fleet?

Identify the Volvo chassis and whether it uses D8K250 or D8K280, then provide the complete old-starter label and photographs. Confirm 12T module 3.175 and the Ø127 face. This gives M009T67171 a fleet-level application instead of an unrestricted Volvo description. Keep the matched images and the D8K engine, 12T module-3.175 drive and Ø127 three-hole face beside the M009T67171 stock record.

Can D8K250 and D8K280 vehicles share this starter?

Yes, when the removed starters from both D8K250 and D8K280 vehicles match the stated electrical rating, pinion, mounting face and terminals. Keep chassis-specific notes for each engine rating. Shared inventory should follow verified hardware, not the D8K family name alone. Use the D8K engine, 12T module-3.175 drive and Ø127 three-hole face on the purchase order for M009T67171.

How should 21774085 and 22380003 support purchasing?

21774085 and 22380003 connect Volvo purchasing records to M009T67171 and related Mitsubishi numbers. Enter the complete number from the old unit, then retain the D8K engine and drive-end comparison. The OE route helps discovery without replacing fitment evidence. Preserve the confirmed Volvo D8K250 and D8K280 truck engines mounting comparison in the customer's M009T67171 reorder notes.

Which measurements define the compact Volvo drive end?

Verify three Ø11.5 holes on the Ø127 circle, an Ø89 locating diameter and the 34 mm axial position. The 57°, 67° and 23° orientations should agree with a square front photograph. Add pinion and terminal views to complete the comparison. Carry the D8K engine, 12T module-3.175 drive and Ø127 three-hole face through packing and branch transfers for M009T67171.

How should FE and FL depots organise confirmed stock?

Create one confirmed D8K stock description and attach the accepted face and terminal images. Allocate quantity by supported FE or FL vehicle population and replenishment time. Transfers between depots should carry the same M009T67171 label and chassis-specific fitment notes. Retain the D8K engine, 12T module-3.175 drive and Ø127 three-hole face with the M009T67171 delivery lot for after-sales review.

What should receiving verify on M009T67171 deliveries?

Count twelve teeth, inspect all three Ø11.5 holes, examine the Ø89 register and compare terminals, cable positions and labels with the accepted sample. Record electrical test results and carton condition before splitting the lot among Volvo workshops or customer orders. Include the D8K engine, 12T module-3.175 drive and Ø127 three-hole face in forecasts and repeat purchases for M009T67171.

Which fleet electrical checks help with slow cranking?

Test batteries under load, cable voltage drop, grounds, relay output and engine rotation. A weak battery bank or high-resistance connection can slow cranking even when the starter is serviceable. Keep the measurements with the Volvo chassis and D8K engine record. Preserve the confirmed D8K chassis and mounting comparison for future M009T67171 orders.

What information supports a Volvo distributor quotation?

Provide the Volvo chassis, D8K250 or D8K280 engine details, complete OE and Mitsubishi references, square face, pinion and terminal photographs, quantity, destination, packaging preference and deadline. Elecdura can then assess M009T67171 and issue distributor pricing with delivery timing. Attach the Volvo D8K250 and D8K280 truck engines comparison to the M009T67171 quotation so receiving can review the same version.

Request M009T67171 Volvo Starter Motor Distributor Pricing

Send the Volvo chassis, D8K250 or D8K280 engine details, complete OE or Mitsubishi numbers, straight mounting and terminal photographs, quantity and destination to info@elecdurauto.com. Elecdura will review M009T67171 and provide distributor pricing, packing choices and lead time.
