M009T70077 Caterpillar 3406 Starter Motor Distributor

M009T70077 Caterpillar 3406 Starter Distributor Supply

A Caterpillar 3406 or New Holland 2100 starter request often supports equipment whose downtime affects hauling, field work or production schedules. Distributors should capture engine and machine details, expected monthly demand and delivery location before comparing heavy-duty cross-references.

This product uses an 11T module-4.233 drive and three Ø13.5 SAE mounting holes. The same broad reference family also appears around 12T starters, so tooth count, module and application must remain visible wherever stock is quoted or moved.

M009T70077 11T SAE Starter Dimensions for Wholesale Buyers

Describe M009T70077 as 12V, 5.5kW, 11T, module 4.233 and CW throughout the quotation. The complete specification gives engine distributors, warehouse teams and equipment workshops one consistent identity from enquiry through receipt.

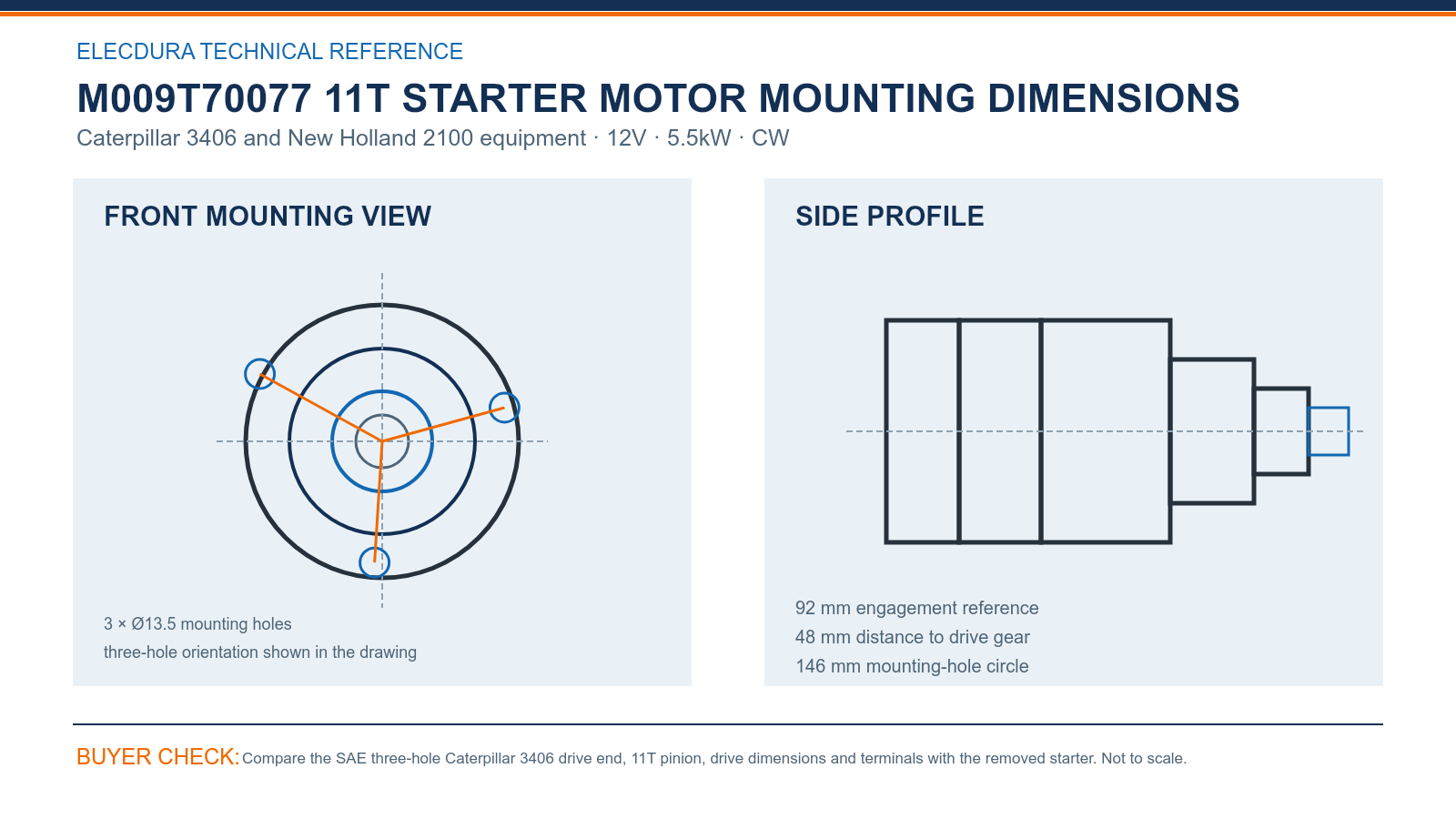

M009T70077 Caterpillar 3406 Starter Drawing for Distributors — compare the drawing with the removed starter before placing a volume order.

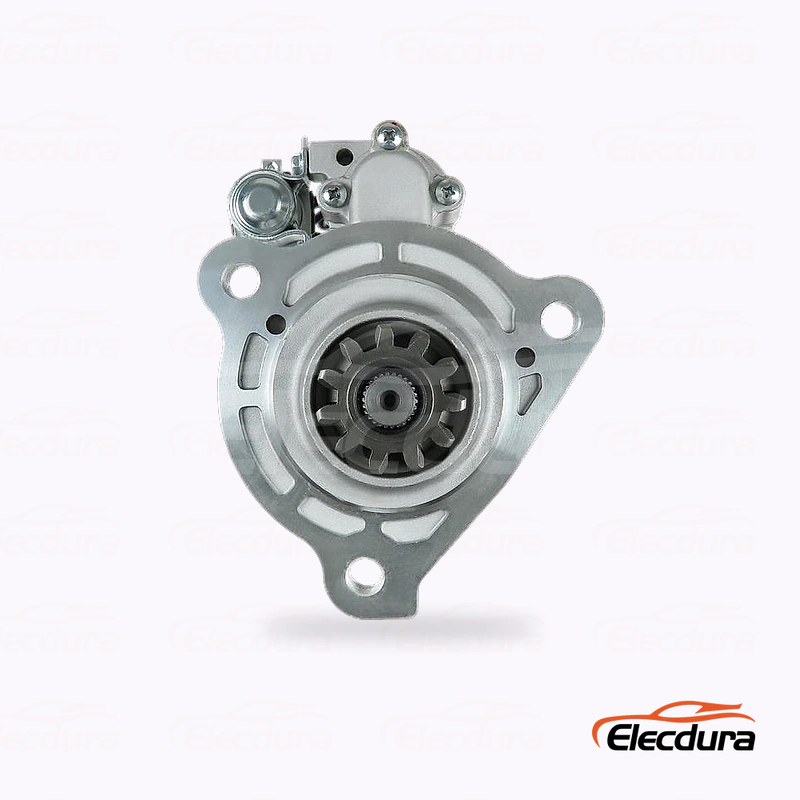

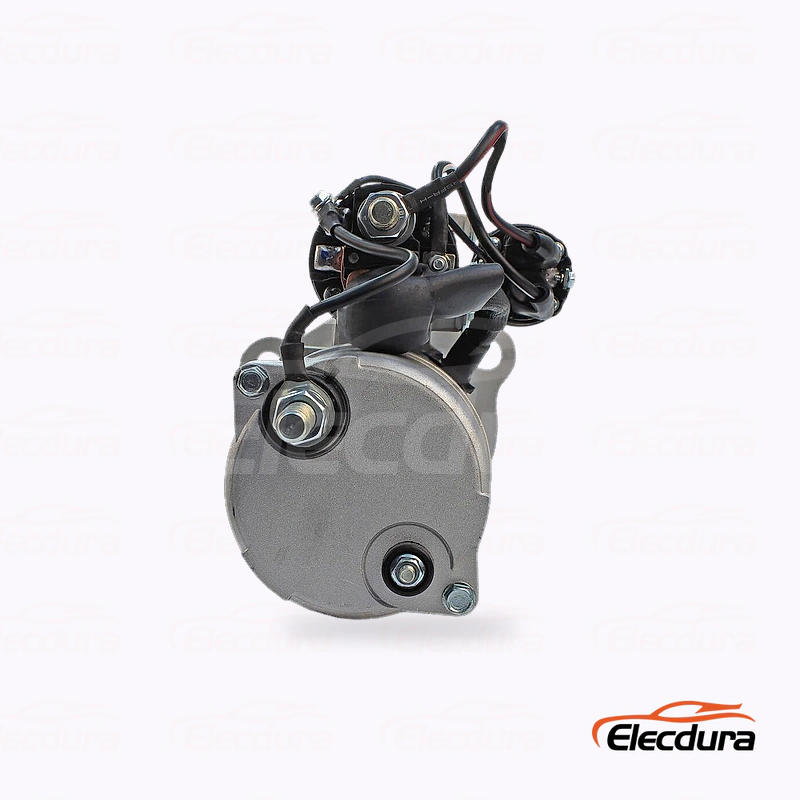

Compare the 92 mm engagement reference, 48 mm drive distance, three Ø13.5 holes and 146 mm circle with the removed starter. Include a straight drive-end image and a second view of the terminal clocking before volume supply.

M009T70077 Caterpillar and New Holland OE Matching

The reference group includes Mitsubishi, Delco, Cummins, Prestolite and Volvo numbers. These widen sourcing options for heavy-duty buyers, but the Caterpillar 3406 or New Holland 2100 application and 11T module-4.233 drive determine whether the quoted unit is the correct product.

Dealers serving both Caterpillar and New Holland equipment can share a confirmed product identity while retaining machine-specific demand histories. If a Mack or highway-truck enquiry presents one of the same numbers, review it separately before assigning inventory.

M009T70077 Heavy-Duty Starter Supply Checks for Volume Orders

First-lot inspection should sample the 11T pinion, SAE mounting ears, nose casting, insulated studs, labels and fitted carton support. Because the unit is heavy, examine cartons from the pallet edge and center for movement or impact marks before branch distribution.

Elecdura's video presents heavy-duty starter assembly and electrical testing for B2B programs. Equipment distributors can use it while defining sample rates, lot marking, pallet protection and the replenishment schedule for Caterpillar and New Holland customers.

M009T70077 Starter FAQs for Caterpillar 3406 Distributors

Which Caterpillar or New Holland details belong with M009T70077?

Identify the Caterpillar 3406 engine or New Holland 2100 machine, including serial or arrangement information available to the buyer. List every number on the removed starter and provide drive-end, pinion and terminal photographs. Quantity, operating location and required date help distinguish an urgent equipment replacement from a distributor replenishment program.

Why is the 11T module-4.233 drive essential for this product?

This product uses eleven teeth with module 4.233, a large tooth form associated with its ring-gear interface. Heavy-duty reference families can also contain 12T module-3 starters. Keeping both tooth count and module beside M009T70077 prevents the broad OE list from moving the wrong drive version into Caterpillar or New Holland stock.

What should be checked on the M009T70077 SAE drawing?

Compare the three Ø13.5 mounting holes on the 146 mm circle, the 92 mm engagement reference and the 48 mm distance to the drive gear. Check ear orientation and terminal clocking against straight old-unit photographs. A correct SAE diameter alone does not establish the pinion or electrical version required by the equipment.

How should the broad heavy-duty OE group be used?

Use the Mitsubishi, Delco, Cummins, Prestolite and Volvo numbers to search multiple parts listings and expose possible replacements. Narrow the result with the Caterpillar 3406 or New Holland 2100 application, 11T module-4.233 drive and SAE face. Do not publish or stock the whole reference group as universally interchangeable.

How can equipment dealers plan reserve stock for this starter?

Estimate demand by confirmed machine population, recent failures, seasonal workload and transport time to each customer site. A dealer supporting harvest or remote earthmoving work may hold local emergency stock plus a central reserve. Keep Caterpillar and New Holland demand histories visible even when both use the same accepted M009T70077 configuration.

How should receiving inspect the first heavy M009T70077 shipment?

Because this is a heavy unit, sample cartons from pallet edges and the center for movement or impact. Count eleven teeth, inspect all SAE ears, verify label values and check insulated studs and terminal covers. Record the accepted face and lot marking before units are divided among equipment-dealer branches.

What equipment-side tests should precede a starter return?

Load-test the battery bank, measure cranking voltage and check voltage drop through positive and ground cables. Inspect master switches, relays, terminal tightness, the ring gear and whether the diesel engine rotates freely. Equipment wiring exposed to vibration and dirt can cause a no-start that remains after an unnecessary M009T70077 replacement.

What completes an M009T70077 distributor enquiry?

Provide the 3406 engine or New Holland 2100 machine details, serial information, old-starter references, drive-end and terminal photographs, and any measured SAE dimensions. Add quantity, branch allocation, packing requirements, destination and delivery date. Elecdura can then review the specified 11T version and prepare distributor pricing.

Request M009T70077 Caterpillar 3406 Starter Distributor Pricing

Email the Caterpillar 3406 or New Holland 2100 machine details, old-starter numbers, drive-end and terminal photographs, quantity, destination and required date to info@elecdurauto.com. Elecdura will review M009T70077 and return distributor pricing.
