M009T70279 Volvo ACL42 Starter Motor Distributor

M009T70279 Starter Distributor Support for Volvo ACL42 Fleets

ACL42 vehicles may be concentrated in regional or vocational fleets, so demand is often uneven across branches. Sharing chassis population, monthly consumption and emergency coverage targets helps Elecdura propose a quantity and delivery rhythm suited to the buyer’s installed base.

Public listings can group M009T70279 with nearby Volvo references and may state another output. For this product, keep the supplier-defined 6.2kW rating, twelve teeth and 13.5 mm three-hole drawing together, then compare them with the removed unit before ordering.

M009T70279 6.2kW Starter Dimensions for B2B Verification

The supplier definition is 12V, 6.2kW, 12T, module 3.175 and clockwise rotation. This complete line should appear on the quotation and rating-label review so the supplied product is not silently changed to a different market version.

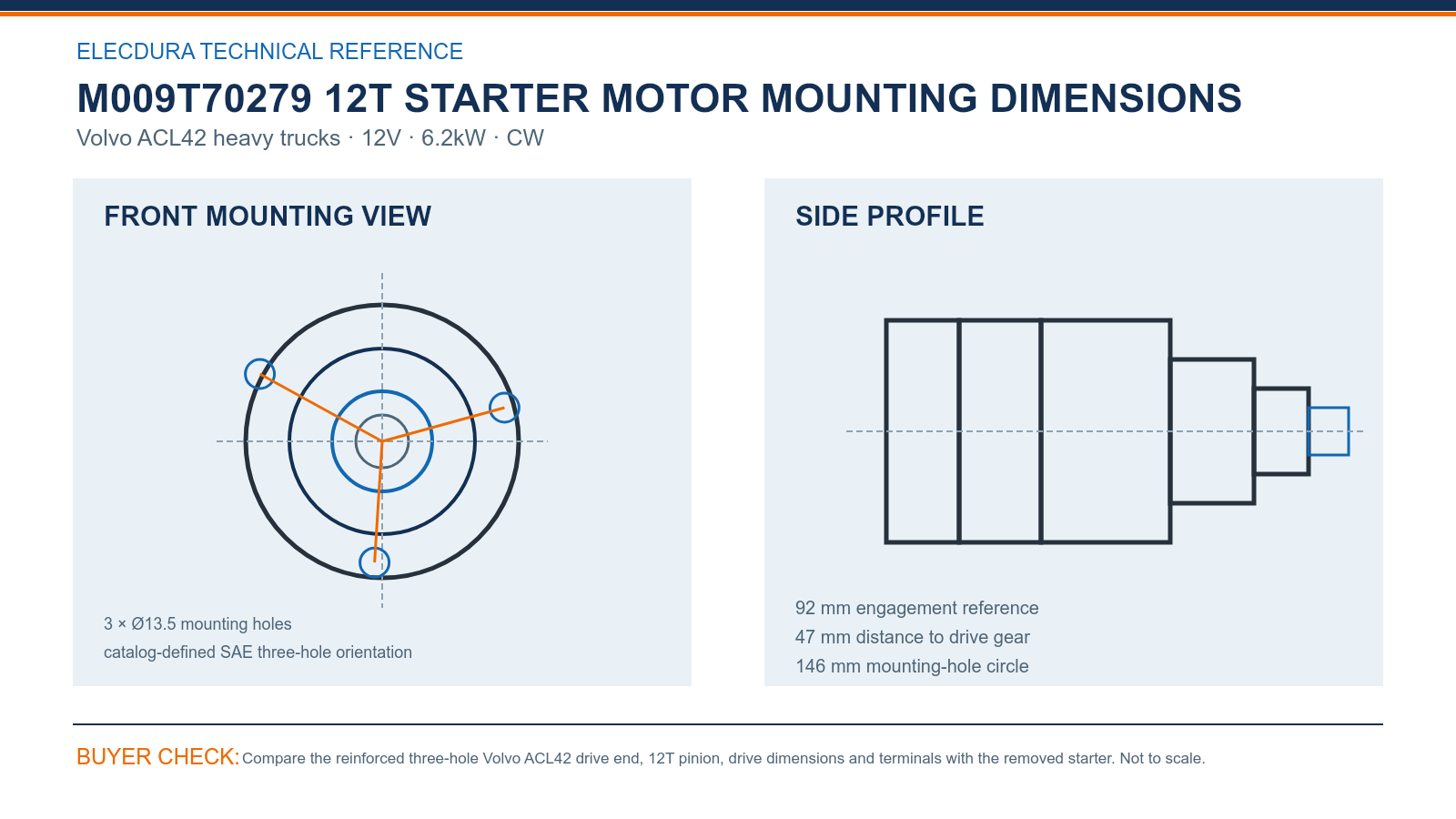

M009T70279 Volvo ACL42 Starter Motor Drawing for Fleet Buyers — compare the drawing with the removed starter before placing a volume order.

Compare three Ø13.5 holes on the 146 mm circle, the 92 mm engagement reference and 47 mm drive-gear distance. Front and side images should also show the same solenoid and terminal orientation before the starter is allocated to an ACL42 vehicle.

M009T70279 Starter OE Matching for Volvo Parts Distributors

M009T70279, M9T70279, VV0279, 20430285 and 85103338 are useful Volvo procurement references. Some lists also include adjacent M009T70879 or M009T70979 numbers, so the ACL42 application and supplier specification must remain attached to the chosen reference.

A fleet depot should base reserve quantity on ACL42 population, utilization and the time needed to receive another unit. If stock is shared with other Volvo models, require a matching drawing and starter label before transfer rather than assuming every D12-family reference is identical.

M009T70279 Starter Motor Fleet Supply and Testing Capability

Receiving should sample the supplier rating, twelve-tooth pinion, 13.5 mm holes, terminals and protective packing. Keep photos of the accepted first lot with the warehouse item so branches can compare future deliveries without reopening the entire sourcing exercise.

The production video below shows Elecdura heavy starter assembly and electrical testing. Volvo fleet buyers can review manufacturing capability while setting their own sample inspection, pallet protection, branch labeling and delivery-window requirements.

M009T70279 Starter Motor FAQs for Volvo ACL42 Buyers

Which power rating applies to this M009T70279 Volvo ACL42 product?

This Elecdura offer follows the supplier definition of 12V and 6.2kW with twelve teeth, module 3.175 and clockwise rotation. Some public listings describe a related 5.5kW market unit, so buyers should compare the old rating label and drawing rather than changing the supplier value during quotation or receiving.

What Volvo ACL42 information should a distributor provide?

Send the chassis model, year, engine details and every readable starter or Volvo number. Include a photograph of the rating label plus straight front, pinion and terminal views. These materials connect M009T70279 to the actual truck and allow the supplier-defined 6.2kW version to be discussed without relying on a generic ACL listing.

How should 20430285 and 85103338 be used with M009T70279?

Both Volvo numbers support the recognized M009T70279 replacement family and can be included in a search or quotation. Keep the full number found on the removed unit, the ACL42 chassis and the supplier specification beside them. The references improve traceability but do not remove the need to compare the 13.5 mm flange and terminal side.

Which drawing values define the Volvo ACL42 mounting face?

The supplier drawing shows three Ø13.5 holes on a 146 mm mounting circle, a 92 mm engagement reference and 47 mm distance to the drive gear. Compare these values from square images and direct measurements. Count twelve teeth as a separate check so a matching flange is not accepted with the wrong pinion.

How can Volvo distributors allocate ACL42 starter stock among branches?

Use active vehicle count, prior sales, route exposure and replenishment lead time for each branch. Keep emergency stock where recovery delays are longest and adjust quantities from actual withdrawals. If another Volvo model requests the same carton, require matching references and physical views before transferring M009T70279 outside the confirmed ACL42 group.

What should receiving staff verify on a supplier-rated 6.2kW lot?

Check the product and carton labels for the agreed 6.2kW definition, then confirm twelve teeth, the three 13.5 mm holes, terminal orientation and packing condition. Sample several pallet positions and retain photographs. Escalate any 5.5kW label or visible configuration change before placing units into Volvo ACL42 stock.

Which electrical tests help confirm an ACL42 starter fault?

Load-test the battery bank and measure voltage drop across the positive cable, ground path and major connections during a start request. Verify the start signal at the solenoid and inspect the ring gear and engine freedom. A high-resistance connection can imitate a weak starter, so these checks should precede replacement of M009T70279.

What information lets Elecdura quote M009T70279 without ambiguity?

Provide the ACL42 chassis and engine details, exact old-unit numbers, rating-label photograph, square flange, pinion and terminal views, quantity and required dates. Add destination and packing needs. Elecdura will review the supplier-defined 6.2kW 12T product and return distributor terms tied to the stated Volvo application.

Request M009T70279 Starter Distributor Terms for Volvo ACL42

Send the Volvo ACL42 chassis and engine details, complete old-unit references, front, pinion and terminal images, quantities by location and delivery target to info@elecdurauto.com. Elecdura will review the supplier-defined M009T70279 configuration and quote distributor supply.
