M009T70579 Cummins ISX Starter Motor Wholesale Supply

M009T70579 Cummins ISX Starter Wholesale Value for Fleet Buyers

An ISX starter purchase affects road recovery, workshop capacity and reserve-stock coverage. Buyers can improve the commercial decision by stating the truck population, operating regions and expected emergency demand instead of requesting one undifferentiated heavy-duty unit.

M009T70579 appears inside a broad 39MT-style reference family. Keep the 11T module-4.233 drive, three Ø17 holes and actual engine or chassis information together so a nearby 12T or different-flange starter is not substituted.

M009T70579 11T Starter Dimensions for B2B Verification

For M009T70579, record 11 teeth and module 4.233 beside the 12V 5.5kW rating and clockwise rotation. Keeping the drive details beside the electrical rating gives Cummins ISX buyers, warehouse staff and receiving teams one clear stock identity.

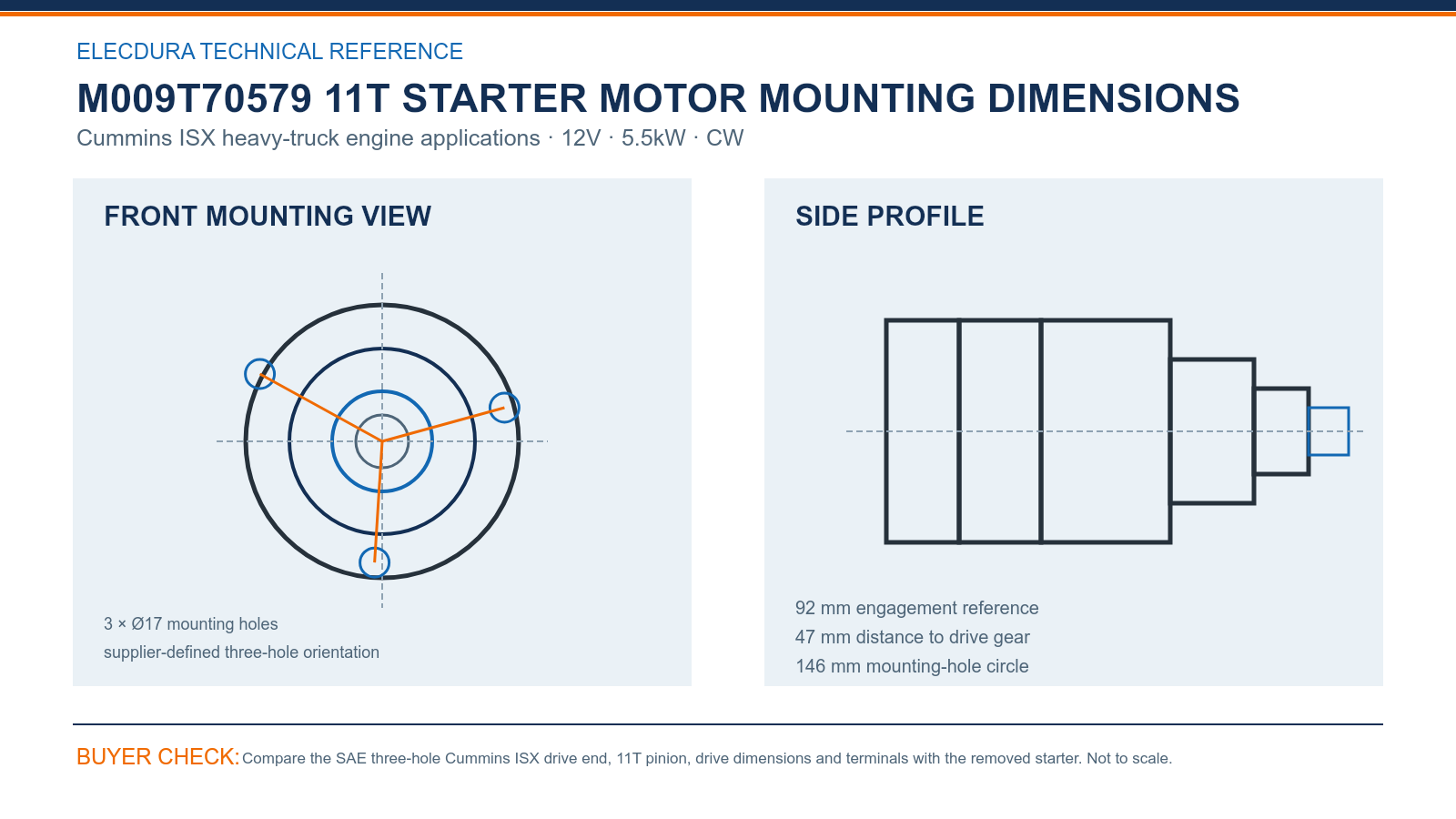

M009T70579 Cummins ISX Starter Motor Drawing for Wholesale Buyers — compare the drawing with the removed starter before placing a volume order.

Compare the 92 mm engagement reference, 47 mm drive-gear distance, three Ø17 holes and 146 mm mounting circle with the removed unit. Straight front and terminal photographs make remote review more dependable than a single angled image.

M009T70579 Cummins Starter OE Matching for Distributors

M009T70579 connects with M9T70579, FL0579 and multiple Cummins and Volvo numbers. Those references widen the sourcing search, but the ISX engine record and matching 11T SAE face define the product that can enter a confirmed order.

Fleet distributors should allocate reserve units by ISX vehicle count, route exposure and resupply time. If another engine family requests the same reference, retain a separate fitment history until its starter face, pinion and terminal layout have been checked.

M009T70579 Heavy-Duty Starter Supply and Testing Capability

For the first shipment, sample different cartons for 11 teeth, Ø17 mounting holes, label consistency, protected studs and reinforced body support. Record the accepted face and terminal views so later depot replenishment can be inspected against the same baseline.

The Elecdura video presents heavy-duty starter assembly and electrical testing for B2B programs. Cummins distributors can use it to review production capability while defining their own sampling, pallet protection, lot identification and delivery cadence.

M009T70579 Starter FAQs for Cummins ISX Fleet Buyers

Which ISX and truck details should accompany an M009T70579 enquiry?

Provide the Cummins ISX engine designation, truck make, model and year, chassis or VIN information, and every readable number on the removed starter. Add square photographs of the mounting face, pinion and terminal side, then state the required quantity, delivery country and whether the units are for fleet reserve, workshop use or resale.

How should FL0579 and M9T70579 support the sourcing review?

FL0579 and M9T70579 are useful cross-reference routes for locating the M009T70579 family, but neither number confirms a truck installation by itself. Match them with the ISX engine, an 11T module-4.233 drive, the three-hole SAE face and the terminal arrangement visible on the removed starter before placing a volume order.

Why must 11T and module 4.233 remain together for this Cummins starter?

Eleven teeth identify the pinion count, while module 4.233 defines the tooth size and pitch that must engage the flywheel ring gear. A starter can share the same voltage and power yet use a different gear interface, so purchasing and receiving should keep both values attached to M009T70579 rather than checking tooth count alone.

What should fleet buyers compare on the M009T70579 SAE mounting drawing?

Compare all three Ø17 mounting holes on the 146 mm circle, the 92 mm engagement reference and the 47 mm distance to the drive gear. The ear orientation, locating face, solenoid position and cable-terminal direction should also match straight photographs of the removed M009T70579; a similar cylindrical housing is not enough.

How can an ISX fleet size practical M009T70579 reserve stock?

Base reserve quantity on the number of ISX-powered trucks, recent starter failures, route criticality, workshop turnaround and the replenishment time to each depot. Fleets with remote routes may hold one service unit locally and additional central stock, while a distributor should separate emergency demand from normal resale forecasts before setting the order quantity.

Which first-lot checks matter for a heavy M009T70579 shipment?

Sample cartons from different parts of the shipment and verify the M009T70579 marking, 12V 5.5kW label, eleven teeth and three Ø17 mounting holes. Inspect the pinion, nose housing, solenoid studs, terminal covers and body support for transport damage, and record the lot and photographs before the units are distributed to fleet depots.

What vehicle-side tests help avoid returning a good Cummins starter?

Test battery condition and cranking voltage first, then measure voltage drop on both the positive cable and the engine-ground path under load. Check cable ends, relay operation, voltage at the solenoid trigger terminal, ring-gear condition and whether the engine turns freely. These results help separate a vehicle-side fault from an actual M009T70579 starter problem.

What information makes an M009T70579 wholesale request ready to quote?

Send the ISX engine and truck details, all old-starter numbers, clear front, pinion and terminal photographs, and any measured mounting references. Include order quantity, annual demand, packing or labeling requirements, destination port and requested delivery date. This information lets Elecdura confirm the M009T70579 version and prepare relevant wholesale terms without repeated clarification.

Request M009T70579 Cummins ISX Starter Wholesale Pricing

Email the Cummins ISX engine and truck details, complete old-starter numbers, front, pinion and terminal photographs, quantities by depot, destination and required dates to info@elecdurauto.com. Elecdura will review M009T70579 and return wholesale pricing and lead time.
