M009T71779 Cummins ISX 12T Starter Motor Distributor

M009T71779 Starter Motor Distributor Value for Cummins ISX Buyers

Cummins truck-parts buyers need the engine identity and physical starter version visible on the same enquiry. For M009T71779, naming the ISX application, fleet model and old-unit details gives procurement a stronger basis than a reference copied from a mixed online list.

The heavy-duty reference family can be associated with nearby Cummins configurations, so the represented twelve-tooth version must remain explicit. Compare the three-hole drive end, terminal side and rating label before the unit is added to an ISX warehouse line.

M009T71779 12T Starter Motor Specifications for B2B Matching

The offered configuration is 12V, 5.5kW, 12T, module 3.175 and clockwise rotation. These values should move together from enquiry to carton label, preventing an eleven-tooth or differently applied heavy starter from entering the order.

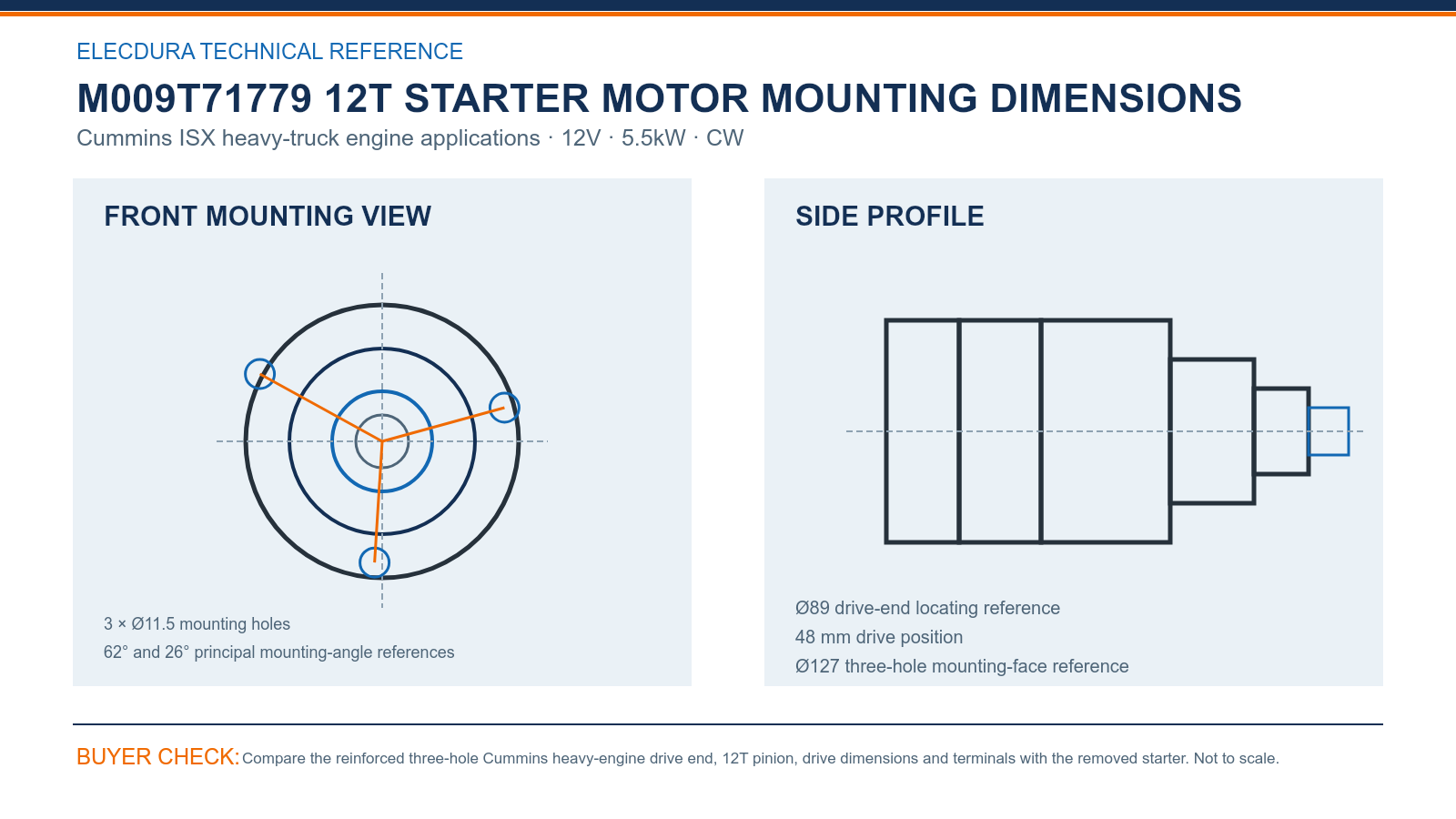

M009T71779 Cummins ISX 12T Starter Motor Drawing for Distributors — compare the drawing with the removed starter before placing a volume order.

The drawing provides three Ø11.5 holes, an Ø127 face, Ø89 locating reference and 48 mm drive position. Use the 62° and 26° orientation references with a square front image to compare the actual housing before committing fleet quantities.

M009T71779 Starter Motor Cross-Reference Guidance for Distributors

M009T71779 and M9T71779 sit with the listed Delco Remy numbers as sourcing references. They widen the search, but the Cummins ISX application and twelve-tooth physical product remain the defining information for this Elecdura offer.

Distributors should keep unfamiliar Cummins installations outside the common stock line until the engine, pinion and drive-end views agree. Confirmed ISX vehicles can then be grouped by branch demand, with twelve teeth stated prominently in picking and reorder descriptions.

M009T71779 Starter Motor Heavy-Duty Supply and Factory Capability

Before dispatch to a remote truck, verify the rating label, twelve-tooth pinion, mounting ears, terminal protection and tested operation. For incoming lots, sample multiple cartons and photograph any variation before stock is made available to fleet customers.

The Elecdura video introduces heavy starter-motor assembly and electrical testing for wholesale supply. Cummins distributors can review production capability while retaining their own commercial requirements for first samples, export packaging, batch identification and delivery windows.

M009T71779 12T Starter Motor FAQs for Cummins Distributors

Which M009T71779 version is offered for this Cummins ISX product?

The offered product is 12V, 5.5kW, 12T, module 3.175 and clockwise rotation for the stated Cummins ISX application. Buyers should keep that complete definition on the enquiry and compare it with the removed starter. Elecdura will not silently substitute another tooth count under the same broad reference family.

Why should the Cummins engine plate accompany an M009T71779 request?

The engine plate connects the reference to the customer’s actual ISX installation and provides useful build information when vehicle descriptions are incomplete. Pair it with the chassis, starter label and straight product photographs. Together, those details give technical and sales teams a clearer basis for discussing the specified twelve-tooth unit.

What role do the listed Delco Remy numbers play in sourcing?

Numbers such as 8200023 and 8201039 broaden the parts search and may help a distributor connect existing purchase histories to M009T71779. They do not replace the ISX application, twelve-tooth pinion and mounting comparison. Keep the exact number found on the old starter rather than shortening or combining several references.

How should the three-hole Cummins drive end be checked?

Measure the Ø127 face and Ø89 locating diameter, then verify three Ø11.5 holes and the 48 mm drive position. Use the 62° and 26° orientation references to compare a square front view. The housing and terminal side should agree as well before a fleet quantity is scheduled for production.

How can long-haul fleets decide where to hold this starter?

Review ISX vehicle population, route distance, roadside recovery cost and normal replenishment time for each operating base. Place emergency units where a no-start event creates the greatest delay, and replenish from actual consumption. This approach turns M009T71779 into planned uptime stock rather than an unallocated carton in a central warehouse.

What should be sampled when M009T71779 first arrives?

Select cartons from the top, middle and lower pallet areas. Confirm the 5.5kW label, twelve-tooth pinion, three intact ears, protected terminals and consistent housing orientation. Photograph the checked units and retain test information with the delivery so later replenishment can be compared to the same product definition.

What should be diagnosed before blaming the starter for an ISX no-start?

Verify battery state under load, clean and tighten high-current connections, measure voltage drop on both cable paths and check the solenoid command. Inspect the ring gear and confirm the engine can rotate freely. A disciplined diagnosis prevents a good M009T71779 from being returned because of wiring, battery or mechanical faults.

Which files make an M009T71779 distributor enquiry actionable?

Attach the ISX engine plate, vehicle or fleet model, complete old-unit references and clear front, pinion, side and terminal photographs. State quantity, destination, packing needs and delivery window in the message. Elecdura can then review the specified twelve-tooth configuration and respond with matching feedback and distributor pricing.

Request M009T71779 Starter Motor Distributor Pricing for Cummins ISX

Email the Cummins ISX engine and vehicle details, every readable old-starter number, front, pinion and terminal photographs, quantity, destination and required delivery date to info@elecdurauto.com. Elecdura will review the specified M009T71779 12T configuration and quote distributor supply.
