M100R2008SE Cummins ISF3.8 Starter Motor Wholesale

M100R2008SE Starter Motor Wholesale Application Support for Cummins ISF3.8, Foton and GAZ 33106

For Cummins ISF3.8, Foton and GAZ 33106, M100R2008SE gives distributors a focused starting point for quotation and branch inventory. Confirm 12V, 4.0kW, 10T and CW, with particular attention to supplier-defined 12V 4.0kW 10T module-3.175 configuration for the ISF3.8 group, before combining demand from different fleets or workshops.

Separate different old-unit numbers from the M100R2008SE enquiry and attach images for each configuration. State which line is a sample and which is a replenishment quantity, together with destination and timing. This gives the quotation a practical fitment boundary and a realistic packing and delivery plan.

M100R2008SE Starter Motor Mounting Reference for Commercial Buyers

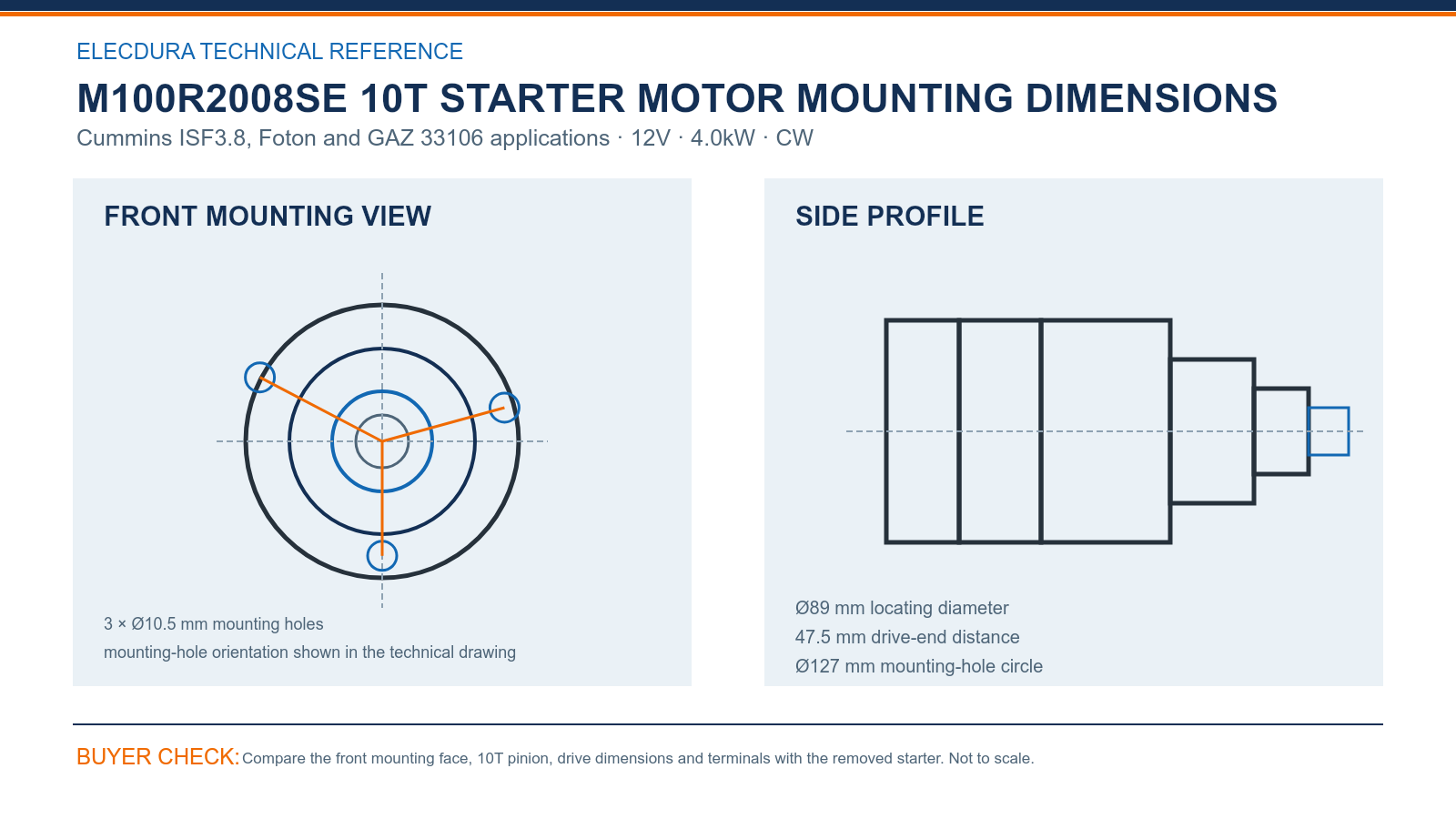

Check the M100R2008SE drawing against the removed starter at the mounting face and drive end. The critical references are 3 × Ø10.5 mm mounting holes, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 47.5 mm drive-end distance. A physical mismatch should stop the unit from entering ordinary stock until the application is clarified.

The M100R2008SE drive-end decision is completed by 10T, module 3.175 and CW, together with 12V and 4.0kW. Confirm main-terminal and control-terminal positions under the actual cable routing. Similar dimensions do not compensate for the wrong rotation, pinion or electrical rating.

M100R2008SE Starter Motor Cross-Reference Boundary for Importers

The M100R2008SE cross-reference group includes S9358S, PREM100R2008SE, M100R2008SE, M100R2008SE-VPP, M81301, M81R2501, M81R2501VPP. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 12V, 4.0kW, 10T, CW, mounting geometry and terminals.

If a mixed M100R2008SE enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

M100R2008SE Starter Motor Wholesale Ordering and Export Support

Elecdura can prepare M100R2008SE orders for regional inventory, fleet workshops or industrial service demand. The standard starting point is 20 pieces, normally 7–15 days after order confirmation, with an 18-month warranty under agreed terms and packing selected for the destination and shipment method.

Buyers can state service urgency, supported equipment count and expected monthly use in the same RFQ. Elecdura can then discuss stock, production, packaging and staged delivery while maintaining the specified M100R2008SE drive end and electrical rating throughout the order.

For supplier evaluation, the video presents Elecdura starter-motor assembly and testing. A M100R2008SE order should still be released against the complete OE number, Cummins ISF3.8, Foton and GAZ 33106 details, electrical specification and physical comparison, giving purchasing both capability information and a clear product boundary.

M100R2008SE Starter Motor Questions from Commercial Buyers

What traceability details should accompany a warranty enquiry for M100R2008SE in a Cummins ISF3.8 service-network review?

Keep the carton or product traceability code and note when and where M100R2008SE was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

Which electrical conditions can imitate a failed M100R2008SE starter motor in a Cummins ISF3.8 service-network workshop?

Before fitting M100R2008SE, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

Which details separate M100R2008SE from similar starters used around Cummins ISF3.8, Foton and GAZ 33106 during service-network sourcing?

For M100R2008SE, ask the workshop for the removed starter label and the exact equipment record. Match 12V, 4.0kW, 10T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Can a purchasing team consolidate every M100R2008SE reference into one stock line in a Cummins ISF3.8 service-network sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use S9358S, PREM100R2008SE, M100R2008SE, M100R2008SE-VPP, M81301 to locate possible matches, then confirm 12V, 4.0kW, 10T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

Why is a straight mounting-face photo useful for confirming M100R2008SE during a Cummins ISF3.8 service-network inspection?

Place the removed starter and M100R2008SE on the same mounting-face orientation. Compare Ø89 mm locating diameter, Ø127 mm mounting-hole circle, the 3 × Ø10.5 mm mounting holes and the 47.5 mm drive-end distance. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

Can urgent service demand and routine M100R2008SE replenishment share one enquiry in a Cummins ISF3.8 service-network program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent M100R2008SE usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

How can a buyer quarantine a mismatched M100R2008SE unit quickly during a Cummins ISF3.8 service-network receiving check?

For M100R2008SE, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø10.5 mm mounting holes, Ø89 mm locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What should be included in a wholesale enquiry for M100R2008SE in a Cummins ISF3.8 service-network sourcing program?

Send the complete OE number, exact Cummins ISF3.8, Foton and GAZ 33106 details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 12V 4.0kW 10T CW starter with packing, lead time, warranty and freight options.

M100R2008SE Email for Starter Motor B2B Pricing

A complete RFQ for M100R2008SE should state the application, removed-unit number, physical photographs, quantity, destination and delivery target. Send these details to info@elecdurauto.com for a direct response on the correct 12V 4.0kW 10T CW starter, MOQ, packaging, warranty and shipping choices.
