M100R2009SE Cummins ISF3.8 Starter Motor Wholesale

M100R2009SE Starter Motor B2B Fitment Guide for Cummins ISF3.8 engine

Cummins engine distributors, commercial fleets and heavy-duty starter importers can use M100R2009SE as the commercial identity for the starter required in Cummins ISF3.8 engine. The order should preserve the 12T pinion and the supplier-defined 12V 4.0kW 12T module-2.54 product for Cummins ISF3.8, avoiding a broad substitution based only on engine family or overall housing appearance.

Send the full M100R2009SE application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

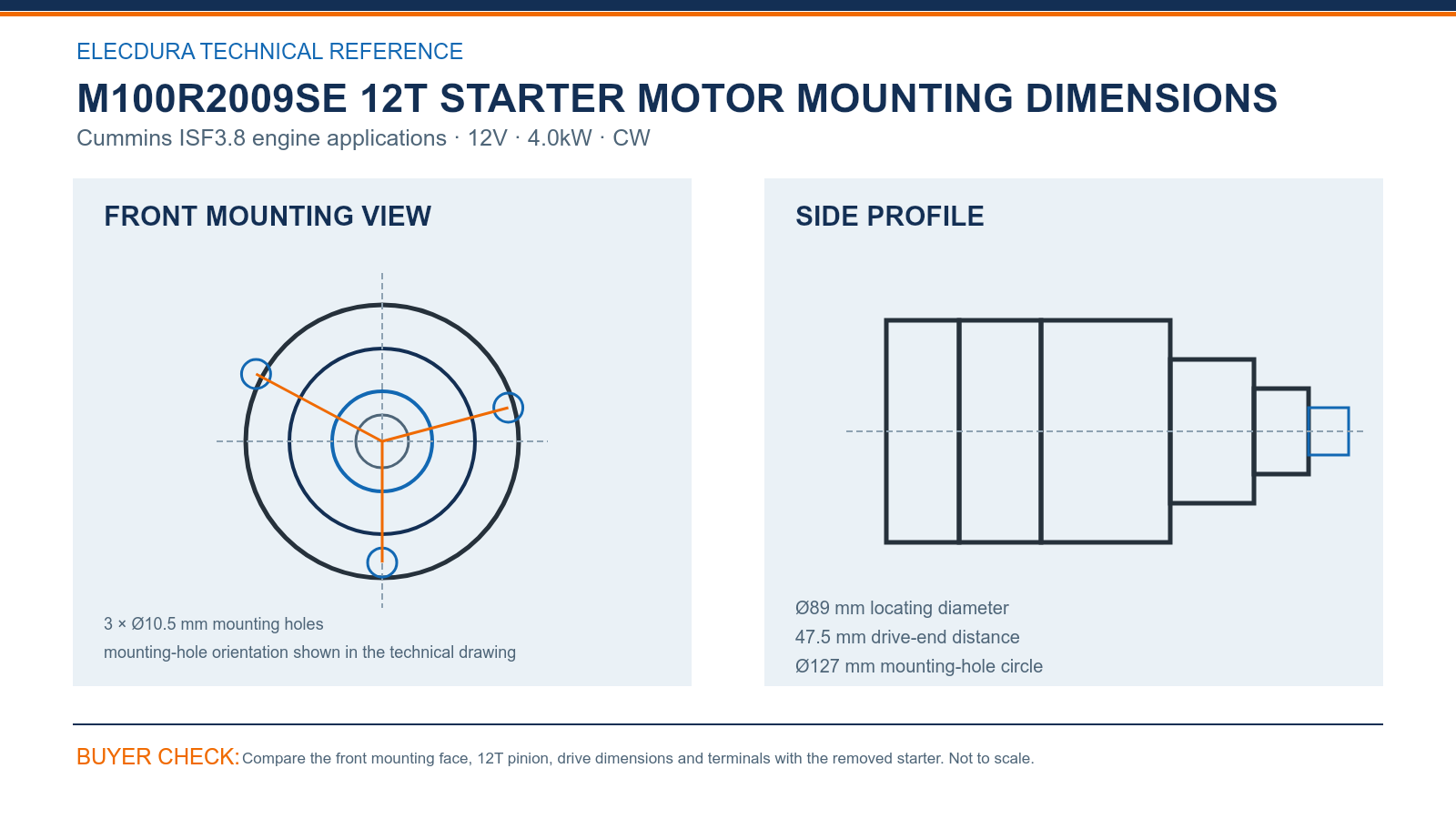

M100R2009SE Starter Motor Drive-End Drawing for Aftermarket Distributors

For M100R2009SE first-lot sampling, place the old and new starters in the same front-facing position. Check 3 × Ø10.5 mm mounting holes, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 47.5 mm drive-end distance. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

After the M100R2009SE mounting check, verify 12V, 4.0kW, 12T and CW with module 2.54. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

M100R2009SE Starter Motor OE Number Guide for Aftermarket Supply

1. Search group: M100R2009SE, STP2018MH can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 12V, 4.0kW, 12T, CW, the drawing and terminal photographs before accepting one physical unit.

M100R2009SE Starter Motor Bulk Order Packing and Lead-Time Support

For a bulk order of M100R2009SE, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted M100R2009SE sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

B2B buyers can use the video to review Elecdura’s starter-motor assembly and test process. The approved M100R2009SE configuration remains defined by 12V, 4.0kW, 12T, CW, mounting geometry and terminals, which should be retained in the purchase record.

M100R2009SE Starter Motor Questions from Commercial Buyers

Why is a straight mounting-face photo useful for confirming M100R2009SE during a Cummins ISF3.8 dealer inspection for 12-tooth Cummins ISF3.8 stock control?

Place the removed starter and M100R2009SE on the same mounting-face orientation. Compare Ø89 mm locating diameter, Ø127 mm mounting-hole circle, the 3 × Ø10.5 mm mounting holes and the 47.5 mm drive-end distance. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

Can urgent service demand and routine M100R2009SE replenishment share one enquiry in a Cummins ISF3.8 dealer program for 12-tooth Cummins ISF3.8 stock control?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent M100R2009SE usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Why does M100R2009SE require a physical comparison for Prestolite applications during dealer sourcing for 12-tooth Cummins ISF3.8 stock control?

For M100R2009SE, ask the workshop for the removed starter label and the exact equipment record. Match 12V, 4.0kW, 12T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Do all references listed with M100R2009SE identify an interchangeable unit in a Cummins ISF3.8 dealer sourcing program for 12-tooth Cummins ISF3.8 stock control?

The references identify a related sourcing family, not automatic interchangeability. Use M100R2009SE, STP2018MH to locate possible matches, then confirm 12V, 4.0kW, 12T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

How can a service team rule out cable or battery faults before fitting M100R2009SE in a Cummins ISF3.8 dealer workshop for 12-tooth Cummins ISF3.8 stock control?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for M100R2009SE helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

What carton-to-product checks are appropriate for M100R2009SE during a Cummins ISF3.8 dealer receiving check for 12-tooth Cummins ISF3.8 stock control?

Use a first-lot sample to confirm M100R2009SE, 12V, 4.0kW, 12T and CW. Inspect the mounting face, terminals and protective packing, then retain the lot reference and images. This gives warehouse and sales teams a shared record before units are distributed to branches or workshops.

Which details allow Elecdura to quote M100R2009SE without delay in a Cummins ISF3.8 dealer sourcing program for 12-tooth Cummins ISF3.8 stock control?

List M100R2009SE together with the supported equipment record, 12V, 4.0kW, 12T and CW. Send old-unit photos, order volume, destination and requested timing, plus any private-label or staged-delivery requirement. This keeps the technical selection and the commercial offer aligned from the first response.

How can a distributor prepare a complete claim file for M100R2009SE in a Cummins ISF3.8 dealer review for 12-tooth Cummins ISF3.8 stock control?

For M100R2009SE, provide the delivery lot, installation date, operating hours and a clear fault description. Include photographs of the label, pinion, mounting face and terminals, together with battery and voltage-drop results under cranking load. These records help separate product condition from application, installation, electrical-system or transport-related causes.

M100R2009SE Request a Starter Motor Fleet Supply Quote

Email info@elecdurauto.com with M100R2009SE, the supported Cummins ISF3.8 engine record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 12V, 4.0kW, 12T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
