M93R3001SE Cummins 6BT5.9 Starter Motor Wholesale

M93R3001SE Starter Motor Aftermarket Supply for Cummins 6BT5.9 and Hatz 2W35

The buyer value of M93R3001SE is a clear stock definition for Cummins 6BT5.9 and Hatz 2W35: 24V, 6.0kW, 12T and CW. The deciding physical detail is the 24V 6.0kW 12T module-2.54 unit for the specified Cummins and Hatz applications, so the application name alone is not enough to release a first order or replace an approved sample.

For the first M93R3001SE order, include the removed-unit label, application details and straight photographs of the drive end and terminals. Quantity, destination, delivery target and any private-label requirement complete the commercial brief and reduce the risk of pricing a related but physically different starter.

M93R3001SE Starter Motor Specification Table for B2B Sourcing

A warehouse can confirm the M93R3001SE interface without dismantling the unit. Measure Ø89 mm locating diameter and Ø127 mm mounting-hole circle, inspect 3 × Ø10.5 mm mounting holes, then verify the 47.5 mm drive-end distance. Photograph the pinion and terminal side so workshop staff can review details that a carton label cannot show.

For M93R3001SE, record 12T, CW, 24V and 6.0kW, including module 2.54. Inspect the pinion, solenoid orientation and terminal access from the same side as the removed unit. A first sample should pass both the label check and this physical comparison.

M93R3001SE Starter Motor Reference Matching for B2B Quotations

• Use the full number: Start with S9912S, 860318GB, M93R3001SE, M93R3001SE-VPP, M93R3002SE, M93R3002SE-VPP, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

M93R3001SE Starter Motor Aftermarket Supply for Regional Distributors

Distributors can combine an initial M93R3001SE sample plan with a later replenishment forecast. MOQ is 20 pieces, normal lead time is 7–15 days after confirmation and warranty is 18 months under agreed terms; packing and shipping are quoted for the actual route and arrival requirement.

A first-lot sample is useful when the fleet carries related starters with similar housings. Retain the approved M93R3001SE label, front view and terminal view, then use recent demand and branch transfer time to set reserve stock and delivery priorities.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for M93R3001SE continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

M93R3001SE Starter Motor Questions from Commercial Buyers

How can branches reduce emergency transfers of M93R3001SE stock in a Cummins 6BT5.9 regional program?

Define critical-spare quantities by equipment duty and retain first-lot electrical records. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Why is a straight mounting-face photo useful for confirming M93R3001SE during a Cummins 6BT5.9 regional inspection?

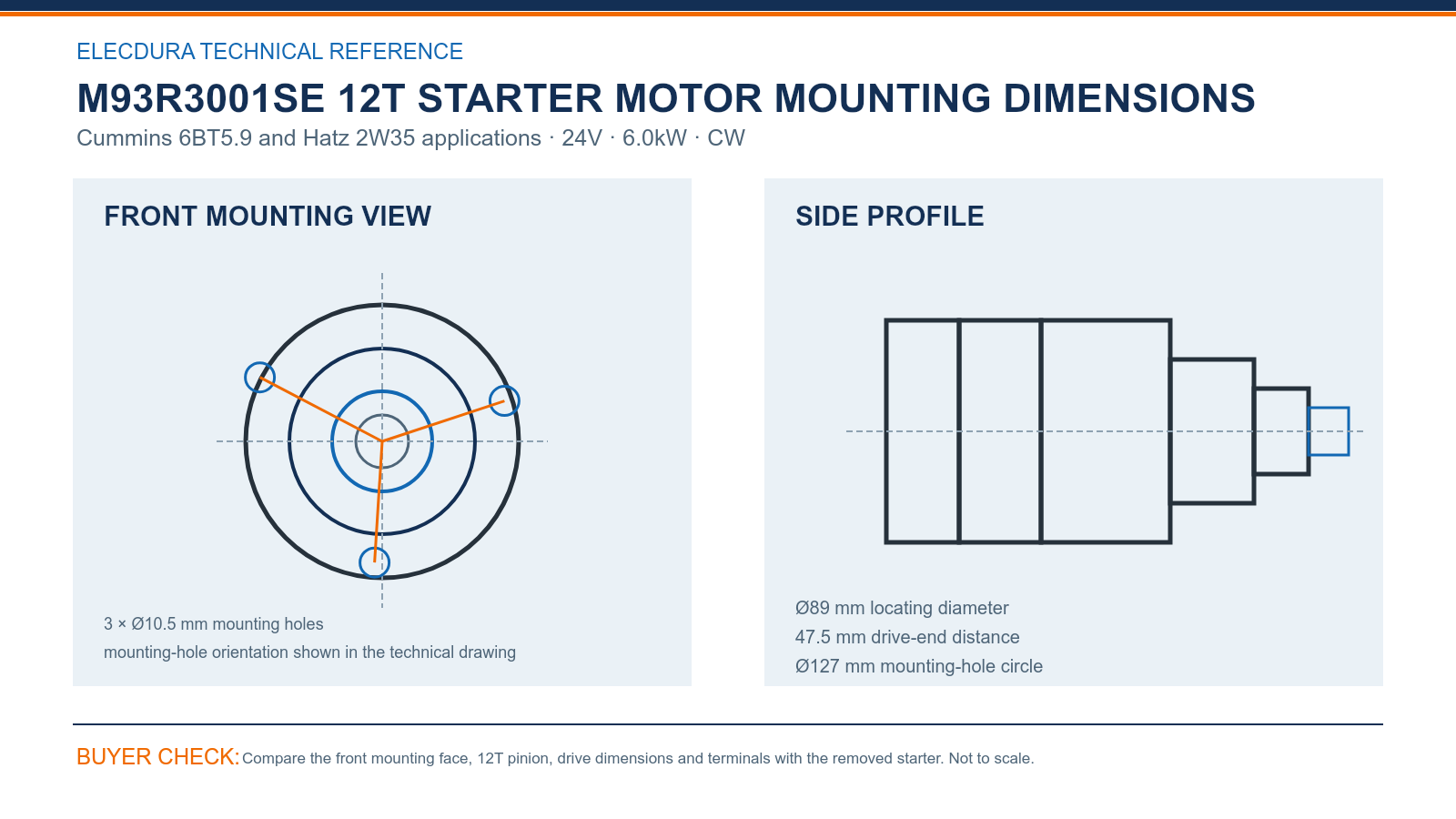

Place the removed starter and M93R3001SE on the same mounting-face orientation. Compare Ø89 mm locating diameter, Ø127 mm mounting-hole circle, the 3 × Ø10.5 mm mounting holes and the 47.5 mm drive-end distance. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

Can M93R3001SE be selected from the application name alone during regional sourcing?

Confirm M93R3001SE against the complete OE number, the stated Cummins 6BT5.9 and Hatz 2W35 use and clear front, side and terminal photographs. The decisive points are 12T, 3 × Ø10.5 mm mounting holes and 47.5 mm drive-end distance. Those controls keep visually related starters from being combined in one order.

Which checks should follow an OE-number match for M93R3001SE in a Cummins 6BT5.9 regional sourcing program?

A number match narrows the search but does not finish it. For M93R3001SE, compare the stated application, electrical output, 12T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

Which cranking-circuit tests should precede replacement of M93R3001SE in a Cummins 6BT5.9 regional workshop?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing M93R3001SE. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

What receiving records are useful for a shipment of M93R3001SE during a Cummins 6BT5.9 regional receiving check?

Receiving should verify the M93R3001SE label, quantity and packaging before opening sampled cartons. Compare the 12T drive, Ø89 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How should a buyer request samples and bulk pricing for M93R3001SE in a Cummins 6BT5.9 regional sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For M93R3001SE, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should a workshop document a service issue involving M93R3001SE in a Cummins 6BT5.9 regional review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate M93R3001SE without assuming that every no-crank complaint originates inside the starter.

M93R3001SE Start a Starter Motor Wholesale Enquiry

To discuss M93R3001SE supply, send the complete application and old-unit identification, mounting-face and terminal photos, requested quantity, destination and timing to info@elecdurauto.com. The reply will address the specified starter, sample or bulk availability, export packing, commercial terms and delivery route.
