M9T80571 Mitsubishi 10DC 8DC Starter Motor Wholesale

M9T80571 Mitsubishi 10DC 8DC Starter Motor Wholesale

Mitsubishi heavy-truck and engine buyers should identify whether the requirement comes from a 10DC or 8DC installation and provide the full ME or M9T marking. Those application details give context to the shared reference family.

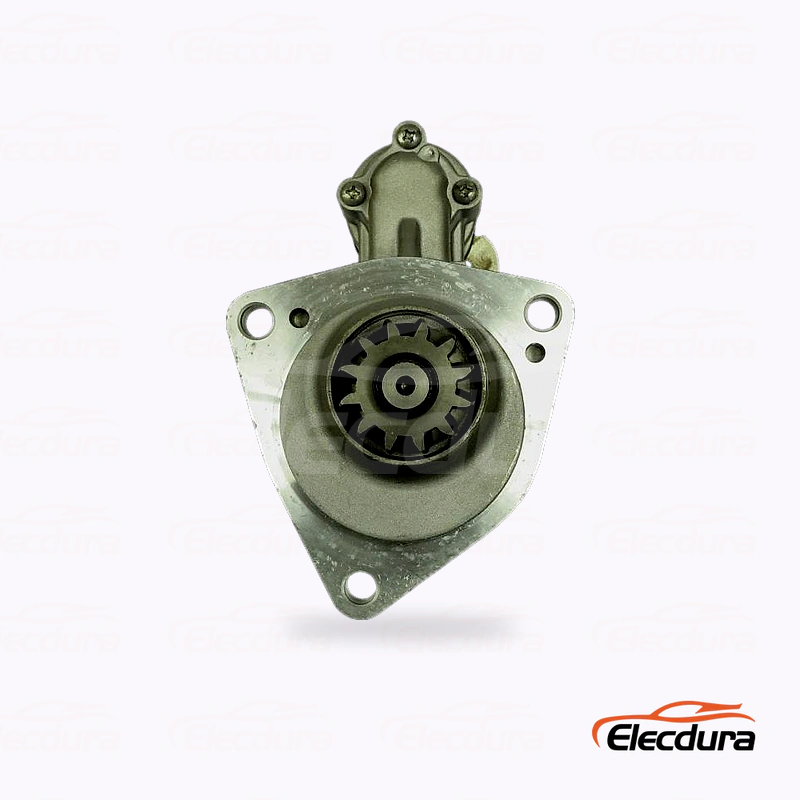

A 7.0kW rating does not prove the drive end. Confirm twelve teeth, module 3.5, three Ø13 holes, the Ø145 circle and 58 mm drive position before approving M9T80571 for branch stock.

M9T80571 7.0kW Starter Motor B2B Specifications and Drawing

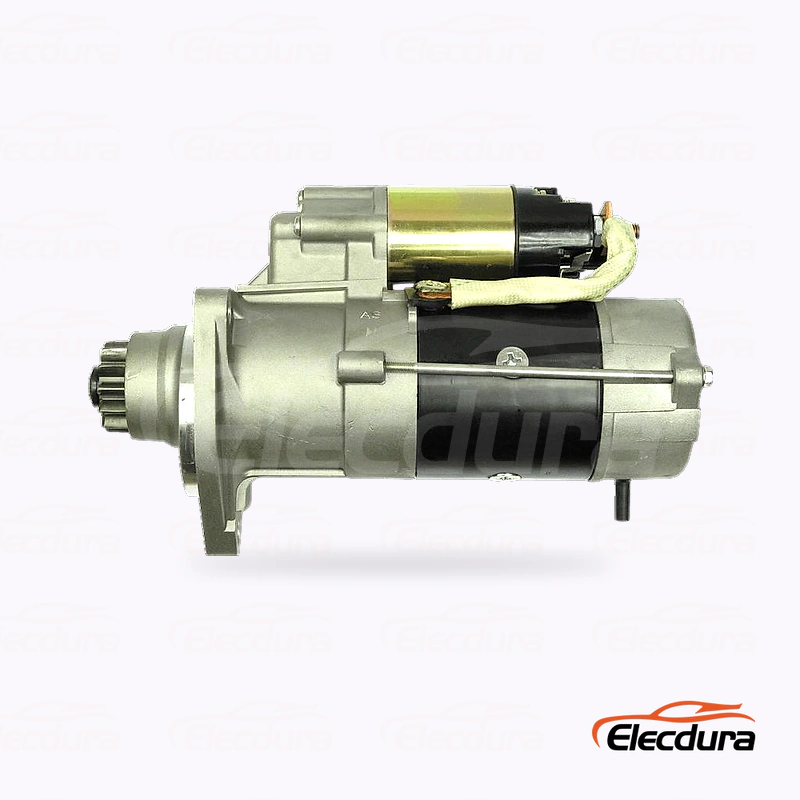

This product is specified as 24V, 7.0kW, 12T, module 3.5 and CW. Displaying that complete set helps sales teams separate it from nearby 13T 8DC9 products.

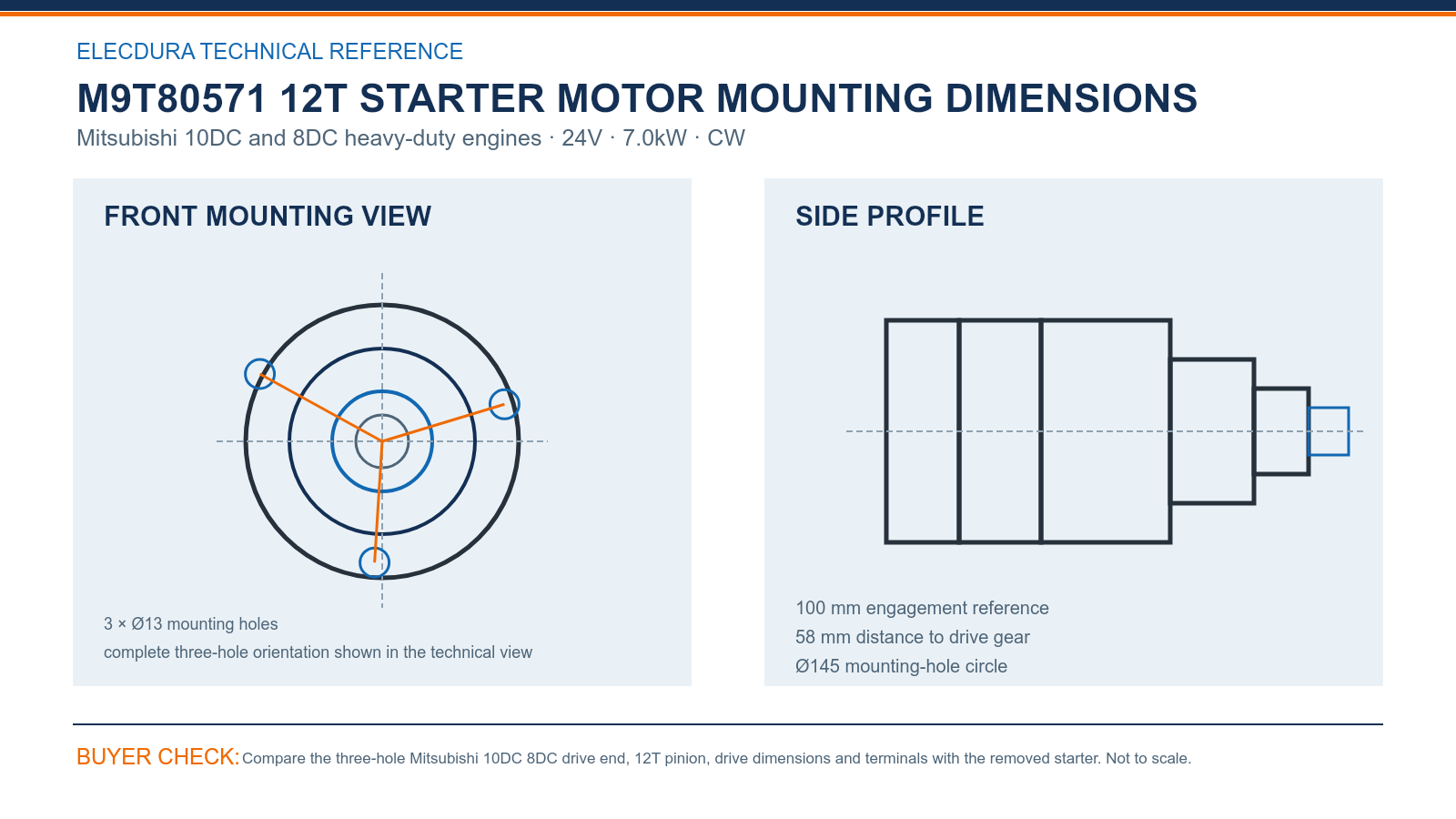

M9T80571 Mitsubishi 10DC 8DC Starter Drawing for Truck Parts Buyers — compare the drawing with the removed starter before placing a volume order.

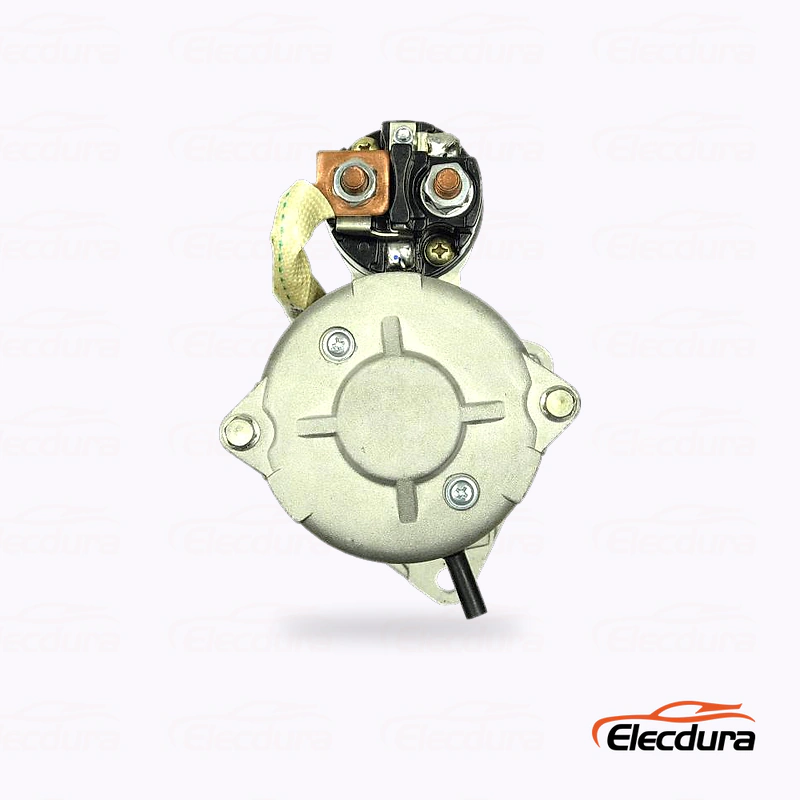

The 100 mm engagement and Ø145 three-hole face provide practical comparison points. Photograph the removed starter squarely from the front and include the terminal side so clearance can be reviewed.

M9T80571 Mitsubishi Starter Motor OE Matching for Distributors

M9T80572, M9T80573, ME094872, ME164621 and ME441057 are useful search references around M9T80571. The accepted application and physical evidence should remain attached to the primary stock record.

When both 10DC and 8DC customers use the confirmed unit, keep quantities and engine records separate on the enquiry. Shared production can still be discussed after each application is documented.

M9T80571 Starter Motor Bulk Supply, Packing and Test Video

Elecdura supports sample review, recurring wholesale demand, export protection and customer-label discussions for the confirmed M9T80571 unit. Receiving staff should sample the pinion, flange, terminals and rating label.

The production video shows Elecdura starter assembly and electrical testing. Mitsubishi distributors can use it to review capacity and process while keeping the 10DC or 8DC application evidence in the order.

M9T80571 Starter Motor Wholesale FAQ for Mitsubishi Buyers

Should an M9T80571 enquiry identify 10DC or 8DC?

Yes. State the exact Mitsubishi engine family, engine plate and host vehicle or equipment because the application details explain where the starter match was established. Add the complete M9T or ME number and old-unit photographs. This keeps a shared heavy-duty reference group from becoming a universal 8DC-series claim.

Which ME references support the M9T80571 product search?

ME094872, ME094873, ME164620, ME164621 and ME441057 are useful Mitsubishi routes around M9T80571. Use the complete number found on the removed unit, then verify the 24V 7.0kW 12T module-3.5 configuration and three-hole face before treating the offered starter as a match. Include the 10DC or 8DC record, 12T module-3.5 pinion, 100 mm engagement and Ø145 face in forecasts and repeat purchases for M9T80571.

Why does M9T80571 need a 12T check?

Twelve teeth distinguish this drive from 13T starters used around other Mitsubishi heavy-engine applications. Count the cleaned old pinion and confirm module 3.5 and CW rotation. Keep the result with the engine identity so a same-output starter with another gear does not enter the order.

Which mounting values should be compared for M9T80571?

For M9T80571, verify the three Ø13 mounting holes and Ø145 circle first, followed by the 100 mm engagement and 58 mm drive-gear distance. Photograph the flange squarely and include the terminal side. These measured points are more useful than the broad motor-body shape or paint finish.

Can 10DC and 8DC quantities share production planning?

They can be combined only after each application is documented as using the same confirmed M9T80571 unit. Keep engine-specific quantities and customer records on separate lines, then discuss compatible production and freight. Separate carton marks help warehouse staff allocate the correct units without weakening the technical identity.

What should a Mitsubishi distributor inspect on arrival?

Sample the M9T80571 or ME label, 12T pinion, three-hole flange, solenoid, terminals and shipping protection. Compare units from several cartons with the accepted 10DC or 8DC photographs. Record the lot and isolate any different tooth count, housing or rating before branch distribution. Use the 10DC or 8DC record, 12T module-3.5 pinion, 100 mm engagement and Ø145 face on the purchase order for M9T80571.

Which electrical tests help evaluate an M9T80571 complaint?

Record the 24V battery-bank condition under load, positive and ground cable drop, trigger voltage and ring-gear inspection. Include the engine, installation date and shipment lot. These checks help determine whether slow cranking or engagement problems come from the starter, electrical supply or ring gear. Preserve the confirmed Mitsubishi 10DC and 8DC heavy-duty engines mounting comparison in the customer's M9T80571 reorder notes.

What information should accompany an M9T80571 wholesale RFQ?

Send the 10DC or 8DC engine plate, host application, complete M9T or ME number, pinion, flange and terminal photographs, quantity, delivery date, packing preference and destination. If both engine families are involved, list quantities separately. Elecdura can then quote the defined 7.0kW 12T unit. Carry the 10DC or 8DC record, 12T module-3.5 pinion, 100 mm engagement and Ø145 face through packing and branch transfers for M9T80571.

Request M9T80571 Mitsubishi Starter Motor Wholesale Pricing

Email the Mitsubishi 10DC or 8DC engine plate, complete M9T or ME number, pinion, flange and terminal photographs, quantity, delivery requirement and destination to info@elecdurauto.com. After the match is checked, Elecdura can quote the defined M9T80571 unit.
