M9T84579 Cummins ISL8.9 Starter Motor Distributor

M9T84579 Cummins ISL8.9 Starter Distributor Supply

For a Cummins ISL8.9 fleet, starter downtime can affect buses, trucks or industrial equipment with different service schedules. Supplying the engine serial, AM84579 or M9T84579 marking and the three-hole flange view gives purchasing a precise basis for stock or breakdown orders.

The 7.0kW output and 12T drive should remain together because another M9T housing can look familiar while using a different pinion or mounting position. The Ø146 circle and three Ø17.5 holes offer strong physical identifiers before units are allocated to fleet stock.

M9T84579 7.0kW 12T Starter Dimensions for B2B Matching

This version combines 24V, 7.0kW, 12T, module 3.175 and clockwise rotation for high-output cranking service. Showing all five values on the commercial documents helps warehouse staff distinguish it from lower-output Cummins starters and from related coach applications with another reference.

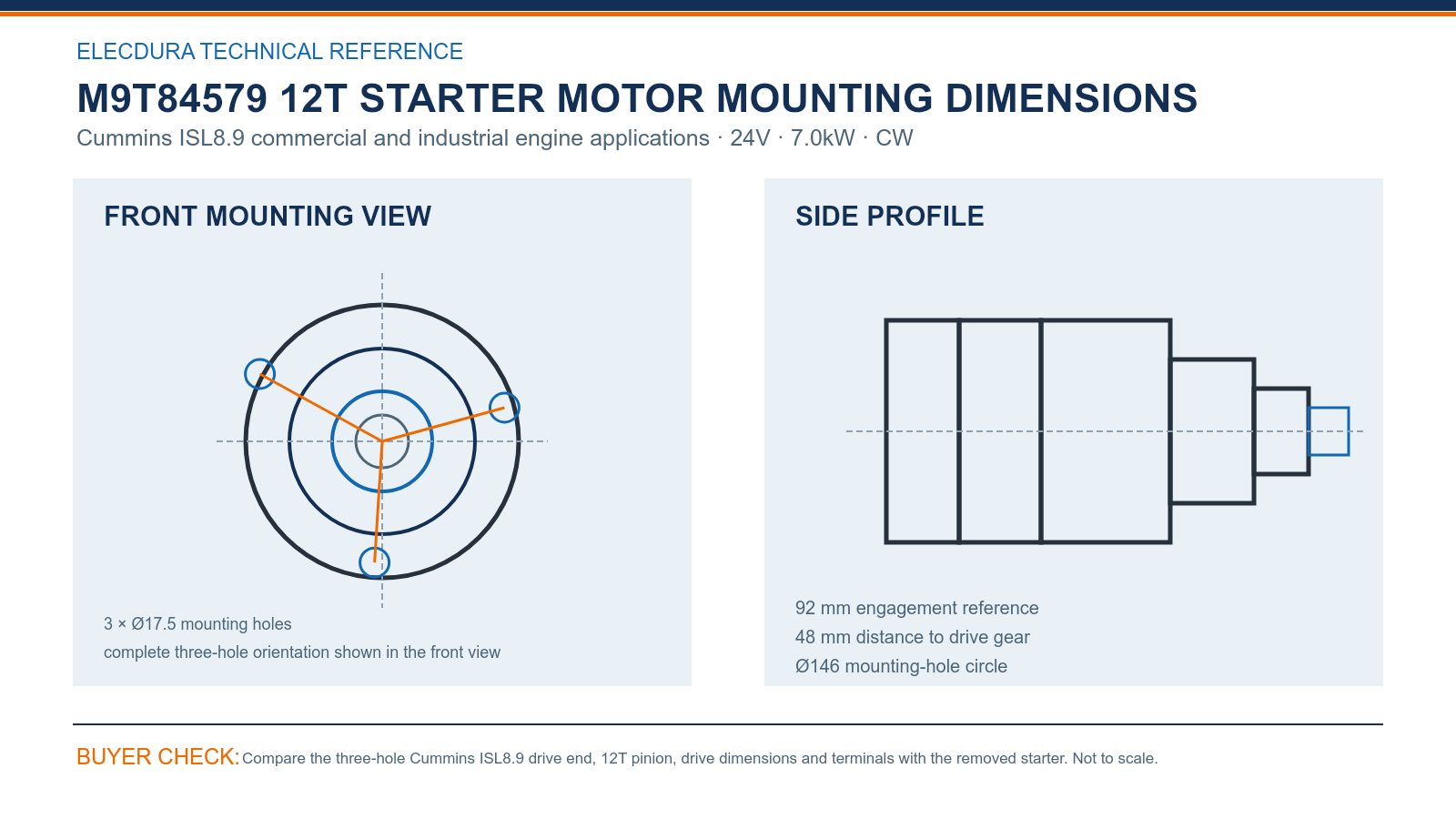

M9T84579 Cummins ISL8.9 Starter Drawing for Distributors — compare the drawing with the removed starter before placing a volume order.

The drawing presents a 92 mm engagement reference, 48 mm distance to the drive gear and three Ø17.5 holes on an Ø146 circle. Compare these values and the terminal arrangement with the removed unit before a distributor dispatches a large order to multiple locations.

M9T84579 AM84579 Cross Reference for Cummins Parts Buyers

M009T84579, AM84579 and S5459S form a concise cross-reference group for this product. A short reference list improves searchability, while the ISL8.9 engine record, 12T pinion and dimensional view provide the information needed to distinguish the actual commercial requirement.

Mixed fleets should store the engine serial, vehicle or equipment family and accepted product images with each allocation. This allows a confirmed M9T84579 unit to move between depots without losing the ISL8.9 context that supported the first purchase.

M9T84579 High-Output Starter Supply for Fleet Programs

For first-lot inspection, sample the 7.0kW marking, twelve-tooth drive, three-hole flange, solenoid connections and terminal protection. Elecdura can discuss batch size, scheduled deliveries, neutral packing, private-label review and shipment planning around the confirmed high-output configuration.

The Elecdura video shows starter-motor assembly and electrical testing for wholesale supply. Cummins distributors can use it to discuss sampled test records, production capacity and packaging while the commercial offer remains tied to M9T84579 and the stated ISL8.9 specification.

M9T84579 Starter FAQs for Cummins ISL8.9 Distributors

Which ISL8.9 records help confirm an M9T84579 request?

Include the Cummins engine serial and CPL when available, plus the vehicle or equipment family and the old starter’s AM84579 or M9T84579 label. Front and terminal-side images complete the request. This connects the high-output starter to a known ISL8.9 installation rather than a general Cummins parts search.

How does AM84579 relate to M9T84579 in purchasing records?

AM84579 is a useful reference route within the same product search group and may appear in coach or fleet records. Purchasing can list both numbers, but the commercial line should retain the 24V 7.0kW 12T definition and the accepted Ø146 flange details so the alternate number does not broaden the product.

Why should the 12T pinion be verified separately from output?

Output describes cranking capacity, while tooth count describes the gear interface. A 7.0kW starter with eleven teeth is not the same purchasing configuration. Count and photograph the M9T84579 pinion, then retain 12T and module 3.175 beside the engine record on quotations, bin labels and receiving sheets.

Which flange dimensions distinguish this Cummins starter?

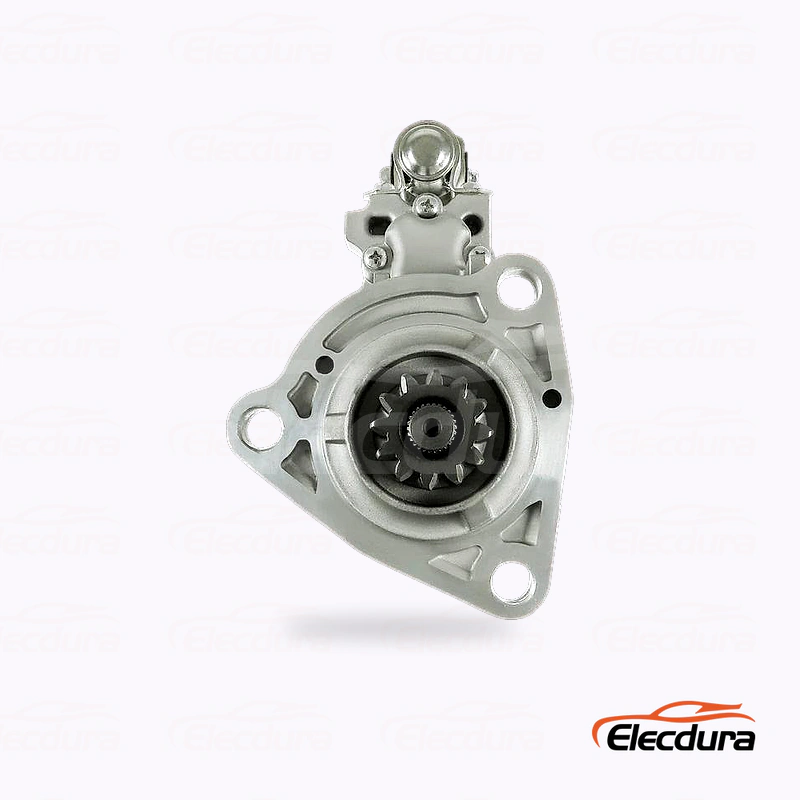

Use the 92 mm engagement reference, 48 mm distance to the drive gear, three Ø17.5 mounting holes and Ø146 hole circle. A square front image should show every ear. These measurements provide a stronger comparison than an angled housing photograph when several M9T starters look similar.

What deserves attention when receiving a 7.0kW starter lot?

Check the 7.0kW marking, twelve-tooth drive, large flange, terminal insulation, solenoid connections and carton support across samples from different boxes. Heavy units can damage mounting ears or posts if they move in transit. Record sampled results against the M9T84579 purchase lot for later traceability. Include photographs of any transit damage found.

How can fleets allocate M9T84579 stock across several depots?

Keep a central accepted product record, then assign quantities by engine serial range, vehicle group and depot demand. Each transfer should carry the M9T84579 identity and 12T high-output specification. This preserves technical consistency while allowing stock to move where ISL8.9 downtime risk is highest. Review allocations after major maintenance campaigns.

Which electrical readings should accompany a suspected starter issue?

Record battery voltage at rest and during cranking, positive and ground-side voltage drop, solenoid trigger voltage and any ring-gear damage. High-output starters depend on sound cables and connections. Supplying these readings helps distinguish an installation problem from an M9T84579 product concern during after-sales communication. Note ambient temperature and cranking behaviour as well.

What enables Elecdura to quote M9T84579 distributor quantities?

Send the ISL8.9 engine and vehicle or equipment details, AM84579 or M9T84579 marking, pinion and flange images, quantity, delivery schedule, packing requirement and destination. Elecdura can then review the defined 7.0kW version and provide commercial terms suited to samples, replenishment or multi-depot supply. Include target dates for planned depot deliveries.

Request M9T84579 Cummins Starter Motor Distributor Pricing

Email the Cummins ISL8.9 engine serial, vehicle or equipment record, M9T84579 or AM84579 marking, drive-end and terminal photographs, quantity, forecast and destination to info@elecdurauto.com. Elecdura will review the configuration and return distributor pricing, lead time and packing options.
