ME049186 Mitsubishi 4D31 SK210 Starter Motor Wholesale

ME049186 Mitsubishi Starter Motor Distributor Value for 4D31

ME049186 demand may come from a Mitsubishi engine distributor or a Kobelco SK210-IV service team. Each enquiry should retain the 4D31 or 4D32 engine, host machine, removed starter and delivery purpose so one product record does not erase the application context.

A related SK210-IV starter uses fourteen teeth, so this ME049186 product must remain a separate 13T stock line. Compare the module-3 pinion, three Ø14 mounting holes, Ø100 locating diameter, 35 mm and 23 mm axial references and terminal side.

ME049186 Starter Drawing for B2B 13T Drive Verification

The product is specified as 24V, 5.0kW, 13T, module 3 and clockwise rotation. Thirteen teeth must stay visible through quotation and receiving because the nearby fourteen-tooth configuration is not an acceptable substitute despite its similar engine and excavator context.

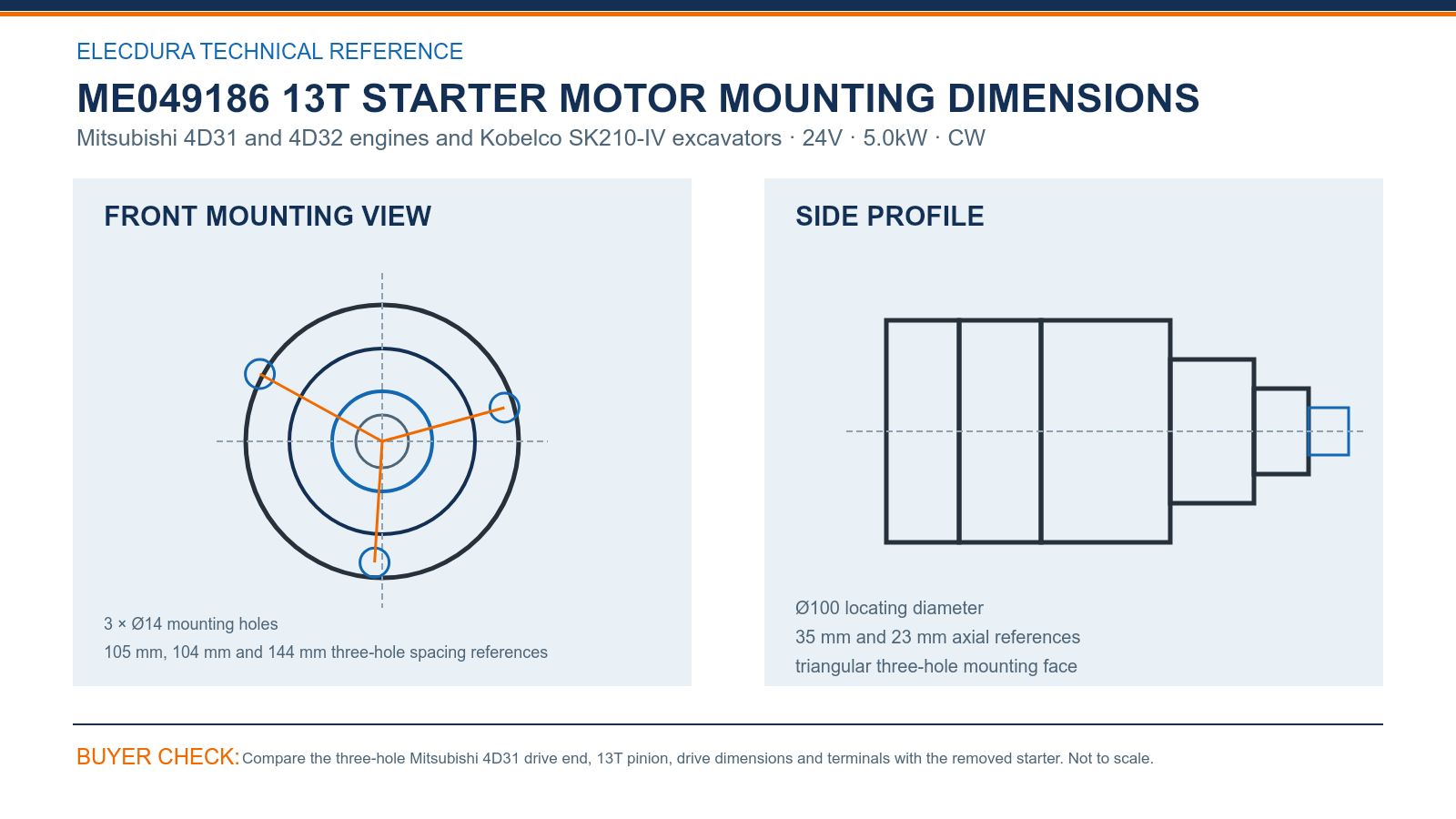

ME049186 Mitsubishi 4D31 Starter Drawing for Excavator Buyers — compare the drawing with the removed starter before placing a volume order.

Use the drawing to compare three Ø14 holes, the Ø100 locating surface, 35 mm and 23 mm axial positions, and the 105 mm, 104 mm and 144 mm three-hole spacing references. Add a direct pinion photograph for tooth-count confirmation.

ME049186 Starter Motor Application Checks for Equipment Buyers

ME049186 and related Mitsubishi replacement numbers support product lookup for 4D31 and 4D32 applications. Keep the thirteen-tooth identity and accepted drive-end images attached, and do not combine the record with M003T57575 solely because both can appear around SK210-IV enquiries.

Engine distributors can hold verified ME049186 stock by customer and engine group, while excavator dealers can allocate reserve units by machine serial and site. Both channels should preserve the same 13T product definition but maintain separate application histories.

ME049186 Starter Motor Supply for Engine and Excavator Stock

Receiving should count thirteen teeth, inspect the three Ø14 mounting holes, Ø100 register, product marking and protected terminals. Jobsite cartons need rigid supports and clear machine identification; distributor shelf stock should use a distinct ME049186 thirteen-tooth bin label.

Elecdura's video presents starter-motor assembly and electrical testing for wholesale supply. Mitsubishi and Kobelco buyers can use it to review production and inspection capability while ME049186 remains tied to the confirmed 13T drive, engine record and mounting face.

ME049186 Starter Motor FAQs for Mitsubishi and Kobelco Buyers

Should 4D31 engine stock and SK210-IV demand use separate histories?

Yes. Keep Mitsubishi 4D31 or 4D32 engine-stock demand separate from Kobelco SK210-IV machine service, even when both use the confirmed ME049186 product. Each history should retain its engine or machine serial, accepted images, quantity and destination. This preserves the origin of the match and supports accurate future replenishment.

Why is thirteen-tooth identity essential for ME049186?

Thirteen teeth separates ME049186 from a nearby fourteen-tooth SK210-IV starter. Keep 13T module 3 beside 24V 5.0kW and clockwise rotation on the quotation, bin label and receiving sheet. A close pinion photograph provides a simple confirmation before stock is accepted or a unit is sent to a remote excavator.

Can M003T57575 be merged with this ME049186 product line?

No. M003T57575 uses a fourteen-tooth drive and different axial references, so it must remain a separate product line even when the broader engine or excavator context overlaps. Use the OE markings, tooth count, three-hole dimensions and removed starter together. Similar applications do not override a different gear interface.

Which dimensions confirm the ME049186 drive end?

Start with the Ø100 locating diameter and the 35 mm and 23 mm axial positions, then map the three Ø14 holes using the 105 mm, 104 mm and 144 mm spacing references. Pair a square front photograph with a side profile. This order of comparison helps distinguish ME049186 from the related fourteen-tooth configuration.

What photographs distinguish the 13T configuration?

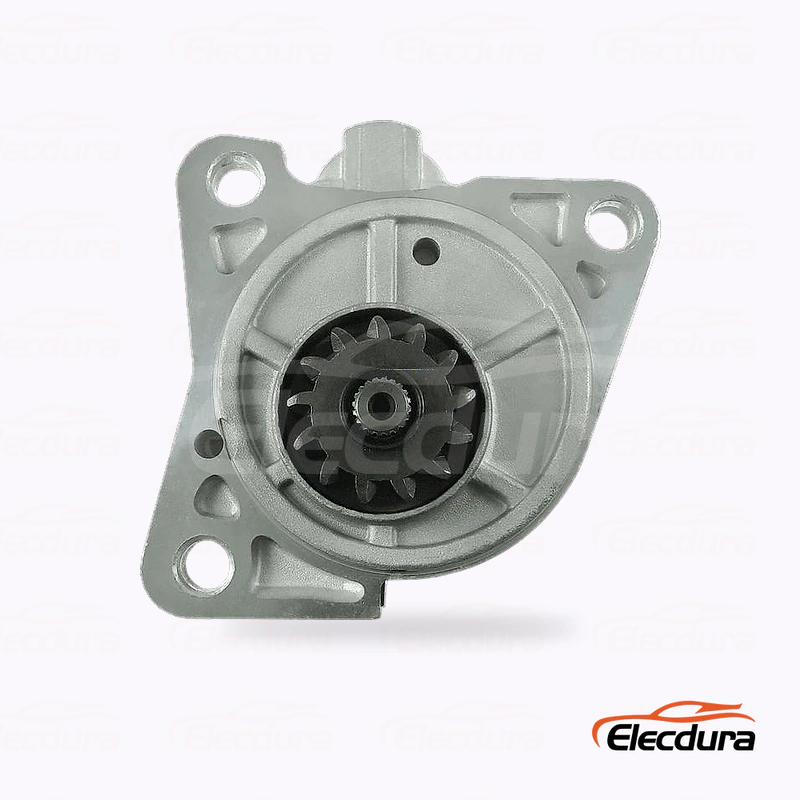

Provide a close thirteen-tooth pinion image, straight mounting-face view, both full body sides, terminal side and readable product label. Add the 4D31 or 4D32 engine plate and Kobelco serial where relevant. This evidence confirms tooth count, three-hole geometry, cable orientation and the actual application without relying on one similar housing photograph.

How should dealers allocate ME049186 reserve units?

Engine distributors can allocate ME049186 by customer and engine group, while Kobelco dealers should assign reserve units by machine serial and site distance. Label every bin and carton as the 13T version. Keeping separate application histories allows consolidated purchasing without losing which installation supplied the accepted match.

What should receiving inspect on the first ME049186 lot?

Count thirteen pinion teeth, inspect the three Ø14 mounting holes and Ø100 locating surface, verify the 5.0kW identification and check terminal insulation. Compare the 35 mm and 23 mm side profile with the accepted drawing. Record the lot before units are divided between engine warehouse stock and SK210-IV service inventory.

What evidence supports a firm ME049186 distributor offer?

Send the 4D31 or 4D32 engine details, Kobelco serial where applicable, complete ME049186 markings, clear thirteen-tooth pinion, flange and terminal photographs, quantity, stock or jobsite purpose, packing requirement and destination. Include forecast and desired delivery date. Elecdura can then confirm the separate 13T version and prepare firm distributor price, lead time and shipment terms.

Request ME049186 Starter Motor Distributor Pricing

Send the Mitsubishi 4D31 or 4D32 engine details, Kobelco machine serial where applicable, complete ME049186 markings, clear 13T pinion, flange and terminal photographs, quantity, stock or jobsite purpose, packing needs and destination to info@elecdurauto.com. Elecdura will confirm the version and provide distributor terms.
