ME121635 Mitsubishi 6D40 Starter Motor Wholesale

ME121635 Mitsubishi Fuso Starter Motor Wholesale for Fleet Buyers

Fuso 6D40 vehicles may remain in service across export fleets where original documentation varies. Linking ME121635 to the truck model, engine plate, old-unit numbers and current starter photographs gives an importer enough detail to price and stock the correct legacy replacement.

A familiar M009T60271 or Fuso reference cannot by itself prove the installed housing. This version combines an 11T module-3.5 drive with an Ø154 three-hole face, Ø100 register and 75 mm axial reference, so similar shorter-drive starters must remain separate.

ME121635 Starter Motor Drawing for B2B Long-Drive Verification

The product is specified as 24V, 5.0kW, 11T, module 3.5 and clockwise rotation. Keep this full set on commercial and warehouse records because an eleven-tooth pinion without the matching module, output and rotation does not define the required 6D40 starter.

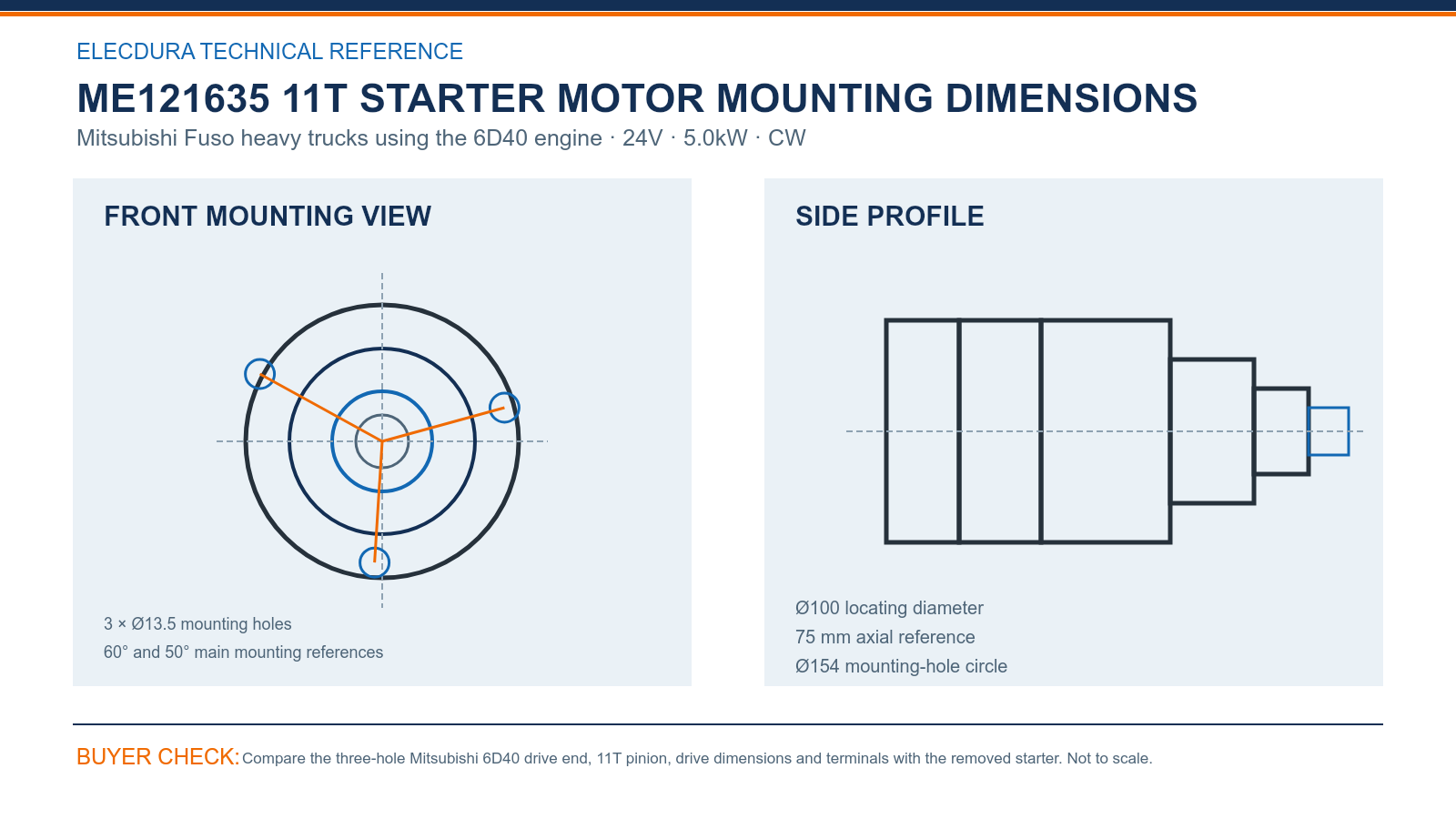

ME121635 Mitsubishi 6D40 Starter Drawing for Truck Distributors — compare the drawing with the removed starter before placing a volume order.

Compare three Ø13.5 mounting holes on an Ø154 circle, the Ø100 locating diameter, 75 mm axial position, and 60° and 50° main mounting references. Side photographs should show the full drive-end length and terminal placement so compartment clearance can be assessed.

ME121635 Starter Motor OE Checks for 6D40 Distributors

ME121635, M009T60271, M9T60271, M003T95281, M004T95681, M3T95281, M4T95681 and S5205 support aftermarket lookup. Keep the ME121635 requirement, Mitsubishi Fuso vehicle and 6D40 engine identity visible when these related numbers are used.

Legacy-fleet distributors should attach the accepted image set to the customer's truck or engine record and place 11T, module 3.5 and long drive on the bin description. This reduces dependence on an old label that may become unreadable before the next reorder.

ME121635 Starter Motor Stock Supply for Legacy Truck Service

First-lot inspection should check the long drive end for transit damage, count the pinion teeth, verify three mounting ears and inspect the terminals and solenoid. Reinforced packing is important because the extended nose and large flange should not carry carton impact.

The Elecdura production video shows starter assembly and electrical testing for wholesale programs. Mitsubishi Fuso buyers can use it when reviewing inspection and packing expectations, while ME121635 remains tied to the confirmed 6D40 truck, 5.0kW output and long-drive geometry.

ME121635 Starter Motor FAQs for Mitsubishi Fuso Buyers

Which Mitsubishi Fuso and 6D40 details confirm ME121635?

Include the Mitsubishi Fuso truck model or chassis, readable 6D40 engine plate and every marking from the removed starter. Add front, pinion, long-drive and terminal photographs. These details connect ME121635 to the actual legacy vehicle and help a distributor preserve the same confirmed configuration when labels or customer records become less readable over time.

Can M009T60271 be used as an ME121635 search route?

Yes. M009T60271 and M9T60271 are useful search references for ME121635 and can reconcile different aftermarket records. Confirm them against the Fuso 6D40 application, 24V 5.0kW 11T module-3.5 specification, Ø154 mounting face, Ø100 register and 75 mm drive position before accepting the product for shipment. Retain the selected Fuso vehicle and mounting images for later reorders.

Why must the 11T pinion be paired with module 3.5?

Eleven teeth describe only the count, while module 3.5 defines the tooth size and gear form. A different module can prevent correct engagement even when the pinion has 11T. Carry both values with the 5.0kW rating and clockwise rotation, and compare the removed pinion before approving ME121635 for repeat supply.

Which measurements identify the long-drive Fuso starter?

Verify three Ø13.5 holes on the Ø154 mounting circle, the Ø100 locating diameter, 75 mm axial reference, and 60° and 50° main mounting angles. Use both front and side views to capture the extended nose. The 75 mm position is especially useful for excluding a shorter starter that shares related Fuso references.

What photographs help confirm 6D40 compartment clearance?

Photograph the starter while installed from the terminal and drive sides, showing frame rails, cables, brackets and any nearby exhaust or engine components. After removal, add both full body profiles. These images show whether the long drive and solenoid position have adequate space, supporting a fitment check beyond the mounting flange.

How should distributors label legacy ME121635 inventory?

Label the bin with ME121635, Mitsubishi Fuso 6D40, 24V 5.0kW, 11T module 3.5 and long-drive 75 mm. Attach the accepted vehicle and starter images to the customer account. This fuller identity protects the stock line when an old truck returns later with faded labels or incomplete paperwork.

Which first-lot defects require attention on this long starter?

Inspect the extended drive end, each mounting ear, pinion teeth, solenoid attachment and terminal insulation before releasing the first lot. Reject bent ears, nose impact, cracked covers, loose movement inside the carton or moisture marks. Compare the 75 mm drive profile with the reference image because transit damage can alter alignment without changing electrical test results.

What evidence supports an ME121635 wholesale quotation?

Send the Fuso truck or chassis details, 6D40 engine plate, ME121635 and all related M9T markings, straight front, long-drive and terminal photographs, quantity, annual requirement, packing preference and destination. With this evidence, Elecdura can verify the 5.0kW 11T module-3.5 version and provide wholesale price and lead time.

Request ME121635 Starter Motor Wholesale Pricing

Email the Mitsubishi Fuso truck model, 6D40 engine plate, all ME121635 or M9T references, front, long-drive and terminal photographs, quantity, packing request and destination to info@elecdurauto.com. Elecdura will compare the configuration and provide wholesale pricing, lead time and legacy-stock options.
