S1009 Cummins K38 Scania Starter Motor Wholesale

S1009 Starter Motor Fleet Replacement Supply for Cummins K38 and Scania DSC11.08 engines

S1009 supports Cummins K38 and Scania DSC11.08 engines sourcing where buyers need a defined electrical and drive-end match. Its 24V, 9.0kW, 11T CW specification must remain linked to the 24V 9.0kW 11T module-4.233 high-output unit for the cataloged engine group; a visually related unit may belong on a different RFQ line.

Before comparing S1009 prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

S1009 Starter Motor Technical Data for Fleet Parts Buyers

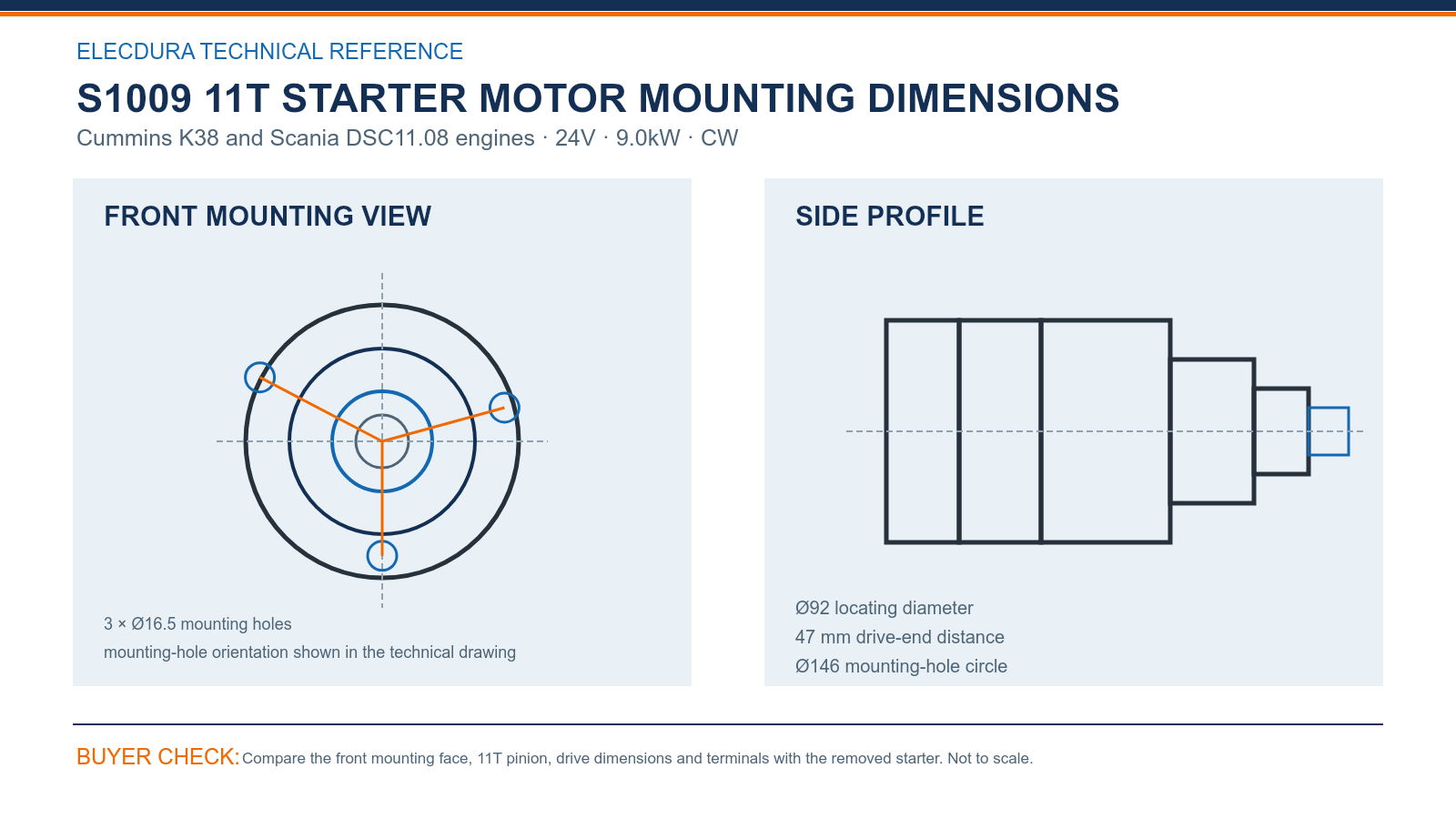

The S1009 dimensional review starts at the mounting face: verify 3 × Ø16.5 mounting holes, Ø146 mounting-hole circle and Ø92 locating diameter. Then compare the 47 mm drive-end distance. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For S1009, electrical and mechanical identity must agree: 24V, 9.0kW, 11T, module 4.233 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

S1009 Starter Motor Cross-Reference Review for Fleet Buyers

The S1009 cross-reference group includes S1009, 110347, 201297T91, 462588C91, 0R4259, 0R4272, 0R5211. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 24V, 9.0kW, 11T, CW, mounting geometry and terminals.

If a mixed S1009 enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

S1009 Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for S1009 can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

Stock planning should reflect the supported Cummins K38 and Scania DSC11.08 engines population, recent consumption and transfer time between service locations. Keeping S1009, the 11T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For S1009, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

S1009 Starter Motor Questions from Commercial Buyers

Before removing S1009, what should the workshop test under load in a Cummins K38 Scania workshop workshop?

Before fitting S1009, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What should an importer include in the replenishment forecast for S1009 in a Cummins K38 Scania workshop program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For S1009, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

What should a distributor match before ordering S1009 for Cummins K38 and Scania DSC11.08 engines during workshop sourcing?

Use the complete removed-unit number and exact Cummins K38 and Scania DSC11.08 engines record. Compare the 11T pinion, 3 × Ø16.5 mounting holes, Ø92 locating diameter and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

What is the safe way to order S1009 from an alternate OE number in a Cummins K38 Scania workshop sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the S1009 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Which S1009 dimensions are practical for a warehouse inspection during a Cummins K38 Scania workshop inspection?

The first-lot check should cover 3 × Ø16.5 mounting holes, Ø92 locating diameter and 47 mm drive-end distance. Add the 11T pinion, rotation and terminal position to the inspection sheet. Recording those details helps a warehouse identify a mixed or incorrectly labelled unit before it reaches a workshop or customer.

Which first-lot checks protect a distributor receiving S1009 during a Cummins K38 Scania workshop receiving check?

For S1009, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø16.5 mounting holes, Ø92 locating diameter and the specified 11T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for S1009 in a Cummins K38 Scania workshop sourcing program?

Send the complete OE number, exact Cummins K38 and Scania DSC11.08 engines details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 24V 9.0kW 11T CW starter with packing, lead time, warranty and freight options.

Which photographs and readings help Elecdura review S1009 after installation in a Cummins K38 Scania workshop review?

Keep the carton or product traceability code and note when and where S1009 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

S1009 Ask for Starter Motor Export Pricing

Prepare the S1009 enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
