S1129 Cummins 8.3kW Starter Motor Wholesale Supply

S1129 Starter Motor Wholesale Fitment for Cummins heavy-duty engine

Cummins engine distributors, mining-equipment fleets and high-output starter wholesalers use S1129 to keep Cummins heavy-duty engine demand tied to one 24V, 8.3kW, 12T CW configuration. The practical distinction is the 24V 8.3kW 12T module-3.175 configuration tied to the supplier-defined Cummins record, which should be checked before a similar heavy-duty housing is accepted.

Build the S1129 RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

S1129 Starter Motor Specifications and Drawing for Wholesale Buyers

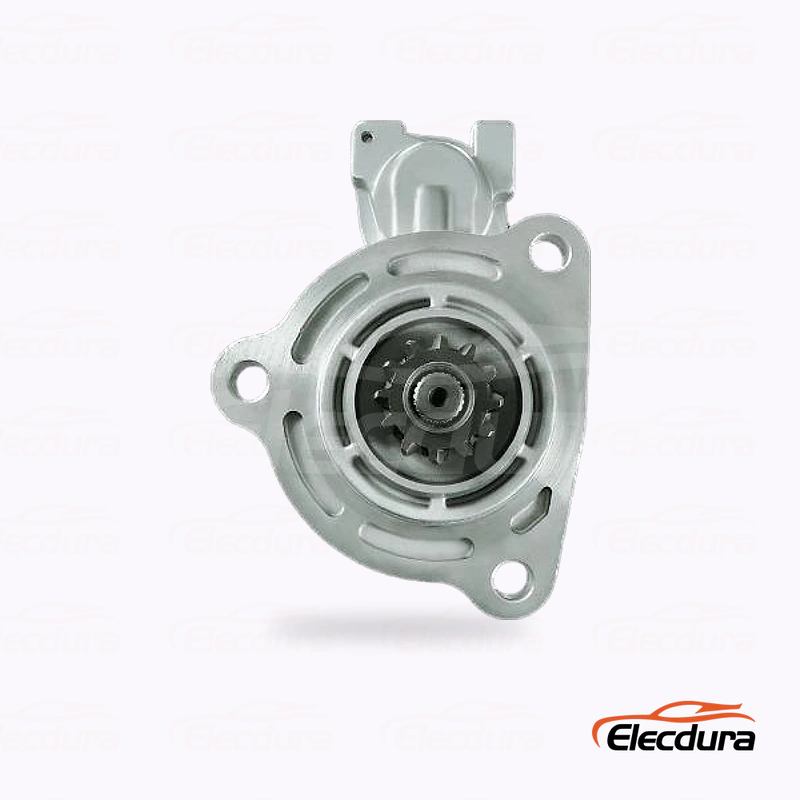

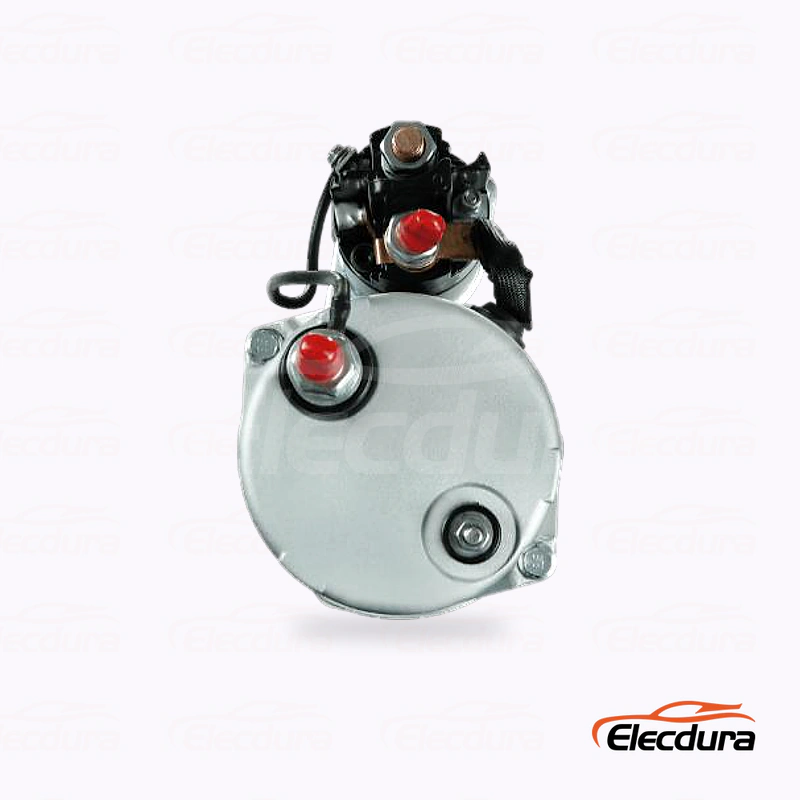

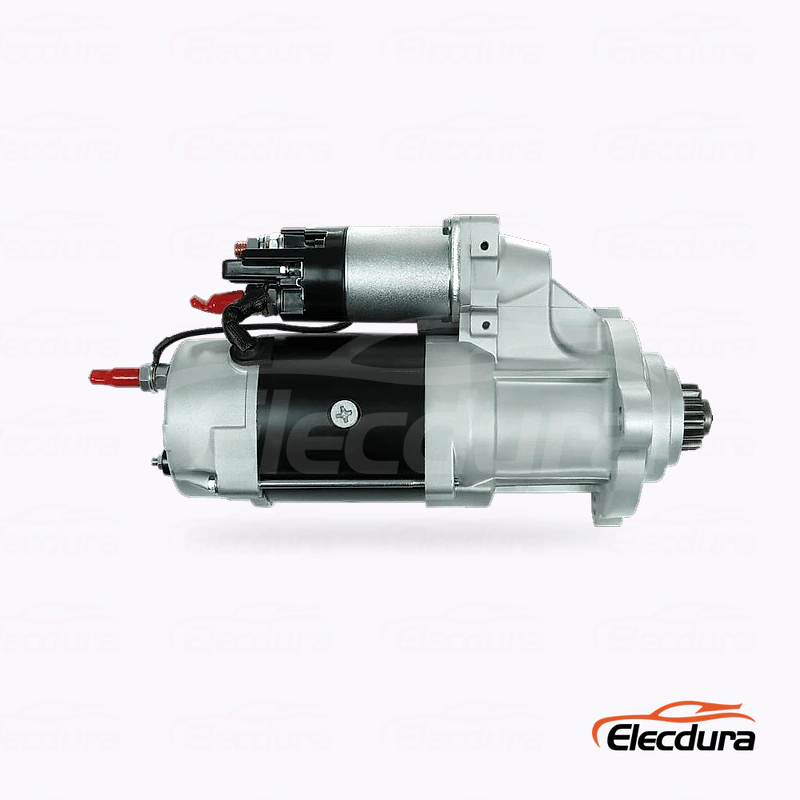

Compare S1129 at the three-hole mounting face shown in drawing, mounting-hole orientation shown in drawing and catalog-drawn locating face. The catalog-drawn drive-end position helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For S1129, count the 12T pinion and confirm module 3.175, CW rotation, 24V and 8.3kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

S1129 Starter Motor OE Cross-References for Distributor Enquiries

1. Search group: S1129, 115447, 3102763, 3938497, 4891301, 5367770, 10461759 can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 8.3kW, 12T, CW, the drawing and terminal photographs before accepting one physical unit.

S1129 Starter Motor Wholesale Supply and Export Planning

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested S1129 quantity, destination and required arrival date.

Retain the accepted reference, label and terminal views for repeat distributor orders. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of S1129 remains tied to the stated Cummins heavy-duty engine application, 12T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

S1129 Starter Motor Questions from Commercial Buyers

What should a distributor match before ordering S1129 for Cummins heavy-duty engine during fleet sourcing?

Use the complete removed-unit number and exact Cummins heavy-duty engine record. Compare the 12T pinion, three-hole mounting face shown in drawing, catalog-drawn locating face and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

What is the safe way to order S1129 from an alternate OE number in a Cummins 8.3kW fleet sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the S1129 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Which electrical conditions can imitate a failed S1129 starter motor in a Cummins 8.3kW fleet workshop?

Before fitting S1129, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

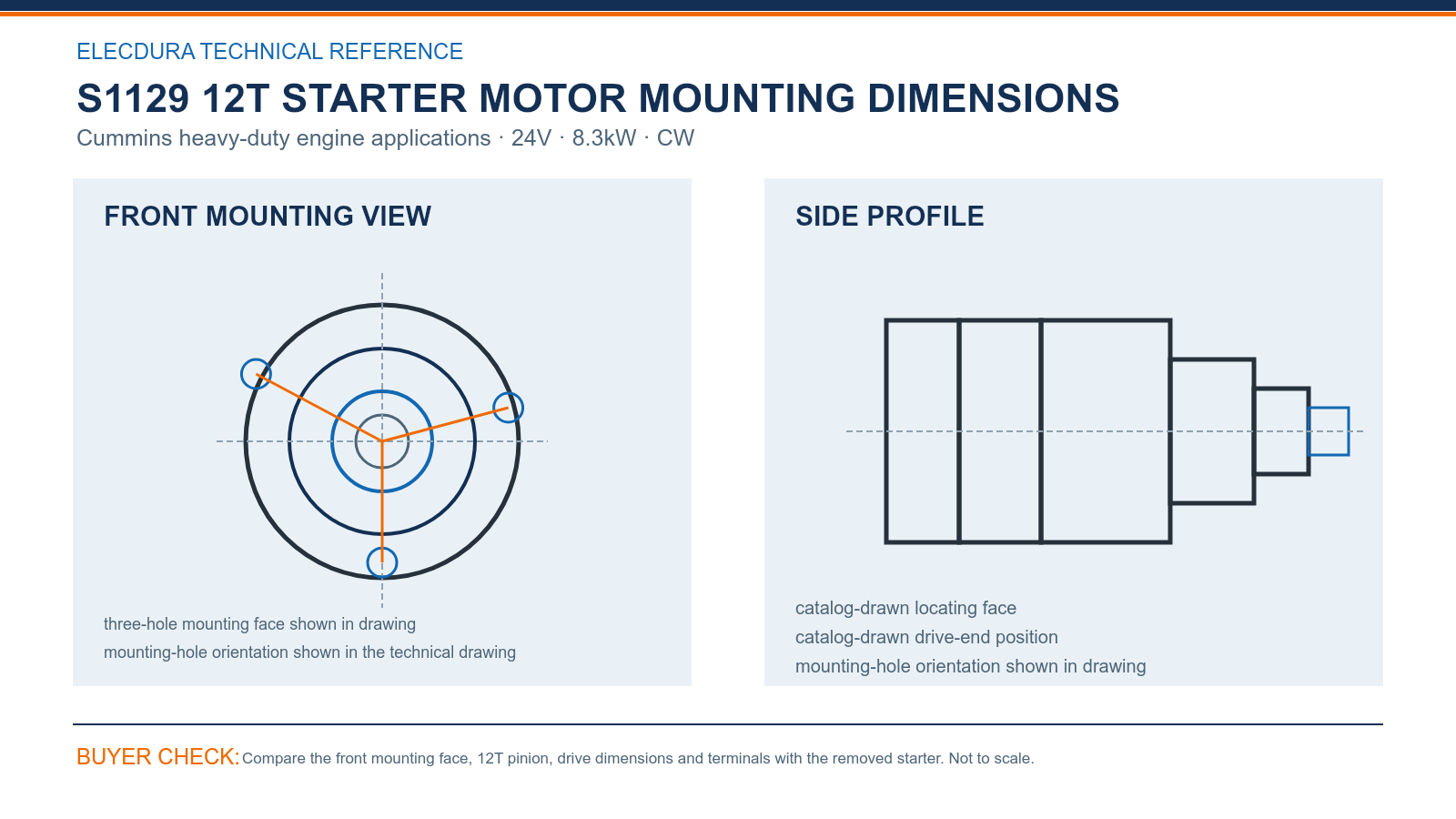

How does the S1129 mounting drawing support product approval during a Cummins 8.3kW fleet inspection?

For S1129, use a straight front view to compare the three-hole mounting face shown in drawing and mounting-hole orientation shown in drawing; use the side view for catalog-drawn locating face and catalog-drawn drive-end position. Complete the check with 12T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

How can branches reduce emergency transfers of S1129 stock in a Cummins 8.3kW fleet program?

Retain the accepted reference, label and terminal views for repeat distributor orders. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Which arrival photographs help trace a shipment of S1129 during a Cummins 8.3kW fleet receiving check?

Receiving should verify the S1129 label, quantity and packaging before opening sampled cartons. Compare the 12T drive, catalog-drawn locating face, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How can an importer obtain an accurate delivered price for S1129 in a Cummins 8.3kW fleet sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For S1129, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

Which installation facts help review unusual performance from S1129 in a Cummins 8.3kW fleet review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate S1129 without assuming that every no-crank complaint originates inside the starter.

S1129 Request Starter Motor Wholesale Pricing

Send the complete S1129 reference, Cummins heavy-duty engine details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 24V, 8.3kW, 12T CW starter, MOQ, packing, lead time, warranty and freight.
